Part names and functions

7. Blow station

The blow station blows high-pressure air internally through the nozzles and shafts to blow away dust and grit

and clean the nozzles.

Sensor for detecting

nozzles left on blow station

Multi-vision camera (standard)

Blow station

23118-L4-00

1-26

Part names and functions

7.1 Performing a nozzle shaft blow

This section explains how to manually perform a nozzle shaft blow at any desired timing.

Open the [Unit] – [Head] tab screen.

Press the [Cleaning Blow] button.

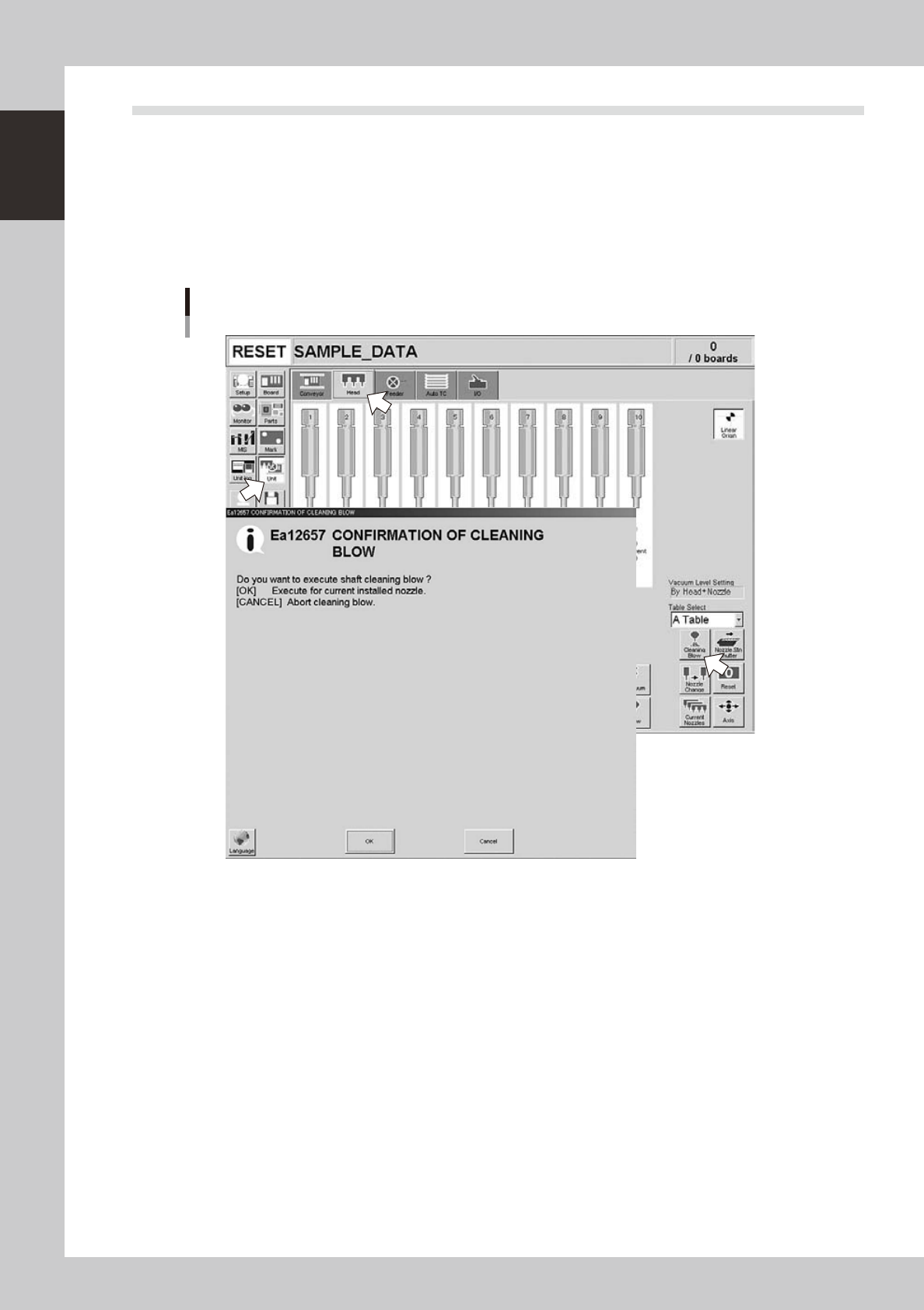

A confirmation dialog box appears asking whether to perform nozzle shaft blow.

Press the [OK] button to perform nozzle shaft blow and proceed to the next step. If you want to cancel

nozzle shaft blow, press the [Cancel] button.

Nozzle shaft blow

24100-L4-00

1-27

Part names and functions

Another dialog box appears for checking manual change nozzles.

Specify the nozzles you want to clean by nozzle shaft blow.

Pressing the [Close] button in the dialog box displays a screen for checking manual change nozzles as

shown below. Select the check boxes for the nozzles you want to clean by nozzle shaft blow.

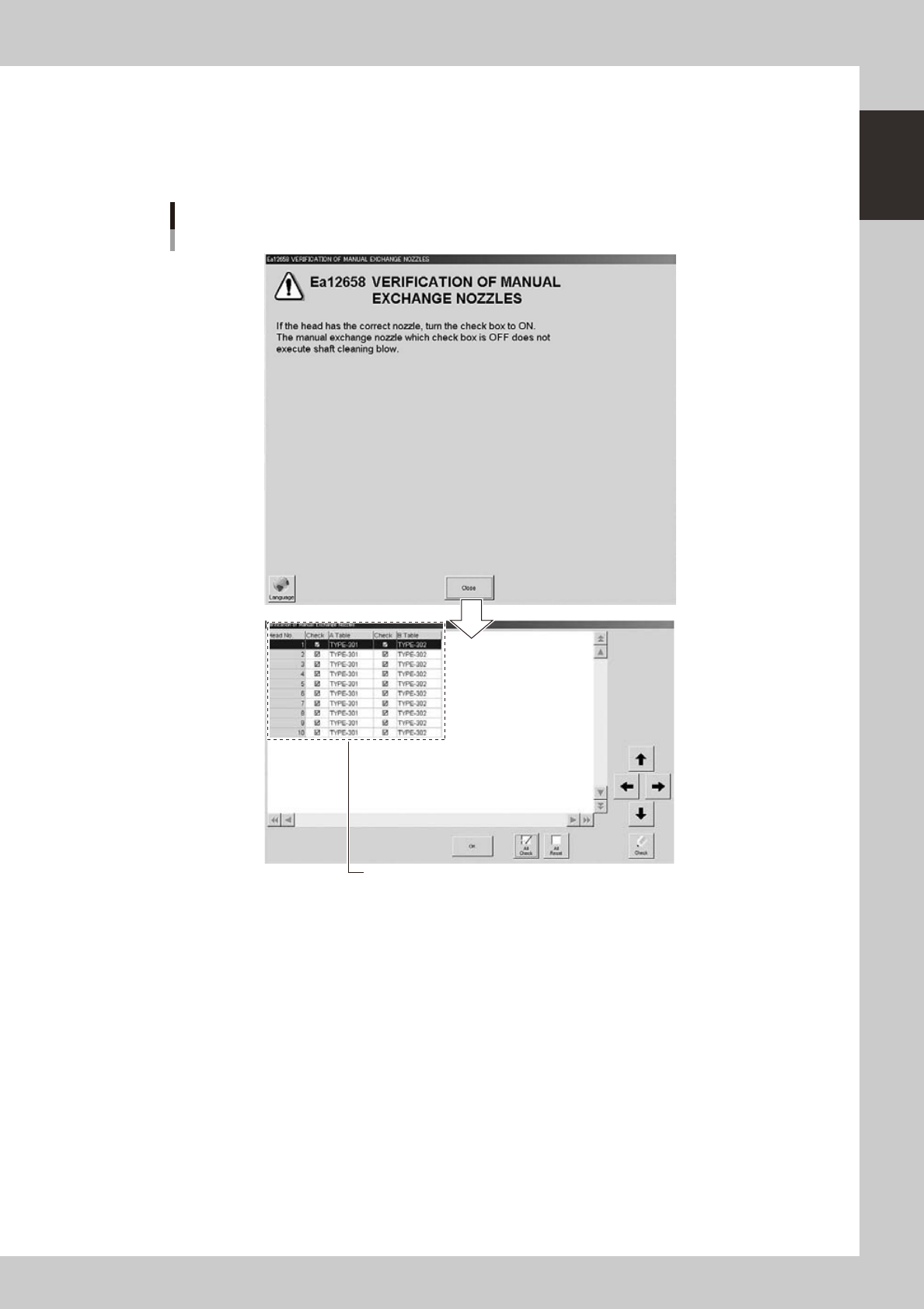

Dialog for checking manual change nozzles

Select the check boxes for the nozzles you want to clean by nozzle shaft blow.

24101-L4-00
