Part names and functions
Ea29094: Pallet Set Error
This error message appears when pull-out of the recovery pallet failed. Open the sATS door and check that the pallet and
magazine positions are correct.
n
Other errors
No. Error Name Error Message
Ea3989 Recovery Pallet Setting Error
Pallet No. set as magazine No. X recovery pallet is the
wrong No. for magazine No. X.
Ea3990 Recovery Pallet Setting Error
Not even one recovery pallet is set, even though set to
“Recovery: EXIST” in the machine settings.
Ea3991 Recovery Pallet Disable to Access
Parts picked up from the A table were set for disposal
onto recovery pallet.
(Error occurs because the A table cannot access the
ATS.)
Ea3992 Recovery Pallet Parts Size Error
Size of parts (XY) for disposal in the recovery pallet
exceeds maximum part size (XY) allowed in recovery
pallet.
Ea3993 Recovery Pallet Parts Size Error
Thickness of parts for disposal in recovery pallet
exceeds maximum part size allowed in recovery pallet.
Ea3994 Recovery Pallet Disable to Use
Disposal method was set to "Recovery Unit" but cannot
use dump station or recovery pallet.
Ea3995 Recovery Pallet Interfere Error
Pallet for supplying parts might be binding on recovery
pallet due to part thickness, etc.
n
NOTE
See the separate "YS Series Programming Manual" for information on changing parameters in the machine settings.
Chapter 2 Basic operation
Contents
1
1.1 Canceling emergency stop 2-1
1.2 Clearing an error 2-2
1.3 Typical errors and troubleshooting 2-3
8
8
2.2 Setup screen 2-11
2.3 Unit screen 2-13
3. Starting and stopping the machine 2-19
3.1 Pre-operation check 2-20
3.2 Starting the machine 2-21
3.3 Warming up the machine 2-23
5
3.4.1 Conveyor unit setup flow 2-26
4. Preparing the component supply unit 2-29
4.1 Tape feeders 2-29
4.1.1 Setting the tape 2-29
4.1.2 Setting a tape feed pitch 2-34
4.1.3 Installation on a mounter 2-38
4.2 Wide multi-stick feeder 2-39
4.2.1 Installation of tracks and sticks 2-39
4.2.2 Installation on a mounter 2-42
4.3 Tray changer (sATS
II
3
4.3.1 Setting the component trays in the pallet 2-44
4.3.2. Setting the pallet in the magazine 2-45
4.3.3 Replacing a magazine or pallets 2-47
5. Settings on the mounter side 2-49
5.1 Setting the "Package" parameter. 2-49
4
2-1
2
asic operation
1. Before operation
The following explains how to cancel emergency stop and clear errors. Read before operating the machine.
n
Cautions during machine operation
• Do not turn off the compressed air during operation. The machine may malfunction, as pneumatic devices are not
correctly controlled.
• Before beginning maintenance work, always make sure that no air pressure remains in air cylinders.
n
Cautions during power outages
If a power outage (blackout) occurs during automatic machine operation, always turn the main power switch off to
prevent faulty operation or machine damage after power has been restored. Also remove the boards that remain in the
machine.
1.1 Canceling emergency stop
Follow these steps to cancel emergency stop.
1
Release the emergency stop button.
When the emergency stop button is pressed, turn it clockwise to release it.
2
Check safety.
Before continuing the procedure, check the surrounding area for safety.
3
Press the [READY] button.
Pressing the [READY] button on the operation panel turns on the servomotors.

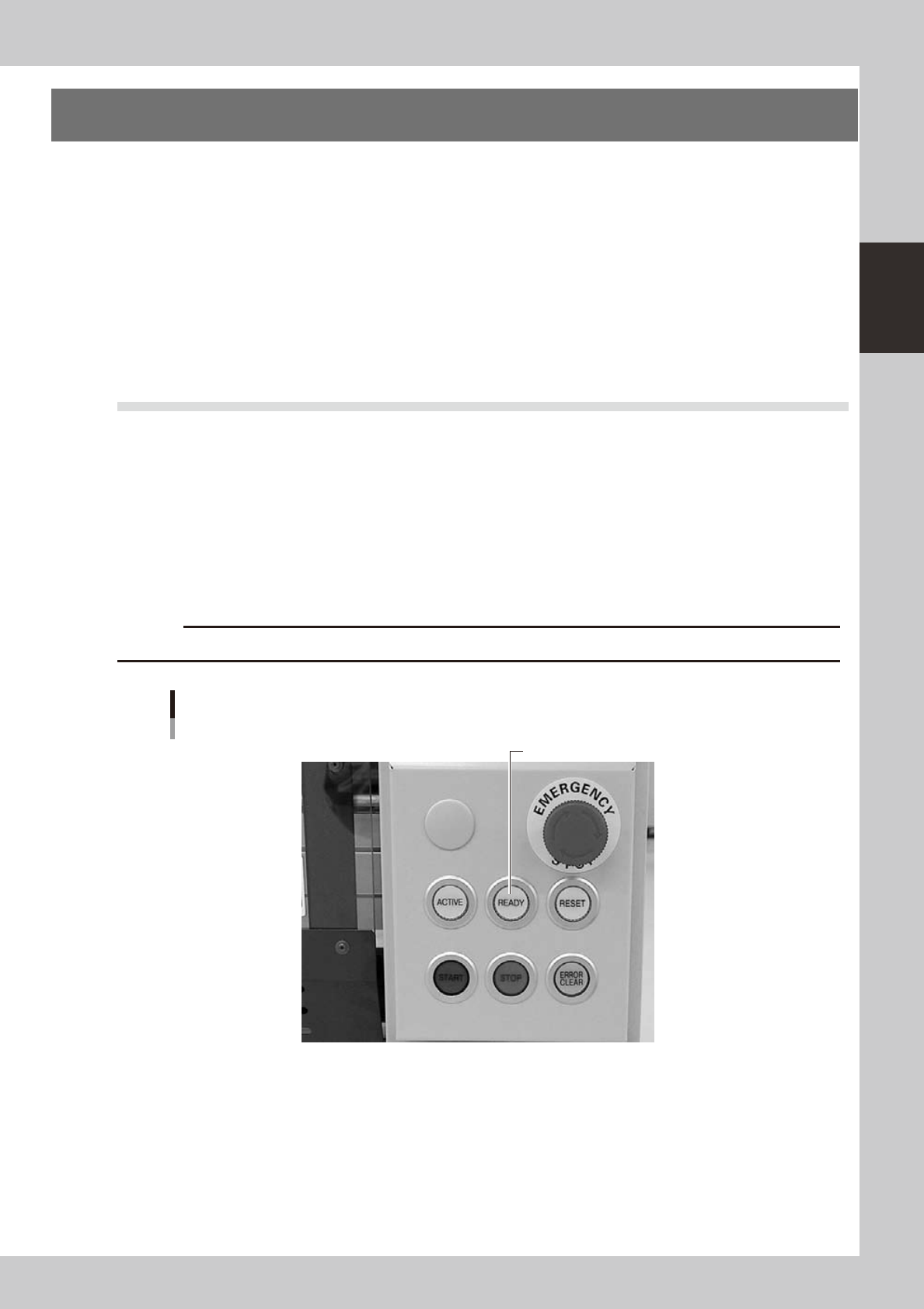

c
[READY] button
Press the [READY] button to turn on the servo.
23200-L4-00
4
Check the signal light and screen display.
Check that the red lamp of the signal light is off and the emergency stop sign on the top left (status
area) of the operation screen is now off.
