2-14
2
asic operation

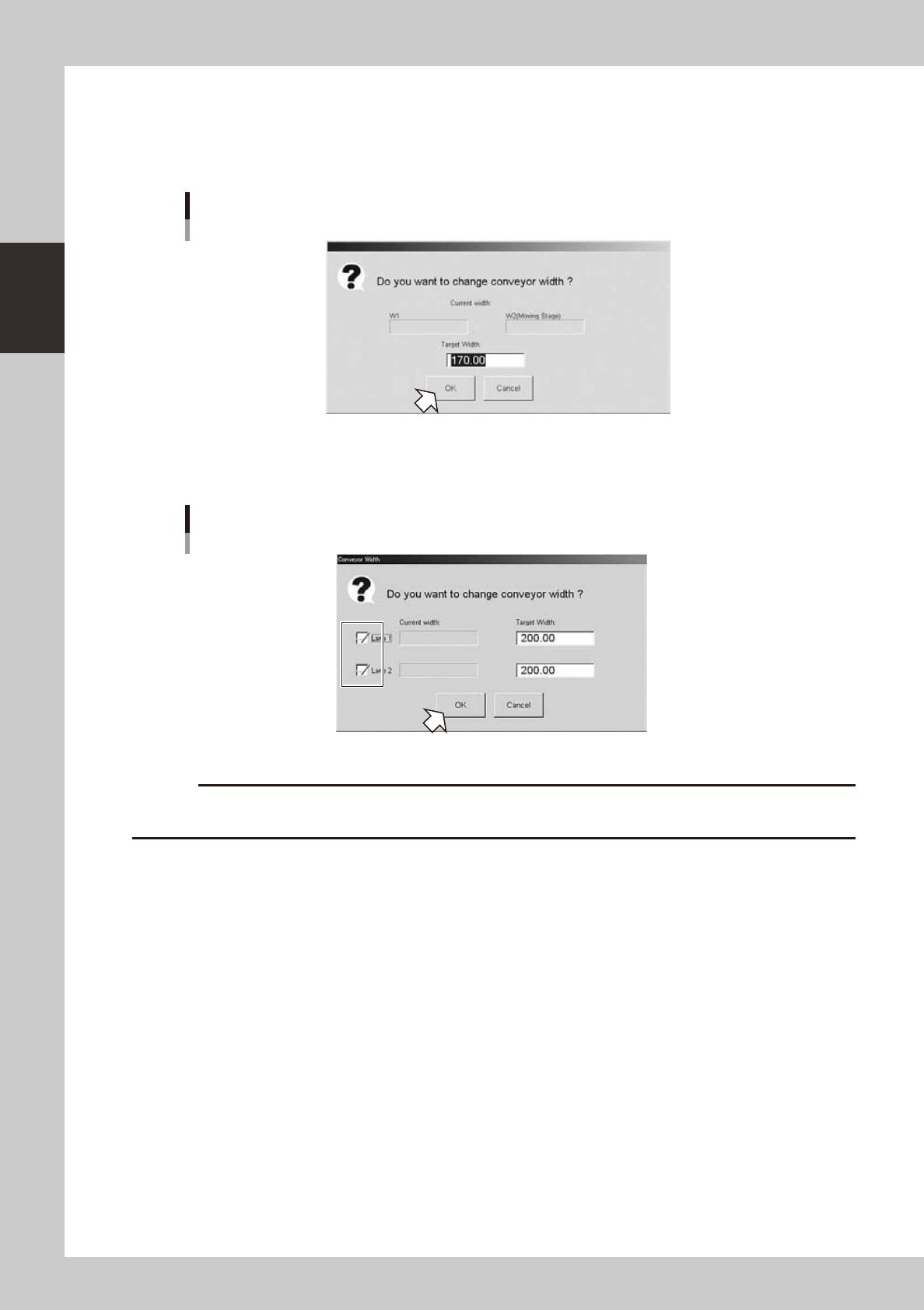

4. [Width] button
Use this button to adjust the conveyor width to match the width of boards to be produced.
Pressing this button displays the "Conveyor Width" dialog box. Check the conveyor width and press the [OK] button. The
conveyor rail automatically changes to the specified width.
"Conveyor Width" dialog box
Example of Dual-stage
24205-L4-10
In dual-lane machines, the conveyor width can be specified for each lane.
When using only one lane, enter the conveyor width after clearing the check box for the lane that is not to be used.
"Conveyor Width" dialog box
Dual-lane
24234-L4-00
c
conveyor units.
2-15
2
asic operation

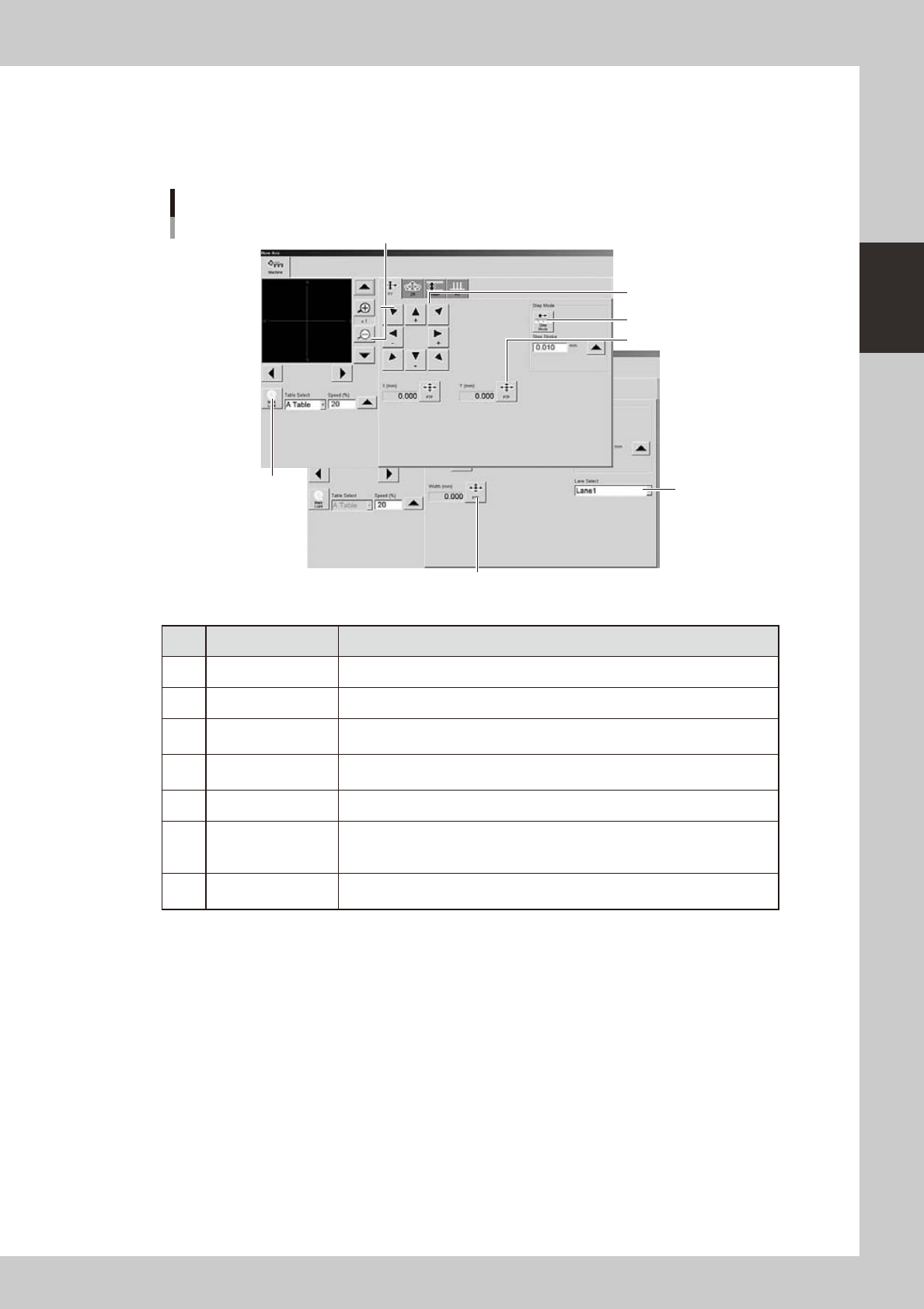

5. [Axis] button
Use this button when moving each axis manually.
Pressing this button displays the "Move Axis" screen that allows you to manually move each axis at a specified step
stroke with the arrow buttons or to a specified position with the [PTP] buttons.
"Move Axis" screen
1
2
3
4
7
5
6
24206-L4-00
Button name Function
1 Zoom in/out (+, -) Zooms in or out the image. (16 times to 1/16 times)
2 Mark Light Allows changing mark lighting manually. Using this button does not affect data.
3 PTP
Displays the "PTP" dialog box that allows directly specifying the position where
you want to move the selected axis.
4 Step Mode
When this button is pushed in, the selected axis can be moved in "step mode
(inching mode)" with the arrow buttons at a specified step stroke (inching stroke).
5 Arrow Use these buttons to move the selected axis in the desired direction.
6 Brake
Use this button when you want to release the brake during emergency stop.
(PU axis only)
The brake is automatically released when the servo is turned on.
7 Lane select
When using both lanes of dual-lane machines, select the lane to be operated.
(Only the width axis and PU axis can be operated.)
6. [Left] button, [Right] button
Rotates the conveyor motor in the left or right direction at high speeds.
7. [Low Left] button, [Low Right] button
Rotates the conveyor motor in the left or right direction at low speeds.
8. [Exit Stopper] button
Raises or lowers the exit stopper that stops a board at the conveyor exit.
9. [Main Stopper] button
Raises or lowers the main stopper that stops a board in the clamp position on the conveyor.
10. [Board Clamp] button
Clamps the board by pushing up its edges from the bottom (underside).
11. [Push Up] button
Pressing this button opens a dialog box for entering board thickness. Check or enter the board thickness to clamp the
board by pushing it up from the bottom (underside).
12. [Entrance Stopper] button
Use this button to stop the incoming board at the standby position.
This button cannot be used for dual-stage machines.
2-16
2
asic operation
n

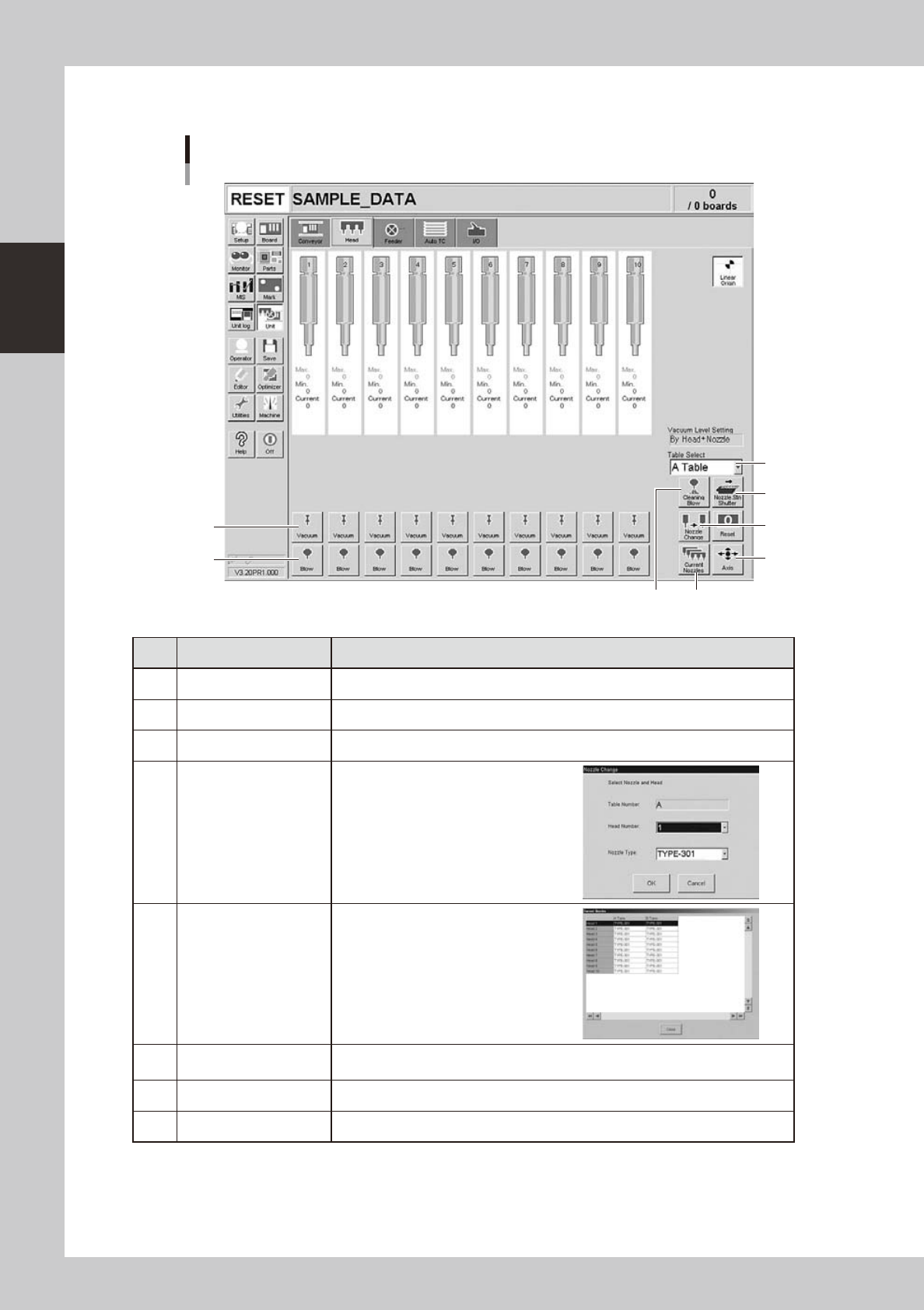

Manual head operation
[Unit] – [Head] screen
1
2
3
4
5
6
8
7
24207-L4-00
Button name Function
1 Vacuum Turns the vacuum of each head on or off.
2 Blow Turns the air blow in each head on or off.
3 Nozzle STN Shutter Opens or closes the nozzle station shutter.
4 Nozzle Change
Opens the "Nozzle Change" dialog box.
Specify the head and nozzle type to
perform nozzle change.
5 Current Nozzles
Shows a list of nozzle types currently
attached to each head.
6 Axis
Opens the "Move Axis" screen. This is the same as the [Axis] button on the [Unit]-
[Conveyor] screen.
7 Cleaning Blow Not currently used.
8 Table Select Switches between the A Table (front) and B Table (rear) displays.
