2-20 2 asic operation 3.1 Pre-operation check e Check the follo wing points before turning on the power . w W ARNING n Pre-operation checklist …
2-19
2
asic operation
3. Starting and stopping the machine
This section explains routine procedures for starting and turning off the machine according to the flow charts
beow.
Starting and turning off machine
Production (Running)
Press emergency stop button
Return axes to origins
Turn off power switch
Check before operation
Preform return-to-origin
Specify operator
Press [Off] button on screen
Program is loaded.
Return-to-origin dialog box appears.
Move-to-origin dialog box appears.
Shut down dialog box appears.
Finish board production.
Setup screen appears.
Turn on power switch
23201-L4-00
2-20
2
asic operation
3.1 Pre-operation check
e
Check the following points before turning on the power.
w
WARNING
n
Pre-operation checklist
Check item Checkpoint
Power supply
Check that the specified power is connected to the power supply box located behind the
front lower right panel of the machine.
Safety cover Check that the covers are closed.
Feeder Check that feeders are securely attached to the feeder plate and are not tilted.
Check that no chips or debris adhere to the feeders.
Conveyor Check that no chips or debris are on the conveyor.
Check that the conveyor units do not interfere with each other, such as push-up pins
under the conveyor rails.
Head Check that each nozzle is correctly installed to the head.
Nozzle
Check that the nozzle tips are not nicked, solder does not adhere to the nozzle tips, and
nozzle spring-action is smooth.
Feeder exchange
carriage (option)
Check that no chips or debris are on the feeder plate. Also check that the parts feeders
are securely attached to the feeder plate and no chips and debris adheres to them.
Tray component
supply unit (option)
(sATS
II
)
There is no pallet on the pallet stage.
The magazine door is closed.
No pallets are protruding toward the stage from the magazine.
The sATS
II
is in "RUN" mode.
QFP dump station
(option)
Check that the QFP dump station is securely attached to the feeder plate and also that
no chips and debris adhere to it.
Recovery palette
(Option)
Recovery pallet is set in position.
No parts are placed in the recovery pallet.
w
WARNING
c
The machine will not start operation unless feeder exchange carriages are installed.
2-21
2
asic operation
3.2 Starting the machine
Proceed as follows to start the machine.
1
Turn the main power ON.

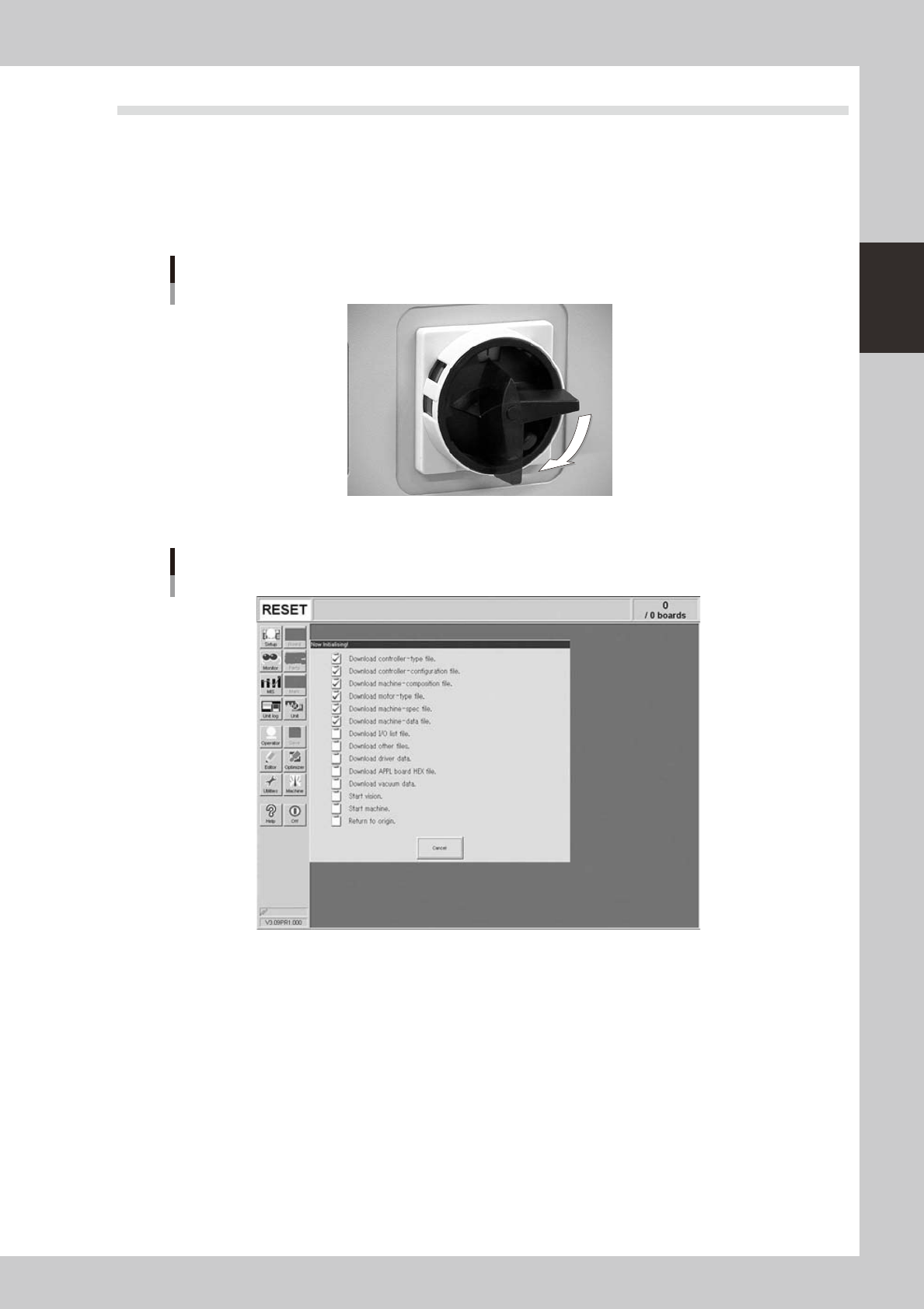

Turn on the main power switch at the front lower right of the machine, by turning it to the right. After the
system has started, the Initialization screen appears and the program necessary for machine operation
is loaded.
ON
OFF
Main Switch
23202-L4-00
Initialization screen
24213-L4-00
2
Perform return-to-origin.
The return-to-origin dialog box appears. Press the [READY] button and follow the instructions on the
screen.
