3.3 Warming up the machine
After starting up the machine, we recommend warming it up for about 10 minutes in most cases. If less than
two hours has elapsed after the machine was last used, no warm-up is necessary.
1
Make pre-operation checks and then start up the machine.
For pre-operation checks and starting up the machine, see "3.1 Pre-operation check" in this chapter.
2
Press the [Warm Up] button on the Setup screen.
The Warm-up screen then appears.
3
Enter a warm-up time.
Press the [Stop after time over] button and enter the warm-up time. Warm-up will automatically stop
when the warm-up time you set has elapsed. Normally, about a 10-minute warm-up is sufficient.

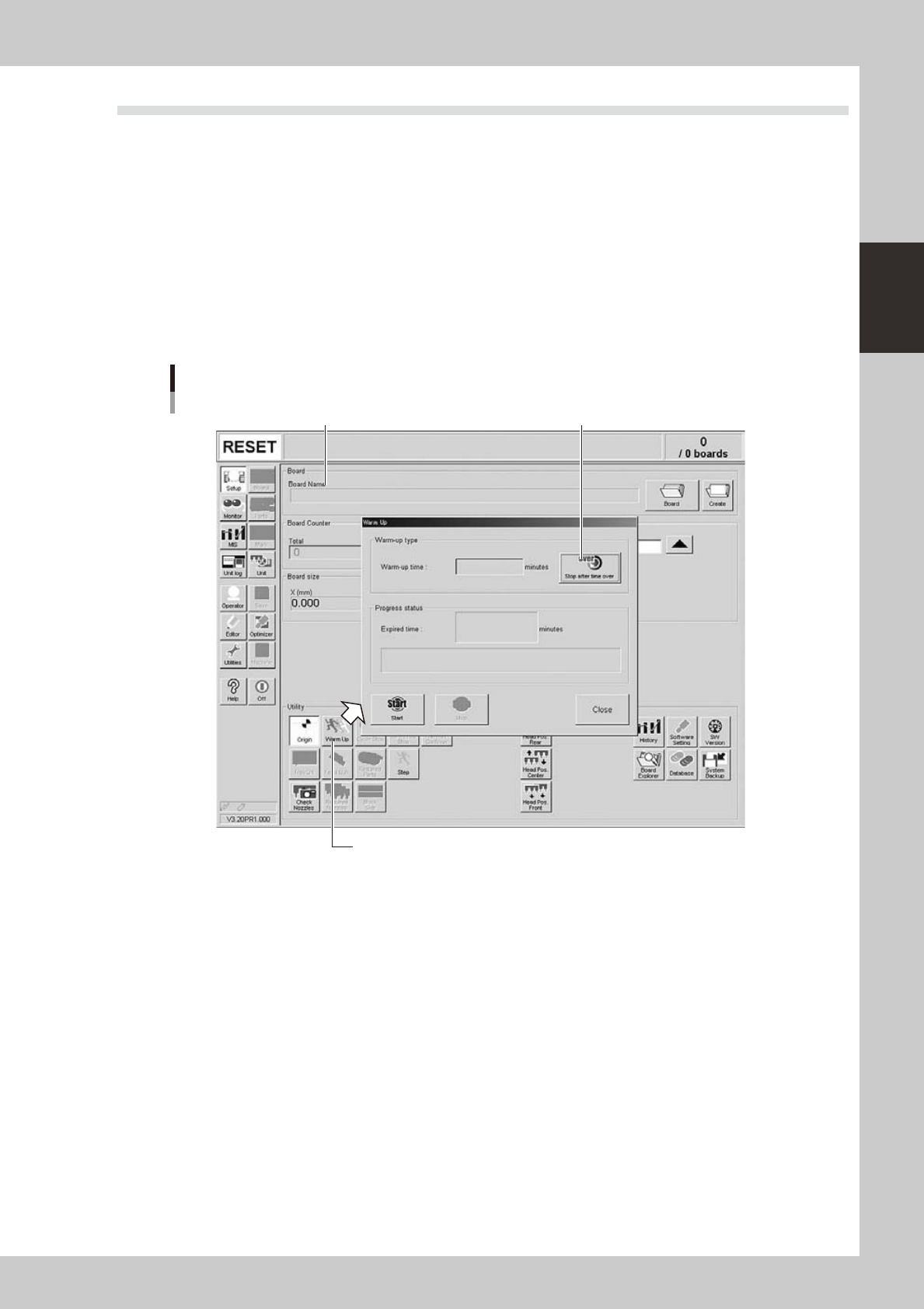

Press [Warm Up] button to open "Warm Up" screen.
Setup screen
Warm-up time setting
Press this button to set warmup time.
24216-L4-00
2-24
2
asic operation
4
Press the [Start] button to start warm-up.

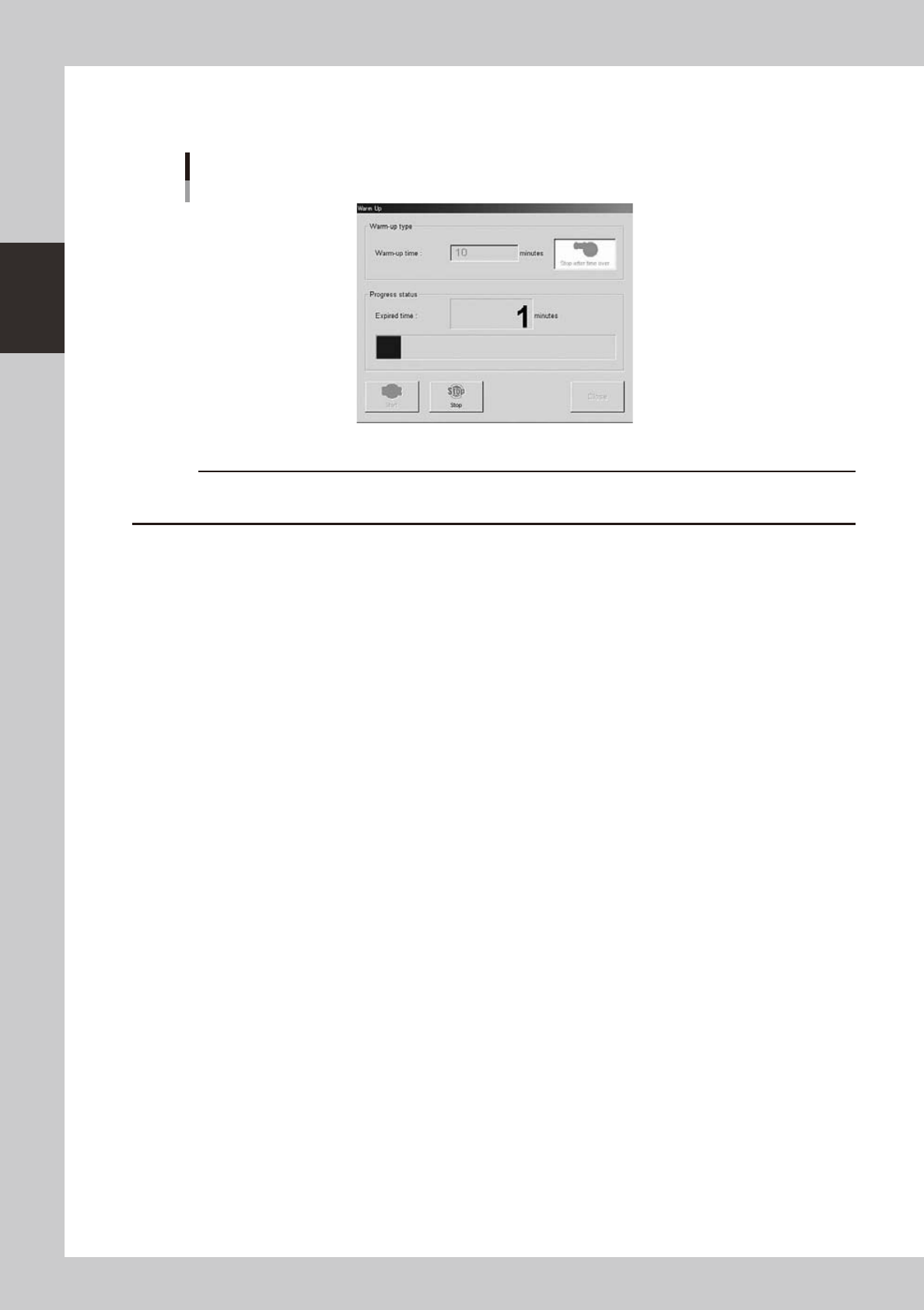

The warm-up progress time and status will appear under the "Progress status".
Warm-up screen
24217-L4-00
c
the problem and eliminate it.
5
Finish the warm-up.
Warm-up will automatically stop when the warm-up time you set is reached. Press the [Close] button,
and return to the previous screen.
2-25
2
asic operation
3.4 Adjusting the conveyor unit setup
When the board type to be produced is changed, the conveyor unit setup must be adjusted, and the feeders
prepared to match that board type. This section describes how to change the conveyor unit setup.
n
NOTE
When producing boards using both lanes of dual-lane machines, use the lane select button to select the lane to be
operated and then adjust or check the conveyor unit setup.
Board clamping method
Select "Edge Clamp" for the board clamping method. This method clamps a board by pushing up its edges against the
board hold plates. Push-up pins are also used to support the board at points other than its edges.

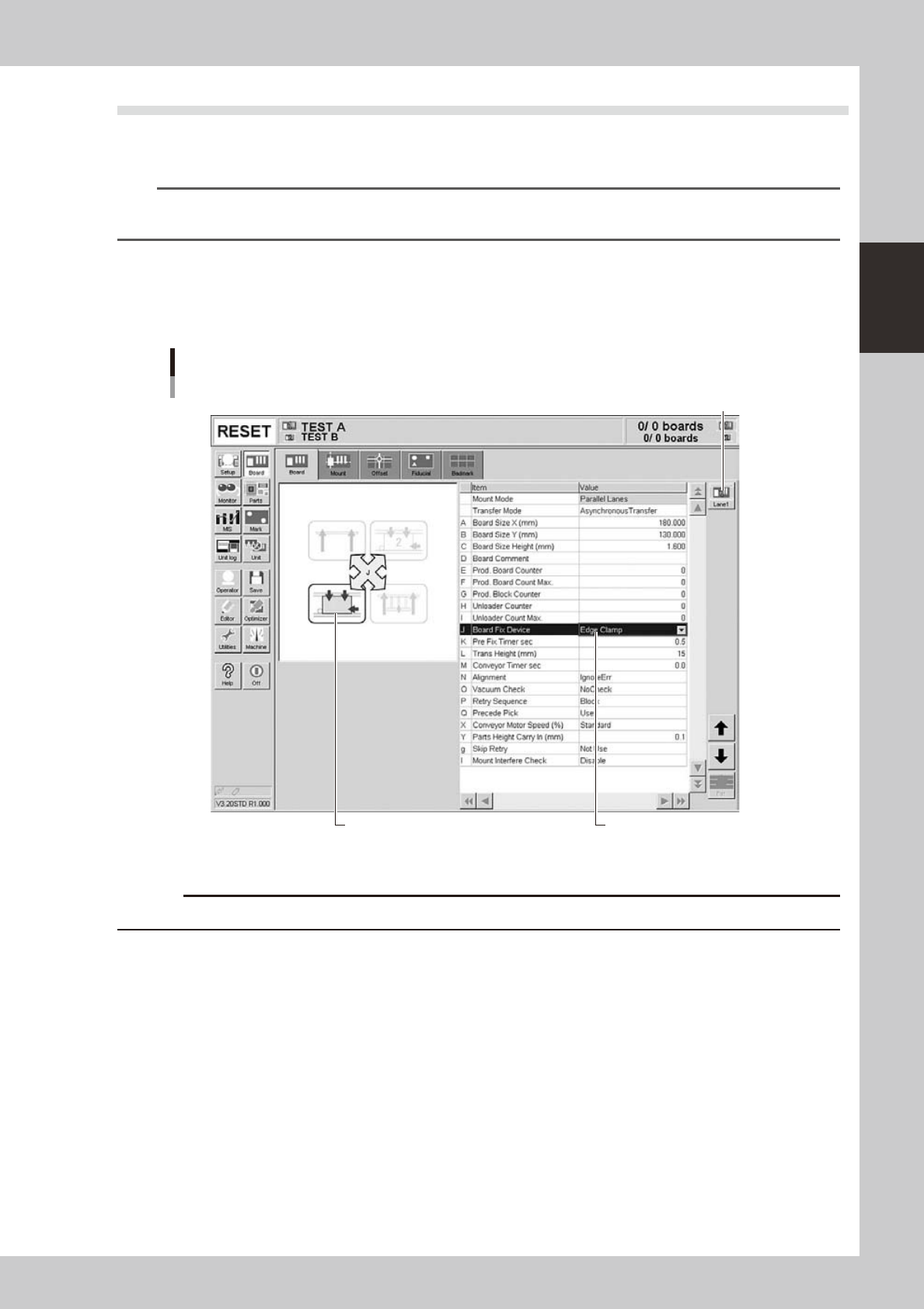

Board clamping method
Checking board clamp method
Illustration shows how board
is clamped on the conveyor.
Lane select button
24218-L4-10
c
Conveyor's board sensors may fail to detect a production board if it has a slit or cutout.
