13 Placement Heads TwinHead T winHead Fine-pitch camera a (component camera type 33) a) A maximum of two stationary cameras can be configured in one placement area. TwinHead Flip-chip camera (option) a (component camera …

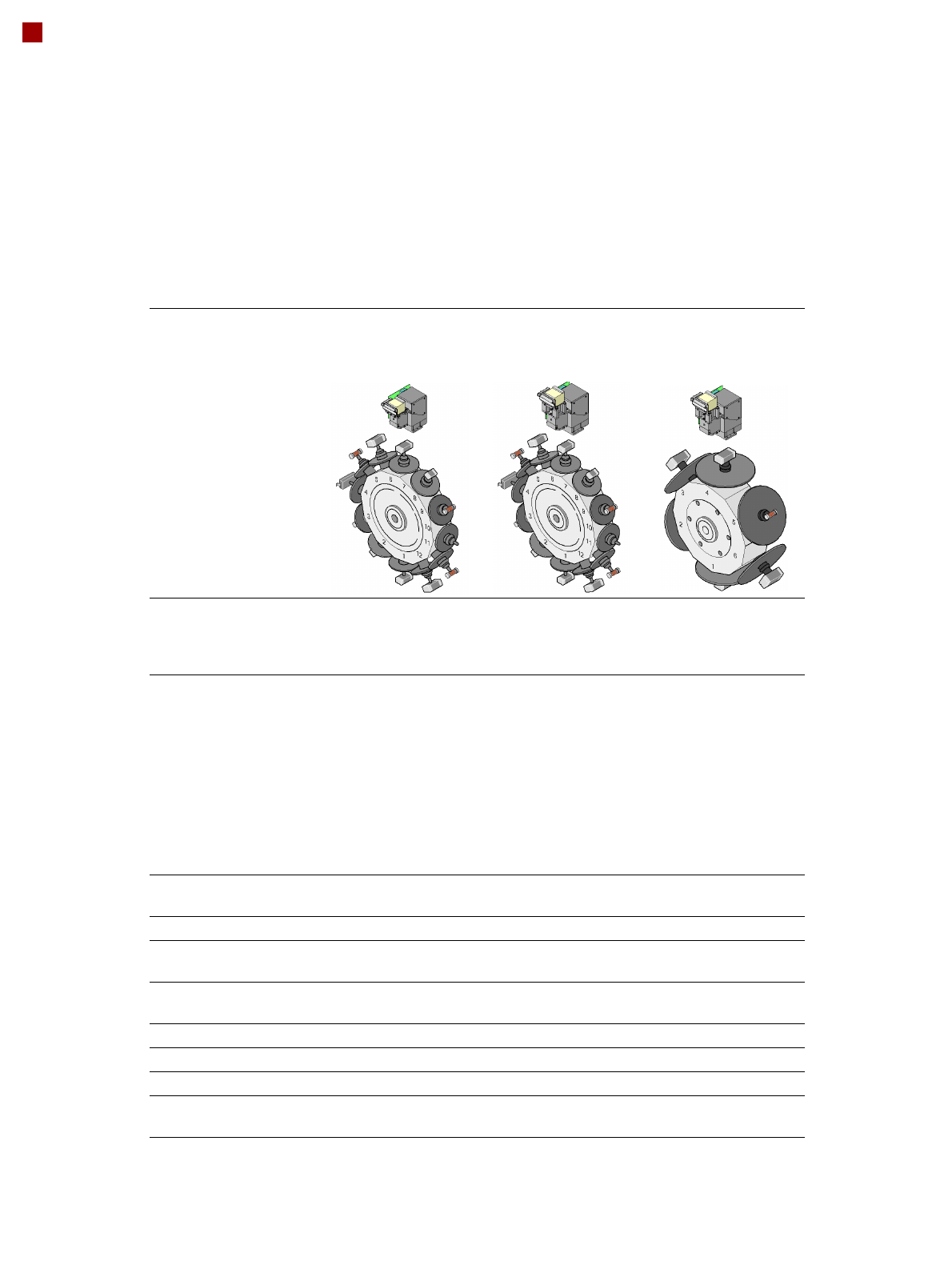

Placement Heads

Collect&Place Heads

12-nozzle

Collect&Place head

CO camera type 28

12-nozzle

Collect&Place head

CO camera type 29

6-nozzle

Collect&Place head

CO camera type 29

Component range

a) Please note that the range of components that can be placed is also affected by the pad geometry, cus-

tomer-specific standards, component packaging tolerances and component tolerances

0402 to PLCC44, BGA,

µBGA, flip-chip, TSOP,

QFP, SO to SO32,

DRAM

0201

to flip-chip, bare

die, PLCC44, BGA,

µBGA, TSOP, QFP, SO

to SO32, DRAM

b) With 0201 package

0201 to 27 x 27 mm²

Component spec.

max. height

min. lead pitch

min. lead width

min. ball pitch

min. ball diameter

min. dimensions

max. dimensions

max. weight

6 mm

0.5 mm

0.2 mm

0.35 mm

0.2 mm

1.0 x 0.5 mm²

18.7 x 18.7 mm²

2 g

6 mm

0.3 mm

0.15 mm

0.25 mm

0.14 mm

0.6 x 0.3 mm²

18.7 x 18.7 mm²

2 g

8.5 mm

0.3 mm

0.15 mm

0.25 mm

0.35 mm

0.14 mm

0.2 mm

0.6 x 0.3 mm²

27 x 27 mm²

5 g

c) For components < 18 x 18 mm²

d) For components  18 x 18 mm²

Programmable set-down

force

2.4 N - 5.0 N 2.4 N - 5.0 N 2.4 N - 5.0 N

Nozzle types 9xx 9xx 8xx, 9xx

X/Y accuracy

e) The accuracy value was measured using the vendor-neutral IPC standard

± 45 µm/3

± 60 µm/4

± 41 µm/3

± 55 µm/4

± 45 µm/3

± 60 µm/4

Angular accuracy ± 0.5° / 3

± 0.7° / 4

± 0.5° / 3

± 0.7° / 4

± 0.2° / 3

± 0.3° / 4

Component range 98% 98.5% 99.5%

Component camera type 28 29 29

Illumination levels 5 5 5

Possible illumination

level settings

256

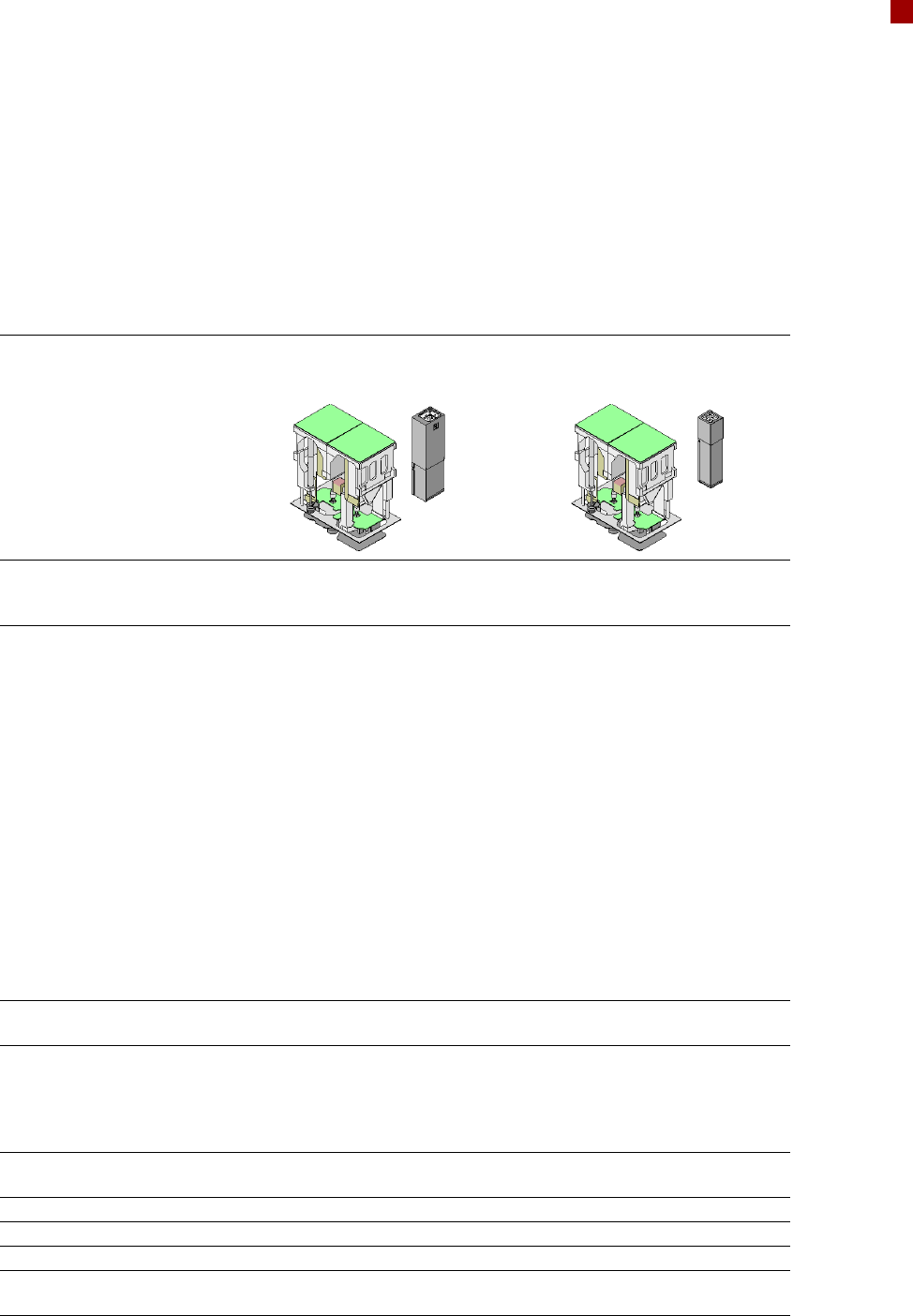

Placement Heads

TwinHead

Fine-pitch camera

(component camera type 33)

a) A maximum of two stationary cameras can be configured in one placement area.

TwinHead

Flip-chip camera (option)

(component camera type 25)

Component range

b) Please note that the range of components that can be placed is also affected by the pad geometry, cus-

tomer-specific standards, component packaging tolerances and component tolerances.

0402 to SO, PLCC, QFP, BGA,

special components, bare dies,

flip-chips

0201 to SO, PLCC, QFP, sockets,

plugs, BGA, special components,

bare dies, flip-chips, shields

Component specs

max. height

min. lead pitch

min. lead width

min. ball pitch

min. ball diameter

min. dimensions

max. dimensions

max. weight

c) If the C&P head and TwinHead are combined in a placement area, the maximum dimensions are restricted

d) If standard nozzles are used

25 mm (larger heights on request)

0.3 mm

0.15 mm

0.35 mm

0.2 mm

1.0 x 0.5 mm²

55 x 45 mm²

(single measurement)

For use with two nozzles

50 x 50 mm² or

69 x 10 mm²

For use with one nozzle:

85 x 85 mm² or

125 x 10 mm²

max. 200 x 125 mm² (with restric-

tions)

100 g

25 mm (larger heights on request)

0.25 mm

0.1 mm

0.14 mm

0.08 mm

0.6 x 0.3 mm²

16 x 16 mm²

(single measurement)

100 g

Programmable set-down

force

1.0 N - 15 N

2.0 N - 30 N

e) SIPLACE High-Force Head

1.0 N - 15 N

2.0 N - 30 N

Nozzle types

f) Over 300 different nozzles and 100 gripper types are available, with an extensive nozzle database available

online

5xx (standard)

4xx + adapter

8xx + adapter

9xx + adapter

gripper

5xx (standard)

4xx + adapter

8xx + adapter

9xx + adapter

gripper

Nozzle spacing for P&P

heads

70.8 mm 70.8 mm

X/Y accuracy

g) The accuracy value was measured using the vendor-neutral IPC standard

± 26 µm/3± 35 µm/4 ± 22 µm/3± 30 µm/4

Angular accuracy ± 0.05° / 3± 0.07°/4 ± 0.05° / 3± 0.07° / 4

Illumination levels 6 6

Possible illumination level

settings

256

Placement Heads

Nozzle Changers

Description

Nozzle changers increase

the flexibility of placement

heads when processing dif-

ferent components. The noz-

zle configuration can be

quickly modified for new

placement jobs. Exactly

defined positions and the per-

fect seating of the nozzle in

the garage guarantee mini-

mal radial eccentricity at the

placement head.

Magazine for 6

type 9xx nozzles

Magazine for 12

type 9xx nozzles

Nozzle changer for the

12-nozzle Collect&Place head (NCH12)

(5 magazines in total

 60 nozzle holders)

Nozzle changer for the

6-nozzle Collect&Place head (NCH6)

(6 magazines in total

 36 nozzle holders)

Magazine for 6

type 8xx nozzles

Magazine for two

standard nozzles

Magazine for one

special nozzle, gripper

Nozzle changer for the

TwinHead
