24
Component Feeding
Dummy Feeder Modules
The following dummy feeder module variants are available for
component changeover tables:
SIPLACE dummy feeder module for 1 location
SIPLACE dummy feeder module for 6 to 10 locations
SIPLACE dummy feeder module for 11 to 20 locations
Danger
To ensure that your
SIPLACE placement ma-
chine runs safely, a feeder
must be assigned to every lo-
cation on the component
changeover table. If you do
not have enough feeder
modules, then you should
use dummy feeder modules
as space holders.

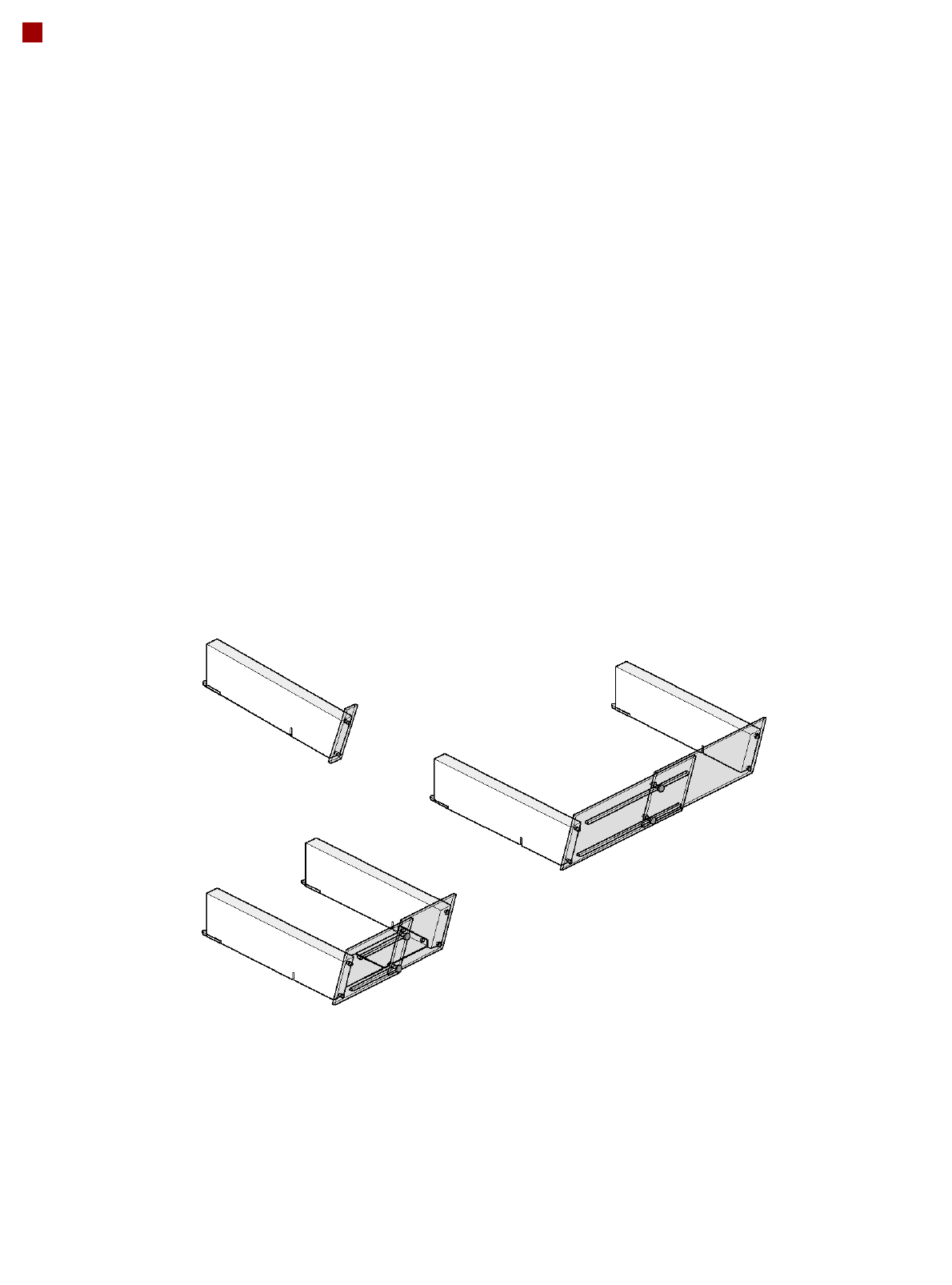

Dummy feeder module for 1 location
Dummy feeder module for
6 - 10 locations
Dummy feeder module for
11 - 20 locations
25
Component Feeding
Waffle-Pack Tray Holder
Description
The waffle-pack tray holder
is a device for holding
JEDEC trays used to supply
components. The holder is
placed on the component
table like a feeder module
and the waffle-pack trays are
changed manually.
The tray holder set-up is rec-
ommended if there are just a
few component types to be
placed from a waffle-pack
tray.
Waffle-pack tray holder
Technical data
Holder for large waffle-pack tray
Dimensions LxWxH 425 x 264 x 113 mm³
Locations filled on the
component table
9
Possible positions Locations 2 and 4
Range of placement heads TH, C&P6, C&P12
Holder for small waffle-pack tray
Dimensions LxWxH 425 x 140 x 113 mm³
Locations filled on the compo-
nent table
5
Possible positions Locations 2 and 4
Range of placement heads TH, C&P6, C&P12
Max. waffle-pack tray height
including component
C&P12
C&P6
TH
12.5 mm
12.5 mm
28.5 mm
26
Component Feeding
Matrix Tray Changer (MTC)
For numerous tray fed com-
ponents we recommend an
automatic tray change using
a matrix tray changer (MTC).
The MTC set-up is precisely
matched to the placement
sequence in order to opti-
mize the timings and dis-
tances traveled.
Two bins with component
trays move independently of
one another in the vertical
direction until the desired
magazine is within the range
of the feed axis. The horizon-
tal feed axis transports the
waffle-pack tray from the
tower into the access area of
the placement head. The first
magazine is made available
as soon as a PCB moves
onto the PCB conveyor, and
valid panel and set-up data is
available. All other magazine
changes are carried out time-
neutrally during the place-
ment process. The maga-
zines can be refilled without
stopping the machine.
Defective components are
returned to the original tray.
Tray supply 1
Feed
axis 1
Positioning options for the MTC:
locations 2 and 4
Tray supply 2
Feed
axis 2
