27 Component Feeding Matrix Tray Changer (MTC) Technical Data Electrical ratings T ray supply 1 (XL) Tr ay supply 2 Dimensions Length x width Height 1305 x 600 mm ² 1490 mm for 830 mm PCB transp ort height 1560 mm for 90…

Component Feeding

Matrix Tray Changer (MTC)

For numerous tray fed com-

ponents we recommend an

automatic tray change using

a matrix tray changer (MTC).

The MTC set-up is precisely

matched to the placement

sequence in order to opti-

mize the timings and dis-

tances traveled.

Two bins with component

trays move independently of

one another in the vertical

direction until the desired

magazine is within the range

of the feed axis. The horizon-

tal feed axis transports the

waffle-pack tray from the

tower into the access area of

the placement head. The first

magazine is made available

as soon as a PCB moves

onto the PCB conveyor, and

valid panel and set-up data is

available. All other magazine

changes are carried out time-

neutrally during the place-

ment process. The maga-

zines can be refilled without

stopping the machine.

Defective components are

returned to the original tray.

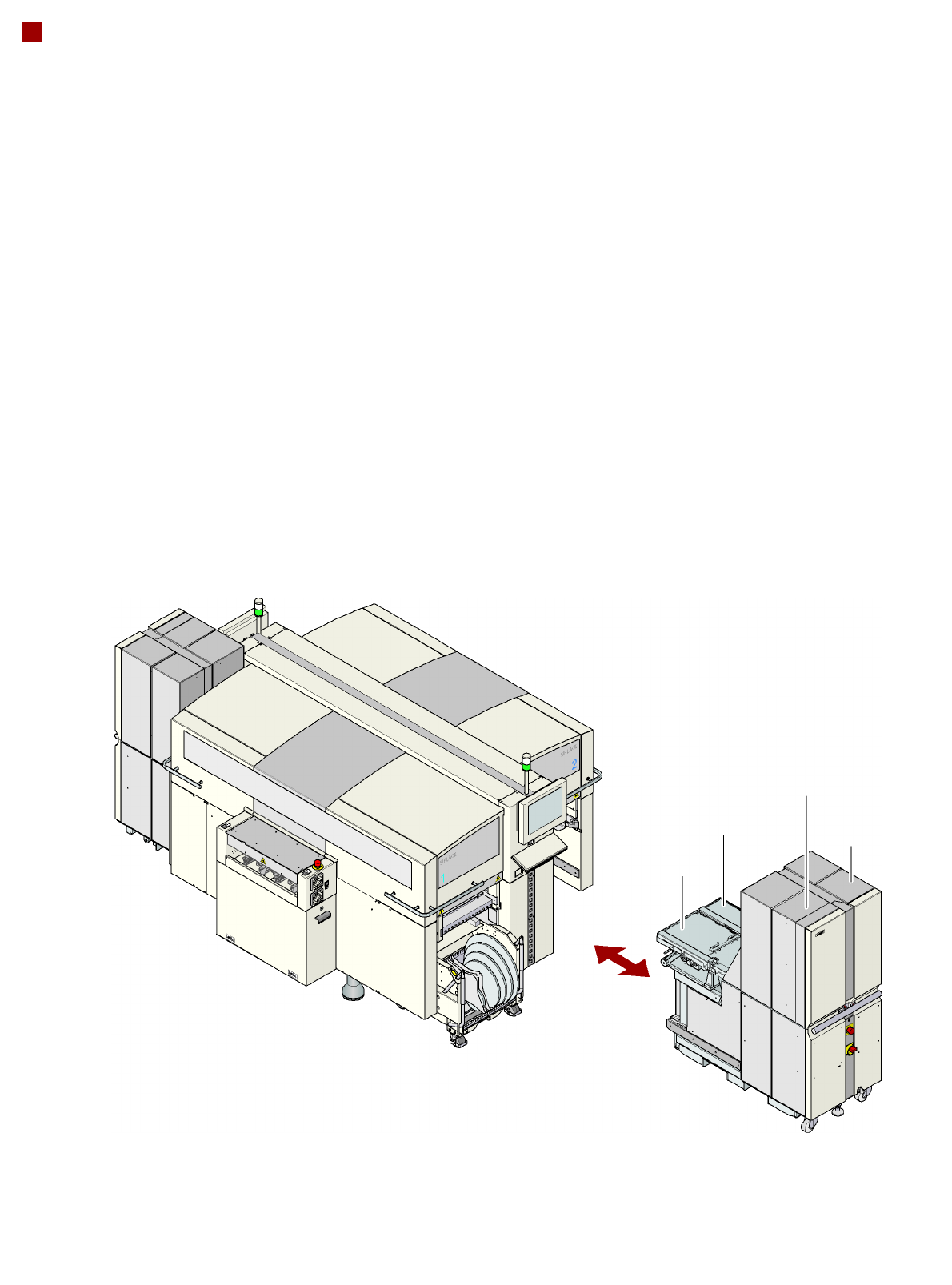

Tray supply 1

Feed

axis 1

Positioning options for the MTC:

locations 2 and 4

Tray supply 2

Feed

axis 2

Component Feeding

Matrix Tray Changer (MTC)

Technical Data

Electrical ratings

Tray supply 1 (XL) Tray supply 2

Dimensions

Length x width

Height

1305 x 600 mm²

1490 mm for 830 mm PCB transport height

1560 mm for 900 mm PCB transport height

1590 mm for 930 mm PCB transport height

1640 mm for 950 mm PCB transport height

Weight (basic equipment) approx. 500 kg (with PCB magazines and waffle-pack tray

carriers)

Weight (fully equipped) approx. 534 kg (with components)

Weight (moving mass) approx. 80 kg approx. 43.5 kg

PCB magazine size (L x W x H) 391.2 x 305.6 x 93.3 mm³ 352.7 x 154.8 x 133.8 mm³

PCB magazine weight

(fully equipped)

(without waffle-pack tray carrier)

approx. 11 kg

approx. 1.7 kg

approx. 7.5 kg

approx. 1.35 kg

Weight of the

waffle-pack tray carrier

850 g 150 g

Dimensions of the

waffle-pack tray carrier

(L x W x H)

386.5 x 295.8 x 11.1 mm³ 371 x 146 x 10.1 mm³

Distance from PCB magazine to

magazine

96 mm 135 mm

Distance from level to level 12 mm 11.8 mm

Storage capacity 30 XL waffle-pack tray

carriers with 60 JEDEC or

30 special magazines of

maximum size

40 waffle-pack tray carriers

with 40 JEDEC

waffle-pack trays

Changeover time (over 5 levels) approx. 2 s approx. 1.5 s

Max. height of component and

waffle tray, including tolerances

all levels filled

one level free

two levels free

8.5 mm

19.5 mm

31.5 mm

8.5 mm

19.5 mm

Supply voltage 3 x 400 VAC, 50 Hz (Europe)

3 x 208 VAC, 60 Hz (USA)

Total power 1.5 kW

Apparent power 3.85 kVA

Rated current 2.7 A at 3 x 400 VAC

4.2 A at 3 x 208 VAC

Fuses 3 x 16 A

Rated power consumption

of the largest consumer

2 A

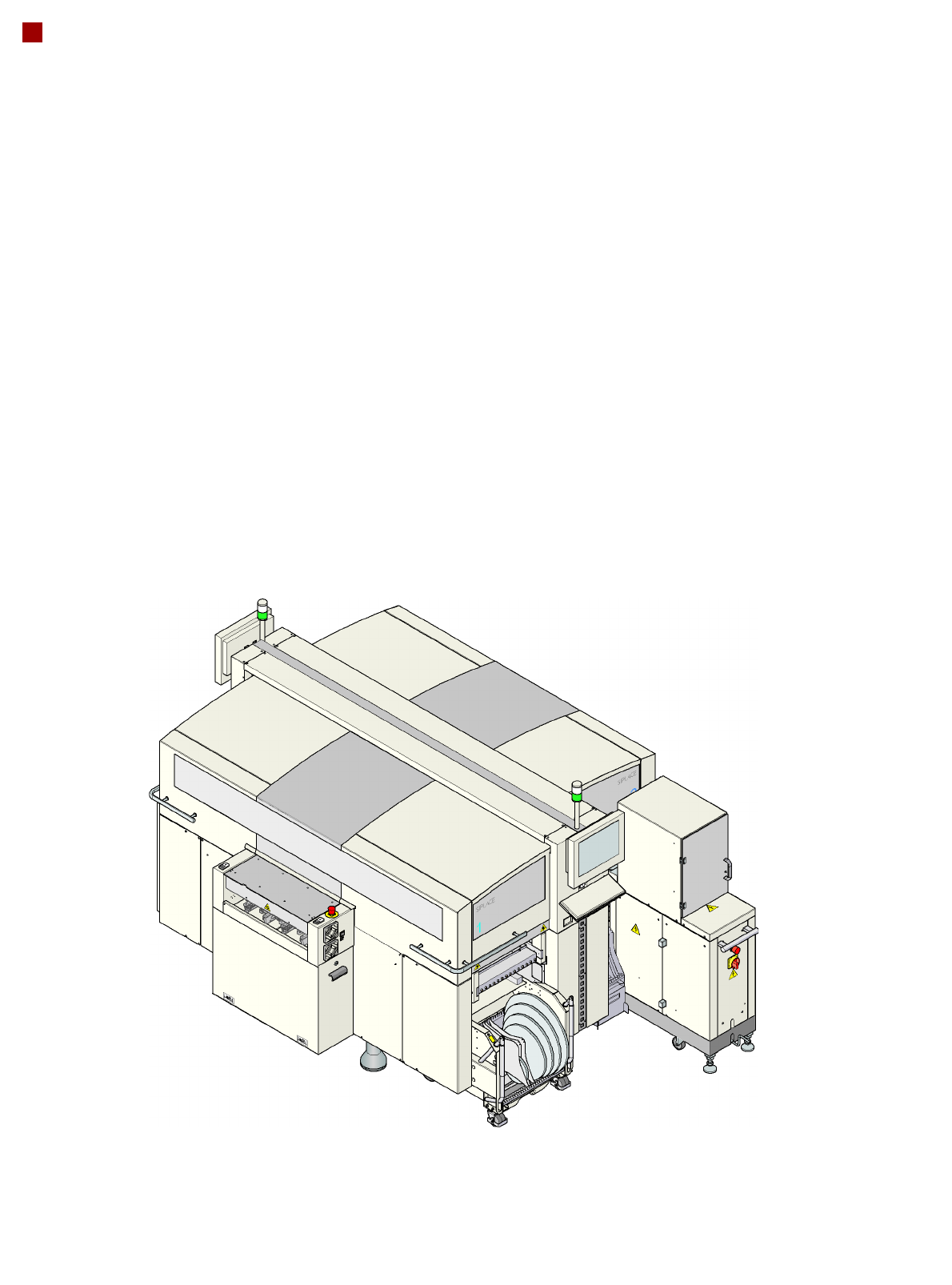

Component Feeding

Waffle Pack Changer (WPC)

The waffle-pack changer

makes the flatpack IC avail-

able in the waffle-pack trays

to avoid unnecessary loss of

time during storage and

automatic changing of the

waffle-pack trays. Program-

mable, random access to up

to 28 waffle-pack trays also

considerably increases the

range of components that

can be made available. The

waffle pack changer has an

integral chassis, and is easy

to move to other locations. It

is supplied with the PCB con-

veyor height implemented for

the machines, but can also

be adapted for the 830, 900,

930 and 950 mm PCB con-

veyor heights with just a few

simple operations. There are

4.5 locations for 30 mm width

S feeder modules available

on the component table.

Location options

for the WPC:

location 2
