Software Version 07SP04 User Manual 1.17
STAGE 4B - PROFLOW SETUP
If squeegees were used when running the last product, carry out the Squeegees
to ProFlow Replacement Procedure, see Technical Reference Manual, ProFlow
Module Chapter - Replacement Procedures.
For setting the contact position, carry out the ProFlow Contact Position Setup,
see Technical Reference Manual, ProFlow Module Chapter - Adjustments and
Settings.
0$&+,1(352*5$00,1*
67$*($0$*1(7,&3,//$56722/,1*
1.18 User Manual Software Version 07SP04

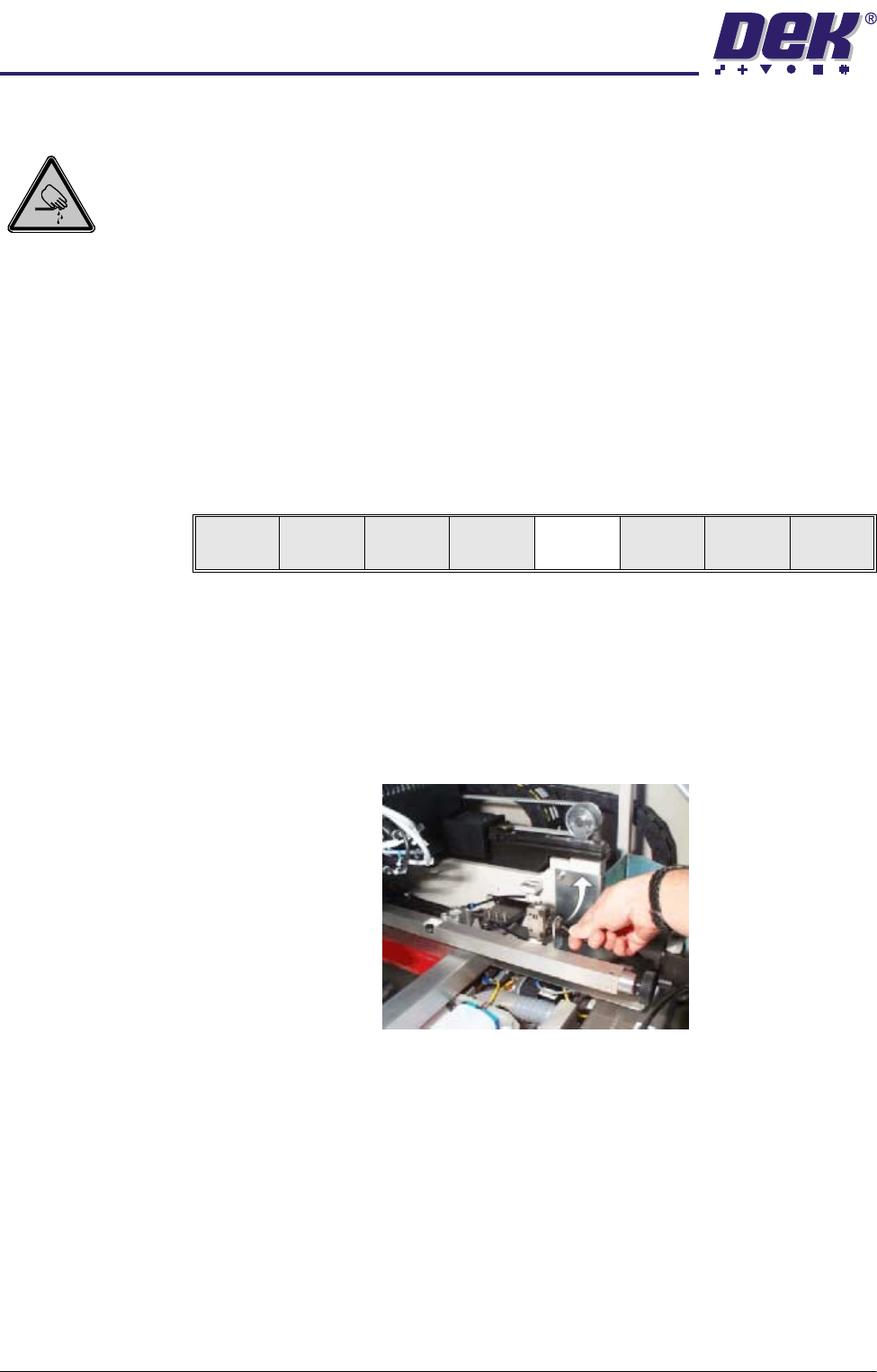

STAGE 5A - MAGNETIC PILLARS TOOLING
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
CAUTION
BOARD CLAMPS.
Care must be taken to ensure that the board clamps are
not damaged when removing or replacing tooling.
NOTE
Ensure that Generic Tooling is set to Enabled in Set Prefs.
1. If there is a screen loaded continue with Step 2. If there is no screen loaded
go to Step 7.
2. Select Change Screen (F5). The message ‘Open Front Cover and
Remove Screen’ is displayed.
3. Either:
a. Open the front printhead cover.
or
b. Raise the printhead shutter and lower the drop down panel.
4. If fitted, toggle screen clamp switch to up position (off).
5. Remove the stencil from the printer.
6. Either:
a. Close the front printhead cover.
or
b. Raise the drop down panel and lower the printhead shutter.
7. Press the System button.
8. Select Change Tooling (F6). The print carriage and the under screen
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tool ing
Change
Language
Exit
0$&+,1(352*5$00,1*
67$*($0$*1(7,&3,//$56722/,1*
Software Version 07SP04 User Manual 1.19
cleaner are moved to the rear.
The Change Tooling Parameters window is displayed:
NOTE
If the remote board stop is fitted the Board Stop X and Board Stop Y
parameters are replaced by Remote Board Stop X.
9. Setting up the board stop position is automatically done using the board
dimensions previously set in the product file. If they need adjustment to re-
position the board stop for any reason, ie any routing on the board edge or
a badly positioned image on the stencil, this can be done now. If adjustment
is necessary continue with Step 9. If adjustment is not necessary go to Step
14.
10.Select Adjust (F1).
NOTE
If Auto Rail Width in Set Prefs is set to disabled, Full Width and Load Width
are not available.
11.Use the Next and Previous keys (F4 - F5) to highlight each parameter.
12.Use the Incr. and Decr. keys (F6 - F7), or the forward slash key (/) on the
keyboard, to change the parameter value.
13.Select Save (F2). The message ‘Saving fiducial data - Please wait Board
data file saved’ is displayed.
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Change Tooling Parameters
BOARD WIDTH
BOARD STOP X
BOARD STOP Y
UNDER CLEARANCE
216.0
125.0
142.6
19.0
mm
mm
mm
mm
Adjust
Open
Cover
Home
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Tool ing
Exit
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
