Software Version 07SP04 User Manual 1.21

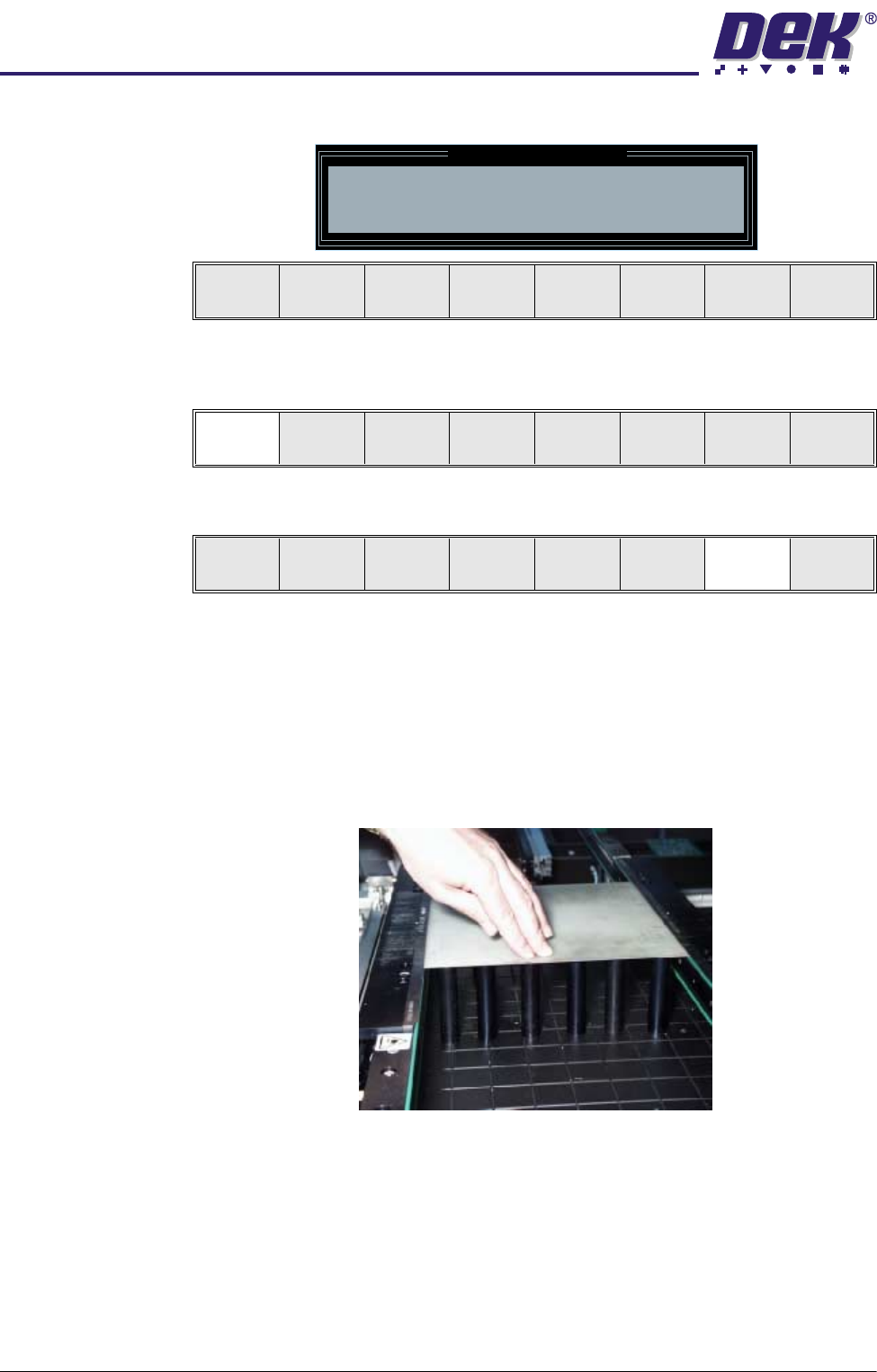

21.Select Open Cover (F7).
22.Either:
a. Open the front printhead cover.
or
b. Raise the printhead shutter.
23.Position the outermost magnetic support pins on the rising table under the
board.
24.Select Board Clamps (F3) to open the clamps.
25.Remove the board from the rails and select Board Clamps (F3) to close the
clamps.
26.Complete the positioning of the magnetic support pins.
27.Place the board back on the rails over the tooling.
28.Select Exit (F8).
29.Either:
a. Close the front printhead cover.
or
b. Lower the printhead shutter.
30.Press the System button.
31.Select Vision Height (F3). The message ‘Table at Vision Height. Check
Tooling Clearance’ is displayed.
32.Select Contact Height (F3).
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Board
Clamps
Exit
Board
Clamps
Exit
Board
Clamps
Exit
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Contact
Height
Tra nspr t
Height
Change
Screen
Open
Cover
Exit
0$&+,1(352*5$00,1*
67$*($0$*1(7,&3,//$56722/,1*
1.22 User Manual Software Version 07SP04
The following window and menu bar is displayed:
33.Select Continue (F1). The message ‘Table at Contact Height. Check
Tooling Clearance’ is displayed.
34.Select Open Cover (F7).
35.Either:
a. Open the front printhead cover.
or
b. Raise the printhead shutter.
36.Check that the setup of the tooling is adequate for the board, adjust as
necessary.
NOTE
If adjustment is required, this can be carried out at Transport Height.
37.Either:
a. Close the front printhead cover.
or
b. Lower the printhead shutter.
38.Press the System button.
Contact Height Warning
WARNING Check for obstructions between
the Rails and the Screen
Continue
Open
Cover
Exit
Continue
Open
Cover
Exit
Vision
Height
Open
Cover
Exit
0$&+,1(352*5$00,1*
67$*($0$*1(7,&3,//$56722/,1*
Software Version 07SP04 User Manual 1.23
39.Select Exit (F8).
40.Select Exit (F8).
The following window and menu bar is displayed:
41.Select Continue (F1).
42.Select Auto Board (F1). The message ‘Board on rails, remove and
continue’ is displayed.
43.Remove the board from the rails.
44.Select Continue (F1).
45.Either:
a. Open the front printhead cover.
or
b. Raise the printhead shutter and lower the drop down panel.
46.To adjust the width of the chase rails to accommodate the stencil for the
product file loaded, carry out the following (ASM only):
Exit
Vision
Height
Open
Cover
Exit
Leaving Generic Tooling
WARNING You are about to return
to the Setup Page
Clear all tooling setup
equipment before proceeding
Continue Cancel
Continue Cancel
Auto
Board
Manual
Board
Continue
Open
Cover
