Software Version 07SP04 User Manual 1.57
length in the X axis.
33.Press the operator switch on the front of the machine covers.
34.Wait until the pneumatic indicator on the front cover displays green.
35.Remove the weights and the FormFlex setup plate from the tooling area.
36.Either:
a. Close the front printhead cover.
or
b. Lower the printhead shutter.
37.Press the System button.
C/L
1/3
1/3
BoardSetup Plate Weight (in 2 positions)
0$&+,1(352*5$00,1*
67$*(()250)/(;722/,1*
1.58 User Manual Software Version 07SP04
38.Select Exit (F8).
39.Select Exit (F8).
The following window and menu bar is displayed:
40.Select Continue (F1).
41.Select Auto Board (F1). The message ‘Board on rails, remove and
continue’ is displayed.
42.Remove the board from the rails.
43.Select Continue (F1).
44.Either:
a. Open the front printhead cover.
or
b. Raise the printhead shutter and lower the drop down panel.
45.To adjust the width of the chase rails to accommodate the stencil for the
product file loaded, carry out the following (ASM only):
Exit
Vision
Height
Open
Cover
Exit
Leaving Generic Tooling
WARNING You are about to return
to the Setup Page
Clear all tooling setup
equipment before proceeding
Continue Exit
Continue Exit
Auto
Board
Manual
Board
Continue
Open
Cover
0$&+,1(352*5$00,1*
67$*(()250)/(;722/,1*
Software Version 07SP04 User Manual 1.59

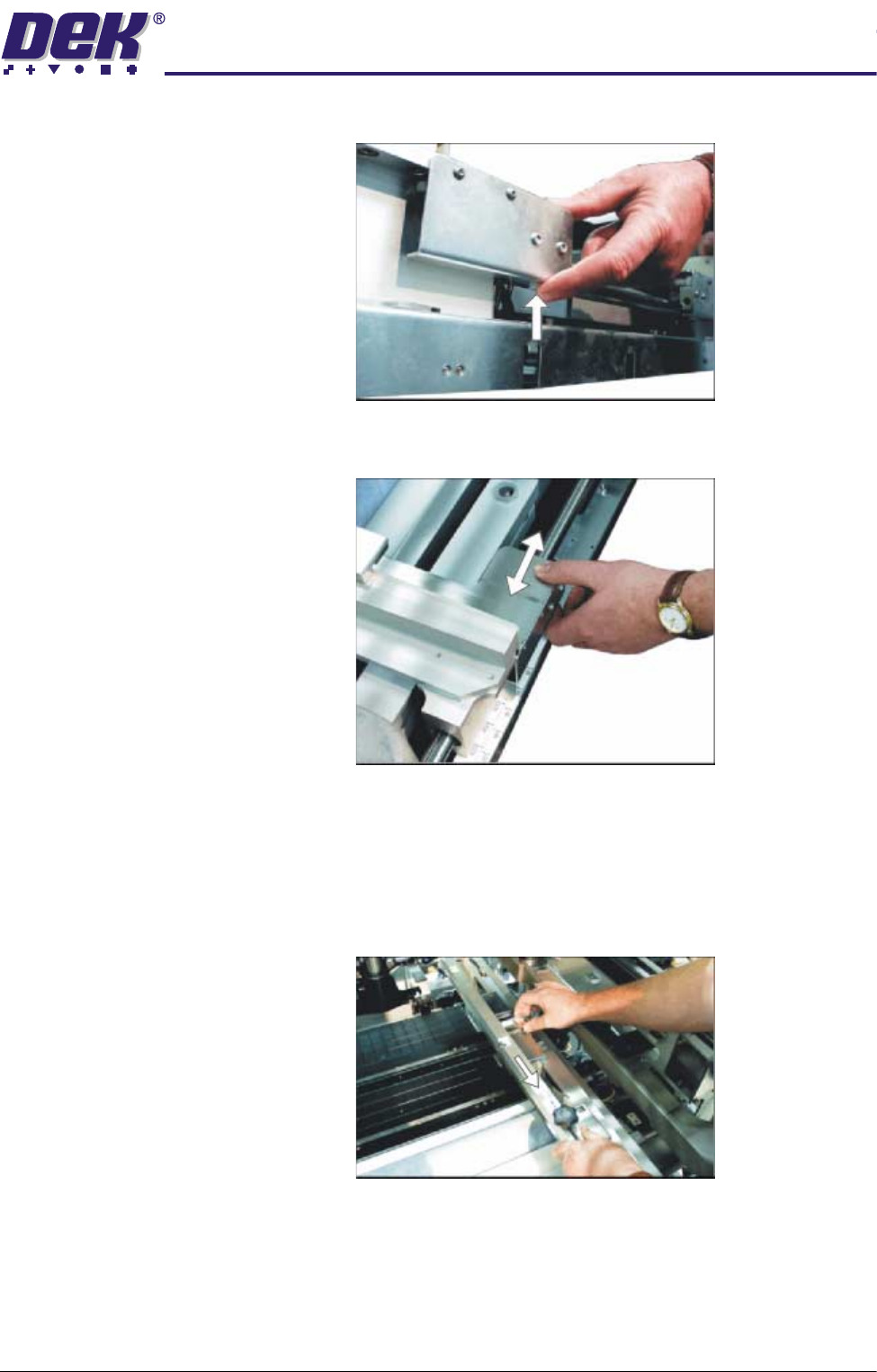

a. Press and hold the left hand chase rail push button valve.
b. Slide the left hand chase rail to the desired position indicated on the
graduated scale.
c. Release the push button valve.
d. Repeat the procedure for the right hand chase rail.
46.If the stencil size is less than 29″ x 29″ the screen depth adjuster position is
to be adjusted as follows (ASM only):
a. Slide the screen depth adjuster towards the front of the machine.
