0$&+,1 (352*5$0 0,1* 67$*( ()250 )/(;722/,1* Software Version 07SP04 User Manual 1.65 NOTE If cont aminate d squeegees are fi tted, t hese should b e repla ced at thi s point . 22. Select Continue (F1). Cleane…
0$&+,1(352*5$00,1*
67$*(()250)/(;722/,1*
1.64 User Manual Software Version 07SP04
stencil.
18.Ensure there is a 10mm gap between the stencil side and the end of the
spring lock assembly.
19.Tighten the thumbscrews of the two spring lock assemblies.
20.Ensuring the set plate remains parallel to the stencil sides operate the toggle
clamps to extend the piston shafts against the right hand stencil side. Thus,
clamping the set plate to the inside of the product stencil.
21.Select Generic Tooling (F7). The print carriage moves to the front of the
machine.
The following window and menu bar are displayed:
Adjust
Open
Cover
Home
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Tooling
Exit
Generic Tooling Warning
WARNING Paste may drip into the machine
Remove Squeegees NOW
Continue
Open
Cover
No
0$&+,1(352*5$00,1*
67$*(()250)/(;722/,1*
Software Version 07SP04 User Manual 1.65
NOTE
If contaminated squeegees are fitted, these should be replaced at this point.
22.Select Continue (F1). Cleaner moves to the Home position and the print
carriage moves to the rear of the machine. The message ‘Table at Home
Height’ is displayed.
23.Select Transprt Height (F3). The message ‘Table at Transport Height’ is
displayed.
24.Place a board at the input sensor of the upline conveyor.
25.Select Load (F1).
26.Select Auto Board (F1).
27.Select Open Cover (F7).
28.Either:
a. Open the front printhead cover.
or
b. Raise the printhead shutter.
29.Slide the appropriate size and number of FormFlex blanking plates on to the
tooling modules outside the area of the squeegees/ProFlow transfer head.
Continue
Open
Cover
No
Load
Transprt
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Load
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Auto
Board
Manual
Board
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
0$&+,1(352*5$00,1*
67$*(()250)/(;722/,1*
1.66 User Manual Software Version 07SP04

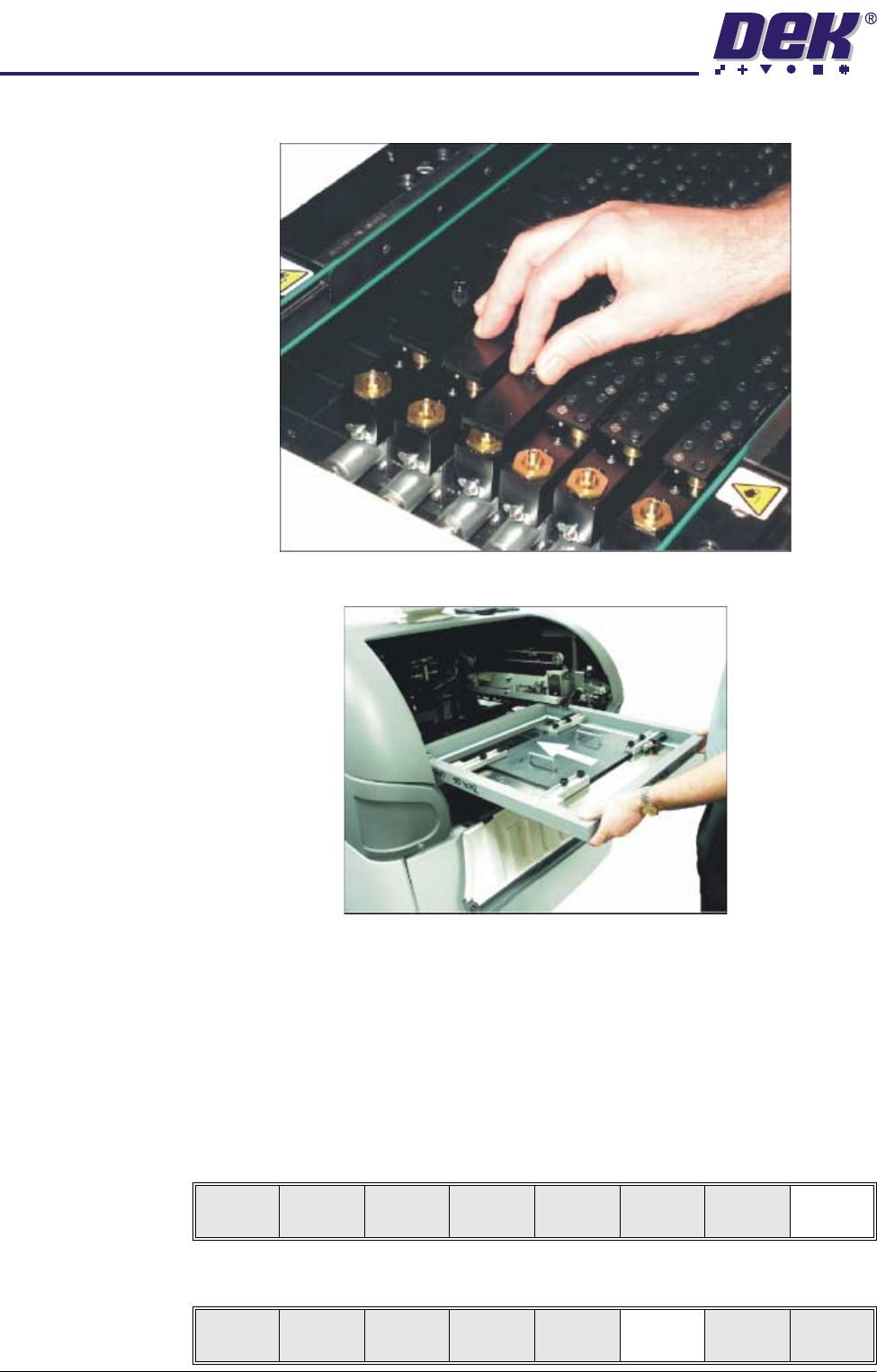

Secure the plates using the thumbscrews.
30.Ensuring correct orientation, load the product stencil into the machine.
31.If fitted, toggle screen clamp switch to down position (on).
32.Either:
a. Close the front printhead cover.
or
b. Lower the printhead shutter.
33.Press the System button.
34.Select Exit (F8).
35.Select Change Screen (F5).
Board
Clamps
Exit
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
