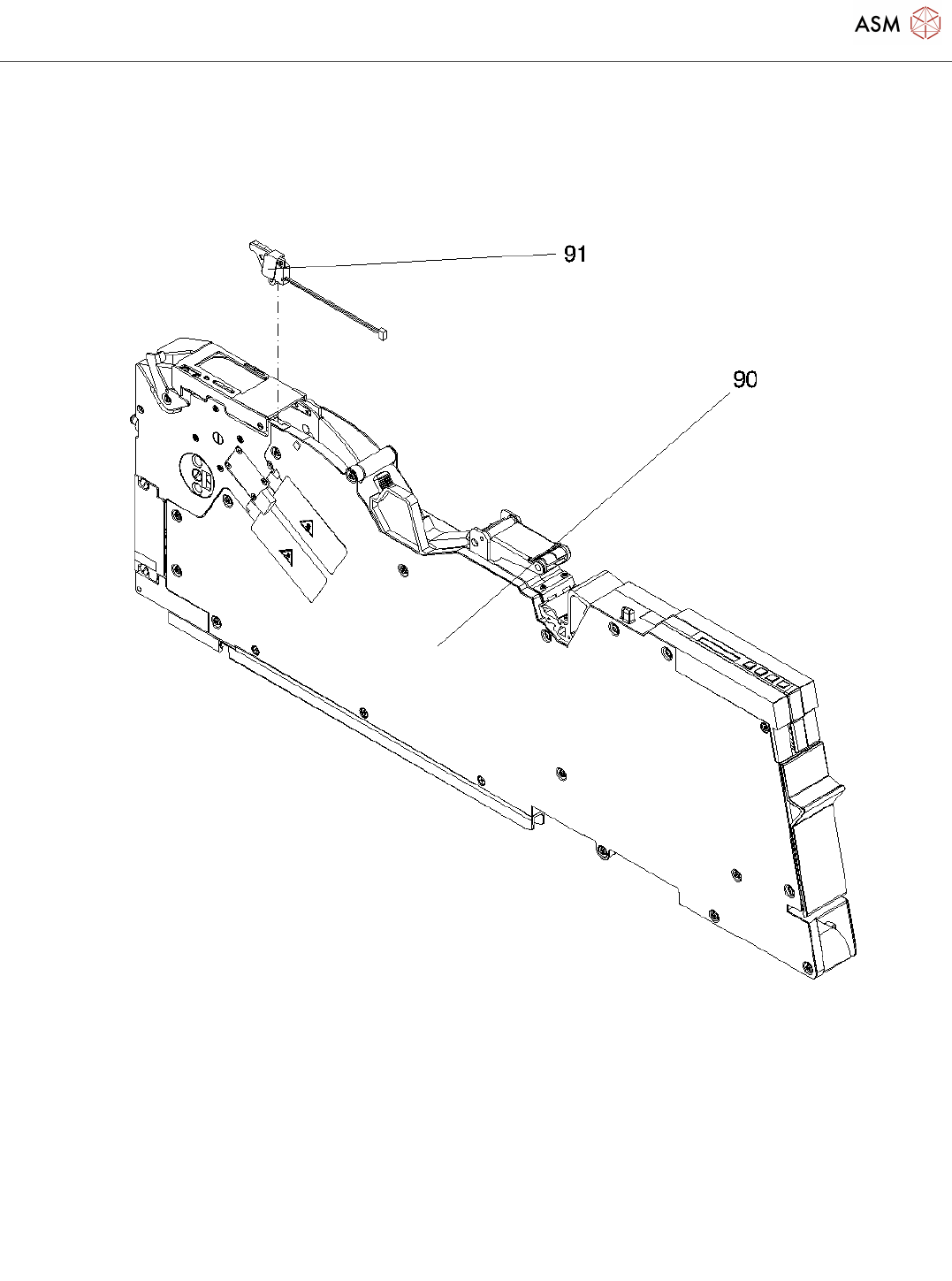

Tape feeder module 24mm X FS06
Page 9 / 13 18.11.2021
Tape feeder module 24mm X FS06
Page 10 / 13 18.11.2021
Pos. Item no. Description Part marking
1 00141273S06 TAPE FEEDER MODULE 24MM X
2 03020615-06 TAPE FEEDER MODUL 24MM X
3 03031194S05 PCB /CONTROL BOARD TAPE-
FEEDER X-SERIES
SPARE PART
4 03003994S01 SLIDE GUIDE /REAR L200 SPARE PART
03032819S01 CABLE /IRDA - EDIF SECONDARY SPARE PART
03006814-01 CABLE SENSOR FOIL ROCKER SPARE PART
03006815-01 CABLE SENSOR REMOVAL HANDLE SPARE PART
8 00328542-01 SN 213307-H-M2,5 X 6-A2 STANDARD PARTS
9 03041992S03 FOIL DISPOSAL COMPLETE /X24 Spare Part
10 03041973-01 TAMP WHEEL KNURLED CPL./FOIL
DISPOS. X24
11 03041984S01 STRIPPING SHEET METAL /FOIL
DISPOSAL X24
SPARE PART
12 03043774-01 ADJUSTMENT WASHER /D3.1 D15
T0,1
STANDARD PARTS
13 03042535-01 ISO 4762 - M 2,5 X 10-A2-70 STANDARD PARTS
14 03043064-01 TRANSMISSION STEP 1 /FOIL
DISPOSAL X8-88
SPARE PART
15 03042536-01 ISO 4762 - M 2,5 X 12-A2-70 STANDARD PARTS
16 00318387-01 SN 213307-H-M2 X 3-A2
17 03023216-01 ISO 7046-2-M2 X 4-A2-70-H
18 03012488-01 SN 213307-H-M2 X 2.5-A2
19 03023228-01 ISO 7046-2-M2,5 X 6-A2-70-H STANDARD PARTS
20 03050825-01 HOLDING SCREW WEAR PART
21 03042532-01 ISO 4762 - M 2,5 X 5-A2-70 STANDARD PARTS
22 03010415S01 TENSION SPRING Z-051GX SPARE PART
23 03055600-01 FOIL WING KPL. /X24 PSA
24 03018820S01 BOLT, FOIL DISPOSAL X24 SPARE PART
25 00326587-01 DIN 965-M2 X 5-A2
26 03055650S01 FILLING CLIP /16-88 PSA 10 PCS SPARE PART
27 03050686S02 MOTOR CPL. /FOIL DISPOSAL X-
SERIES
SPARE PART
28 03042168-01 FOIL CASE COMPLETE /X24
29 03009198S01 HANDLE CPL. / X-SERIES Spare Part
30 03002629-01 CONTROL PANEL COMPLETE /X-
SERIE
Tape feeder module 24mm X FS06
Page 11 / 13 18.11.2021
Pos. Item no. Description Part marking
31 03002644S01 WINDOW /CONTROL PANEL SPARE PART
32 03021637S01 CONTROL PANEL KEY COVER CPL.
/X-SERIES
SPARE PART
33 03033796-01 REMFORM-SCREW RF-SN75-2,5 X
6-9.8
STANDARD PARTS
34 03033798-01 REMFORM-SCREW RF-SN75-2,5 X
10-9.8
STANDARD PARTS
35 03022105S02 FOIL DISPOSAL /FLAT SPRING
X16-88
SPARE PART
36 03042171S01 AXIS FLAP /FOIL CASE X16-X24 SPARE PART
37 03041704-01 FLAP / TAPE DISPOSAL X24
38 00341370S01 BLADE, PARTITION SPARE PART
39 03033796-01 REMFORM-SCREW RF-SN75-2,5 X
6-9.8
STANDARD PARTS
40 03041969S01 BEARING SHAFT COMPENSATOR
/X24
SPARE PART
41 03041968-02 COMPENSATOR COMPLETE /X24
42 03041969S01 BEARING SHAFT COMPENSATOR
/X24
SPARE PART
43 03041967-02 TAMP WHEEL PLANE COMPLETE
/X24
44 03048855-01 PRESSURE SPRING
0.75X6.25X31X8.5
SPARE PART
45 03021215S01 COVER LEFT SIDE /FEEDER X16-88 SPARE PART
46 03021196-02 MOTORMOUNT WITH PICKUP
WINDOW /X24
47 03020730-02 DRIVE W. ATTACHMENTS /X16-88
48 03012822-07 DRIVE KPL. X16-88
49 03012824-04 ENGINEMOUNTING PRE-ASSEMBLED
/X16
50 03005196-01 ROLL, LOCKING X-SERIES SPARE PART
51 00359779-01 DIN 6325 - 3M6 X 10-ST
52 00326589-01 DIN 965-M3 X 10-A2
53 00349527-01 ROUND MAGNET 3X4 NEODYMIUM SPARE PART
54 03019604S01 SLIDING FOIL X-FEEDER SPARE PART
55 03058808S01 SLIDING GUIDE SPARE PART
00344017-02 BEARING SCREW
57 03023216-01 ISO 7046-2-M2 X 4-A2-70-H
58 03012488-01 SN 213307-H-M2 X 2.5-A2
