Retrofit instructions: Modification of the nozzle changer power supply for the DLM placement heads, HF series 07/2005 Edition 22 : Plug in the distributor cables as follows: 2 2 : Screw the CAN bus connector to the adapt…
Retrofit instructions: Modification of the nozzle changer power supply for the DLM placement heads, HF series
07/2005 Edition
21
: Unplug the CAN bus connector from the one-wire hub.
2
2
: Remove the two studs from the one-wire hub.
2
2
2
2
2
2
2
2
2
2
One-wire hub
CAN bus connector
Retrofit instructions: Modification of the nozzle changer power supply for the DLM placement heads, HF series
07/2005 Edition
22
: Plug in the distributor cables as follows:
2
2
: Screw the CAN bus connector to the adapter.
2
2
2
2
2
2
2
Connect to one-wire hub
W1: Connect to CAN bus cable
W2: Connect to cable pulled
out towards the machine frame
Connectors
Retrofit instructions: Modification of the nozzle changer power supply for the DLM placement heads, HF series
07/2005 Edition
23

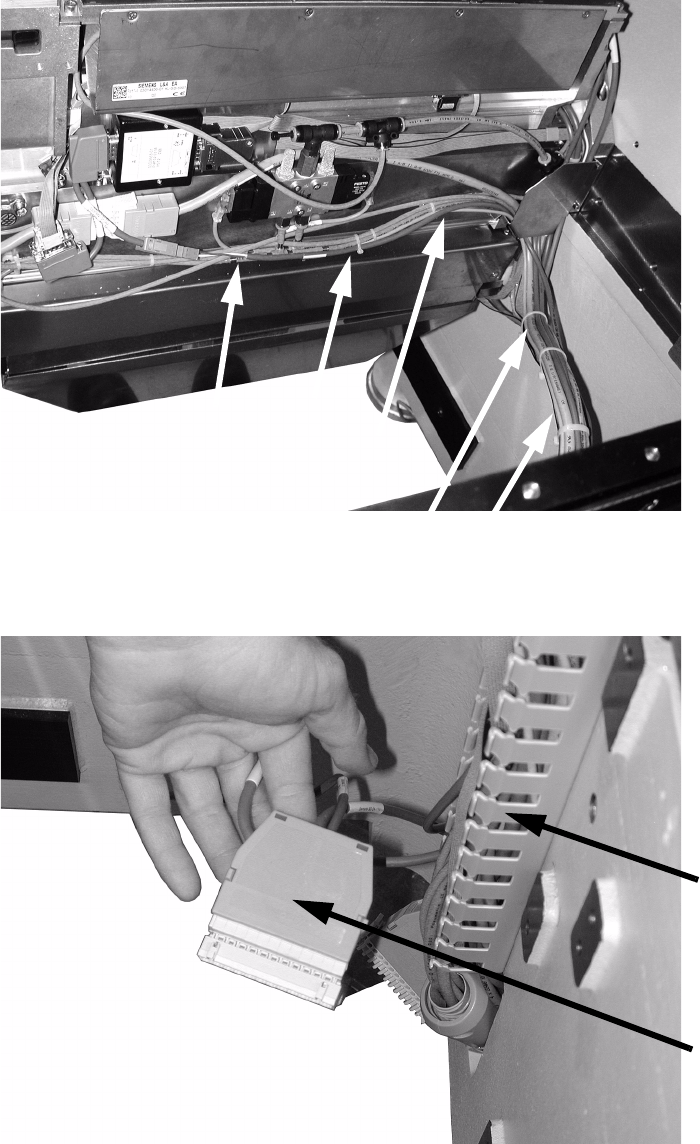

: Run the cable towards the machine frame (see photograph).
: Fix the cable using cable ties.
2
: Thread the cable through the vertical cable duct on the machine frame (see photograph).
: Pull the connector out of the machine frame.
2
Cable duct
Plug
