Page +$1:+$ 29 Docking C art (3/6) SM482 PLUS NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-006815A ASSY , FEEDER BASE-DC BLOCK L 1 2 HP06-900049 STRAIGHT FITTING 1 3 HP06-900299 COUPLER 1…

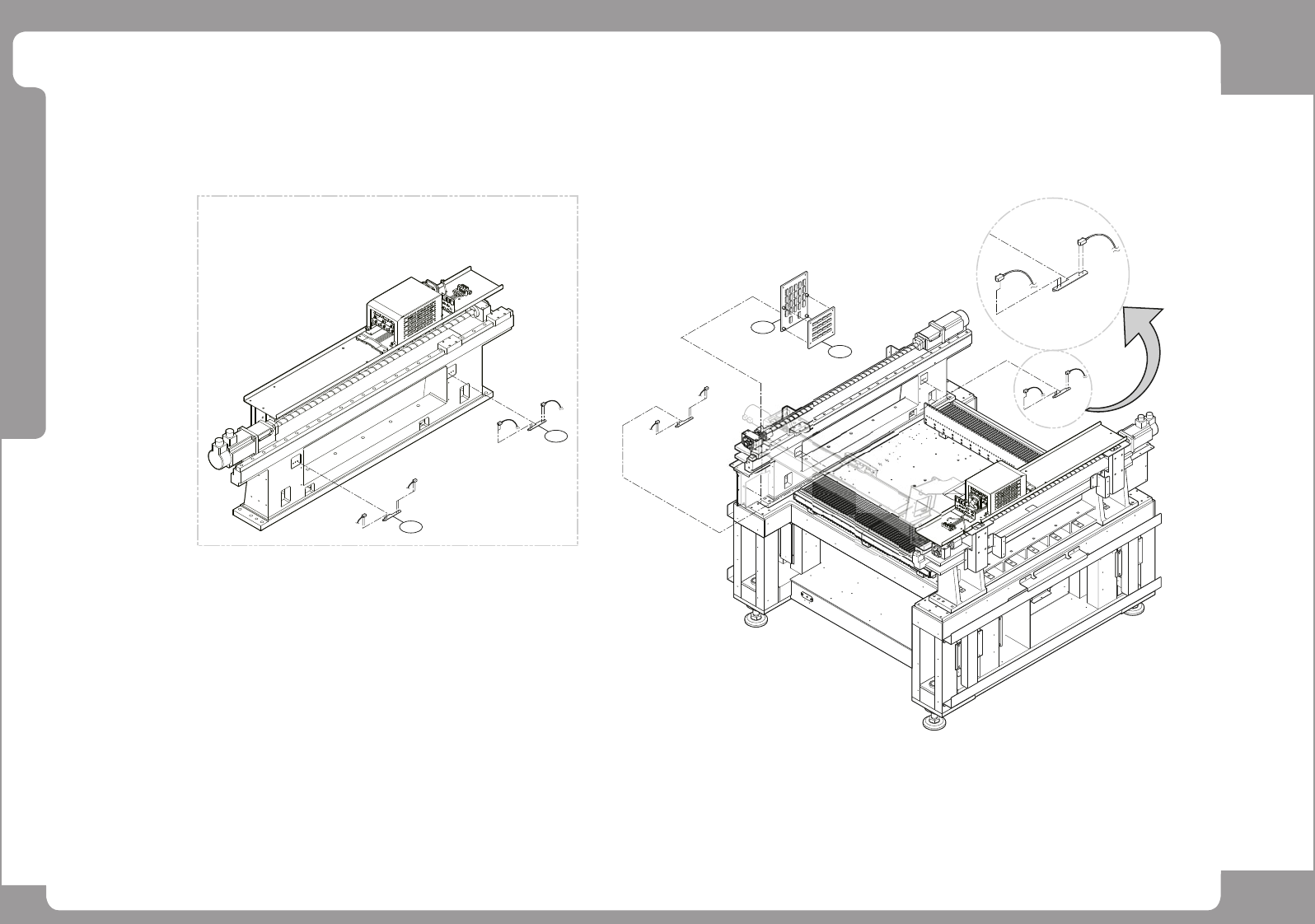

Page
+$1:+$
28
SM482
PLUS
Docking Cart (3/6)
5
4
2
3
17
11
8
6
1
13
14
15
16
16
18
12
9
19
17
15
7
10
Page
+$1:+$
29
Docking Cart (3/6)
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-006815A ASSY,FEEDER BASE-DC BLOCK L 1
2 HP06-900049 STRAIGHT FITTING 1
3 HP06-900299 COUPLER 1
4 HP14-900089 SPEED CON 1
5 HP14-900090 SPEED CON 1
6 HP06-900293 ELBOW FITTING 2
7 EP19-900112 PHOTO SENSOR 1
8 J7066025A COUPLER BKT2 1
9 AM03-001731C CABLE ASSY-DOCKING CART IF CABLE ASSY 1
10 J7057244B SENSOR BRACKET 1
11 J7057246B COUPLER HOLDER MOUNT 1
12 J7057251A PIN CABLE RETAINER 1
13 AM03-006816A ASSY,FEEDER BASE-DC BLOCK R 1
14 FC09-002061A BRACKET-DC-SME_SENSOR_BKT 1
15 J71570100C GUIDE BLOCK 2
16 J7057247A POSITIONNING GUIDE 2
17 HP03-900011 AIR CYLINDER 1
18 J7257010B CUSHION-X 2
19 J7257011A PIN CABLE CAP 1
Page
+$1:+$
30
SM482
PLUS
Docking Cart (4/6)
3
4
CAN FEEDER EXTENSION B
OARD
CAN CONVEYOR BOARD
2
1
