Page +$1:+$ 55 Base Frame Ass’y SM482 PLUS NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC15-000983A COVER BOTT OM FR 1 2 FC15-000984A COVER BOTT OM FL 1 3 FC15-000985A COVER BOTT OM RR 1 4 FC…
Page
+$1:+$
54
SM482
PLUS

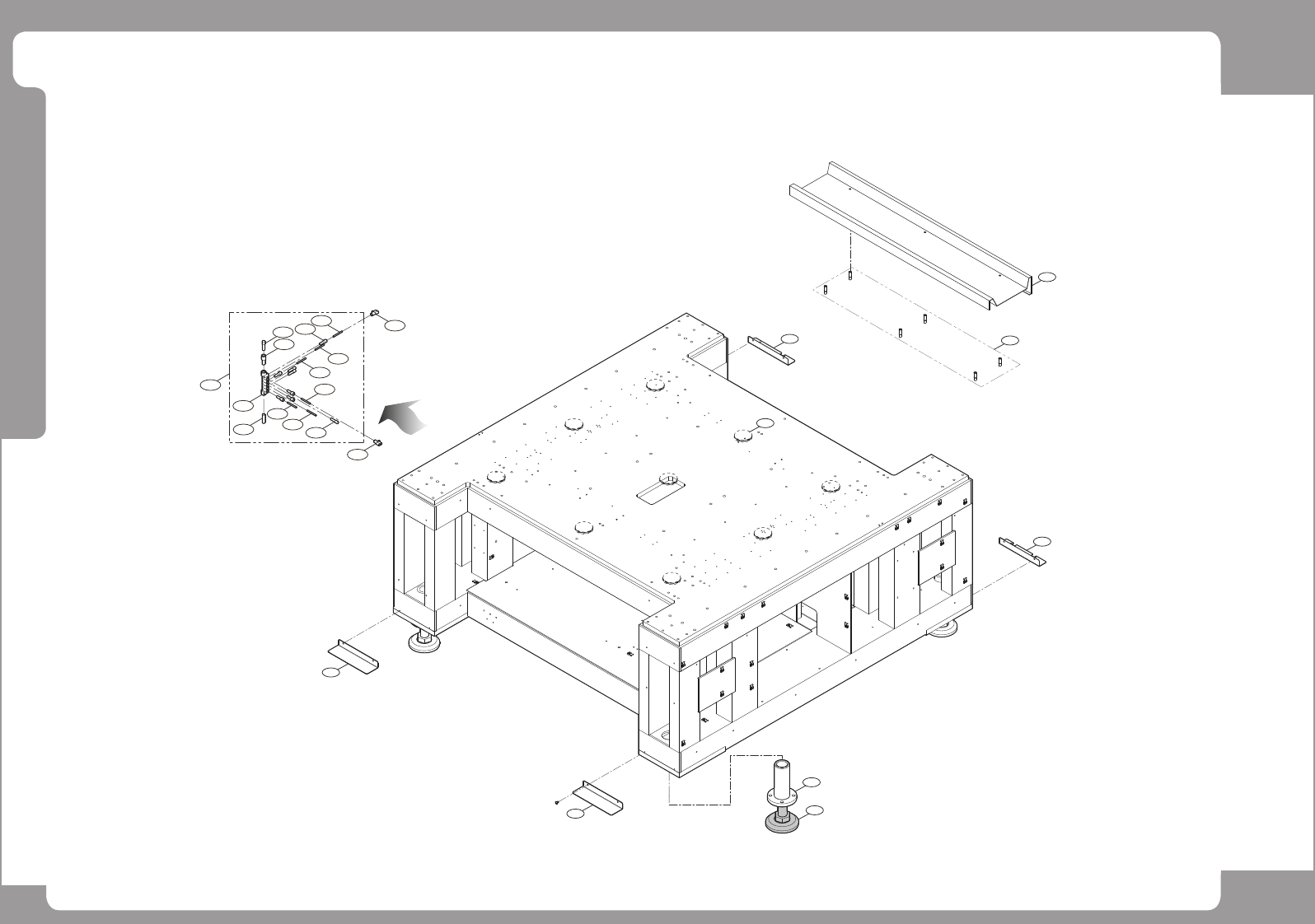

Base Frame Ass’y
1
3
19
16
17
4
5
6
2
9
10
11
16
8
7
13
14
12
17
15
15
14
15
17
Page
+$1:+$
55
Base Frame Ass’y
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-000983A COVER BOTTOM FR 1
2 FC15-000984A COVER BOTTOM FL 1
3 FC15-000985A COVER BOTTOM RR 1
4 FC15-000986A COVER-BOTTOM RL 1
5 J7051010D HOUSING-FOOT 4
6 FC28-000176 FOOT 4 AM03-000098
7 AM03-007220A ASSY,AIR-MAIN MANIFOLD 1
8 HP09-000007 MANIFOLD 1
9 FC14-900641 PLUG 1
10 HP06-000226 FITTING;STRAIGHT 5
11 HP06-900282 STRAIGHT FITTING 4
12 FC14-900644 PLUG 5
13 HP13-900085 AIR TUBE (POLYURETHANE) 3
14 HP13-900083 AIR TUBE (POLYURETHANE) 1.5
15 HP13-900082 AIR TUBE (POLYURETHANE) 3.8
16 HP06-900199 UNION Y FITTING 2
Page
+$1:+$
56
SM482
PLUS
X-Y Frame Ass'y(1/4)
7
10
11
13
14
4
8
8
3
4
3
4
3
4
9
9
12
15
2
3
5
6
1
