SM482_PLUS_TRM(Ver2.5_CS20.11) - 第56页
Page +$1:+$ 56 SM482 PLUS X-Y Frame Ass'y(1/4) 7 10 11 13 14 4 8 8 3 4 3 4 3 4 9 9 12 15 2 3 5 6 1
Page
+$1:+$
55
Base Frame Ass’y
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-000983A COVER BOTTOM FR 1
2 FC15-000984A COVER BOTTOM FL 1
3 FC15-000985A COVER BOTTOM RR 1
4 FC15-000986A COVER-BOTTOM RL 1
5 J7051010D HOUSING-FOOT 4
6 FC28-000176 FOOT 4 AM03-000098
7 AM03-007220A ASSY,AIR-MAIN MANIFOLD 1
8 HP09-000007 MANIFOLD 1
9 FC14-900641 PLUG 1
10 HP06-000226 FITTING;STRAIGHT 5
11 HP06-900282 STRAIGHT FITTING 4
12 FC14-900644 PLUG 5
13 HP13-900085 AIR TUBE (POLYURETHANE) 3
14 HP13-900083 AIR TUBE (POLYURETHANE) 1.5
15 HP13-900082 AIR TUBE (POLYURETHANE) 3.8
16 HP06-900199 UNION Y FITTING 2
Page
+$1:+$
56
SM482
PLUS

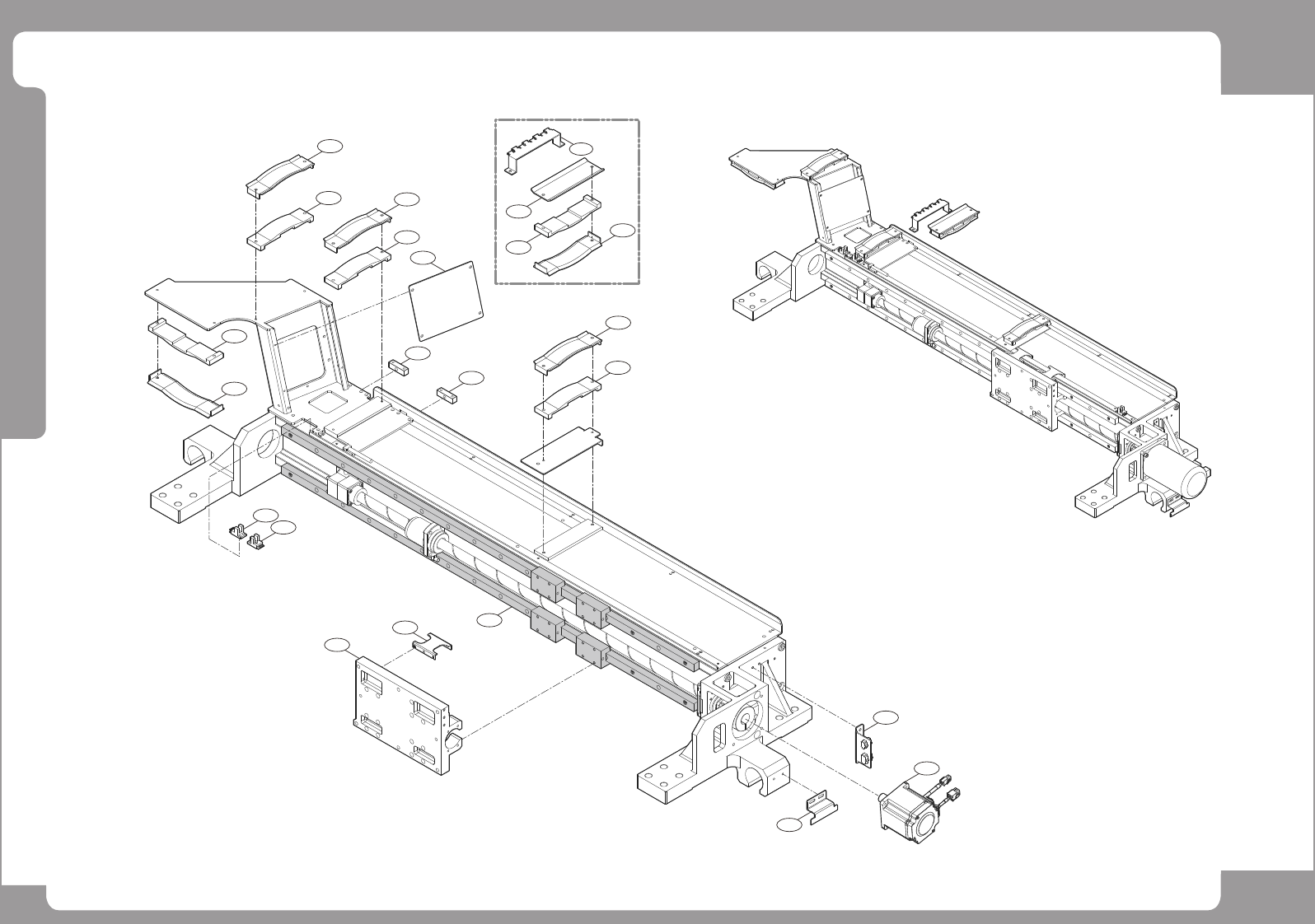

X-Y Frame Ass'y(1/4)
7
10
11
13
14
4
8
8
3
4
3
4
3
4
9
9
12
15
2
3
5
6
1
Page
+$1:+$
57
X-Y Frame Ass'y(1/4)
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70541124A CABLE_SPACER 1
2 J7054260A CABLE FIXER 1
3 J7354023A CABLE CUSHION X 4
4 J7054255A CUSHION BRACKET X 4
5 J7354024A CABLE CUSHION Y 1
6 J7054256A CUSHION BRACKET Y 1
7 J70541116A COVER_Y_CABLE_DUCT_BRK 1
8 FC30-000540A PLATE-K_DUCT_SPACER 2
9 AM03-015575A LIMIT SENSOR 2
EP19-900114
(Detachable Type)
Integral Type
10 FC05-000293B BASE-HEAD 1 FC05-000293A
11 J70541038A SENSOR_DOG_X 1
12 J70541129B SENSOR DOG-Y 1
13 J70541126A CONNECTOR_BKT 1
14 EP08-001066 MOTOR,SERVO 1 EP08-900157
15 MC13-900010 LM GUIDE 2
