Page +$1:+$ 61 X-Y Frame Ass'y(3/4) SM482 PLUS NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 MC13-001 184 BALL _SCREW 1 Kuroda MC13-900173 BALL_SCREW 1 THK 2 EP08-9001 58 SERVO_ MOTOR 1 EP…
Page
+$1:+$
60
SM482
PLUS
X-Y Frame Ass'y(3/4)
2
3
7
11
14
4
13
6
5
1
8
10
19
9
16
11
12
15
18
17
A
A
B
B
Page
+$1:+$
61

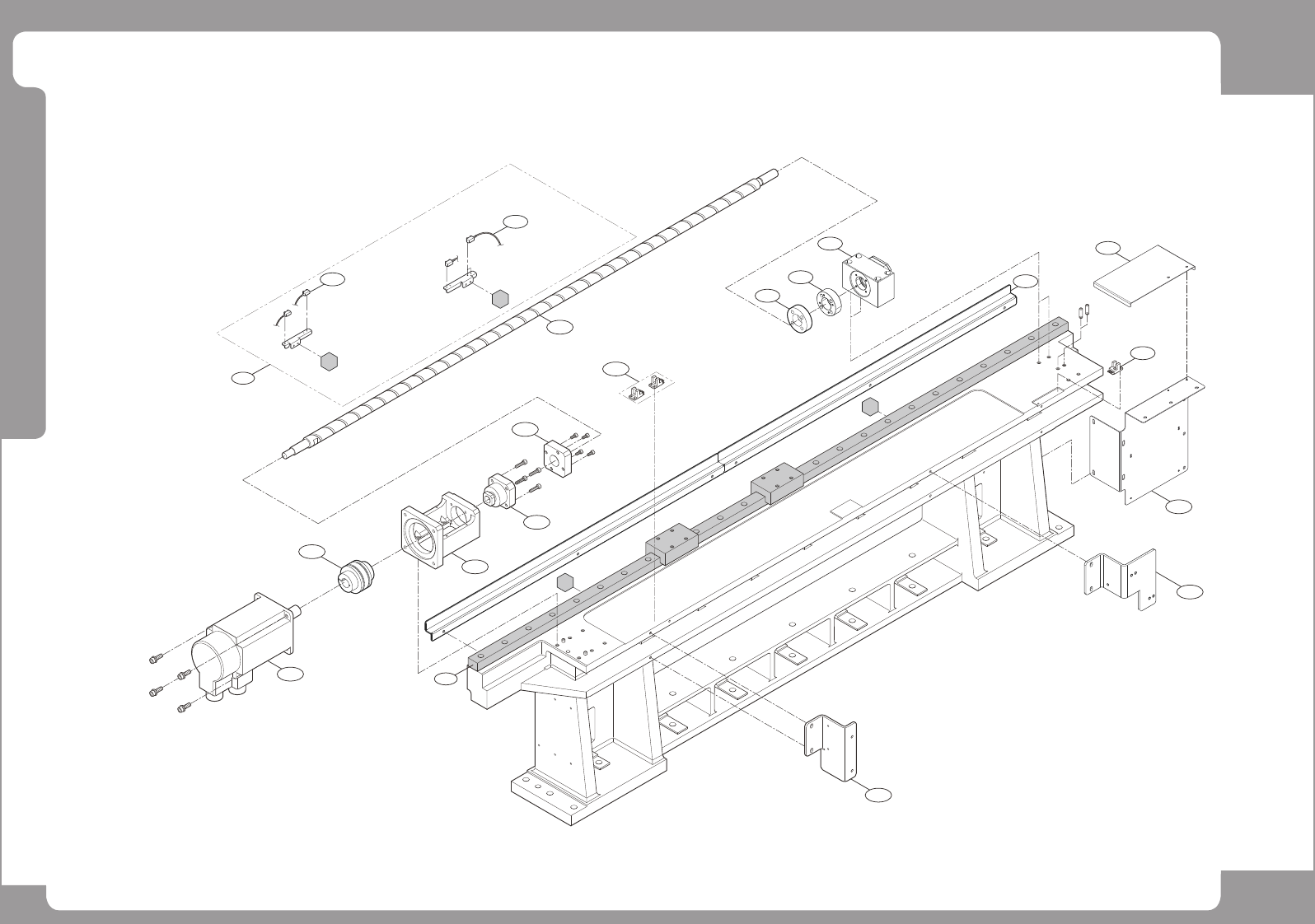

X-Y Frame Ass'y(3/4)
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 MC13-001184 BALL_SCREW 1 Kuroda
MC13-900173 BALL_SCREW 1 THK
2 EP08-900158 SERVO_MOTOR 1 EP08-000139
3 MC22-001016A COUPLING 1
4 FC09-000877B BRACKET-FD_BOARD_BKT 1
5 J70541005C Y_MOTOR_BLOCK 1
6 FC29-007011A SUPPORT 1
7 FC29-004431A STOPPER_Y_BALL_SCREW_FRONT 1 J72541006A
8 FC29-004432A STOPPER_Y_BALL_SCREW 1 J72541012A
9 FC29-007074A SUPPORT_UNIT_REAR 1
10 MC04-000035A SUPPORT,BEARING 1
11 AM03-015578A Y_AXIS_SENSOR 3
12 MC13-900011 LM_GUIDE 1
13 J70541115A COVER_BKT 1
14 FC09-003108A BRACKET-SIDE_COVER 1
15 J91671157A FEEDER_UNLOCK_CABLE_ASSY 1
16 FC15-004876A COVER-Y_LM 4
17 J91672426A FDR_UNLOCK_REAR_CABLE_ASSY 1
18 J91672425A FDR_UNLOCK_FRONT_CABLE_ASSY 1
19 J70510111C BOARD COVER 1
Page
+$1:+$
62
SM482
PLUS
X-Y Frame Ass'y(4/4)
5
6
14
7
9
4
1
2
2
3
8
9
10
11
12
1
13
18
16
15
17
19
