Page +$1:+$ 83 L1200 Conveyor Asse mbly(3/4 ) - OPTION SM482 PLUS NO. P ART N O. P ART NAME Q'TY Old No. Supply Supply L T Refere nce 1 FC39-0019 95A FRAME-CONV_FRONT_610 1 2 FC39-0019 85A FRAME-EXTEND_R_100 1 3 FC2…
Page
+$1:+$
82
SM482
PLUS

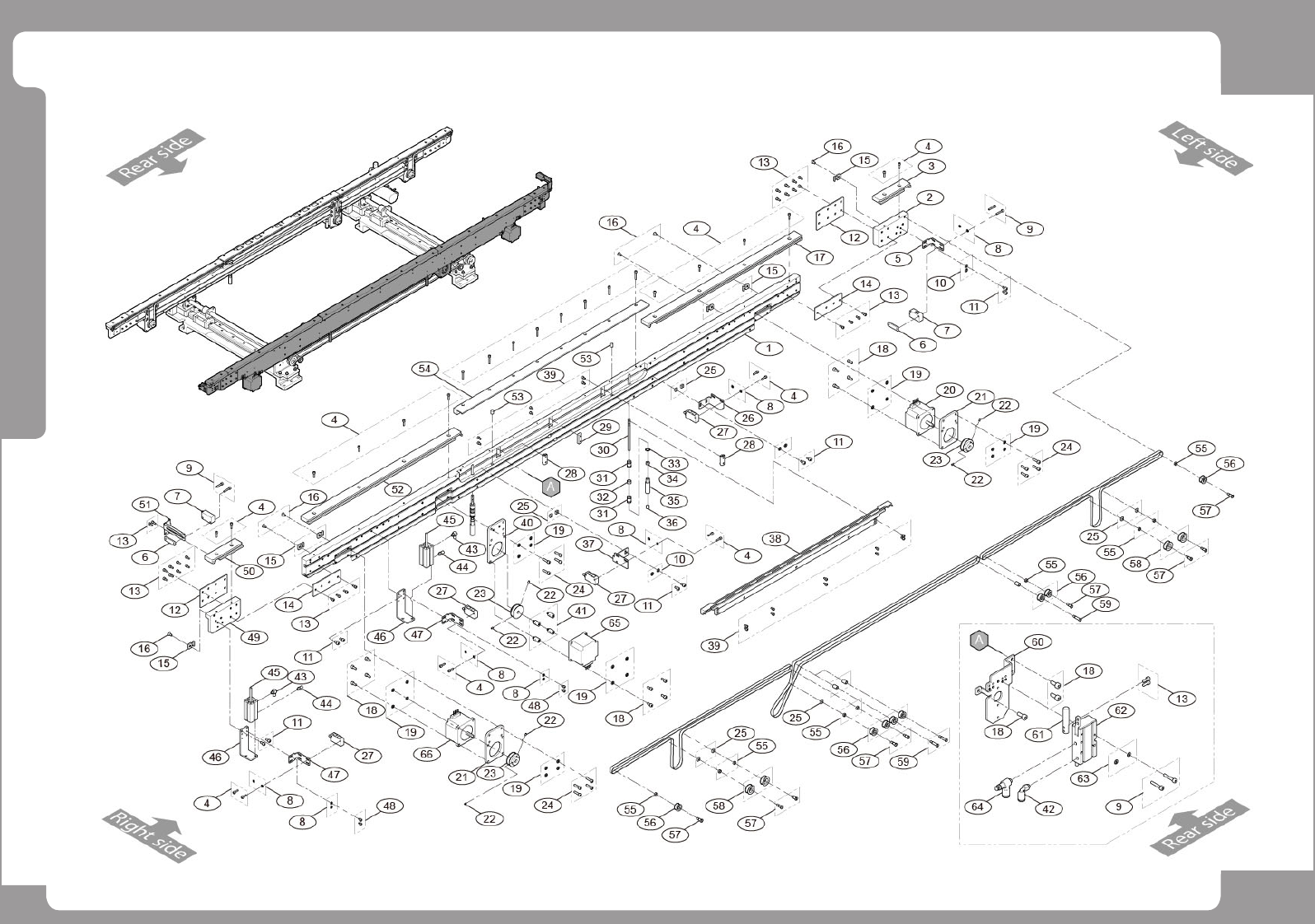

L1200 Conveyor Assembly(3/4) - OPTION
Page
+$1:+$
83
L1200 Conveyor Assembly(3/4) - OPTION
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC39-001995A FRAME-CONV_FRONT_610 1
2 FC39-001985A FRAME-EXTEND_R_100 1
3 FC29-004184A GUIDE-PCB_EXTEND_R_100 1
4 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN) 24
5 FC09-004556A BRACKET-SENSOR 3
6 J70531607A BD_OUT_SENSOR_GUIDE 2
7 EP19-900099 PHOTO SENSOR 2
EP19-001025 SENSOR,OPTIC 2
8 FC18-903475 FLAT WASHER [M3 (BL/ZN)] 14
9 FC18-902732 SOCKET HEAD CAP SCREW M3*18 (NI/ZN) 6
10 FC18-90321938 FLAT WASHER [M4 (BL/ZN)] 6
11 FC18-902740 SOCKET HEAD CAP SCREW M4*8 (NI/ZN) 10
12 J70531091A PLATE_LONG_OUT 2
13 FC18-902722 SOCKET HEAD CAP SCREW M3*8 (NI/ZN) 32
14 J70531090A PLATE_LONG_IN 2
15 FC18-903189 TIE_MOUNT M4(MB2) 6
16 FC18-902819 FLAT HEAD CAP SCREW M4*8 (NI/ZN) 6
17 J71531050B PCB_GUIDE_END_2 1
18 FC18-902741 SOCKET HEAD CAP SCREW M4*10 (NI/ZN) 15
19 FC18-903490 SPRING WASHER [M4 (BL/ZN)] 24
20 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007402A / AM03-007402B
21 J70531106A BRACKET_BELT_MOTOR_S 2
22 FC18-902843 SOCKET SET SCREW [M3*5 (BL/ZN)] 6
23 J7153111A TEP MOTOR PULLEY 3
24 FC18-901866 SOCKET HEAD CAP SCREW 12
25 J7053184A SQUARE NUT M4 9
26 J70531100B BRACKET_SENSOR_IN 1
27 EP19-900099 PHOTO SENSOR 4
EP19-001025 SENSOR,OPTIC 4
28 MC13-900013 LM SLIDE 2
29 J7153036A SLIDE GUIDE 1
Page
+$1:+$
84
L1200 Conveyor Assembly(3/4) - OPTION
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
30 J7153034A CLAMP SHAFT 2
31 MC06-900006 BALL_BUSH 2
32 FC18-001480A BUSH SPACER 2 J7153033A
33 FC18-901355 C-RING DIA11(HOLE) 2
34 FC18-900900 HEX NUT 2
35 FC01-000022A ADJUST SHAFT 22 J7153010B
36 FC29-004426A STOPPER 2 J7253008A
37 J70531088B WORK_SENSOR_BRACKET 1
38 J71530399C CLAMP FRONT FRAME 1
39 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 14
40 J70531084A BRACKET_BELT_MOTOR_B 1
41 J70531083A ALT_MOTOR_SUPPORT 4
42 HP06-900047 ELBOW FITTING 1
43 HP06-900010 ELBOW FITTING 2
44 HP06-900263 HOSE NIPPLE 2
45 HP03-000118 CYLINDER 2
46 FC09-004555A BRACKET-STOPPER 2
47 FC09-004556A BRACKET-SENSOR 2
48 FC18-902718 SOCKET HEAD CAP SCREW M3*5 (NI/ZN) 4
49 FC39-001984A FRAME-EXTEND_F_100 1
50 FC29-004183A GUIDE-PCB_EXTEND_F_100 1
51 J70531076B BRACKET_BD_OUT_SENSOR 1
52 J71531049B PCB_GUIDE_END_1 1
53 FC29-004427A STOPPER 2 2 J7253009B
54 J70530785B PCB GUIDE-FC 1
55 FC18-001478A IDLER_SPACER_S 9 J7053047A
56 J7253007A IDLER 2 8
57 J7053009A IDLER-SHAFT-S2 9
58 J7253006A IDLER 1 4
