SM482_PLUS_TRM(Ver2.5_CS20.11) - 第92页
Page +$1:+$ 92 SM482 PLUS Head Ass’y(2/5) 5 6 7 7 17 9 19 13 15 16 4 6 11 18 12 14 8 2 1 3 10 10
Page
+$1:+$
91
Head Ass’y(1/5)

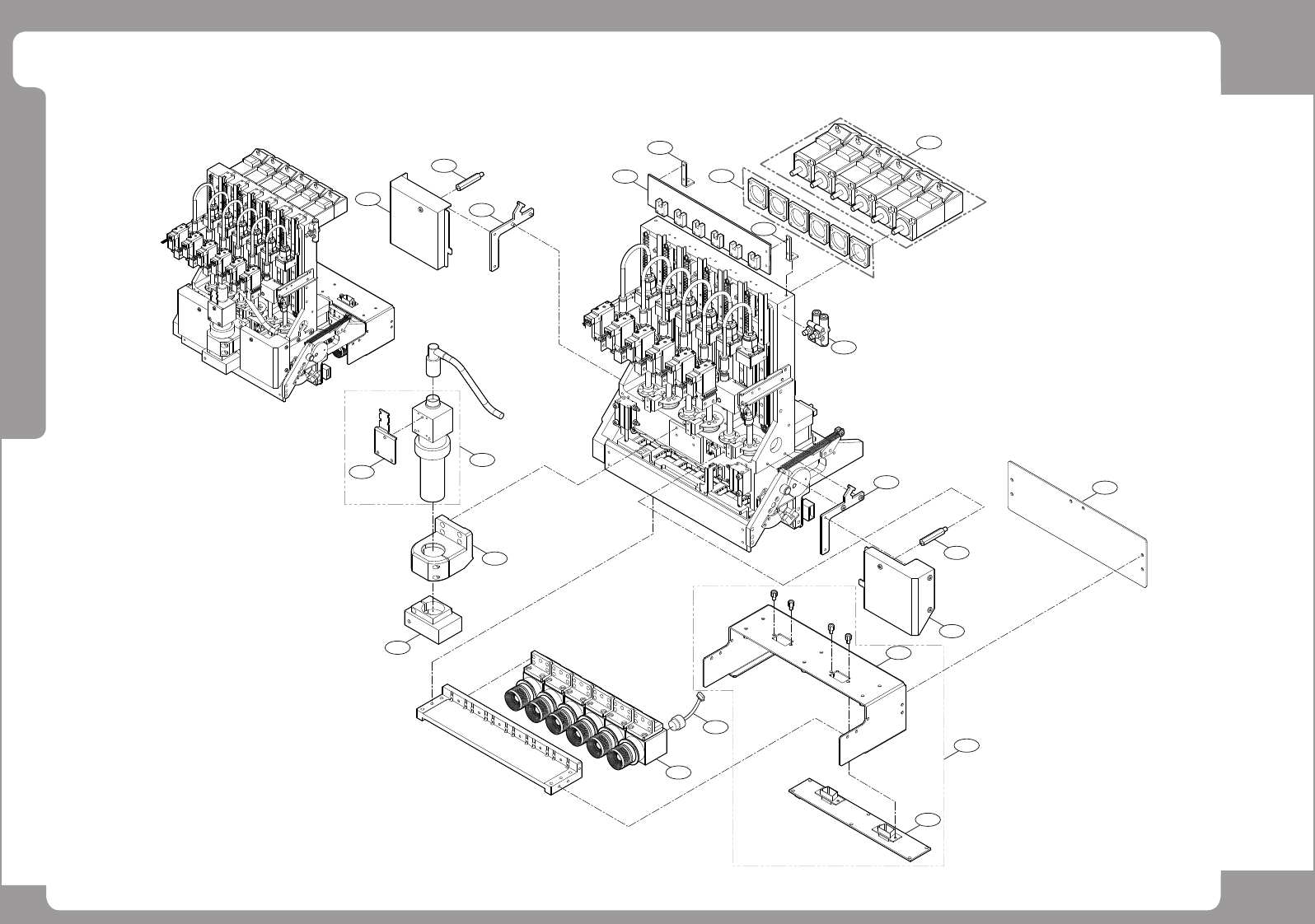

SM482
PLUS
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J71541086A HEAD_TOP_COVER 1
2 J70541125A HEAD_COVER_SUPPORT 2
3 AM03-006867D ASSY,BOARD-HEAD IF REV1.1 1 AM03-006867B/ AM03-006867C
4 J70541124A CABLE_SPACER 1
5 J71541016B HARNESS SUPPORT 2
6 J71541019A HEAD_BOARD_BRACKET 1
7 J71541018B CABLEVEYOR_BRACKET 1
8 J70541015B CONNECTOR_PANNEL 1
9 FC29-000216 HANLDE 1
10 FC09-002283A BRACKET-HARNESS_PLATE 1
11 HP06-900183 FITTING_ELBOW 1
12 HP14-900064 SOL VALVE 1
13 HP06-000074 FITTING 2 HP06-000084
14 HP06-900183 FITTING_ELBOW 2
15 FC18-902837 SEMUS NABE SCREW M4*8 4
16 FC29-900610 HEX SUPPORT 4
17 FC18-902795 BUTTON_HEAD_CAP_SCREW M10*20 (NI/ZN) 1
Page
+$1:+$
92
SM482
PLUS
Head Ass’y(2/5)
5
6
7
7
17
9
19
13
15
16
4
6
11
18
12
14
8
2
1
3
10
10
Page
+$1:+$
93
Head Ass’y(2/5)
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-015389A CABLE ASSY-Z_MOTOR_ASSY 6
2 J7055656A Z-TENSION BRACKET 6
3 AM03-014950B ASSY,BOARD-HOME SENSOR 1 AM03-014950A
4 HP14-900097 SPEEDCONTROL 2
5 J7155552A MIRROR COVER -LEFT 1
6 J7055566B PCB SUPPORT 30 2 J7055566A
7 J7055657A MIRROR COVER BRACKET 2
8 J7155553A MIRROR COVER -RIGHT 1
9 AM06-000358B ASSY,PCB SMD-CAMERA_IO_BD 1 AM06-000358A
10 FC09-004803A BRACKET-VACUUM_SNS_BD_BKT 2
11 J90591009A_AS FLY_CAM_ONE_KIT_ASSY_MEGA-F25 1
AM03-017355A FLY_CAM_ASSY_MEGA-F16 1 AM03-013494A OPTION
AM03-004963A ASSY,OPTICS-FLY_CAM_ONE_KIT_N-MEGA-F16 1 OPTION
AM03-015387A ASSY,OPTICS-FLY_CAM_ONE_KIT_N-MEGA-F25 1 OPTION
12 AM03-012075A ASSY,OPTICS-FID_CAM 1
13 J7155537A CAMERA REAR COVER 1
14 J71551263A FIDUCIAL_CAMERA_BRK-2 1
15 AM03-007719A ASSY,HEAD-FIDUCIAL_ILL_OUTER 1
16 J71551140B FLY_CAMERA_BRACKET 1
17 FC09-002429C BRACKET-CAMERA-COVER_01 1 FC09-002429A/ FC09-002429B
18 AM03-005553B CABLE ASSY-FLYING_CAMERA_IF 6 AM03-001506A /AM03-001506B
19 AM03-005250A ASSY,BOARD-CAMERA COVER ASSY 1
AM03-014729A CABLE ASSY-FLY_CAM_FG 1
AM03-015109A CABLE ASSY-HEAD_HOME_SENSOR 1
