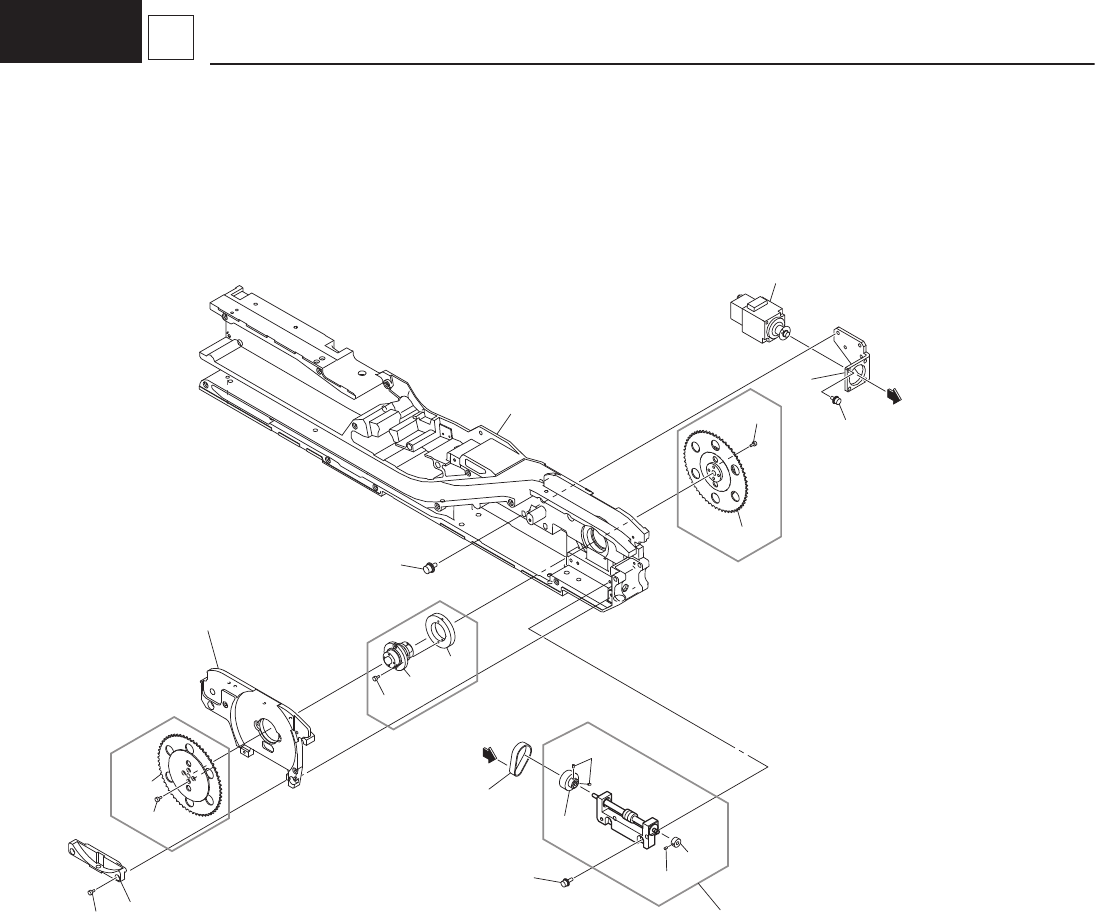

– 95 –

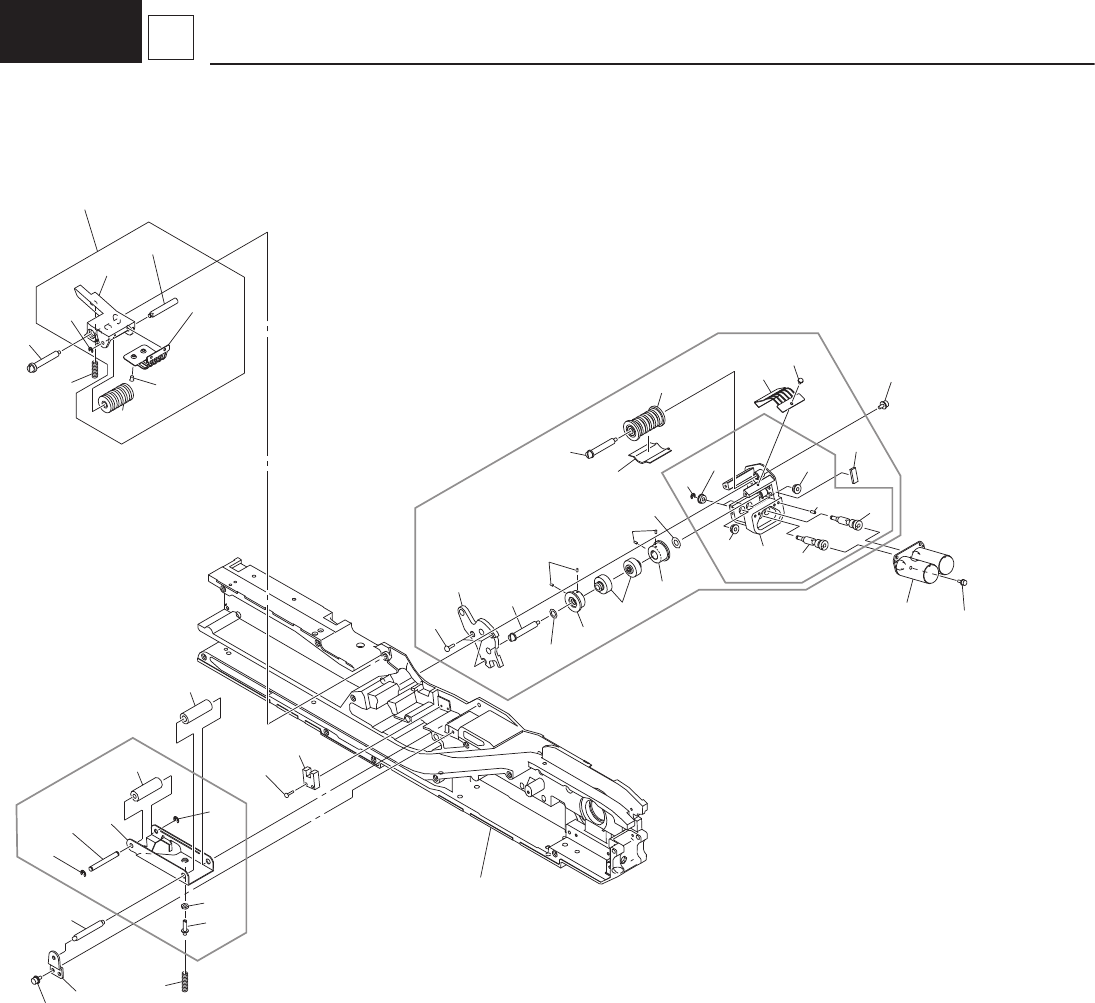

Tape Feeder GT-24322
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
249 KYD-MC40S-00 211AE153 COVER(CHUTE) 1
251 KYD-MC425-00 223E0539 GEAR 1
252 KYD-MC40B-00 023S0064 ASSY_SPROCKET 2
253 KYD-MC40V-00 216D0547 PIN_HINGE 1
255 KYD-MC426-00 223L0273 BELT_TIMING 1
256 KYD-MCN3P-00 216E1485 PIN_LOCATE 1
257 91317-03006 221A0005 BOLT,HEX-SCT 2 M3L6
258 91317-03008 221A0006 BOLT,HEX-SCT 8 M3L8
259 90990-01J140 221AA095 BOLT,HEX.S/H WW 2 M3L10 SW+FW
261 KYD-MC41L-00 211F8483 BRACKET 1
262 92017-03008 221AB002 BOLT,BUTTON HEAD 2 BUTTAN M3L8
263 90990-01J145 221AA106 BOLT,HEX.S/H WW 2 M4L10 SW+FW
295 KYD-MC419-00 09262503 ASSY_MOTOR 1 M01
296 92902-03100 221HA003 WASHER,SPRING 2 SW3
297 92902-03600 221HA203 WASHER 2 FWS3
2A3 90166-12JA06 MACHINE_SCREW 2 PAN M2.5L6 SW+FWS
2B3 KYD-MC227-00 216A1359 COLLAR(BEARING) 1
2B6 KYD-MC427-00 223Q0643 PULLEY_TIMING 1
2B7 90990-02J037 221C0100 SET SCREW(SET SCREW) 1 SET M2L3
2B8 KYD-MC41C-00 0926C10D BOLT_HEX-SCT 2
