– 109 –
Tape Feeder GT-44562
– 110 –

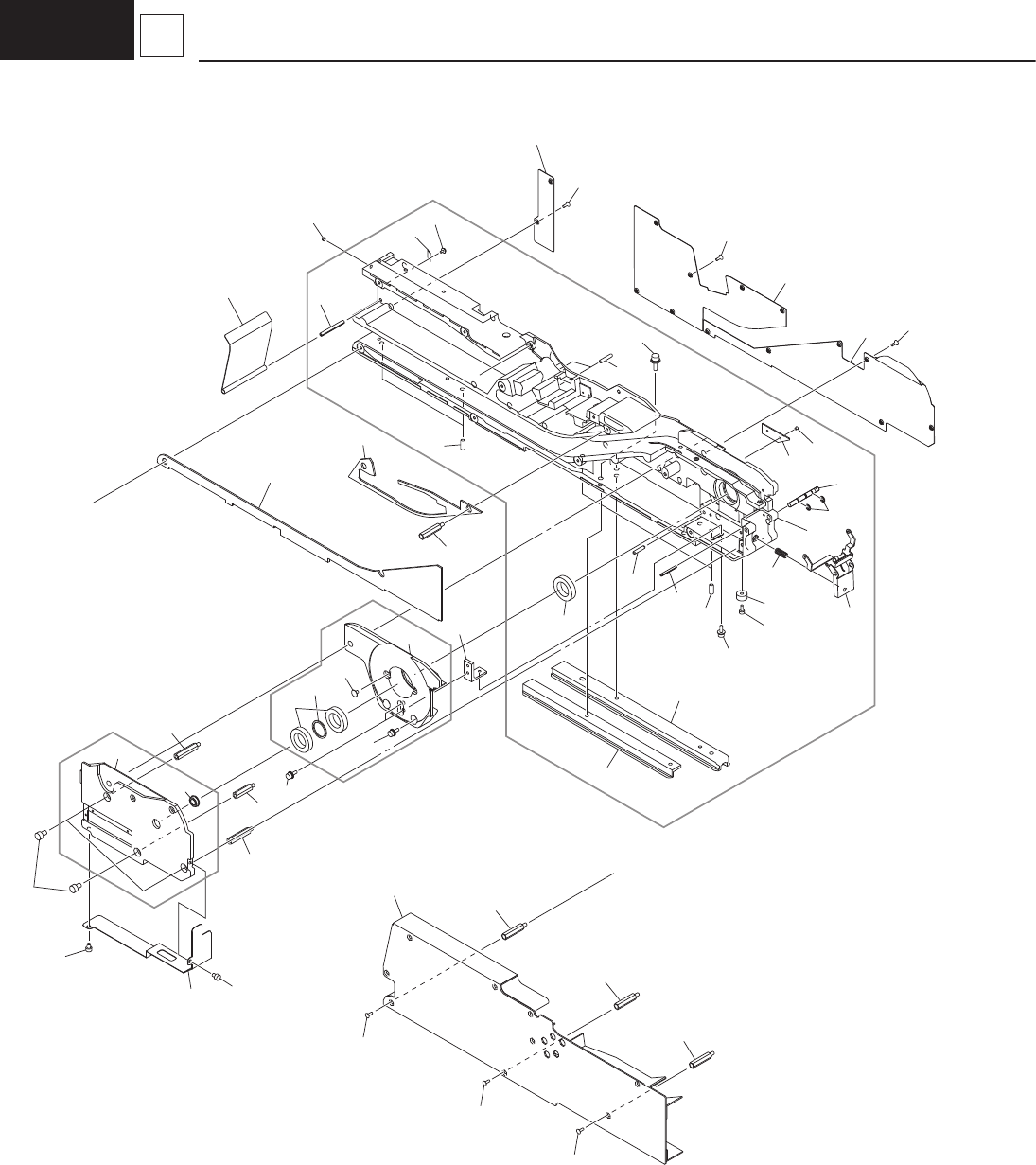

44,56mm
Q
1 Frame, Cover Section
1710-006
8
26
41
19
19
24
27
25
25
21
1
50
47
20
44
46
6
82
46
5
4
3
25
30
22
54
54
54
42
25
25
25
58
72
76
81
40
54
45
83
70
49
A5
49
57
48
48
64
C5
B5
B1
A9
B0
63
A
A
61
62
– 111 –
Tape Feeder GT-44562
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYD-MC602-00 210B4497 FRAME 1
3 KYD-MC40P-00 211AD451 COVER(LA) 1
4 KYD-MC60M-00 211AD455 COVER(LB) 1
5 KYD-MC41E-00 211AD453 COVER(LC) 1
6 KYD-MC615-00 0926200P ASSY_CHUTE 1
8 KYB-M940H-00 1016B005 SLIDE(BASE) 1
19 KYC-M3716-00 216E1741 PIN_LOCATE 4
20 KYD-MC61B-00 211AD626 COVER 1
21 KYD-MC41B-00 0926C006 MECH-P_MAGNET 1
22 KYD-MC13X-00 226J1909 MECH-P_CUTTER 1
24 KYD-MCN4D-00 226J0249 RUBBER_LEGS 1
25 90167-02JA06 221DA103 MACHINE SCREW 21 FLT M2.5L6
26 90115-2AJ006 221A0104 BOLT,HEX-SCT 1 M2.5L6
27 90990-01J146 221AA102 BOLT,HEX.S/H WW 4 M4L12 SW+FW
30 90166-12J204 221DA060 MACHINE SCREW 1 PAN M2L4 SW+FWS
40 KYD-MC608-00 212B2314 CHUTE 1
41 KYB-M940K-00 211G3564 BLOCK 1
42 KYD-MC60E-00 09260604 ASSY_COVER 1
44 KYD-MC60R-00 211AE150 COVER(RD) 1
45 KYD-MC61F-00 211F8852 BRACKET 1
46 KYD-MC61V-00 221E0310 BOLT 2
47 KYD-MC61W-00 221E0311 BOLT 1
48 90990-11J023 221D0194 SCREW PAN HEAD W/W 2 M3L5
49 90990-01J139 221AA092 BOLT,HEX.S/H WW 3 M3L8 SW+FW
50 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 3 M4L6
54 KYD-MC61H-00 211J1248 STAY 7
57 91609-20020 221J0059 SPRING,PIN 1
58 KYD-MC61U-00 216F0992 PIN_GUIDE 1
61 KYD-MC218-00 211DE587 PLATE 1
62 KYB-M91E9-00 221D0201 MACHINE_SCREW 2 PAN M2L3.5
63 KYD-MC60U-00 211AE277 COVER(M) 1
64 KYD-MC60T-00 211AE244 COVER(MAKITORI) 1
70 90933-01J802 222D0403 BEARING,RADIAL 1
72 KYD-MCN3P-00 216E1485 PIN_LOCATE 1
76 90990-66J007 221DA202 SCREW,TRUSS HEAD 2 TRS M3L4
81 KYD-MC61Y-00 221H0253 WASHER 1
82 90933-03J106 222D0144 BEARING_RADIAL 1
83 90933-01J804 222D0298 BEARING,RADIAL 2
C5 KYD-MCN3P-00 216E1485 PIN_LOCATE 2
A9 KYD-MC60A-00 016J0027 MACHINE SCREW 3 PAN M2L6 SW+FWS
B0 KYD-MC41W-00 216D0467 PIN_HINGE (FRONT) 1
B5 90440-01J025 221KB002 RING_E_025W 2 E RING
B1 KYD-MC620-00 222M1309 SPRING,COMP 1
A5 90990-01J143 221AA101 BOLT,HEX.S/H WW 2 M4L6 SW+FW
1710-006
