– 115 –

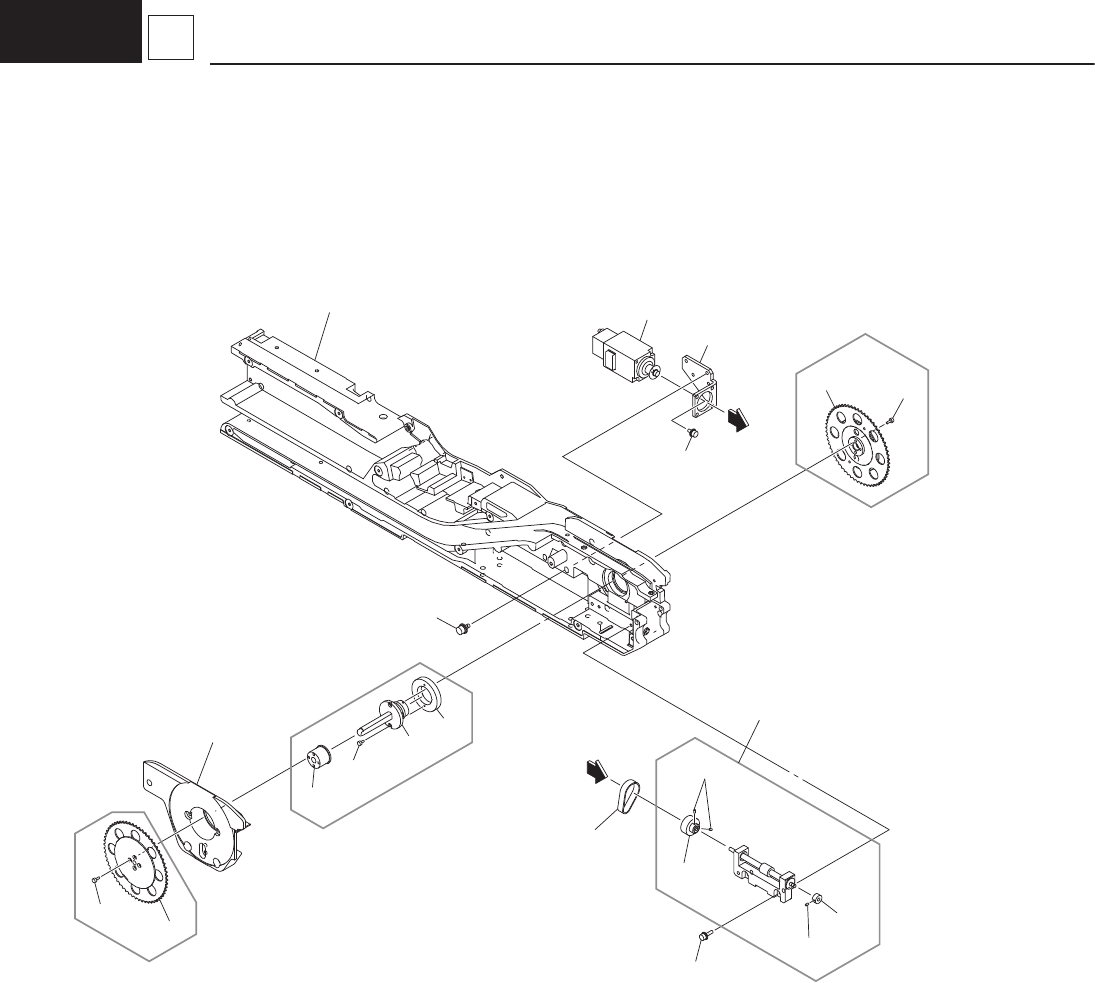

Tape Feeder GT-44562
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
266 KYD-MC425-00 223E0539 GEAR 1
267 KYD-MC60C-00 023S0070 ASSY_SPROCKET 1
268 KYD-MC60D-00 023S0071 ASSY_SPROCKET 1
269 KYD-MC60X-00 216D0545 PIN_HINGE 1
271 KYD-MC426-00 223L0273 BELT_TIMING 1
273 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2 M3L6
274 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 8 M3L8
275 90990-01J140 221AA095 BOLT,HEX.S/H WW 2 M3L10 SW+FW
277 KYD-MC41L-00 211F8483 BRACKET 1
278 92017-03008 221AB002 BOLT,BUTTON HEAD 2 BUTTAN M3L8
279 90990-01J145 221AA106 BOLT,HEX.S/H WW 2 M4L10 SW+FW
280 KYD-MC60W-00 216A1420 COLLAR 1
2A6 KYD-MC616-00 09262504 ASSY_MOTOR 1 M01
2A7 92902-03100 221HA003 WASHER,SPRING 2 SW3
2A8 92902-03600 221HA203 WASHER 2 FWS3
2C3 KYD-MC227-00 216A1359 COLLAR(BEARING) 1
2C6 KYD-MC427-00 223Q0643 PULLEY_TIMING 1
2C7 90990-02J037 221C0100 SET SCREW(SET SCREW) 1 SET M2L3
2C8 KYD-MC41C-00 0926C10D BOLT_HEX-SCT 2
1710-006
