– 131 – T ape F eeder GT - 720 02 No. Part No. Part Name Qty . Detail Y amaha Hitachi 1 KYD-MC602-00 210B4497 FRAME 1 3 KYD-MC40P-00 21 1AD451 COVER(LA) 1 4 KYD-MC60M-00 21 1AD455 COVER(LB) 1 5 KYD-MC41E-00 21 1AD453 COV…
– 131 –

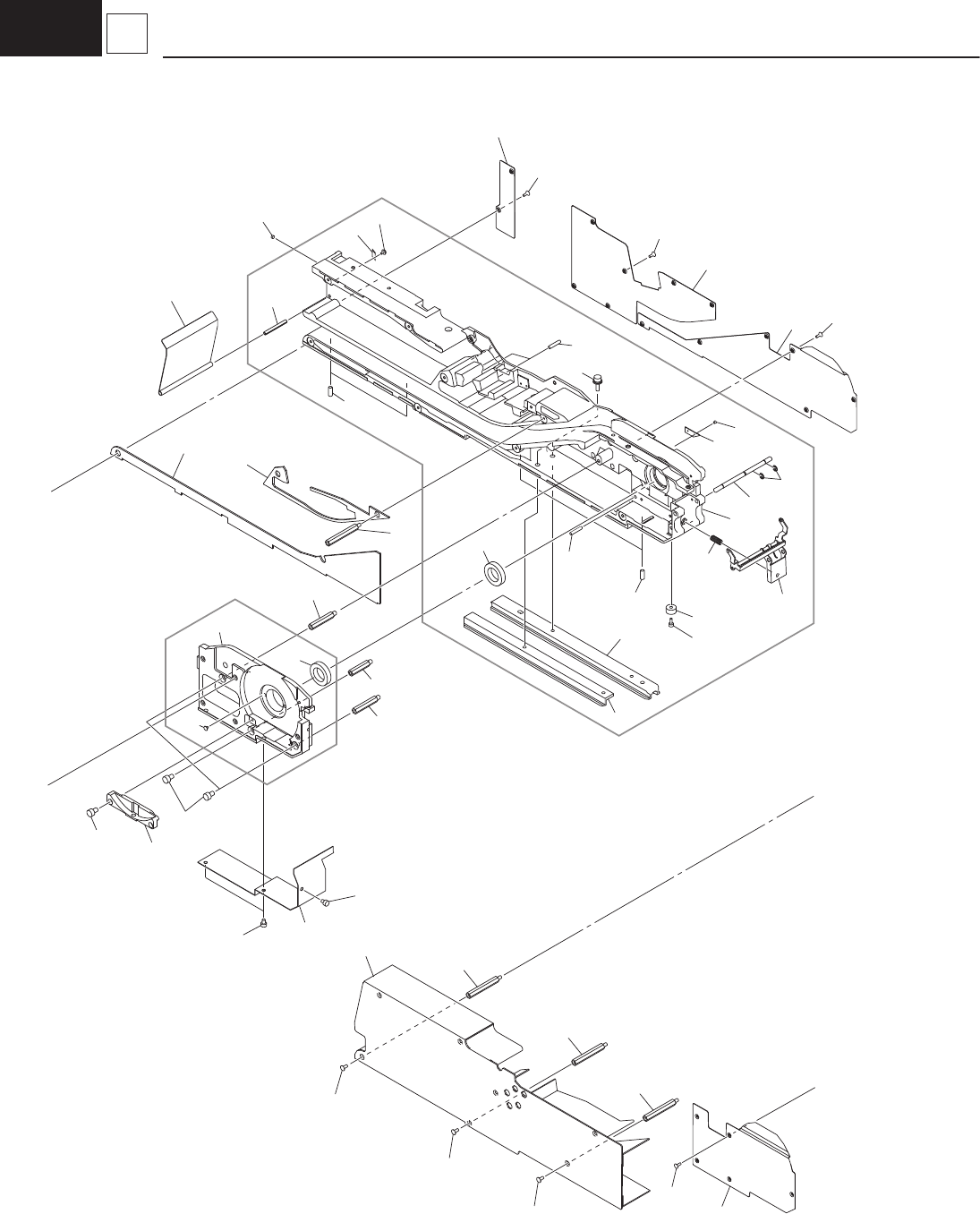

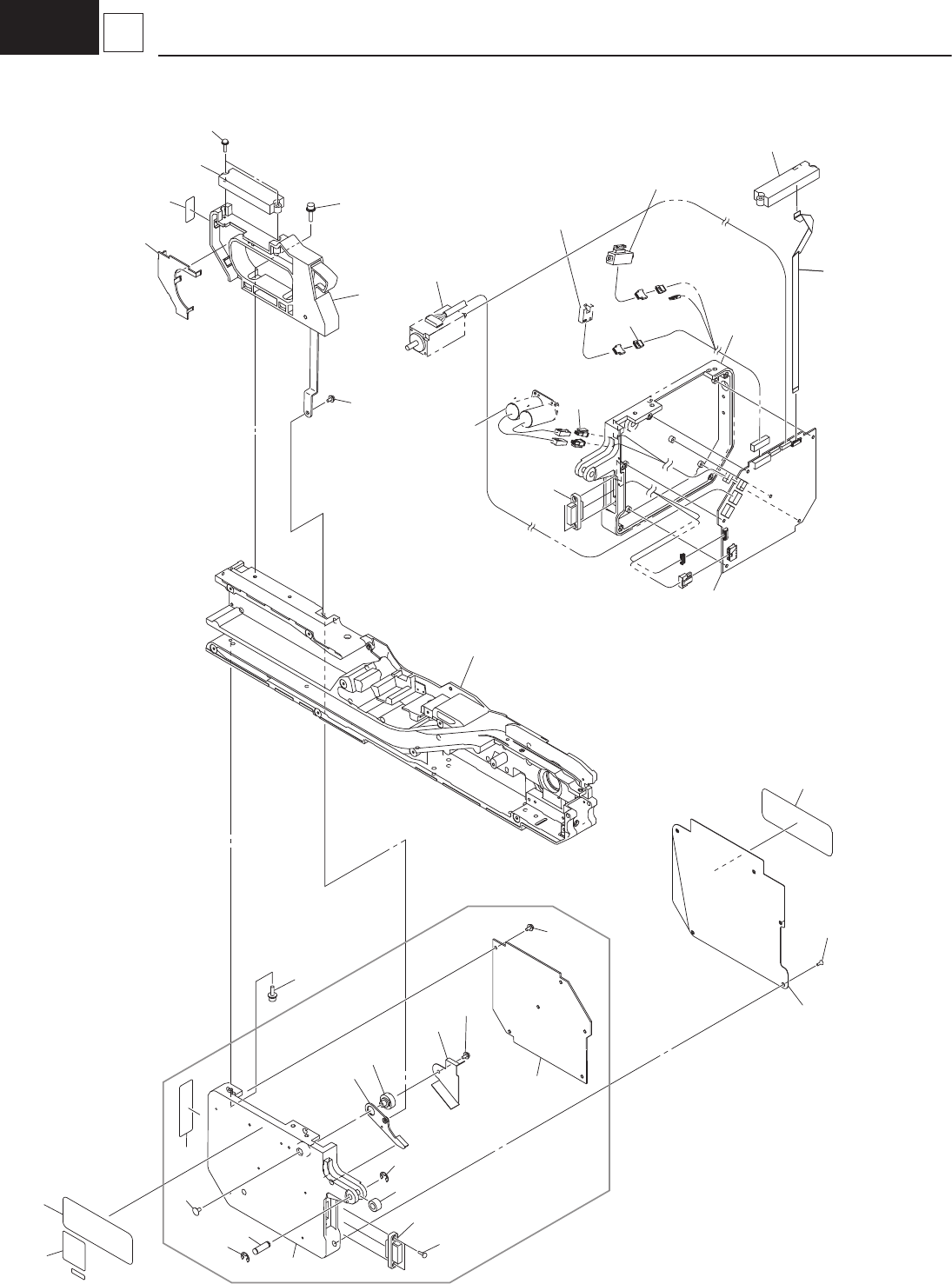

Tape Feeder GT-72002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYD-MC602-00 210B4497 FRAME 1
3 KYD-MC40P-00 211AD451 COVER(LA) 1
4 KYD-MC60M-00 211AD455 COVER(LB) 1
5 KYD-MC41E-00 211AD453 COVER(LC) 1
6 KYD-MC80J-00 211AD456 COVER(RA) 1
8
KYB-M940H-00
1016B005 SLIDE(BASE) 1
19 KYC-M3716-00 216E1741 PIN_LOCATE 4
20 KYD-MC80W-00 211AD627 COVER(FUTA) 1
21 KYD-MC13W-00 226J1891 MECH-P_MAGNET 1
22 KYD-MC13X-00 226J1909 MECH-P_CUTTER 1
24 KYD-MCN4D-00 226J0249 RUBBER_LEGS 1
25 90167-02JA06 221DA103 MACHINE SCREW 26 FLT M2.5L6
26 90115-2AJ006 221A0104 BOLT,HEX-SCT 1 M2.5L6
27 90990-01J146 221AA102 BOLT,HEX.S/H WW 4 M4L12 SW+FW
30 90166-12J204 221DA060 MACHINE SCREW 1 PAN M2L4 SW+FWS
40 KYD-MC80U-00 0926200N ASSY_CHUTE 1
41 KYB-M940K-00 211G3564 BLOCK 1
42 KYD-MC80A-00 09260701 ASSY_COVER 1
44 KYD-MC80H-00 211A9327 COVER(RD) 1
45 KYD-MC81C-00 221E0334 BOLT 2
46 KYD-MC81D-00 221E0335 BOLT 1
47 90990-11J023 221D0194 SCREW PAN HEAD W/W 3 M3L5
48 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 3 M4L6 SW+FW
52 KYD-MC819-00 216E1518 PIN_LOCATE 7
54 KYD-MC81B-00 216F0993 PIN_GUIDE 1
56 KYD-MC218-00 211DE587 PLATE 1
57 KYB-M91E9-00 221D0201 MACHINE_SCREW 2 PAN M2L3.5
58 KYD-MC40S-00 211AE153 COVER(CHUTE) 1
59 KYD-MC60U-00 211AE277 COVER(M) 1
60 KYD-MC60T-00 211AE244 COVER(MAKITORI) 1
65 90933-01J802 222D0403 BEARING,RADIAL 2
67 KYD-MCN3P-00 216E1485 PIN_LOCATE 1
71 90990-66J007 221DA202 SCREW,TRUSS HEAD 2 TRS M3L4
96 KYD-MCN3P-00 216E1485 PIN_LOCATE 2
B2 KYD-MC808-00 016J0028 ASSY_HOOK 1
B3 KYD-MC41W-00 216D0467 PIN_HINGE(FRONT) 1
B4 KYD-MCN40-00 222M1325 SPRING_COMP 1
B6 90440-01J025 221KB002 RING_E_025W 2 E RING
C5 90166-12JA06 MACHINE_SCREW 2 PAN M2.5L6 SW+FWS
1710-006
