– 133 – T ape F eeder GT - 720 02 No. Part No. Part Name Qty . Detail Y amaha Hitachi 102 KYC-M3702-00 21 1G5664 BLOCK 1 107 KYD-MC20W-00 0926C00M COVER 1 109 KYB-M121E-00 016S1022 ASSY_LEVER 1 11 0 KYB-M122D-00 216D0448…

100%1 / 170
– 132 –
72mm
T
2 Operation Panel, Motor Control PCB
1710-006
138
139
153
129
111
112
102
102
134
134
127
109
110
123
118
107
125
138
123
186
180
132
128
1A6
116
133
117
183
183
137
123
186
180
184
181
182
See Fig.TD-1
Key No.14
See Fig.T-1
Key No.1
See Fig.T-4
Key No.394
See Fig.T-3
Key No.2A7
See Fig.T-4
Key No.3C5
– 133 –
Tape Feeder GT-72002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
102
KYC-M3702-00
211G5664 BLOCK 1
107 KYD-MC20W-00 0926C00M COVER 1
109 KYB-M121E-00 016S1022 ASSY_LEVER 1
110 KYB-M122D-00 216D0448 PIN_HINGE 1
111 KYB-M9413-00 213C0206 ROLLER 1
112 KYB-M122F-00 216F0879 PIN_GUIDE 1
116 KYD-MC21H-00 09262007 ASSY_GRIP 1
117 KYD-MC11W-00 211AB843 COVER(GRIP) 1
118 KYD-MC222-00 211A8726 COVER 1
123 90990-11J009 221DA051 MACHINE SCREW 8 M3L6
125 90167-02JA06 221DA103 MACHINE SCREW 5 FLT M2.5L6
127 90990-01J146 221AA102 BOLT,HEX.S/H WW 2 M4L12 SW+FW
128 90990-06J009 221AB004 BOLT_HEX-SCT 2 BUTTAN M4L22
129 98702-04006 221DA113 SCREW,FLAT HEAD 1 FLT M4L6
132 90166-02JA08 221DA007 SCREW,PAN HEAD 2 PAN M2.5L8
133 KYD-MC14G-00 221DA133 MECH SCREW 2 TPG M3L12
134 90440-01J040 221KB001 CIRCLIP 2 E RING
137 KYB-MCH00-00 0804000D PLATE_INDEX 1
138 KYB-MCH0M-00 0926B008 PLATE_NOTICE 2
139 KYB-MCH01-00 0804000E PLATE_INDEX 1
153 KYB-M1204-00 0804000M ASSY_SEAL 1
180 KYD-MC143-00 4W202800 CORD 1
181 KYD-MC22R-00 4W202883 CORD 1
182 KYD-MC428-00 4W202923 CORD
1
183 KYD-MC121-00 4B111602 PCB_MOUNT 1
184 KYD-MC124-00 4W300035 WIRE 1
186 KYD-MC142-00 4U240497 UNIT_DRIVER 1
1A6 92902-04200 221HA104 WASHER 2 FW4
1710-006
– 134 –
72mm
T

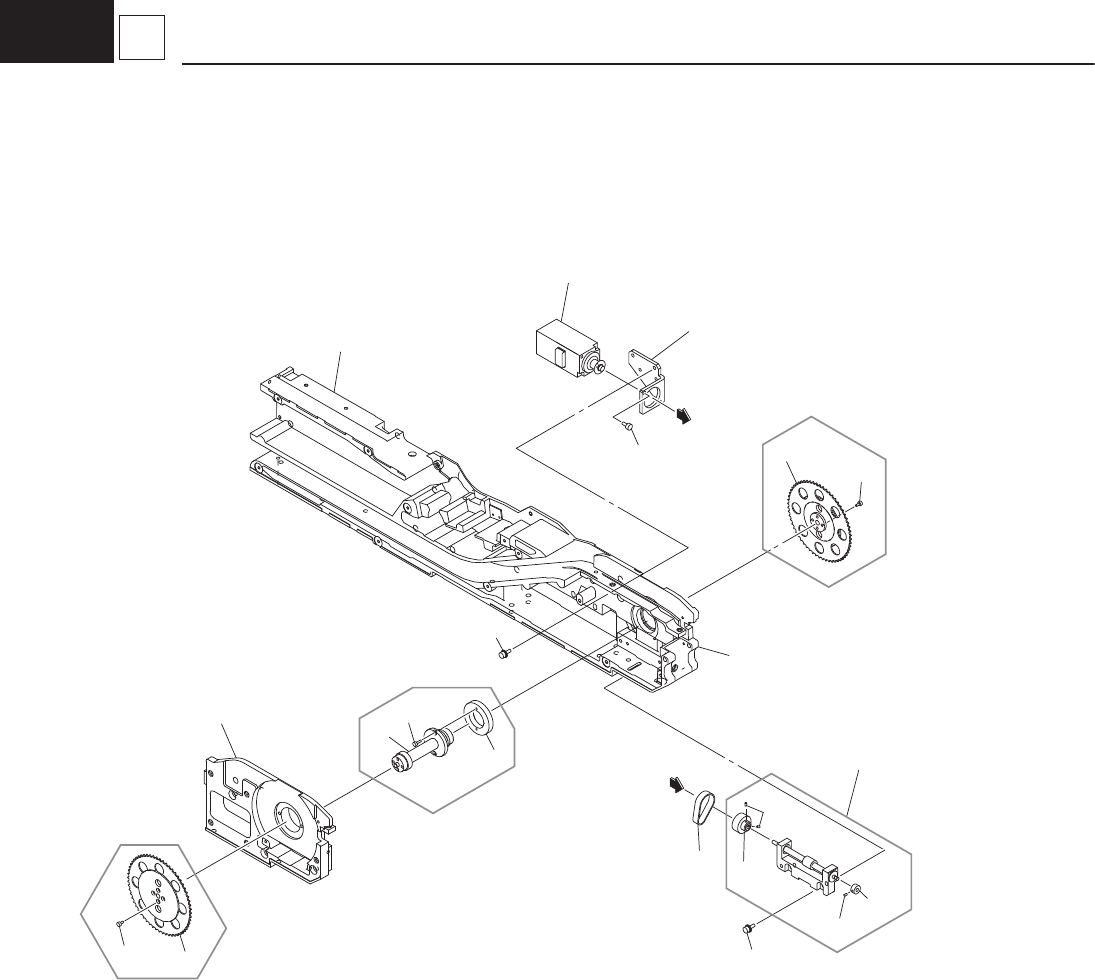

3 Tape Driving Section
1710-006
See Fig.T-1
Key No.1
See Fig.T-1
Key No.40
2B3
266
2B6
2B7
2B7
D
268
264
263
262
269
272
2A8
2A9
269
263
D
274
270
273
KYD-MC40D-00
2A7
1
