– 142 –

– 141 –

Joint Detection Unit DS-72002

1710-006

No.

Part No.

Part Name Qty. Detail

Yamaha Hitachi

3 KYD-MC803-00 0926200R PLATE_INDEX 1

4 KYD-MC804-00 0926200S PLATE_INDEX 1

5 90990-01J149 221AA105 BOLT,HEX.S/H WW 2 M4L18 SW+FW

6 KYD-MC41K-00 211DA550 PLATE 1

7 98702-04010 221DA115 SCREW,FLAT HEAD 2 FLT M4L10

11 KYD-MC232-00 210B4392 FRAME 1

12 KYD-MC81J-00 0926J005 ASSY_COVER 1

13 KYD-MC237-00 211A9111 COVER(D) 1

14 KYD-MC140-00 23G10090 SENSOR_PHOTO 1

15 90166-12J206 221DA065 MACHINE_SCREW 2 PAN M2L6 SW+FWS

16 90167-02JA06 221DA103 MACHINE SCREW 4 FLT M2.5L6

17 90990-11J010 221DA056 SCREW,PAN HEAD WW 2 PAN M3L8 SW+FWS

18 KYD-MC81H-00 0926J00B GUIDE 1

– 142 –

– 143 –

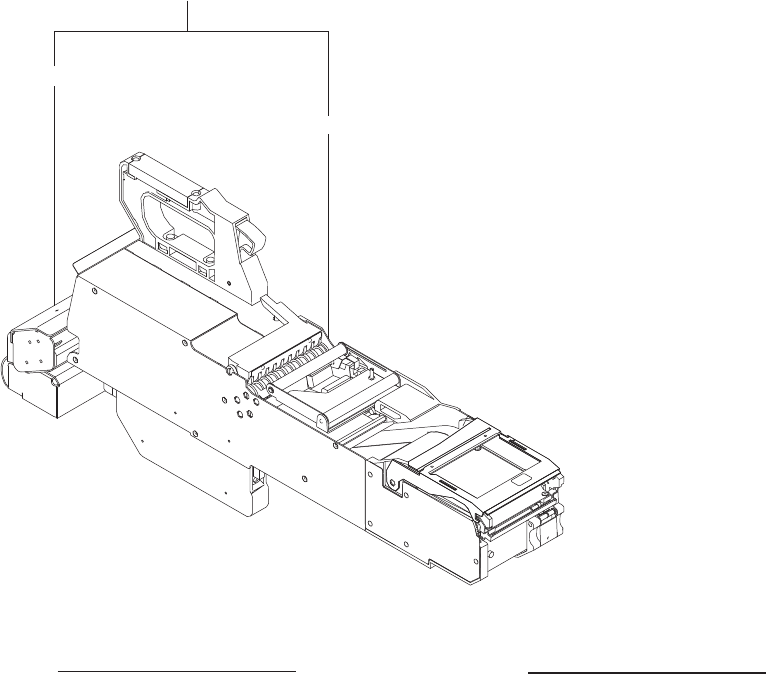

88mm Tape Feeder

GT-88002

DS-88002

GD-88002

CONTENTS

X Tape Feeder GT-88002 144

A1 PARTS LAYOUT-1 144

A2 PARTS LAYOUT-2 146

A3 PARTS LAYOUT-3 148

1 Frame, Cover Section 150

2 Operation Panel, Motor Control PCB 152

3 Tape Driving Section 154

4 Cover Tape Winding Section 156

5 Suppressor Section 158

XD Joint Detection Unit DS-88002 160

1 Joint Detection Unit 160
