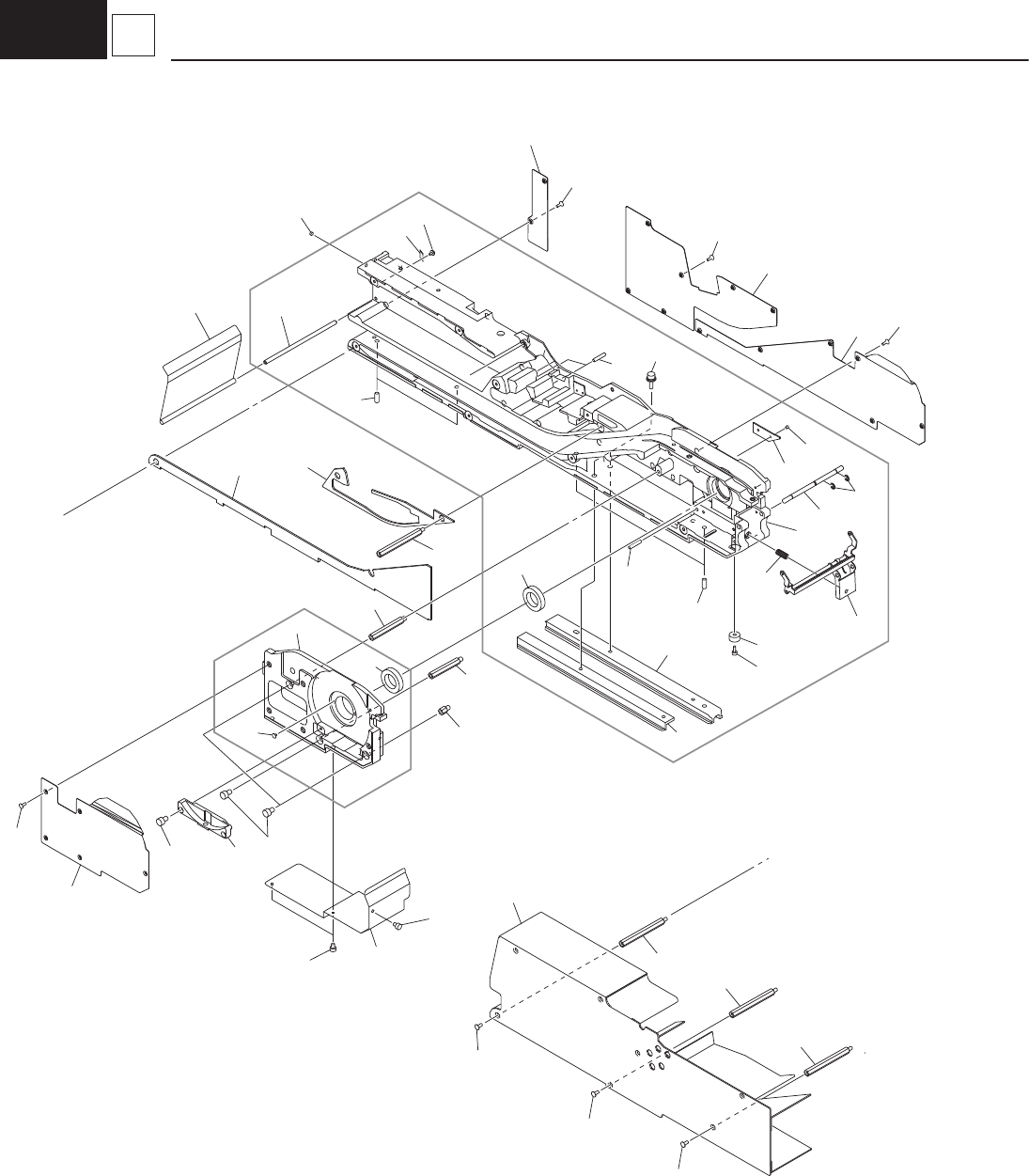

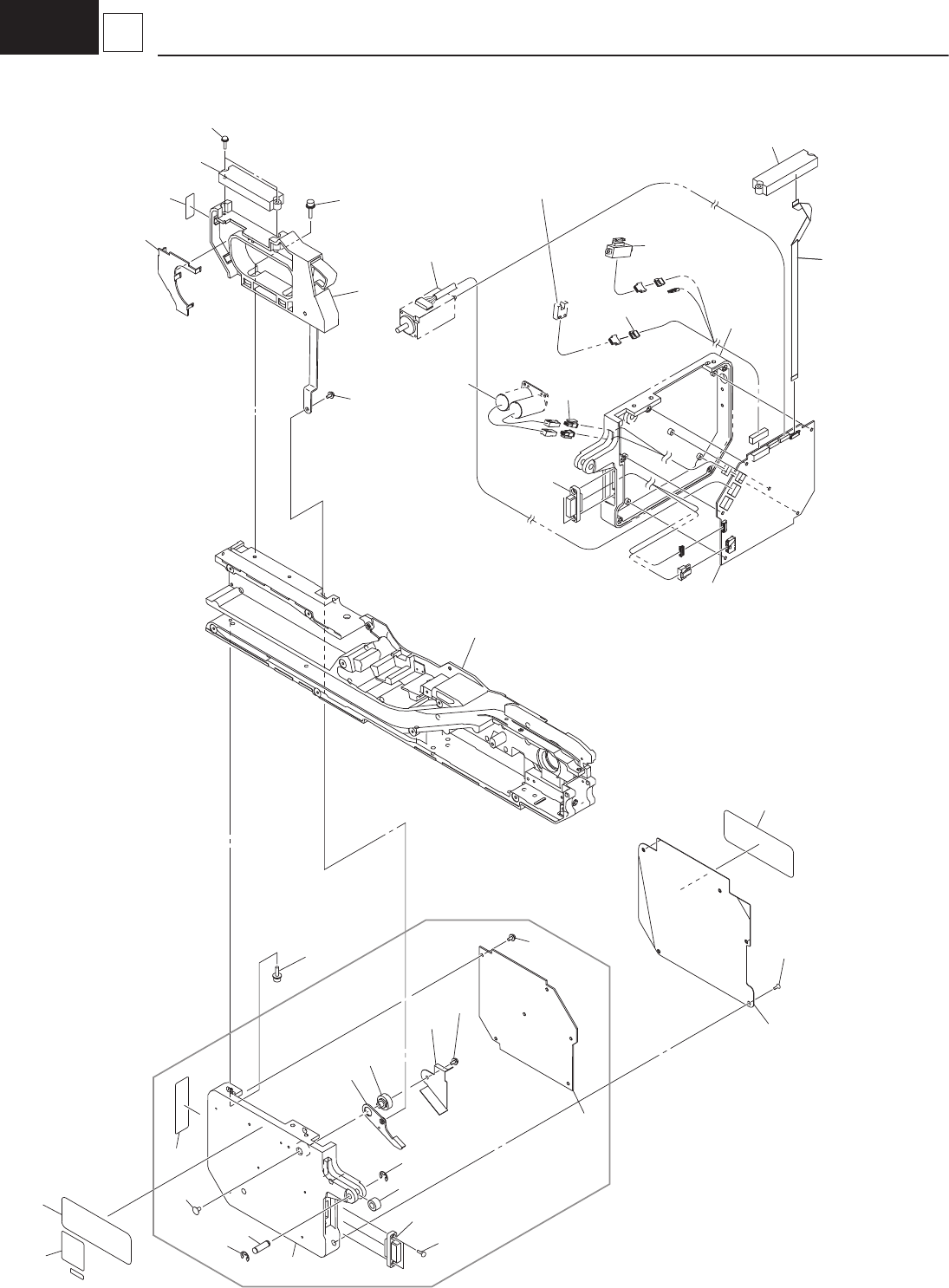

Tape Feeder GT-88002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYD-MC602-00 210B4497 FRAME 1
3 KYD-MC40P-00 211AD451 COVER(LA) 1
4 KYD-MC60M-00 211AD455 COVER(LB) 1
5 KYD-MC41E-00 211AD453 COVER(LC) 1
6 KYD-MC80J-00 211AD456 COVER(RA) 1
8 KYB-M940H-00 1016B005 SLIDE(BASE) 1
17 KYC-M3716-00 216E1741 PIN_LOCATE 4
18 KYD-MC90V-00 211AC257 COVER 1
19 KYD-MC13W-00 226J1891 MECH-P_MAGNET 1
20 KYD-MC13X-00 226J1909 MECH-P_CUTTER 1
22 KYD-MCN4D-00 226J0249 RUBBER_LEGS 1
23 90167-02JA06 221DA103 MACHINE SCREW 26 FLT M2.5L6
24 90115-2AJ006 221A0104 BOLT,HEX-SCT 1 M2.5L6
25 90990-01J146 221AA102 BOLT,HEX.S/H WW 4 M4L12 SW+FW
28 90166-12J204 221DA060 MACHINE SCREW 1 PAN M2L4 SW+FWS
36 KYD-MC80U-00 0926200N ASSY_CHUTE 1
37 KYB-M940K-00 211G3564 BLOCK 1
38 KYD-MC906-00 011A0021 ASSY_COVER 1
40 KYD-MC90H-00 211AC259 COVER(RD) 1
41 KYD-MC919-00 221E0429 BOLT 2
42 KYD-MC91A-00 221E0430 BOLT 1
43 90990-11J023 221D0194 SCREW PAN HEAD W/W 3 M3L5
44 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 3 M4L16
48 KYD-MC917-00 216E1704 PIN_LOCATE 7
50 KYD-MC90S-00 0926C008 PIN_GUIDE 1
51 KYD-MC218-00 211DE587 PLATE 1
52 KYB-M91E9-00 221D0201 MACHINE_SCREW 2 PAN M2L3.5
53 KYD-MC40S-00 211AE153 COVER(CHUTE) 1
54 KYD-MC60U-00 211AE277 COVER(M) 1
55 KYD-MC60T-00 211AE244 COVER(MAKITORI) 1
60 90933-01J802 222D0403 BEARING,RADIAL 2
62 KYD-MCN3P-00 216E1485 PIN_LOCATE 1
66 90990-66J007 221DA202 SCREW,TRUSS HEAD 2 TRS M3L4
91 KYD-MCN3P-00 216E1485 PIN_LOCATE 2
A7 KYD-MC907-00 016J0029 ASSY_HOOK 1
A8 KYD-MC41W-00 216D0467 PIN_HINGE(FRONT) 1
A9 KYD-MCN40-00 222M1325 SPRING_COMP 1
B1 90440-01J025 221KB002 RING_E_025W 2 E RING
C7 90166-12JA06 MACHINE_SCREW 2 PAN M2.5L6 SW+FWS
