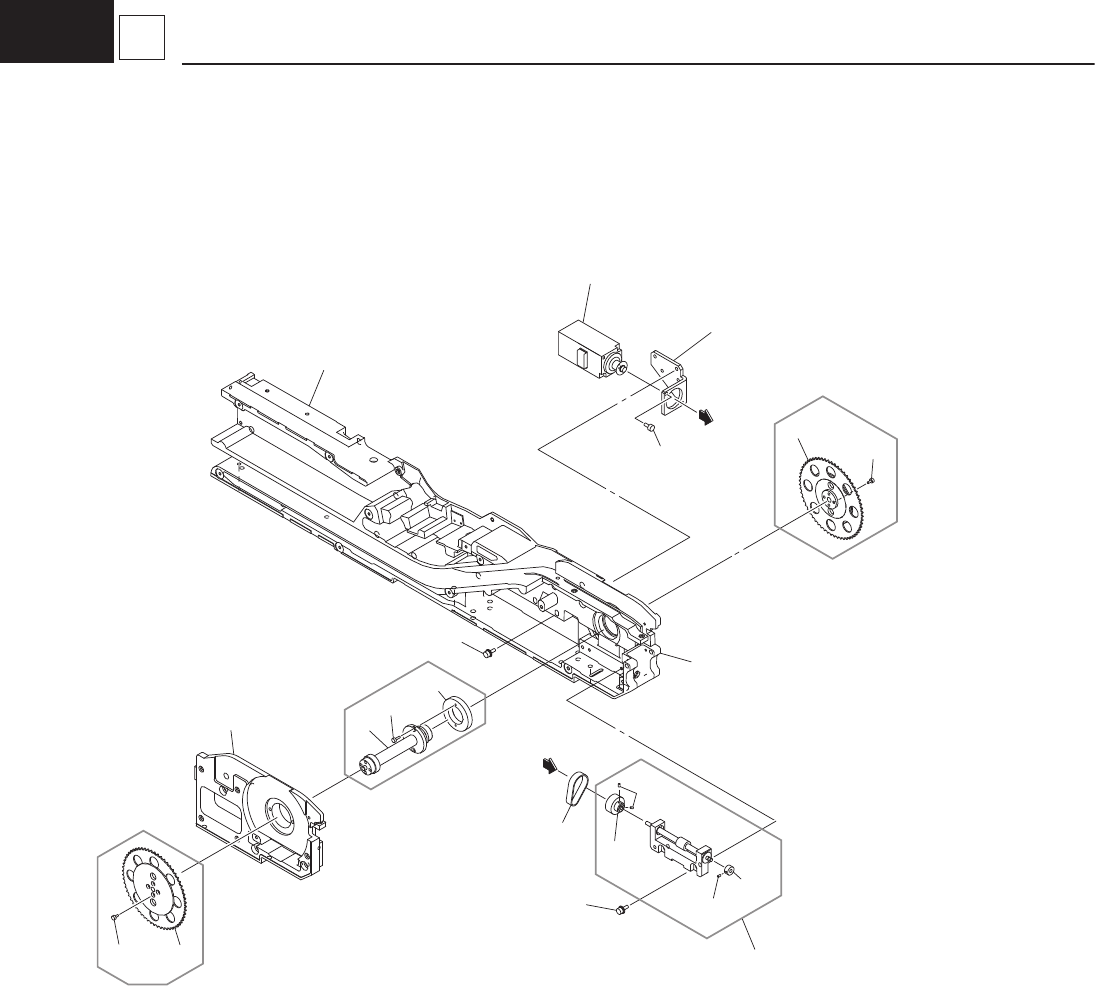

– 154 – 88mm X 3 T ape Driving Section 1710-006 36 2B3 261 2B6 2B7 2B7 D 265 KYD-MC40D-00 257 263 259 258 264 264 258 267 2A3 2A4 D 268 2A2 269 1 See Fig. Key No.1 -1 X
– 153 –
Tape Feeder GT-88002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
102
KYC-M3702-00
211G5664 BLOCK 1
107 KYD-MC20W-00 0926C00M COVER 1
109 KYB-M121E-00 016S1022 ASSY_LEVER 1
110 KYB-M122D-00 216D0448 PIN_HINGE 1
111 KYB-M9413-00 213C0206 ROLLER 1
112 KYB-M122F-00 216F0879 PIN_GUIDE 1
114 KYD-MC21H-00 09262007 ASSY_GRIP 1
115 KYD-MC11W-00 211AB843 COVER(GRIP) 1
116 KYD-MC222-00 211A8726 COVER 1
121 90990-11J009 221DA051 MACHINE SCREW 8 M3L6
123 90167-02JA06 221DA103 MACHINE SCREW 5 FLT M2.5L6
125 90990-01J146 221AA102 BOLT,HEX.S/H WW 2 M4L12 SW+FW
126 90990-06J009 221AB004 BOLT_HEX-SCT 2 BUTTEN M4L22
127 98702-04006 221DA113 SCREW,FLAT HEAD 1 FLT M4L6
130 90166-02JA08 221DA007 SCREW,PAN HEAD 2 PAN M2.5L8
131 KYD-MC14G-00 221DA133 MECH SCREW 2 TPG M3L12
132 90440-01J040 221KB001 CIRCLIP 2 E RING
133 KYB-MCH00-00 0804000D PLATE_INDEX 1
134 KYB-MCH0M-00 0926B008 PLATE_NOTICE 2
135 KYB-MCH01-00 0804000E PLATE_INDEX 1
149 KYB-M1204-00 0804000M ASSY_SEAL 1
175 KYD-MC143-00 4W202800 CORD 1
176 KYD-MC22R-00 4W202883 CORD 1
177 KYD-MC428-00 4W202923 CORD
1
178 KYD-MC121-00 4B111602 PCB_MOUNT 1
179 KYD-MC124-00 4W300035 WIRE 1
181 KYD-MC142-00 4U240497 UNIT_DRIVER 1
188 92902-04200 221HA104 WASHER 2 FW4
1710-006
– 155 –
Tape Feeder GT-88002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
257 KYD-MC425-00 223E0539 GEAR 1
258 KYD-MC60C-00 023S0070 ASSY_SPROCKET 2
259 KYD-MC90K-00 216D0578 PIN_HINGE 1
261 KYD-MC426-00 223L0273 BELT_TIMING 1
263 91317-03006 221A0005 BOLT,HEX-SCT 2 M3L6
264 91317-03008 221A0006 BOLT,HEX-SCT 8 M3L8
265 90990-01J140 221AA095 BOLT,HEX.S/H WW 2 M3L10 SW+FW
267 KYD-MC41L-00 211F8483 BRACKET 1
268 92017-03008 221AB002 BOLT,BUTTON HEAD 2 BUTTAN M3L8
269 90990-01J145 221AA106 BOLT,HEX.S/H WW 2 M4L10 SW+FW
2A2 KYD-MC616-00 09262504 ASSY_MOTOR 1 M01
2A3 92902-03100 221HA003 WASHER,SPRING 2 SW3
2A4 92902-03600 221HA203 WASHER 2 FWS3
2B3 KYD-MC227-00 216A1359 COLLAR(BEARING) 1
2B6 KYD-MC427-00 223Q0643 PULLEY_TIMING 1
2B7 90990-02J037 221C0100 SET SCREW(SET SCREW) 1 SET M2L3
2B8 KYD-MC41C-00 0926C10D BOLT_HEX-SCT 2
1710-006
