– 159 – T ape F eeder GT - 8 80 02 No. Part No. Part Name Qty . Detail Y amaha Hitachi 439 KYD-MC90G-00 21 1AC258 COVER(RC) 1 445 98702-03006 221DA106 MACHINE_SCREW 4 FL T M3L6 4A4 KYD-MC905-00 216S3157 LEVER(SUP) 1 4A5 …

– 158 –

88mm

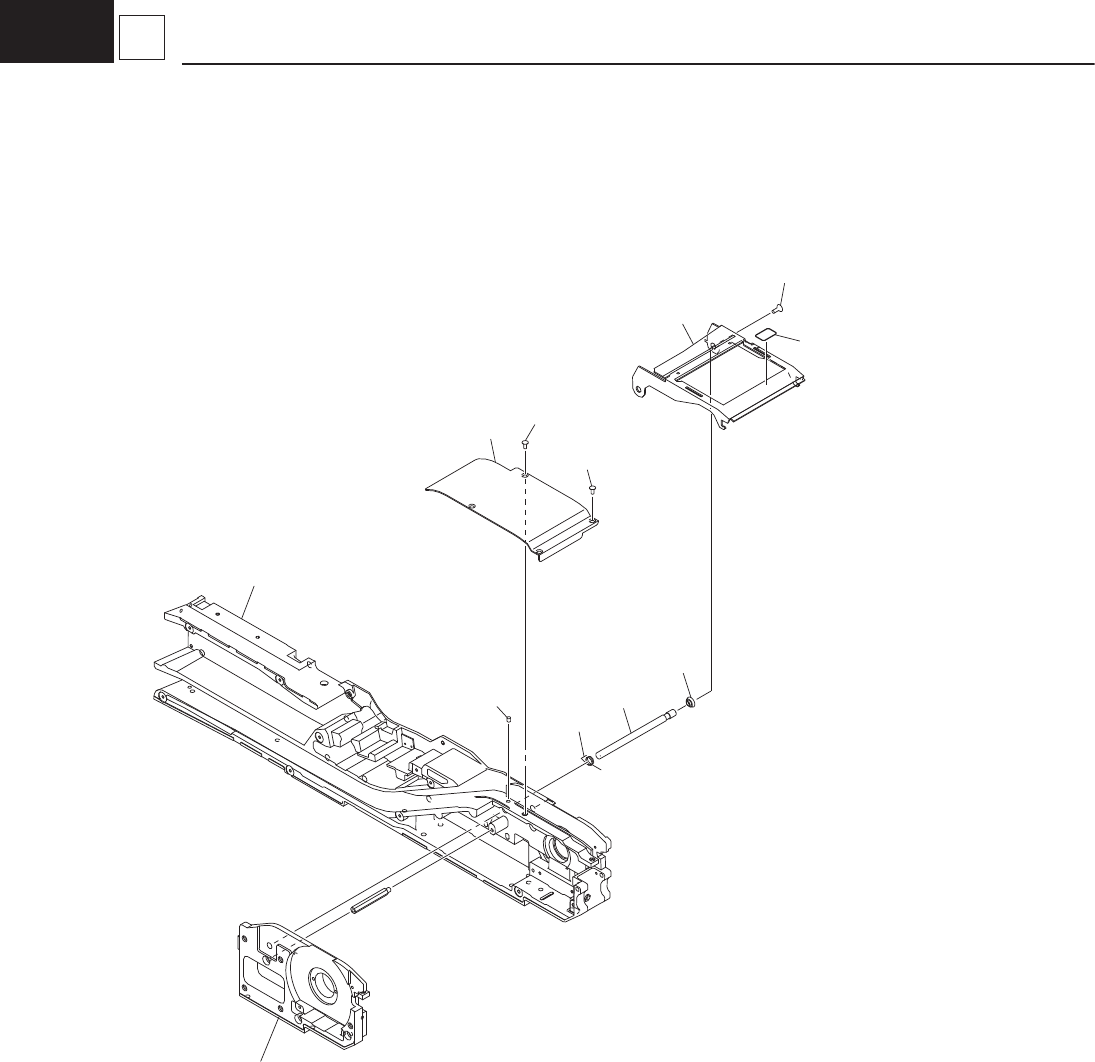

5 Suppressor Section

1710-006

See Fig.X-1

Key No.1

See Fig.X-1

Key No.36

445

439

4B0

4A5

4A4

4A6

4B2

4B3

4B4

– 159 –

Tape Feeder GT-88002

No.

Part No.

Part Name Qty. Detail

Yamaha Hitachi

439 KYD-MC90G-00 211AC258 COVER(RC) 1

445 98702-03006 221DA106 MACHINE_SCREW 4 FLT M3L6

4A4 KYD-MC905-00 216S3157 LEVER(SUP) 1

4A5 KYD-MC916-00 216D0583 PIN_HINGE 1

4A6 KYD-MC22K-00 222P0201 SPRING_TORSION 1

4B0 90990-02J031 221C0027 SET SCREW 1 SET M4L4

4B2 KYD-MC604-00 0804000H NAME_PLATE 1

4B3 KYD-MC22H-00 221H0230 WASHER 1

4B4 90167-02JA06 221DA103 MACHINE SCREW 1 FLT M2.5L6

1710-006

– 160 –

88mm

1 Joint Detection Unit

1710-0061

XD Joint Detection Unit DS-88002
