– 13 – T ape F eed er G T - 2 40 40 1710-006 No. Part No. Part Name Qty . Detail Y amaha Hitachi 239 90990-01J139 221AA092 BOL T ,HEX.S/H WW 4 M3L8 SW+FW 241 901 15-02J004 221A0121 BOL T ,HEX-SCT 3 M2L4 242 KYD-MCN2A-00 …
– 13 –

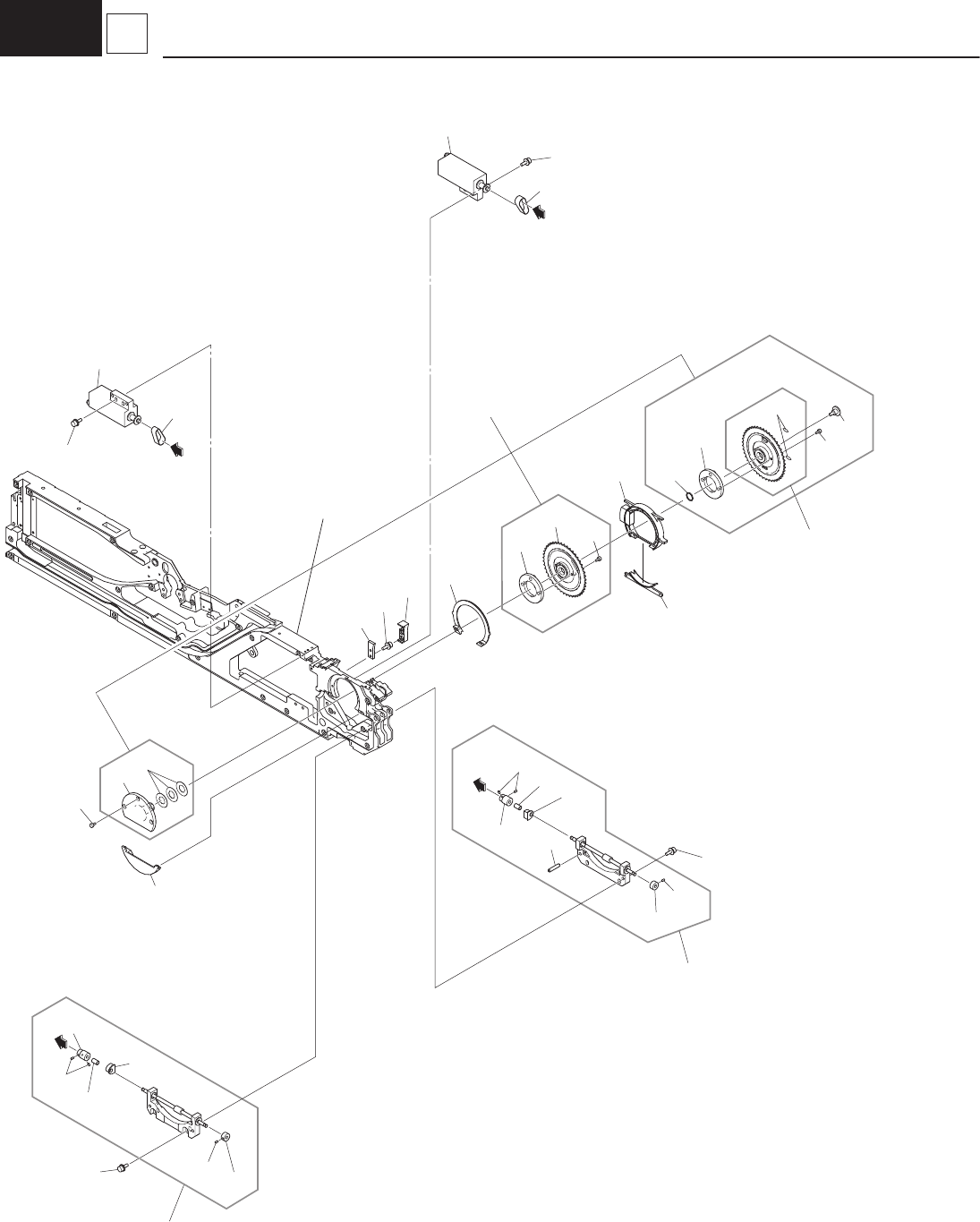

Tape Feeder GT-24040
1710-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
239 90990-01J139 221AA092 BOLT,HEX.S/H WW 4 M3L8 SW+FW
241 90115-02J004 221A0121 BOLT,HEX-SCT 3 M2L4
242 KYD-MCN2A-00 211AD789 COVER(WORM-B) 1
243 KYD-MCN2B-00 211AD790 COVER(WORM-C) 1
244 KYD-MCN29-00 211AD788 COVER(WORM-A) 1
245 KYD-MCN2C-00 211AD791 COVER(WORM-D) 1
246 KYD-MC122-00 4B111626 PCB(SENSOR) 1
247 90990-01J134 221AA083 BOLT,HEX.S/H WW 2 M2L8 SW+FWS
248 KYD-MCN2D-00 211AD803 COVER(SENSOR) 1
250 KYD-MC12C-00 09261502 ASSY_MOTOR 2
251 KYD-MC13V-00 223L0270 BELT_TIMING 2
252 90990-01J141 221AA093 BOLT,HEX.S/H WW 4 M3L12 SW+FW
2A3 KYD-MCN3M-00 216A1654 COLLAR(PULLEY) 1
2A4 KYD-MC13K-00 216A1147 COLLAR(BEARING) 1
2A7 KYD-MCN44-00 223Q0562 PULLEY_TIMING 1
2A8 90990-02J037 221C0100 SET SCREW(SET SCREW) 3
2A9 KYD-MCN3H-00 211AD861 COVER(SHAFT) 1
2B3 KYD-MCN3M-00 216A1654 COLLAR(PULLEY) 1
2B4 KYD-MC13K-00 216A1147 COLLAR(BEARING) 1
2B7 KYD-MCN44-00 223Q0562 PULLEY_TIMING 1
2B8 90990-02J037 221C0100 SET SCREW(SET SCREW) 3
2B9 KYD-MCN3H-00 211AD861 COVER(SHAFT) 1
2C2
KYD-MCN19-00
0926273G ASSY_SPROCKET(R) 1
2C3 KYD-MCN0W-00 09261106 ASSY_GEAR 2
2C4 KYD-MCN2E-00 216B1404
HOLDER 1
2C5 KYD-MCN3N-00 216E1480 PIN_LOCATE 1
2C6 90990-37J010 221H0017 WASHER 3
2C7 90115-02J004 221A0121 BOLT,HEX-SCT 4 M2L4
2C8 KYD-MC42L-00 216A1632 COLLAR 1
2C9 KYD-MC42M-00 216A1634 COLLAR 1
2D0 KYD-MC42N-00 216A1636 COLLAR 1
2D1 KYD-MCN18-00 0926273F ASSY_SPROCKET(L) 1
2E3 KYD-MCN08-00 08040004 MECH_PARTS 2
