– 33 – T ap e F e ed er G T -2 8080 ,2 808 2 No. Part No. Part Name Qty . Detail Y amaha Hitachi GT -28080 GT -28082 107 KYD-MCN1S-00 0926B015 COVER 1 1 11 6 KYD-MC125-00 0926100J ASSY_GRIP 1 1 11 7 KYD-MC1 1W-00 21 1AB8…
– 32 –
8mm
W

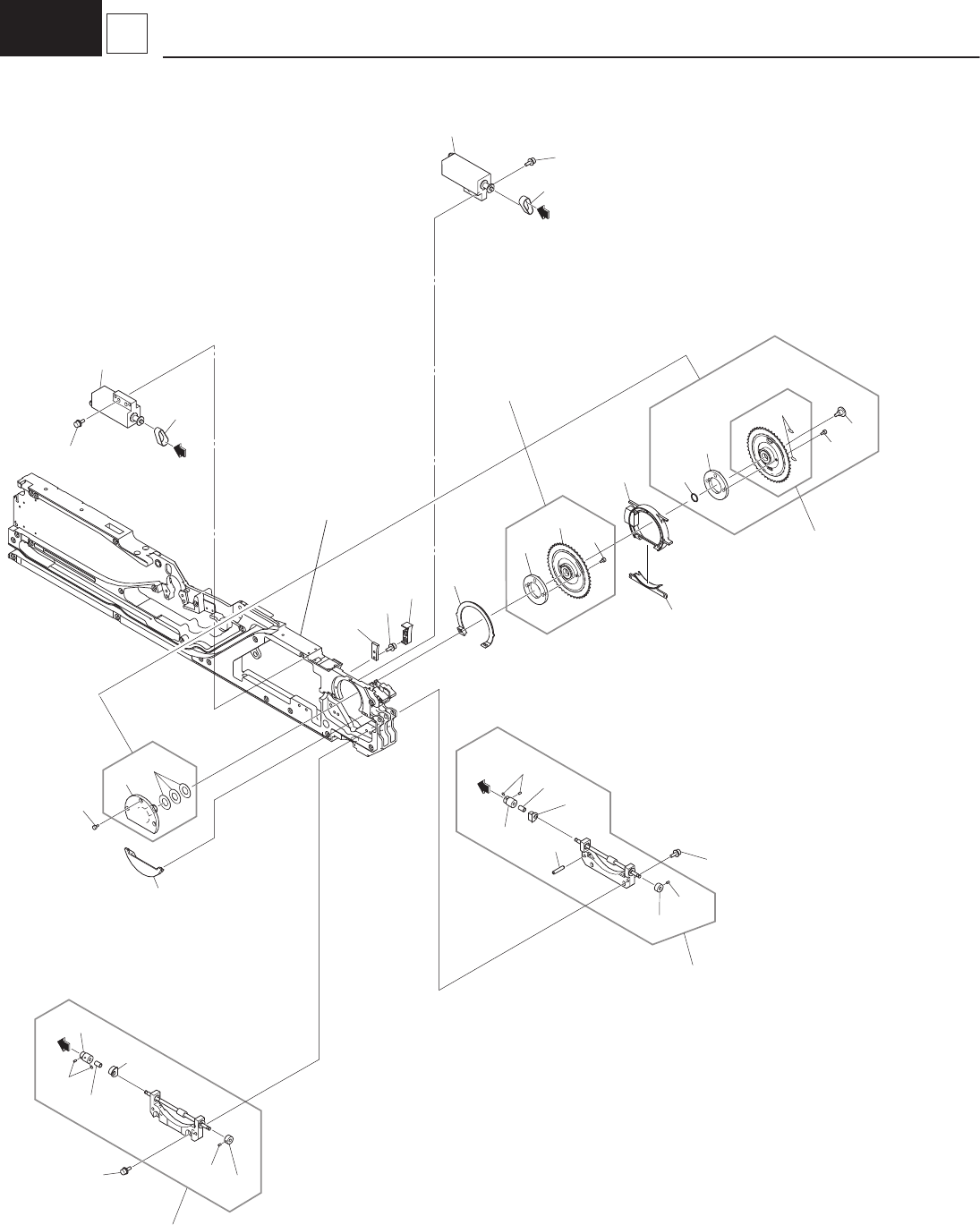

2 Operation Panel, Motor Control PCB
1710-006
1B8
1B8
1B9
1C1
1B1
1B5
1B4
141
141
142
1B6
1B3
1B2
1B7
127
107
1C1
1C2
129
1C3
1C0
117
1B8
131
1A1
116
136
168
168
140
KYD-MC16V-00
See Fig.W-1
Key No.B1
169
166
1C4
1C3
167
See Fig.W-4
Key No.389
See Fig.W-3
Key No.282
See Fig.W-3
Key No.282
See Fig.WD-4
Key No.3G1
See Fig.W-4
Key No.389
See Fig.WD-1
Key No.16
1C4
– 33 –
Tape Feeder GT-28080,28082
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi
GT-28080 GT-28082
107 KYD-MCN1S-00 0926B015 COVER 1 1
116 KYD-MC125-00 0926100J ASSY_GRIP 1 1
117 KYD-MC11W-00 211AB843 COVER(GRIP) 1 1
127 90167-02JA06 221DA103 MACHINE SCREW 7 7 FLT M2.5L6
129 90990-01J146 221AA102 BOLT,HEX.S/H WW 2 2 M4L12 SW+FW
131 90990-06J009 221AB004 BOLT,BUTTAN HEAD 2 2 BUTTAN M4L22
136 KYD-MC14G-00 221DA133 MECH SCREW 2 2 TPG M3L12
140 KYB-MCH00-00 0804000D PLATE_INDEX 1 1
141 KYB-MCH0M-00 0926B008 PLATE_NOTICE 2 2
142 KYB-MCH01-00 0804000E PLATE_INDEX 1 1
166 KYD-MC10V-00 0926B504 CORD 1 1
167 KYD-MC10W-00 0926B505 CORD 1 1
168 KYD-MC121-00 4B111602 PCB_MOUNT 1 1
169 KYD-MC124-00 4W300035 WIRE 1 1
1A1 92902-04200 221HA104 WASHER 2 2 FW4
1B1 KYC-M3702-00 211G5664 BLOCK 1 1
1B2 KYB-M121E-00 016S1022 ASSY_LEVER 1 1
1B3 KYB-M122D-00 216D0448 PIN_HINGE 1 1
1B4 KYB-M9413-00 213C0206 ROLLER 1 1
1B5 KYB-M122F-00 216F0879 PIN_GUIDE 1 1
1B6 KYB-M122N-00 222P0207 SPRING_TORSION 1 1
1B7 KYB-M121M-00 211A8626 COVER 1 1
1B8 90990-11J009 221DA051 MACHINE SCREW 8 8 M3L6
1B9 98702-04006 221DA113 SCREW,FLAT HEAD 1 1 FLT M4L6
1C0 90166-02JA08 221DA007 SCREW,PAN HEAD 2 2 PAN M2.5L8
1C1 90440-01J040 221KB001 CIRCLIP 2 2 E RING
1C2 KYB-M1204-00 0804000M ASSY_SEAL 1 1
1C3 KYD-MC143-00 4W202800 CORD 1 1
1C4 KYD-MC142-00 4U240497 UNIT_DRIVER 1 1
