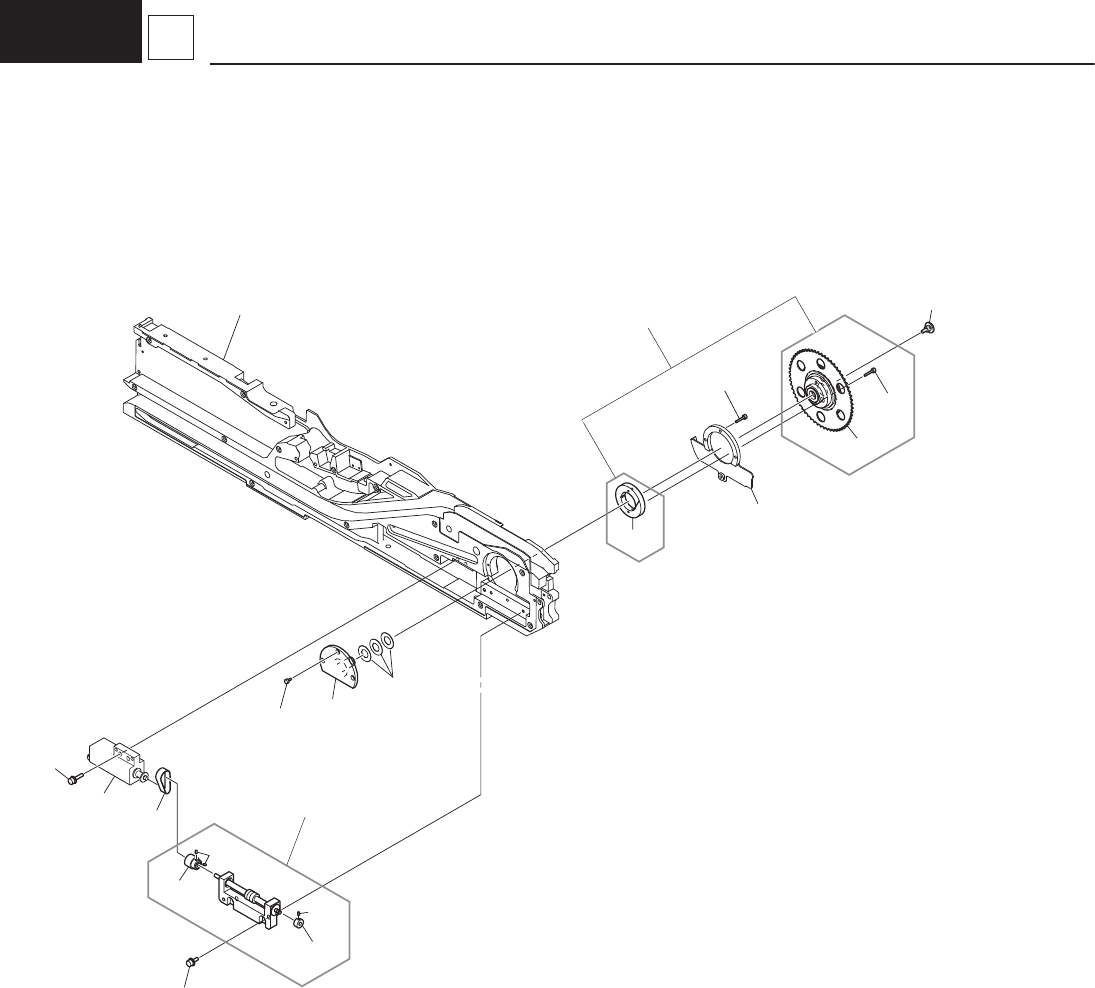

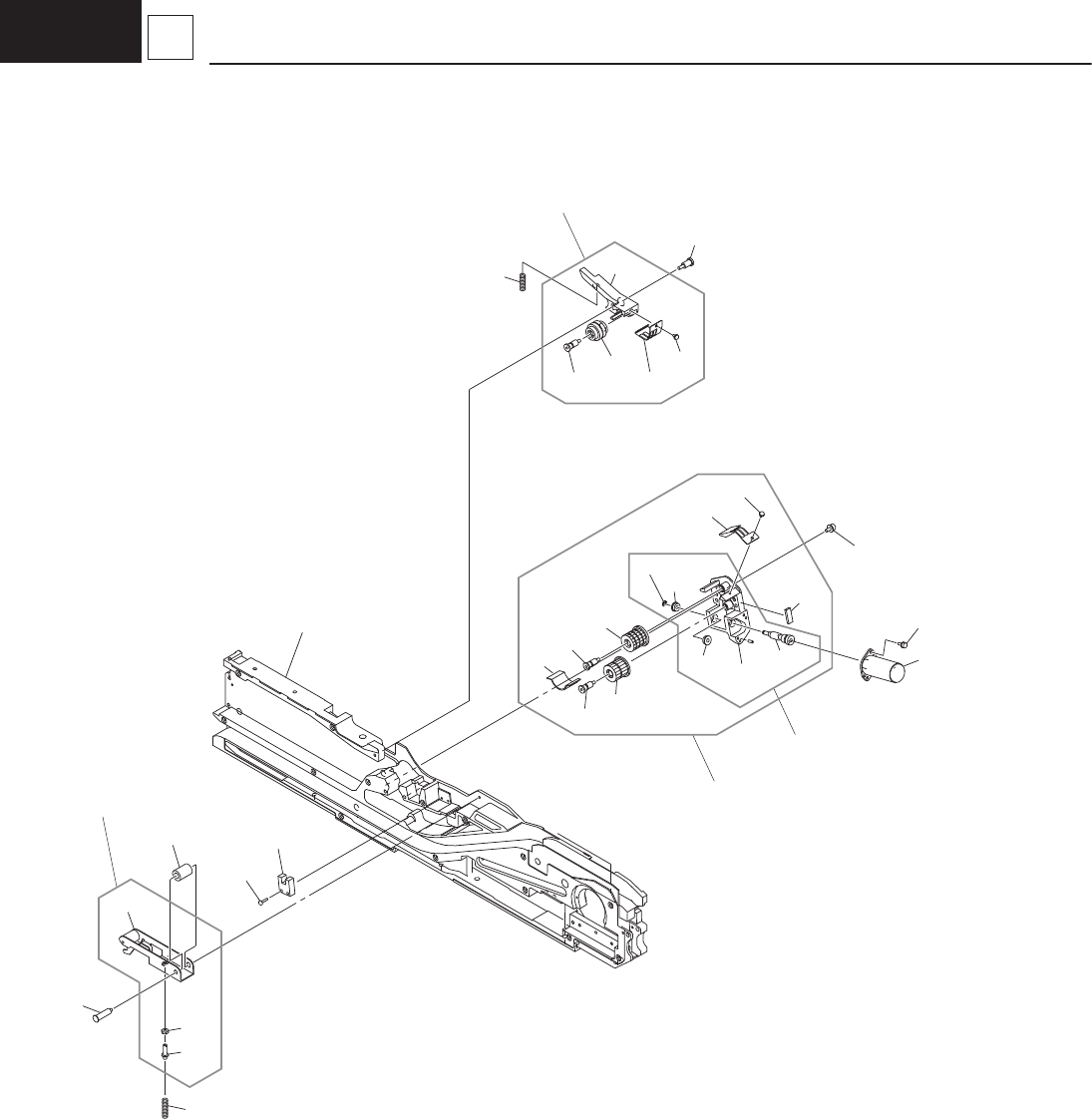

Tape Feeder GT-12162
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
250 KYD-MC21A-00 216B1423 HOLDER 1
251 KYD-MCN3N-00 216E1480 PIN_LOCATE 1
252 KYD-MC22M-00 223L0272 BELT_TIMING 1
254 90990-37J010 221H0017 WASHER 3
255 90115-02J004 221A0121 BOLT,HEX-SCT 3 M2L4
257 90990-01J140 221AA095 BOLT,HEX.S/H WW 2 M3L10 SW+FW
258 90990-01J141 221AA093 BOLT,HEX.S/H WW 2 M3L12 SW+FW
259 KYD-MC217-00 211AE245 COVER 1
264 KYD-MC12C-00 09261502 ASSY_MOTOR 1 M01
266 90166-02J204 221DA001 SCREW,PAN HEAD 4 PAN M2L4
2A3 KYD-MC227-00 216A1359 COLLAR(BEARING) 1
2A6 KYD-MC22N-00 223Q0675 PULLEY_TIMING 1
2A7 90990-02J037 221C0100 SET SCREW(SET SCREW) 3
2B1 KYD-MC21J-00 09262100 ASSY_SPROCKET 1
2B2 KYD-MC21K-00 09262102 ASSY_GEAR 1
2B3 90990-01J121 221A0245 BOLT,HEX-SCT 2 M2L4
