UP2000NTOPT-37 (PROGRAMMABLE SQUEEGEE ASSEMBLY)
Pro/Pump Head Carriage Assembly 1008721 (2 of 2)
Option 5
34 8-32 X 3/8" SHCS —
35 #8 FLAT WASHER —
36 8-32 X 3/8" BHS —
37 8-32 X 1/4" SHCS —
38 1/4-20 X 5/8" SHCS —
39 8-32 X 7/8" SHCS —
40 1/4-20 X 1/2" SHCS —
41 1/4" FLAT WASHER —
42 10-32 X 3/8" BHS —
43NS P1700 FITTING, PLUG, 1/4 OD, QUICK DISCONNECT 1
44 #10 FLAT WASHER —
45 10-32 X 1/4" FHCS —
46 M4 X 20MM SHCS —
47 6-32 X 1" BHS —
48NS P3975 FITTING, UNION TEE 1
49NS P6299 HINGE, COVER, PRO/PUMP 2
51 1/4-20 X 1/2" SHCS —
53NS 1001873 KIT, HARNESS, PROHEAD CARRIAGE 1
54NS 1004787 DOOR, ACCESS 1
55NS CA-198-5 CABLE, PROXIMITY SENSOR 1
56NS CA-1059-14 CABLE, MOTOR EXTENSION, SQUEEGEE UP/DOWN, PROHEAD 1
57NS CA-355 CABLE, SQUEEGEE DOWN SENSOR, PROHEAD 1
58NS CA-1066 CABLE ASSEMBLY, TACTILE Z MOTOR EXT 1
59NS CA-367 CABLE, PROHEAD SENSORS (ASSEMBLY) 1
60NS CA-370 CABLE, VALVE STACK PROHEAD TACTILE 1
61NS CA-378 HARNESS, PNEUMATIC/ELECTRICAL ASSEMBLY 1
62NS CA-1065 CABLE ASSEMBLY, PROHEAD MOTOR EXT 1
67NS CA-764 CABLE, EXT, PASTE EMPTY, UP2000 PUMP ASSEMBLY 1
68NS CA-771-1 CABLE, LEFT AIR CARD ASSEMBLY 1
69NS CA-771-2 CABLE, RIGHT AIR CARD ASSEMBLY 1
CA-945 HARNESS, PROHEAD, UP2000, ASSEMBLY 1
Pro/Pump Head Carriage Assembly 1008721 Parts Listing (Continued)
Key # Part # Description Quantity
QUANTITIES ARE OF ENTIRE ASSEMBLY
NS NOT SHOWN
UP2000NTOPT-37 (PROGRAMMABLE SQUEEGEE ASSEMBLY)

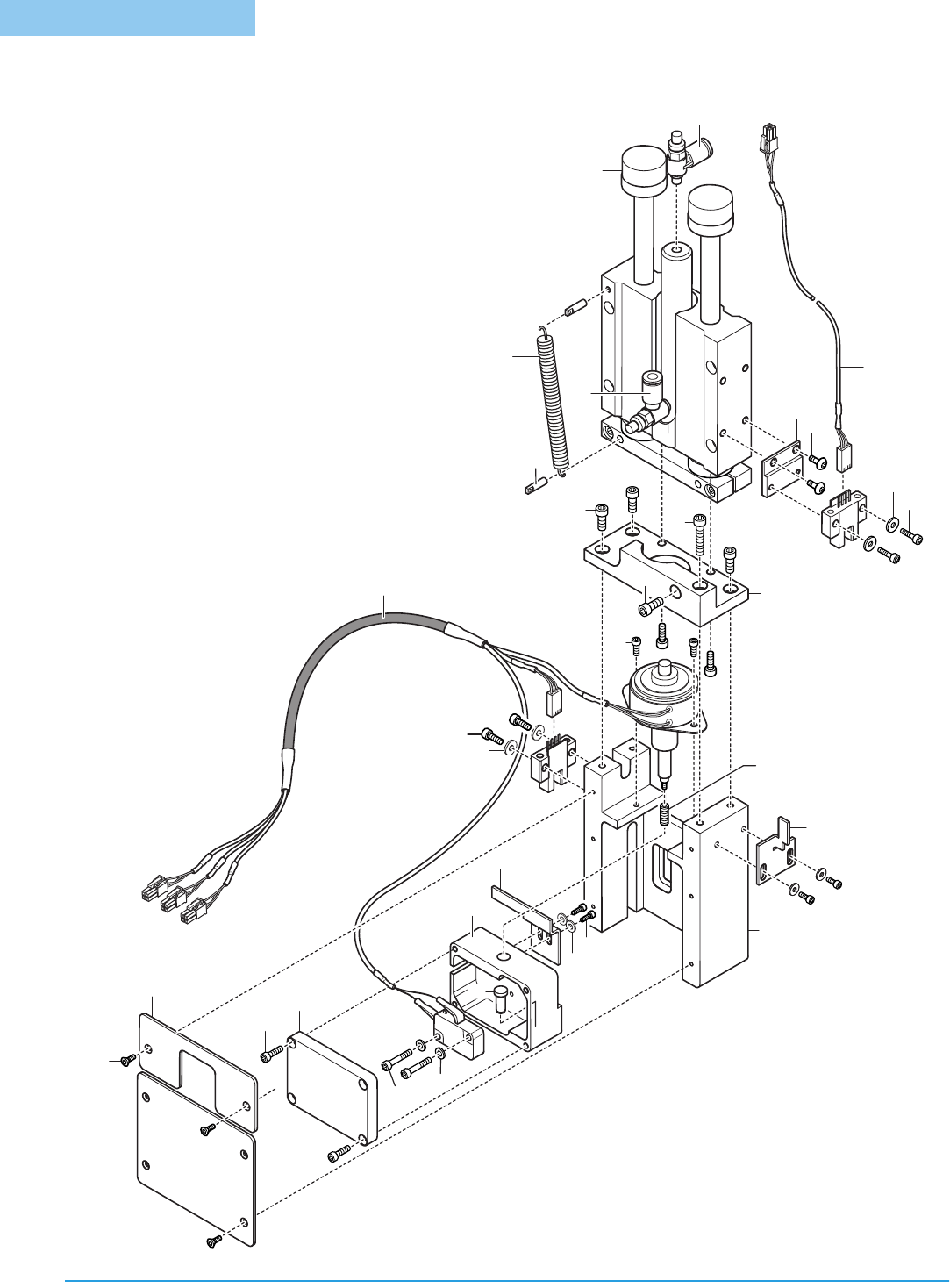

Optional Tactile Sensor Assembly 990305 (1 of 1)
6 Option
Optional Tactile Sensor Assembly 990305 (1 of 1)
20
9
990305
1
27
23
4
3
3
17
28
19
20
9
2
5
22
12
7
25
26
21
20
9
10
13
6
18
11
14
8
16
24
15
15
. . . . .
UP2000NTOPT-37 (PROGRAMMABLE SQUEEGEE ASSEMBLY)
Optional Tactile Sensor Assembly 990305 (1 of 1)
Option 7
Optional Tactile Sensor Assembly 990305 Parts Listing
Key # Part # Description Quantity
1 001907 SLIDE, MODIFIED 1
2 001758 COVER, TACTILE MOUNT 1
3 6-32 X 3/8" SHCS —
4 6-32 X 3/4" SHCS —
5 001761 HOUSING, TACTILE MOUNT 1
6 001760 HOUSING FACE, TACTILE MOUNT 1
7 000788 BLOCK, SENSOR MOUNT 1
8 001759 ADAPTER, TACTILE SENSOR SWITCH 1
9 #4 FLAT WASHER 1
10 4-40 X 5/8" SHCS —
11 000792 ACTUATOR, SWITCH 1
12 001755 FLAG, MOTOR 1
13 #2 FLAT WASHER —
14 2-56 X 1/4" SHCS —
15 P2901 FITTING, SPEED CONTROLLER 2
16 001756 FLAG, CYLINDER MOUNT 1
17 001757 MOUNT, SENSOR 1
18 6-32 X 1/4" BHS —
19 P2309 PHOTOMICROSENSOR, BUILT-IN AMPLIFIER 2
20 4-40 X 3/8" SHCS —
21 000789 COVER, SENSOR MOUNT 1
22 CA-399 HARNESS, TACTILE MOTOR 1
23 4-40 X 1/4" SHCS —
24 P3708 ANCHOR, SPRING 6-32 X .63" 2
25 002023 COVER, TACTILE MOUNT HOUSING 1
26 2-56 X 1/4" FHS —
27 P3976 SPRING, EXTENSION 1
28 CA-354-1 ASSEMBLY, CABLE, TACTILE UP SENSOR 1
QUANTITIES ARE OF ENTIRE ASSEMBLY
NS NOT SHOWN
