Electronic Assembly Equipment
A value-priced high-performance printing solution designed to
meet the demands of high-volume production.
Momentum II Fresh look and
innovative new features for
further enhancement in ease of
use, yield, quality, productivity,
and versatility.

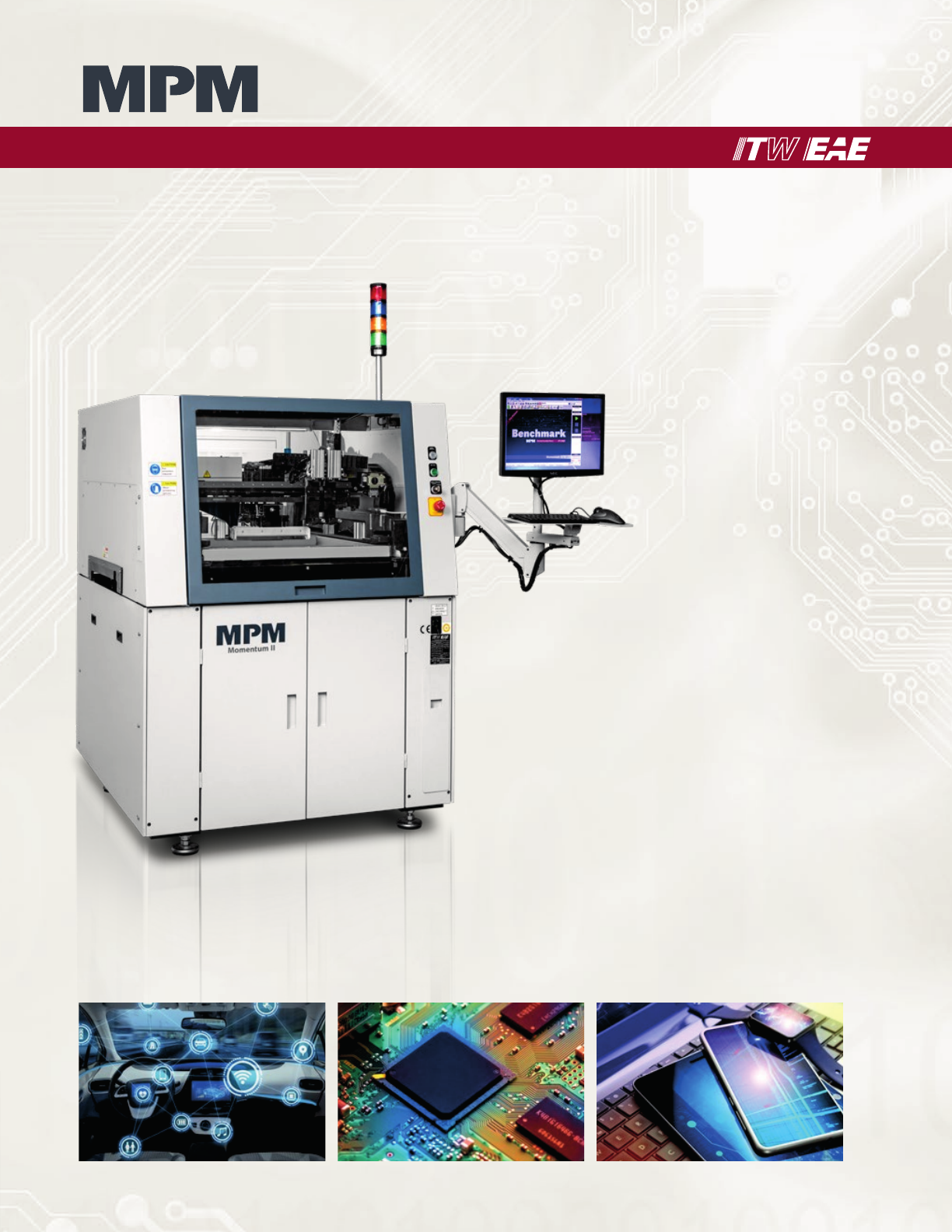

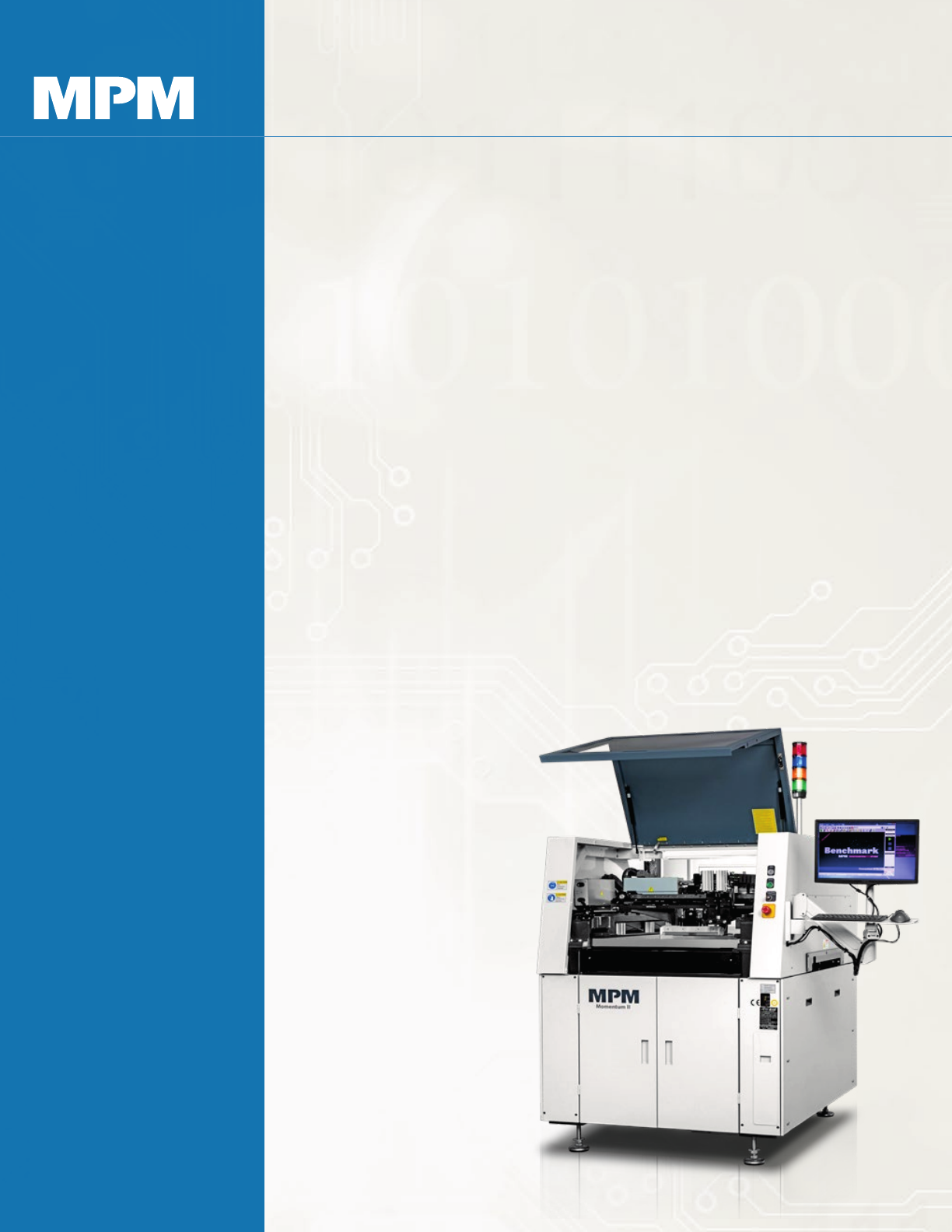

Momentum® II 100
Printing System
Meeting the
Challenges
The Momentum II 100
is designed to meet the
ever-growing challenges
of today’s electronics
manufacturing world:
high performance, user-
friendly, flexible, space and
operational efficient.
Momentum® II
100
Momentum’s
Patented Technology
• Paste Management System
• RapidClean™
• StencilVision™
• Closed-loop
SPI Print Optimizer
• Benchmark™ 5.0
EXCEPTIONAL VALUE
The Momentum® II 100 delivers performance that one would expect to find only
in higher-priced printing machines. This hard-working printer utilizes the robust,
reliable Momentum® series platform that has been proven to be at the top of its
class in facilities around the world, yet its value pricing makes the Momentum® II
100 an incredible bargain.
Cost-efficient and featuring a modest footprint, it grows with the user; innovative
patented features can be added on or retrofitted as needed as the user’s
throughput demands grow.
The Momentum® II 100 can accommodate a wide range of PCB sizes from 609.6
mm x 508 mm (24” x 20”) down to is 50.8 mm x 50.8 mm (2” x 2”). Momentum’s
alignment repeatability is ±11 microns @ 6 sigma, Cpk ≥2 with a wet print accuracy
of ±17 microns @ 6 Sigma, Cpk ≥2.0. Tighter performance tolerances mean higher
repeatability with fewer defects. Plus, a cycle time of 11 seconds ensures moderate
to high throughput for its size. Programmable and closed-loop squeegee systems
ensure accurate and repeatable squeegee force with every print stroke; the system
auto-compensates for squeegee deflection, and no force adjustment is needed for
squeegee variations. For basic, repeatable printing quality with high yields and true
affordability, the Momentum® II 100 has no equal.
Momentum® II 100 New Features
¡ Newly designed cover set with
larger window and wider
access inside the printer.
¡ Quick release squeegee for
faster changeover.
¡ Adjustable stencil shelf for
exibility handling board
varieties.
¡ New jar paste dispenser
for increased productivity.
¡ Solder paste roll height
and paste temperature
monitoring for yield
improvement and
traceability.
¡ Upgraded Benchmark
GUI with customizable
production page and
Quickstart program.
¡ Windows 10 operating system.
Momentum® II 100
Options that add Capability and Value to your Process

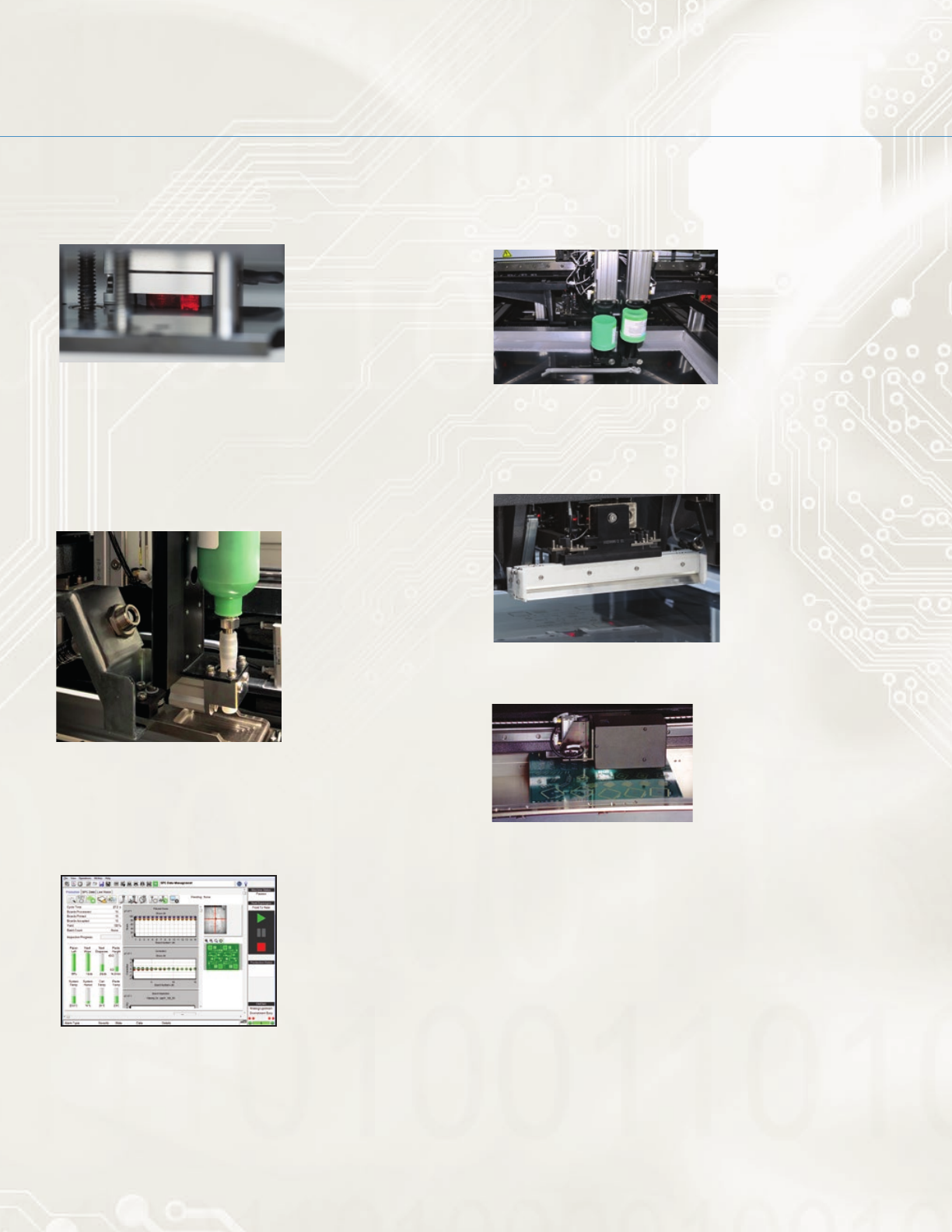

NEW Paste Height Monitor
The Paste Height
Monitor is designed to
prevent defects caused
by inadequate volumes
of paste on the stencil.
It combines advanced
software and sensor technology to accurately monitor the
paste bead for volume consistency. Upper and lower limit
roll-height monitoring eliminates insufficient or excess paste
volumes. It is a non-contact solution that can automatically
add more paste to the stencil as it is needed.
NEW Paste Temperature Monitor
Temperature monitoring
ensures proper paste
viscosity to avoid
bridging and voiding.
MPM patent-pending
paste temperature
monitor allows paste
to be measured in the
cartridge or on the
stencil.
Updated Benchmark™ User Interface
Easy to learn and use for the average operator, MPM’s
Benchmark software is powerful yet intuitive, and facilitates
rapid setup, assists with operational tasks, and makes
changeover quick and
easy. The software
has been upgraded
to Windows 10 and
new production tools
and new Quickstart
programming to make it
even easier to use.
OpenApps™
MPM’s OpenApps is an open architecture source code which
provides the capability of developing custom interfaces in
support of Industry 4.0 initiatives and communication with
Manufacturing Execution Systems (MES). ITW EAE is the rst
SMT company to oer open software architecture.
NEW Automatic Paste Dispensing System
Dispense for standard
cartridges or choose the
new patent-pending
jar dispenser. Paste
is released in precise,
measured amounts
across the stencil in a
clean, uniform bead. Deposition volumes, frequency and
placement are user programmable.
NEW Quick Release Squeegee
New quick release
squeegee blades makes
changing blades quick
and easy with no tools
required. It takes less
than 30 seconds to
change the blade.
NEW Adjustable Stencil Shelf
Provides the exibility to handle all stencil sizes with
a simple adjustment of the shelf. The robust design
provides better stability on all stencil sizes.
MPM Vision System & Inspection
MPM’s patented printer-
based Vision and Inspection
system is a cost-eective
way to verify print and
paste deposit results. It is
exible enough to handle
the complete range of today’s most challenging components.
This system measures the amount of paste covering the
target pad and compares it with the required coverage. 2D
inspection is integrated directly into the stencil printer to
provide an immediate source of data.
RapidClean
RapidClean is a high-speed stencil solvent cleaning innova-
tion that slashes cycle time and improves stencil cleaning
performance. RapidClean can save up to $10K USD per
annum in paper savings per printer.
