7 Software Vision Teach Station User Manual 6.1 Vision teach station upgrade 12/2012 Edition 138 7 Software NOTE 7 When we supply a vision teach station, the software is already fully installed on the computer. The compu…
Vision Teach Station User Manual 6 2nd camera option
12/2012 Edition 6.1 Vision teach station upgrade
137
6

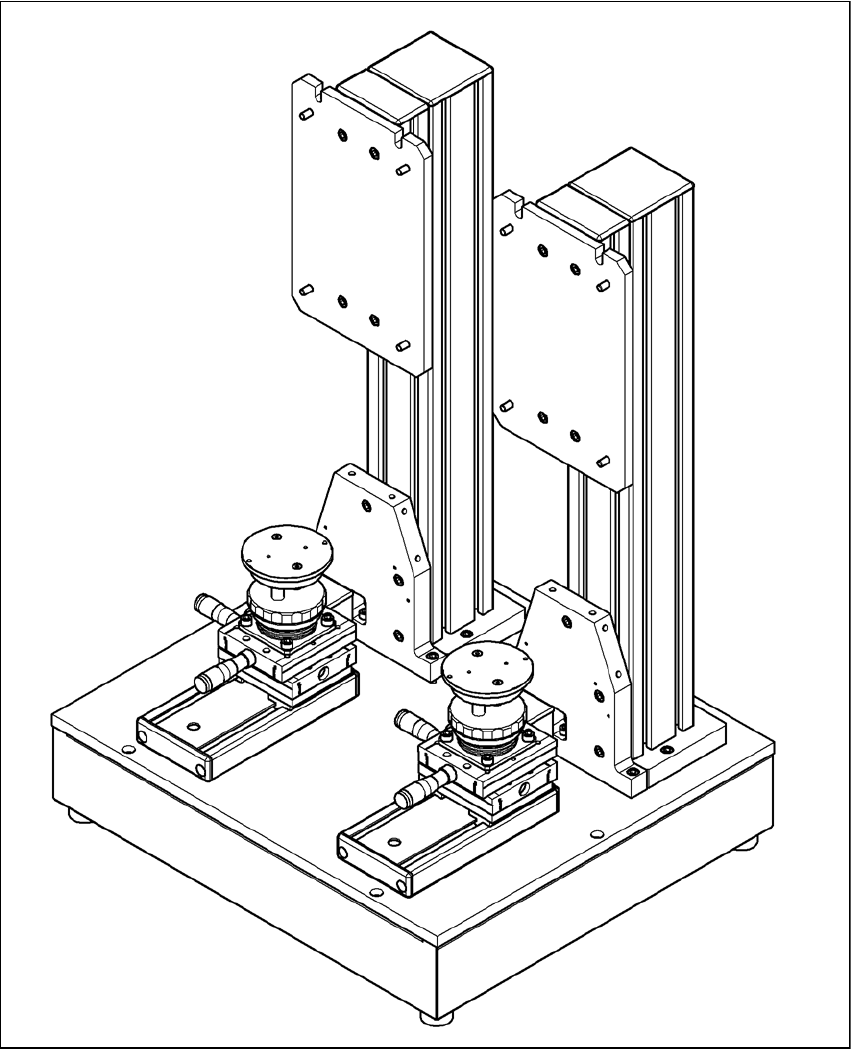

Fig. 6.1 - 1 Assembly position for the two pillars
7 Software Vision Teach Station User Manual
6.1 Vision teach station upgrade 12/2012 Edition
138
7 Software
NOTE 7
When we supply a vision teach station, the software is already fully installed on the computer.
The computer can be started up and used immediately. All the CD-ROMs needed for the installa-
tion are supplied as standard.
CAUTION 7
As of the 5.0.1 version, the vision teach station software additionally supports Windows 7, 32-bit
and 64-bit. Please note, that the old CAN card with the green CAN3 plug (item no. 03052590-xx)
does NOT support 64-bit operating systems! For this the new PowerCAN-II CAN card
(item no. 03079973-xx) is required .
Vision Teach Station User Manual 7 Software
12/2012 Edition 7.1 Supported SIPLACE Pro versions
139
7.1 Supported SIPLACE Pro versions
At present, the vision teach station supports the following SIPLACE Pro versions:
7
Tab. 7.1 - 1 Currently supported SIPLACE Pro versions
*) The installation CD für SIPLACE Pro 7.0 is included in the package
**) The installation CD für SIPLACE Pro 8.0 is included in the package
***) The installation CD für SIPLACE Pro 9.x is included in the package
****) The installation CD für SIPLACE Pro 10.x is included in the package
Software
Vision Teach Station
SIPLACE Pro Upgrade kit required
V 1.7 V 3.1
Vision teach station upgrade kit for
SIPLACE Pro (V3.1 SP1), item no. 00376902-01
V 2.2 V 4.1
Vision teach station upgrade kit for
SIPLACE Pro (V4.1 SP1), item no. 00385200-01
V 3.51 V 5.0 SP1
Vision teach station upgrade kit for
SIPLACE Pro (V5.0 SP1), item no. 00387300-01
V 3.51 V 5.2 SPx
Vision teach station upgrade kit for
SIPLACE Pro (V5.2 SPx), item no. 00388211-01
V4.1.1
V5.0 SP1 to
V7.x
Installation Package Vision Teach Station for
SIPLACE Pro 5.0SP1 to V7.x), item no. 00388350-xx
*)
V4.2.1
V5.0 SP1 to
V8.x
Installation Package Vision Teach Station for
SIPLACE Pro 5.0SP1 to V8.x), item no. 00388618-xx
**)
V4.3.1
V5.0 SP1 to
V9.x
Installation Package Vision Teach Station for
SIPLACE Pro V9.x), item no. 00388749-xx***)
V5.0.1
V5.0 SP1 to
V10.x
Installation Package Vision Teach Station for
SIPLACE Pro V10.X, item no. 00388779-xx****)
V5.0.2
V5.0 SP1 to
V10.x
Installation Package Vision Teach Station for
SIPLACE Pro V10.X, item no. 00388779-xx****)
