SME_FEEDER_TRM(Ver3.7_CS18.01).pdf - 第27页
Page HANWHA 15 SME 8 mm SME Tape Feeder - Total (2) 40 24 34 26 51 28 6 47 60 63 72 52 19 18 42 43 3 21 55 22 16 25 58 45 17 14 65
Page
HANWHA
14
SME

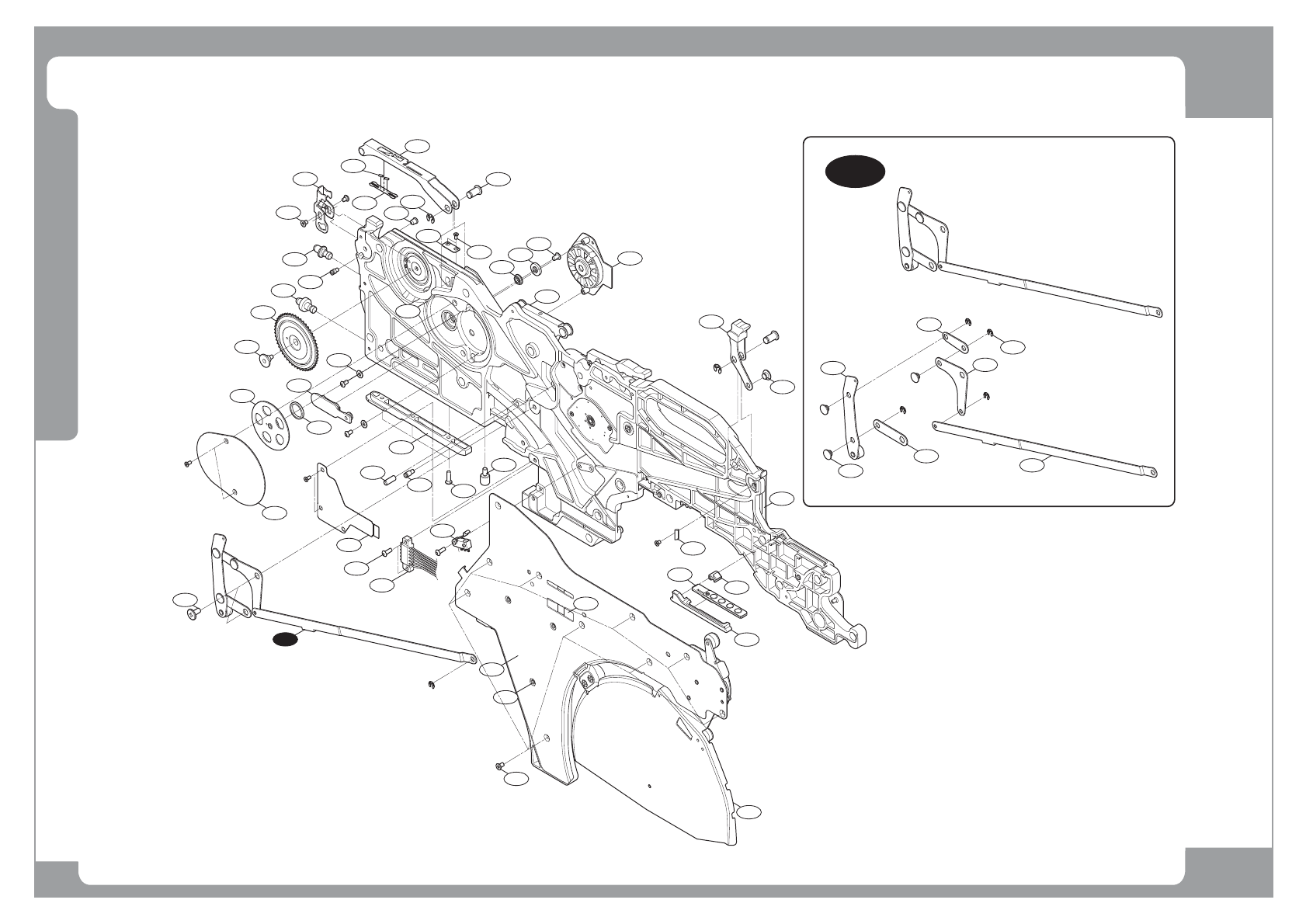

8mm SME Tape Feeder - Total (1)
A
66
75
41
56
13
49
33
62
35
1
36
73
44
48
37
70
69
20
29
10
61
39
74
71
67
31
78
65
7
30
9
50
8
76
53
46
27
68
2
54
11
32
23
12
15
4
3
4
1
7
6
5
2
A
5
79
Page
HANWHA
15
SME
8mm SME Tape Feeder - Total (2)
40
24
34
26
51
28
6
47
60
63
72
52
19
18
42
43
3
21
55
22
16
25
58
45
17
14
65
Page
HANWHA
16
SME
8mm SME Tape Feeder - Total
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
1 J70652749A VINYL_CUTTER 1
2 J90611844A CLAMP SWITCH HARNESS ASSY M08 1
3 J31021017A DRAIN MOTOR 1
4 J91741353A UI ASSY 1
5 J1301149 E RING (4) 2
6 J64091017A MAGNET 1
7 J66011038A FLANGED BEARING 1
8 J70650948B LOCATION FLANGE 1
9 J70650967C LOCKING LIMIT 1
10 J70650978D INSTALL GUIDE 1
11 J70653541A SPROCKET SHAFT 1
12 J70653544A GEAR SHAFT SCREW 1
13 J70653552A D-TENSIONER HINGE 2
14 J70653565A DRAIN GEAR FORK 1
15 J70653694A CLAMP LEVER M 08 1
16 J70653695A D-BOX DOOR M 08 1
17 J70653696A D-BOX LEVER M 08 1
18 J70653697A D-MOTOR COVER M 08 1
19 J70653698A RIGHT COVER M 08 1
20 J70653699A MOTOR COVER M 08 1
21 J70653700A DUMP BOX COVER M 08 1
22 J70653701A SLICING OUTER COVER M 08 1
23 J70653745A SECOND PINION 08 1
24 J70653746A DRAIN COVER 08 1
25 J70653748A D-DOOR PIN M 08 1
26 J70653933A D-STAGE GEAR SHAFT 1
27 J70653935A T LINK1 HINGE 2
