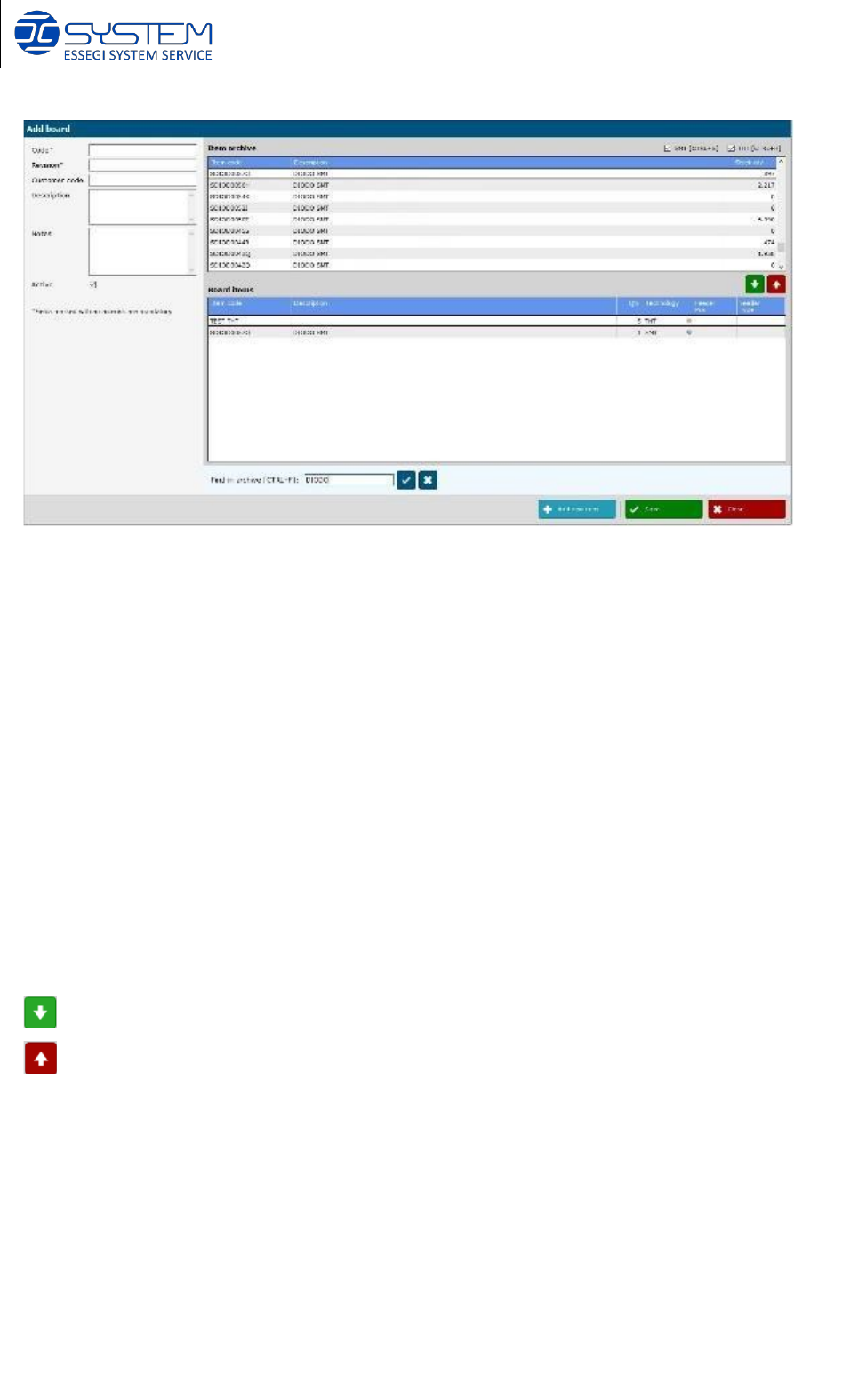

In the “Item archive” area, you can see all items to add to the new BOM: if you need to create a
BOM with only items with a defined technology, you can select the desired checkbox on the top
right. With the column “Stock qty”, it is possible to check how many components are in stock. On
the “Board Items” area, you can find all details of the board.
Code: insert the assigned board code (*=mandatory field)
Revision: insert the revision of the board (*=mandatory field)
Customer code: insert the customer code
Description: insert the description
Notes: insert the notes
Active: when marked, the board is active. Unmark to deactivate this board
Items archive: shows the items archive which can be inserted in the board.
Board items: it is possible to add the items that need to be used on this board:
To select an item from the field “Item archive
”
to be added to the board, use the following buttons:
(CTRL+A). To insert the item in the field Boards items
(CTRL+R). To remove the item from the field Boards items
Note: if you want to have two reels of the same component, you have to repeat the item as many times as many
reels you want to use for this BOM. Example: if the P&P optimization of the BOM require 2 reels of item
COMPONENT TEST 46, you have to add 2 times this component
Software 3.1 rev_01 Edition 06/2016 - Reproduction forbidden
a
Page 22
Storage Solutions Software Operating Manual
It allows adding a new item, even from this window. Once compiled all fields, click SAVE or F8
to save the board in the database. Then select CANCEL or ESC to close the procedure.
It allows modifying parameters of an existing board.
It allows deleting an existing board.
It allows a quick search of an existing board. By using the “Find item” field, you can see which
boards contain the item you are looking for.
“Advanced filter”: it allows to make a specific search inside the database.
It allows to import a .txt file specifying the item and respective quantity to be used on a board:
Software 3.1 rev_01 Edition 06/2016 - Reproduction forbidden
a
Page 23
Storage Solutions Software Operating Manual
Use (CTRL+S) to select the file, select the type of separator, set the column where the item
code is in the file, set the column where the item quantity is in the file, set the column for the
feeder position and type (only available if the feeder management option is activated) and then
press “Select” to import the file.
Example:
• .txt file with “TAB” separator
10NF 1
10R 3
15K 8
etc..
• .txt file with “;” separator
10NF;1
10R;3
15K;8
etc..
It creates a copy of an existing board to be modified and saved as a new one with a different
code.
It allows printing the required board
