Software 3.1 rev_01 Edition 06/2016 - Reproduction forbidden
a
Page 62
Storage Solutions Software Operating Manual

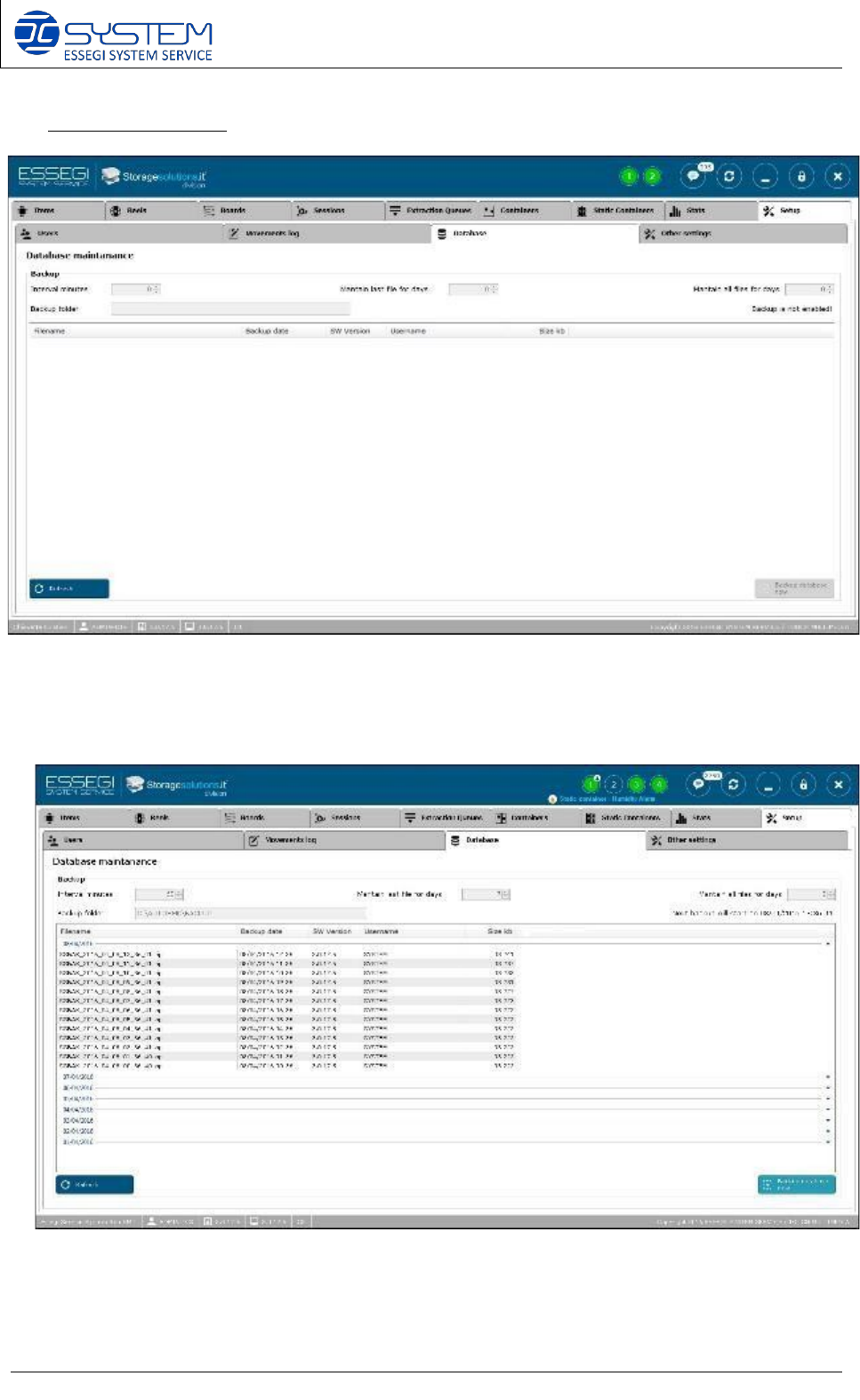

3) Database (CTRL+D)
Here it is possible to configure the backup of the database: when it is configured, you can see all
backups done with the indications about the date, the software version, size and username
which made the backup
Software 3.1 rev_01 Edition 06/2016 - Reproduction forbidden
a
Page 63
Storage Solutions Software Operating Manual

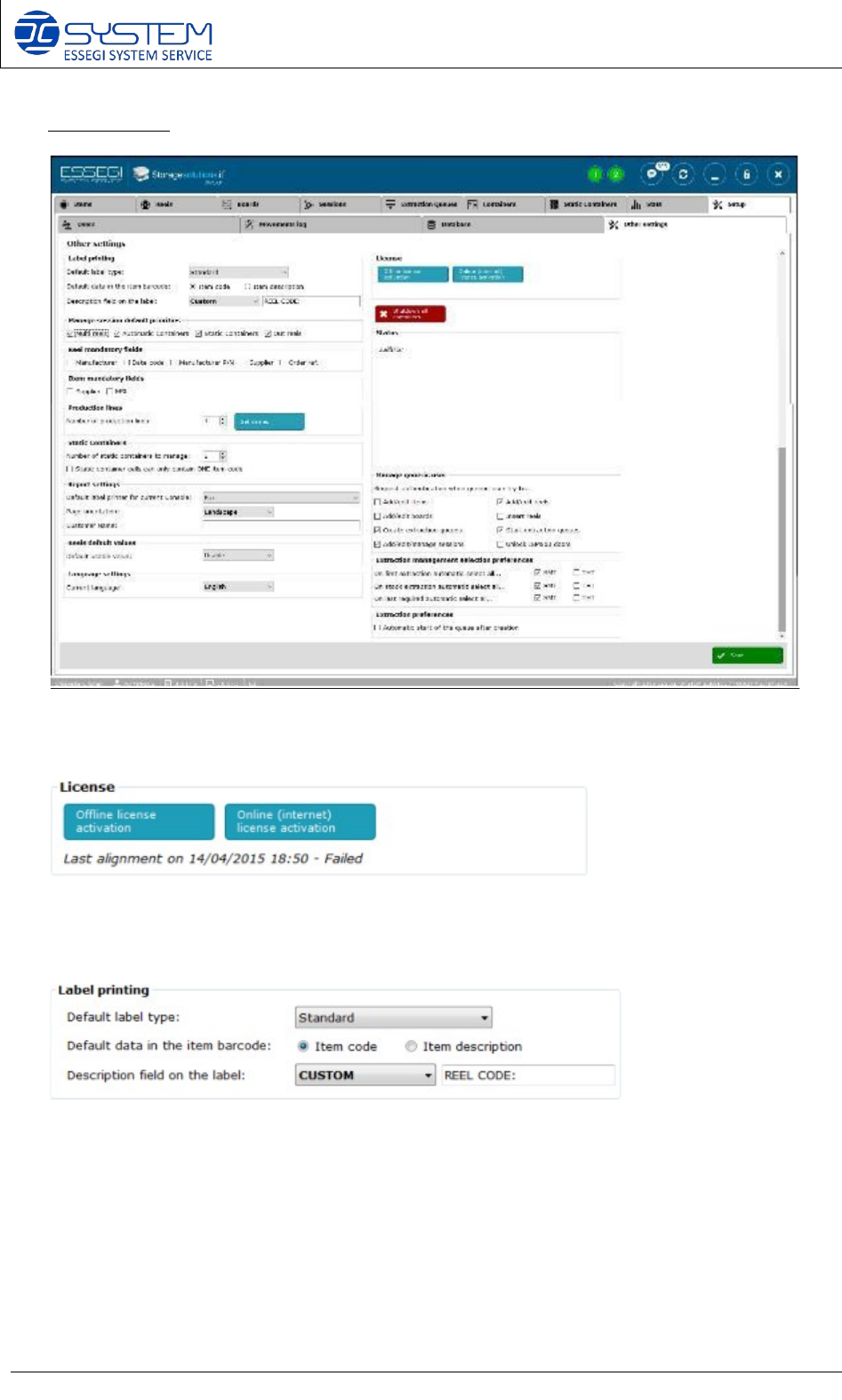

4) Other settings
It allows to make the offline (no internet connection) and online license activation.
It reports also when the last alignment has been done and the status.
It allows to customize the printing of the barcode label:
• Default label type:
-
Standard: it will print the label as per the Standard_ItemCode.xml or Standard_ItemDesc.xml
file inside the “template label” folder.
-
Compact: it will print the label as per the Compact.xml file inside the “template label” folder.
•
Default data in the item barcode: to print the item code or the item description in the item
barcode of the label.
Software 3.1 rev_01 Edition 06/2016 - Reproduction forbidden
a
Page 64
Storage Solutions Software Operating Manual
•
Description field on the label:
-
CUSTOM: you can write how you want to name the unique ID field in the printed label.
-
BRAND, DATE CODE, PART NUMBER, SUPPLIER, ORDER REF.
This will decide what to mark as default for the session analysis:
• Multi reels: when marked, it will mark as default the “multi reels” check box in the SESSION
MAGEMENT window.
• Automatic Containers: when marked, it will mark as default the “automatic containers” check box in
the SESSION MAGEMENT window.
• Static Containers: when marked, it will mark as default the “static containers” check box in the SESSION
MAGEMENT window.
• Out reels: when marked, it will mark as default the “out reels” check box in the SESSION MAGEMENT
window.
This will decide which filed will be mandatory when you “ADD” a new reel. If marked, the field will be
mandatory. If not marked, the field will be not mandatory.
This will decide which filed will be mandatory when you “ADD” a new item. If marked, the field will be
mandatory. If not marked, the field will be not mandatory.
It allows to set how many P&P production lines you have. You can also set the name for each line.
It allows to set how many Static Containers you have installed. This needs to match the information
set into the software license.
