YS24X_pl - 第19页
2 4 X-axis-I/O Box / Plate A, B Moving-axis KKT -1103 19 8 21 21 28 18 17 22 18 18 2 18 22 23 10 17 17 17 4 14 18 18 18 1 1 18 18 17 17 6 6 18 1 20 18 13 5 7 3 3 20 12 25 26 27 26 27 26 27 26 27 25 24 24 24 24 17 18 18 1…
1
4

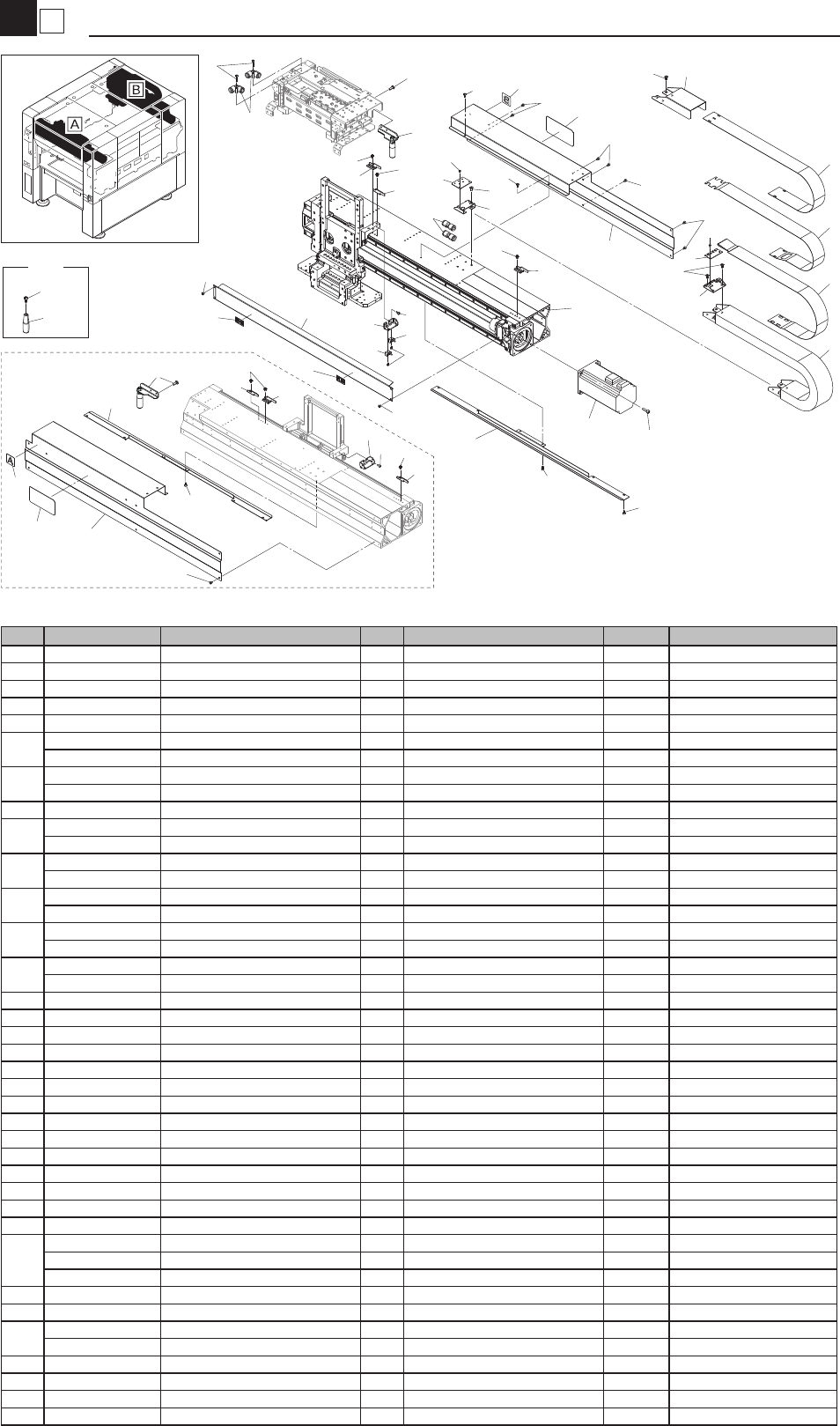

X-axis-Motor / Sensor / Duct / Cover / Joint
Moving-axis
KKT-1101
20
26
32
1
7
23
23
33
12
17
24
16
20
19
22
22
23
30
29
23
26
12
26
11
23
27
10
21
25
25
26
26
18
18
8
9
13
6
22
22
24
35
15
20
14
A-Table
4
11
12
12
23
5
3
2
34
6
19
34
7
22
13
23
28
31
OLD
28
28
28
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKE-M0201-00 XB AXIS SUB ASSY 1
2 KKE-M2267-A0 GUIDE, X AXIS ASSY 1 With grease
3 KHY-M220A-00 TAPE, X DUCT 1
4 KHY-M220B-00 TAPE 2, X DUCT 1
5 KHY-M220C-00 TAPE 3, X DUCT 1
6
KHY-M226B-01 COVER BACK, X AXIS 1 B-Table
KKE-M226B-50 COVER BACK, XA AXIS 1 A-Table
7
KHY-M22C5-00 COVER UNDER, AXIS 1 B-Table
KKE-M22C5-50 COVER UNDER, XA AXIS 1 A-Table
8 KHY-M227G-00 COVER, B.S. 1
9
KKE-M652D-10 SENSOR XB ORG ASSY 1 B-Table
KKE-M652D-00 SENSOR XA ORG ASSY 1 A-Table
10
KKE-M652E-10 SENSOR XB OT ASSY 1 B-Table
KKE-M652E-00 SENSOR XA OT ASSY 1 A-Table
11
KKE-M2282-00 DOG, ORIGIN B 1 B-Table
KKE-M2282-50 DOG, ORIGIN A 1 A-Table
12
KKE-M2283-00 DOG, SECOND LIMIT B 2 B-Table
KKE-M2283-50 DOG, SECOND LIMIT A 2 A-Table
13
KKE-M2284-50 BRACKET, SENSOR A 1 A-Table
KKE-M2284-00 BRACKET, SENSOR B 1 B-Table
14 KHY-M221A-A0 COVER DUCT ASSY. 1
15 KKE-M2269-00 BRACKET 2, TAPE 1
16 KHY-M2268-00 BRACKET 1, TAPE 1
17 KGT-M2266-10 PLATE, NUT 1
18 KV7-M7165-00 SEAL DON'T TOUCH 2
19 KGT-M71ST-00 STICKER, HEAD 1
20 90990-01J032 BOLT HEX. SOCKET HEAD 8
21 91312-03006 BOLT HEX. SOCKET HEAD 4
22 91312-04006 BOLT HEX. SOCKET HEAD 9
23 91312-04008 BOLT HEX. SOCKET HEAD 13
24 98902-03006 SCREW, BINDING HEAD 4
25 98902-04006 SCREW, BINDING HEAD 4
26 90990-11J003 SCREW, PAN HEAD W/W 6
27 $US10 JOINT 2
28
KKE-M223K-00 XA HANDLE ASSY. 1 A-Table NG ML50181-2014/6/4
KKE-M223L-00 XB HANDLE ASSY. 1 B-Table NG ML50181-2014/6/4
KKE-M2256-00 GRIP 1
29 $UL10 JOINT 2
30 91312-04020 BOLT HEX. SOCKET HEAD 2
31
Delete ML50181-2014/6/4
91312-06012 BOLT HEX. SOCKET HEAD 1
32 90K63-611203 AC SERVO MOTOR 1
33 91312-06020 BOLT HEX. SOCKET HEAD 4
34 90K41-001060 LAVEL, ALERT 2
35 KKE-M226D-00 PLATE NUT 2
2
4

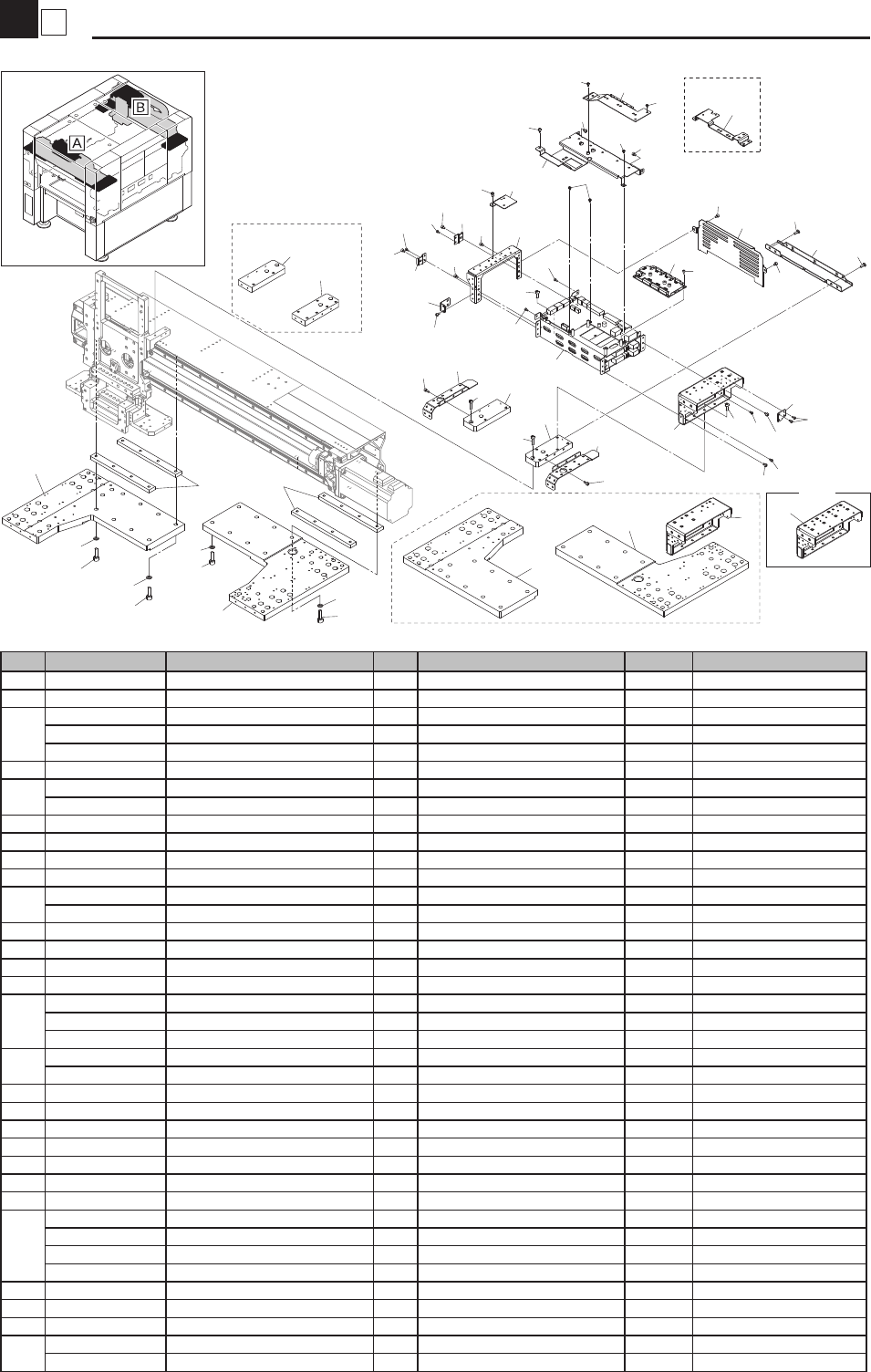

X-axis-I/O Box / Plate A, B
Moving-axis
KKT-1103
19
8
21
21
28
18
17
22
18
18
2
18
22
23
10
17
17
17
4
14
18
18
18
11
18
18
17
17
6
6
18
1
20
18
13
5
7
3
3
20
12
25
26
27
26
27
26
27
26
27
25
24
24
24
24
17
18
18
17
17
19
16
9
16
10
A-Table
A-Table
A-Table
15
3
28
5
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKE-M2231-00 FRAME, HEAD SERVO 1
2 KKE-M2235-00 COVER, I/O 1
3
KKE-M2236-50 STAY, DUCT 1 A-Table NG MG70168-2010/8/20
KKE-M2236-01 STAY, DUCT 1 B-Table NG MG70168-2010/8/20
KKE-M2236-00 STAY, DUCT 1 A- and B-Table are common
4 KKE-M2237-00 STAY, 3 1
5
KKE-M2238-01 BRACKET R 1 B-Table
KKE-M2238-50 BRACKET R 1 A-Table
6 KKE-M2239-00 PLATE, 1 2
7 KKE-M223A-00 STAY, R HNS. 1
8 KKE-M223B-00 STAY, L HNS. 1
9 KKE-M223C-00 STAY, B HNS. 1
10
KKE-M223H-00 STAY, CAMERA HNS. B 1 B-Table
KKE-M223G-00 STAY, CAMERA HNS. A 1 A-Table
11 KKE-M223M-00 STAY, JOINT 1 B-Table
12 KKE-M223P-00 PLATE, I/O 1
13 KKE-M223R-00 COVER 1
14 KKE-M223S-00 STAY, VAC HNS. 1
15
KKE-M220F-02 CAMERA SELECTOR 2 OK MH50100-2011/5/27
KKE-M220F-01 CAMERA SELECTOR 2 See the label NG MH10090-2011/2/3
KKE-M220F-00 CAMERA SELECTOR 2
16
90990-01J059 BOLT,HEX.SOCKET HEAD 4 OK MHX0024-2011/12/22
90990-01J050 BOLT HEX. SOCKET HEAD 4
17 91312-03006 BOLT HEX. SOCKET HEAD 13
18 91312-04006 BOLT HEX. SOCKET HEAD 23
19 91312-04010 BOLT HEX. SOCKET HEAD 6
20 91312-05014 BOLT HEX. SOCKET HEAD 8
21 91312-05020 BOLT HEX. SOCKET HEAD 4
22 97602-03306 SCREW, PAN HEAD W/W 3
23 98902-03006 SCREW, BINDING HEAD 2 B-Table
24
KKE-M2213-S2 PLATE XB AXIS SET 1 B-Table (Hole position change) NG MH80010-2011/12/28
KKE-M2213-S1 PLATE XB AXIS SET 1 B-Table
KKE-M2213-S7 PLATE XA AXIS SET 1 A-Table (Hole position change) NG MH80010-2011/12/28
KKE-M2213-S6 PLATE XA AXIS SET 1 A-Table
25 KV7-M2231-00 SPACER R, NUT 4
26 KHN-M22F8-00 WASHER,SWR08 16
27 91312-08025 BOLT HEX. SOCKET HEAD 16
28
KKE-M2238-10 BRACKET L 1 B-Table
KKE-M2238-60 BRACKET L 1 A-Table
25
13
4
26
2
23
14
15
8
24
5
8
21
21
21
21
6
6
1
19
25
13
3
18
26
10
22
15
14
22
15
14
9
7
16
21
21
12
12
22
17
11
11
23
9
14
15
22
20
1
A-Table
6
4
3
X-axis-Sub Assy
Moving-axis
KKT-100514
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1
KKE-M2211-00 FRAME B, X AXIS 1 B-Table
KKE-M2211-50 FRAME A, X AXIS 1 A-Table
2 KHY-M2240-00 SLEEVE, BRG. 1
3 KKE-M2241-00 HOLDER, MOTOR X 1
4 KHY-M2242-00 HOLDER, BRG. 1
5 KKE-M2271-00 BALL SCREW 1
6 KHY-M2276-S0 X-AXIS GUIDE SET 1
7
KHN-M2221-00 SUPPORT UNIT
1
8
KKT-M2261-A0 HOLDER, HEAD B ASSY. 1 B-Table
KKT-M2262-A0 HOLDER, HEAD A ASSY. 1 A-Table
9 KHY-M224H-00 DAMPER 2
10 KHN-M224D-00 SPACER 1
11 KHN-M2248-00 SPACER 2
12 KHN-M22F4-00 WASHER, SWR04 16
13 KHN-M22F6-00 WASHER, SWR06 8
14 KHN-M224J-00 COLLAR A 4
15 KHN-M224K-00 COLLAR B 4
16 KGS-M2628-00 LOCK NUT 1
17 KG2-M9173-00 LOCK NUT 1
18 KM0-M2220-00 COUPLING, X-AXIS 1
19 KHY-M220D-00 TAPE, X-AXIS 2
20 90990-26J008 BEARING 1
21 91312-04014 BOLT HEX. SOCKET HEAD 44
22 92012-04025 BOLT, BUTTON HEAD 4
23 91312-05016 BOLT HEX. SOCKET HEAD 4
24 91312-05018 BOLT HEX. SOCKET HEAD 4
25 91312-06025 BOLT HEX. SOCKET HEAD 8
26 92A08-04304 SCREW, SET 2
