2 8 Main / Sub / Exit Stopper Conveyor Unit (Single Lane) KKT -100514 A J E G PCB FLOW PCB FLOW MAIN,(A,J) 18,26 MAIN,(B,K) 19,27 EXIT ,(C) 20 EXIT ,(D) 21 SUB,1-1(E) 22 SUB,1-1(F) 23 SUB,1-2(G) 24 SUB,1-2(H) 25 C 10 13 …
1
8

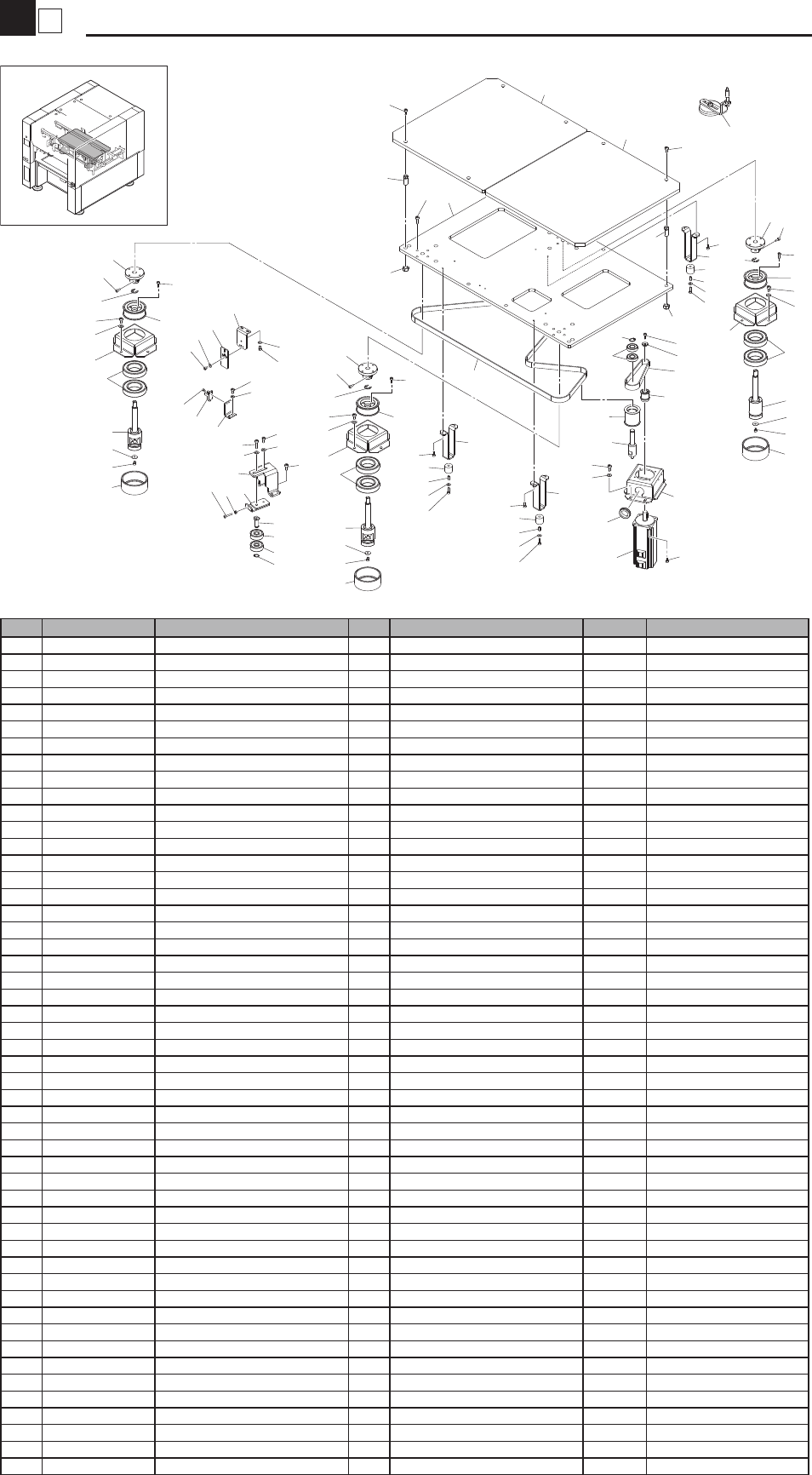

Push-Up
Conveyor Unit (Single Lane)
KKT-100514
36
36
3
3
14
44
15
38
14
44
15
38
47
8
40
50
29
22
13
24
20
27
36
3
14
44
15
38
47
8
42
2
40
1
1
49
37
32
26
41
45
23
35
4
17
36
37
40
45
25
9
19
18
16
34
30
28
17
36
37
40
45
25
9
19
18
16
34
30
28
17
36
37
40
45
25
9
19
18
16
34
30
28
46
39
34
44
6
11
31
31
48
33
7
12
43
45
21
10
40
45
41
44
5
35
36
44
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKT-M920A-00 PLATE 1(392x359) 2
2 KKT-M920B-00 STAY 1
3 KKT-M9219-00 BRKT.,STOPPER 3
4 KKT-M921E-00 BELT 1650-3GT-15 1
5 KKT-M921G-00 BRKT.,DOG 1
6 KKT-M921H-00 PLATE,DOG 1
7 KKT-M652L-00
SENSOR PU1 ORG ASSY 1
8 KGA-M921T-00 BOLT 8
9 KHW-M9215-00 PULLEY:P60-3GT 3
10 KHW-M921B-00 STAY,ADJUST 1
11 KHW-M921C-00 SHAFT 1 1
12 KHW-M921K-00 BRKT.,SENSOR 1
13 KHW-M9223-00 PULLEY:P40-3GT 1
14 KHY-M9153-00 DAMPER B 3
15 KHY-M9154-00 SPACER 3
16 KHY-M921M-01 WASHER 3
17 KHY-M921N-01 JOINT A 3
18 KKE-M9211-00 HOLDER,BRG. 3
19 KKE-M9212-00 HOUSING 3
20 KKE-M9218-00 GROMMET 1
21 KKE-M921A-00 BRKT.,TENSIONER 1
22 KKE-M921D-00 BELT 291-3GT-15 1
23 KKE-M921S-00 BRKT.,MOTOR 1
24 KKE-M9222-00 POST 1
25 KKE-M9B00-00 BALL SCREW PU 3
26 KV7-M9205-01 PULLEY 1:P22-3GT 1
27 90K63-331525 AC SERVO MOTOR 1
28 90440-01J090 CIRCLIP 3
29 90933-01J001 BEARING 2
30 90933-01J007 BEARING 6
31 90933-01J300 BEARING 2
32 90990-28J076 WASHER 1
33 91312-03005 BOLT HEX.SOCKET HEAD 2 M3X5
34 91312-04006 BOLT HEX.SOCKET HEAD 5 M4X6
35 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
36 91312-04010 BOLT HEX.SOCKET HEAD 14 M4X10
37 91312-04012 BOLT,HEX.SOCKET HEAD 13 M4X12
38 91312-04014 BOLT HEX.SOCKET HEAD 3 M4X14
39 91312-04020 BOLT HEX.SOCKET HEAD 1 M4X20
40 91312-05010 BOLT HEX.SOCKET HEAD 21 M5X10
41 91312-05012 BOLT HEX.SOCKET HEAD 8 M5X12
42 91312-05016 BOLT HEX.SOCKET HEAD 12 M5X16
43 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20
44 92902-04200 WASHER PLAIN 9
45 92902-05200 WASHER PLAIN 18
46 95302-04600 NUT HEXAGON 1
47 95602-10100 NUT U 8
48 99009-10400 CIRCLIP : 1
49 99009-12400 CIRCLIP : 1
50 KHY-M920D-00 PUSH UP PIN UNIT 10
2
8
Main / Sub / Exit Stopper
Conveyor Unit (Single Lane)
KKT-100514
A
J
E
G
PCB FLOW
PCB FLOW
MAIN,(A,J)18,26 MAIN,(B,K)19,27 EXIT,(C)20 EXIT,(D)21
SUB,1-1(E)22 SUB,1-1(F)23 SUB,1-2(G)24 SUB,1-2(H)25
C
10
13
14
13
12
12
16
16
7
8
5
7
1
4
3
3
17
3
3
13
14
9
13
14
9
15
6
14
8
7
1
5
11
11
5
8
7
17
8
4
5
6
3
3
5
7
4
6
1
8
1
7
8
4
5
6
F
H
B
K
D
4
4
5
5
1
1
2
2
8
8
7
7
3
6
6
3
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKT-M9161-00 BRKT.,CYLINDER 1
2
KKT-M653A-00 CYL L1 MAIN ST1 ASSY 1 S.T.D
KKT-M653B-00 CYL L1 MAIN ST1 ASSY 1 Option(700mm)
3 KHW-M9274-A0 SPEED CONTROLLER 2
4 KHW-M9282-00 STOPPER,SUB 1
5 KHY-M9284-00 PLATE,STOPPER 1
6 91312-04006 BOLT HEX.SOCKET HEAD 2 M4X6
7 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
8 91312-05014 BOLT HEX.SOCKET HEAD 2 M5X14
9 KKT-M9271-00 PLATE,STOPPER 1
10 KKT-M9275-00 BRKT.,SENSOR 1
11 KHW-M9272-00 STOPPER,EXIT 1
12 KHY-M9273-00 CYLINDER 1
13 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
14 92902-04200 WASHER PLAIN 4
15 KKT-M9275-10 BRKT.,SENSOR 1
16 KKT-M653E-00 CYL L1 MAIN ST1 ASSY 1
17 KKT-M653F-00 CYL L1 MAIN ST1 ASSY 1
18 KKT-M9160-00 MAIN STP.1-1 ASSY. 1
19 KKT-M9160-10 MAIN STP.1-1 ASSY. 1
20 KKT-M9270-00 EXIT STOPPER 1 ASSY. 1
21 KKT-M9270-10 EXIT STOPPER 2 ASSY. 1
22 KKT-M9280-00 SUB STP.1-1 ASSY. 1
23 KKT-M9280-10 SUB STP.1-1 ASSY. 1
24 KKT-M9280-20 SUB STP.1-2 ASSY. 1
25 KKT-M9280-30 SUB STP.1-2 ASSY. 1
26 KKT-M9160-20 MAIN STP.1-2 ASSY. 1 Option(700mm)
27 KKT-M9160-30 MAIN STP.1-2 ASSY. 1 Option(700mm)
29
19
18
14
21
1
2
5
4
8
17
31
28
30
7
21
20
26
32
32
9
21
20
26
9
3
21
21
21
26
27
10
11
12
14
13
29
19
16
15
15
2
4
8
31
28
30
7
17
18
11
1
5
32
32
12
33
20
27
26
9
11
11
6
13
22
23
15
16
24
12
33
27
25
9
11
11
34
35
21
3
6
22
23
24
25
27
10
11
12
11
(R>L)
Both the conveyors flow same parts.
8
3
Clamp Board-1
Conveyor Unit (Single Lane)
KKT-1101
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KHW-M9268-00 PLATE,BASE W 1
2 KKT-M9269-00 BRKT.,CYL. 1
3 KKT-M926D-10 PLATE,BOARD CLAMP 1
4 KKE-M926F-00 COLLAR, FLOATING 1
5 KKT-M926G-10 PLATE 2,LINK 1
6 KKT-M926J-00 PLATE 1 1
7 KHW-M9167-00 BRKT., CYL. 1
8
KHW-M916E-00 BUSH
1
9 KHW-M9261-00
PLATE1, LINK 2
10 KHW-M9264-B0 LINK B ASSY. 2
11 KHW-M9265-00 SPACER 4
12 KHW-M926A-00 COLLAR 2
13 KHW-M926B-00 COLLAR, JOINT 1
14 KHW-M926E-00 NUT 1
15
KHY-M926S-00 SPEED CONTROLLER 2 OK MG50145-2010/6/1
KHW-M9285-00 SPEED CONTROLLER 2
16 KHY-M9263-00 CYLINDER 1
17 KHY-M926F-00 JOINT, CYL. BRKT 1
18 KHY-M926H-00 JOINT, CYL. 1
19 KHY-M926M-00 STOPPER, CYLINDER 1
20 KV7-M9266-01 GUIDE 2
21 90169-02JB04 SCREW, BINDING HEAD 8
22 92012-04006 BOLT, BUTTON HEAD 2 M4X6
23 90563-04J120 SPACER 2
24 92012-04010 BOLT,BUTTON HEAD 2 M4X10
25 91312-04010 BOLT HEX. SOCKET HEAD 1 M4X10
26 91312-04012 BOLT HEX. SOCKET HEAD 4 M4X12
27 91312-04014 BOLT HEX. SOCKET HEAD 2 M4X14
28 91312-04016 BOLT HEX. SOCKET HEAD 1 M4X16
29 92012-04012 BOLT, BUTTON HEAD 1 M4X12
30 92902-04200 WASHER, PLAIN 1
31 95302-06600 NUT, HEXAGON 1
32 98902-03005 SCREW, BINDING HEAD 4 M3X5
33 KHW-M9264-A0 LINK A ASSY. 2
34 KKT-M9260-20 CP BOARD 2 SUB ASSY. 1
35 KKT-M9260-40 CP BOARD 4 SUB ASSY. 1
