The drive part is the same in PUSH UP 1 and 2.
9
1
Push-Up
Conveyor Unit (Dual Lane)
KKT-1011
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KKV-M920A-10 PLATE 1 (299x359) 1 PUSH UP 1
2 KKV-M920A-20 PLATE 2 (299x359) 1 PUSH UP 1
3 KKV-M920B-10 STAY 1 1 PUSH UP 1
4 KKT-M9219-00 BRKT., STOPPER 4
5 KKV-M921E-00 BELT 1446-3GT-15 1 PUSH UP 1
6 KKT-M921G-00 BRKT., DOG 2
7 KKT-M921H-00 PLATE, DOG 2
8 KKV-M921J-01 GUIDE, PIN 2
9 KKV-M921J-11 GUIDE, PIN 2
10
KKT-M652L-00 SENSOR PU1 ORG ASSY 2 PUSH UP 1
KKT-M652L-10 SENSOR PU2 ORG ASSY 1 PUSH UP 2
11 KGA-M921T-00 BOLT 16
12 KHW-M9215-00 PULLEY: P60-3GT 6
13 KHW-M921B-00 STAY, ADJUST 2
14 KHW-M921C-00 SHAFT 1 2
15 KHW-M921K-00 BRKT., SENSOR 2
16 KHW-M9223-00 PULLEY: P40-3GT 2
17 KHY-M9153-00 DAMPER B 4
18 KHY-M9154-00 SPACER 4
19
KHY-M921M-01 WASHER
6
20 KHY-M921N-01
JOINT A
6
21
KKE-M9211-00
HOLDER, BRG. 6
22
KKE-M9212-00 HOUSING 6
23 KKE-M9218-00 GROMMET 2
24 KKE-M921A-00 BRKT., TENSIONER 2
25 KKE-M921D-00 BELT 291-3GT-15 2
26 KKE-M921S-00 BRKT., MOTOR 2
27 KKE-M9222-00 POST 2
28 KKE-M9B00-00 BALL SCREW PU 6
29 KV7-M9205-01 PULLEY 1: P22-3GT 2
30
90K63-331525 AC SERVO MOTOR 1 PUSH UP 1
90K63-331526 AC SERVO MOTOR 1 PUSH UP 2
31 90440-01J090 CIRCLIP 6
32 90933-01J001 BEARING 4
33 90933-01J007 BEARING 12
34 90933-01J300 BEARING 4
35 90990-28J076 WASHER, PLAIN 2
36 91312-03005 BOLT HEX. SOCKET HEAD 4
37 91312-04006 BOLT HEX. SOCKET HEAD 30
38 91312-04008 BOLT HEX. SOCKET HEAD 12
39 91312-04010 BOLT HEX. SOCKET HEAD 24
40 91312-04012 BOLT HEX. SOCKET HEAD 26
41 91312-04014 BOLT HEX. SOCKET HEAD 4
42 91312-04020 BOLT HEX. SOCKET HEAD 2
43 91312-05010 BOLT HEX. SOCKET HEAD 42
44 91312-05012 BOLT HEX. SOCKET HEAD 16
45 91312-05016 BOLT HEX. SOCKET HEAD 24
46 91312-05020 BOLT HEX. SOCKET HEAD 2
47 92902-04200 WASHER, PLAIN 16
48 92902-05200 WASHER, PLAIN 36
49 95302-04600 NUT, HEXAGON 2
50 95602-10100 NUT, U 16
51 99009-10400 CIRCLIP 2
52 99009-12400 CIRCLIP 2
53 KKV-M920A-30 PLATE 3 (135x359) 1 PUSH UP 2
54 KKV-M920A-40 PLATE 4 (135x359) 1 PUSH UP 2
55
KKV-M920B-21 STAY 2 1 PUSH UP 2 MG60001-2010/6/3
KKV-M920B-20 STAY 2 1 PUSH UP 2
56 KKV-M921F-00 BELT 1386-3GT-15 1 PUSH UP 2
57 KKV-M920D-00 PUSH UP PIN UNIT 14
PCB FLOW
PCB FLOW
MAIN,(A,J)
18,26
MAIN,(B,K)
19,27
EXIT,1(C) EXIT,2(D)
20 21
SUB,1-1(E)22 SUB,1-1(F)23 SUB,1-2(G)24 SUB,1-2(H)25
10
13
14
13
12
12
16
16
7
8
5
7
1
4
3
3
17
3
3
13
14
9
13
14
9
15
6
14
8
7
1
5
11
11
5
8
7
17
8
4
5
6
3
3
5
7
4
6
1
8
1
7
8
4
5
6
C
F
H
B
K
D
J
A
G
E
4
4
5
5
1
1
2
2
8
8
7
7
3
6
6
3
9
2
Main / Sub / Exit Stopper 1
Conveyor Unit (Dual Lane)
KKT-100514
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KKT-M9161-00 BRKT., CYLINDER 1
2
KKT-M653A-00 CYL L1 MAIN ST1 ASSY 1 S.T.D
KKT-M653B-00 CYL L1 MAIN ST2 ASSY 1 Option(700mm)
3 KHW-M9274-A0 SPEED CONTROLLER 2
4 KHW-M9282-00 STOPPER, SUB 1
5 KHY-M9284-00 PLATE, STOPPER 1
6 91312-04006 BOLT HEX. SOCKET HEAD 2 M4X6
7
91312-05010 BOLT HEX. SOCKET HEAD
2
M5X10
8 91312-05014 BOLT HEX. SOCKET HEAD 2 M5X14
9 KKT-M9271-00 PLATE, STOPPER 1
10 KKT-M9275-00 BRKT., SENSOR 1
11 KHW-M9272-00 STOPPER, EXIT 1
12 KHY-M9273-00 CYLINDER 1
13 91312-04010 BOLT HEX. SOCKET HEAD 4 M4X10
14 92902-04200 WASHER PLAIN 4
15 KKT-M9275-10 BRKT., SENSOR 1
16 KKT-M653E-00 CYL L1 MAIN ST1 ASSY 1
17 KKT-M653F-00 CYL L1 MAIN ST1 ASSY 1
18 KKT-M9160-00 MAIN STP. 1-1 ASSY. 1
19 KKT-M9160-10 MAIN STP. 1-1 ASSY. 1
20 KKT-M9270-00 EXIT STOPPER 1 ASSY. 1
21 KKT-M9270-10 EXIT STOPPER 2 ASSY. 1
22 KKT-M9280-00 SUB STP. 1-1 ASSY. 1
23 KKT-M9280-10 SUB STP. 1-1 ASSY. 1
24 KKT-M9280-20 SUB STP. 1-2 ASSY. 1
25 KKT-M9280-30 SUB STP. 1-2 ASSY. 1
26 KKT-M9160-20 MAIN STP. 1-2 ASSY. 1 Option(700mm)
27 KKT-M9160-30 MAIN STP. 1-2 ASSY. 1 Option(700mm)
PCB FLOW
PCB FLOW
MAIN,(M,V)
18,26
MAIN,(N,W)
19,27
EXIT,1(O) EXIT,2(P)
20 21
SUB,2-1(R)22 SUB,2-1(S)23 SUB,2-2(T)24 SUB,2-2(U)25
10
13
14
13
12
12
16
16
7
8
5
7
1
4
3
3
17
3
3
13
14
9
13
14
9
15
6
14
8
7
1
5
11
11
5
8
7
17
8
4
5
6
3
3
5
7
4
6
1
8
1
7
8
4
5
6
4
4
5
5
1
1
2
2
8
8
7
7
3
6
6
3
S
U
N
W
O
P
V
M
T
R
9
3

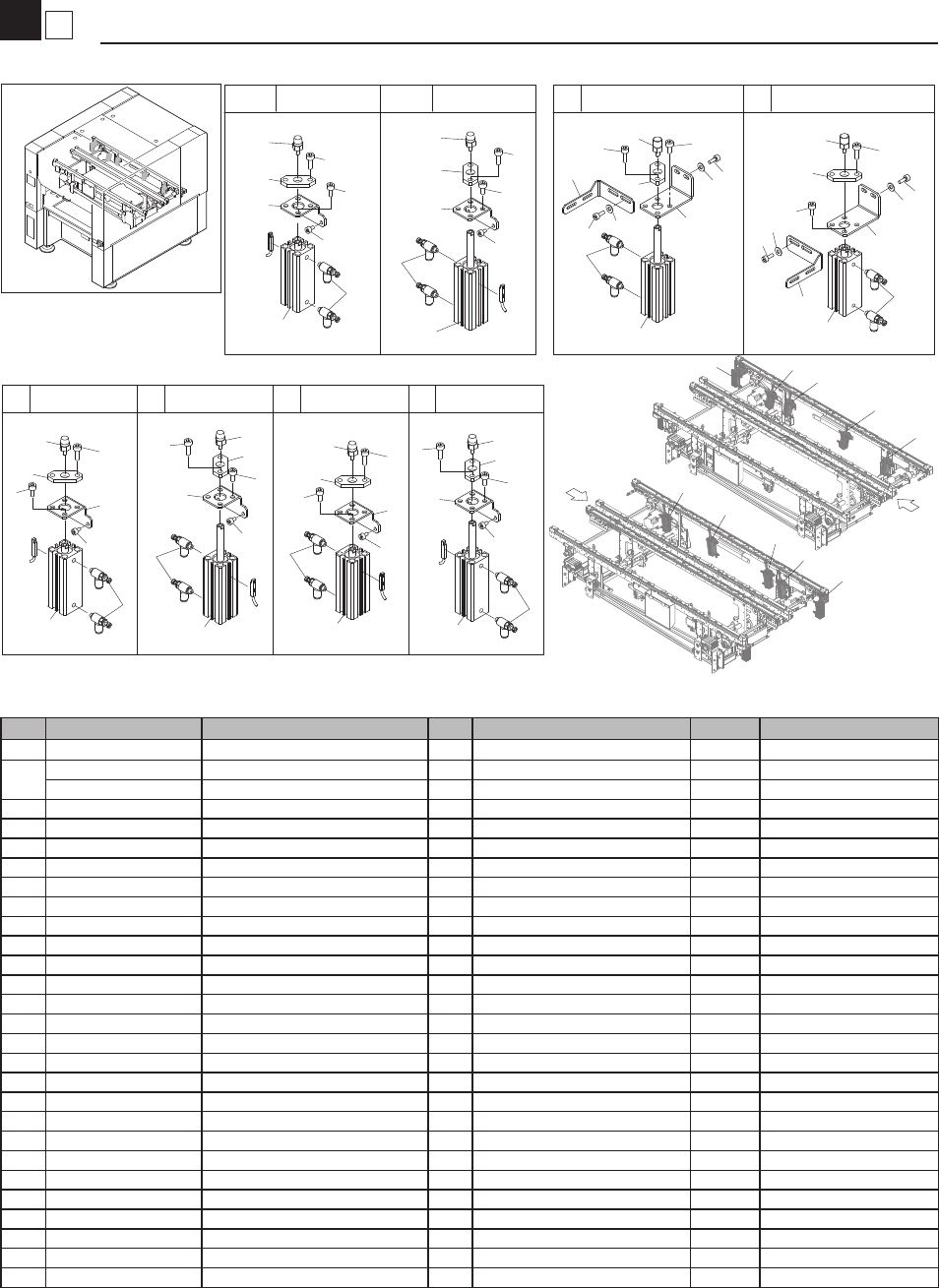

Main / Sub / Exit Stopper 2
Conveyor Unit (Dual Lane)
KKT-100514
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KKT-M9161-00 BRKT., CYLINDER 1
2
KKT-M653C-00 CYL L2 MAIN ST1 ASSY 1 S.T.D
KKT-M653D-00 CYL L2 MAIN ST2 ASSY 1 Option(700mm)
3 KHW-M9274-A0 SPEED CONTROLLER 2
4 KHW-M9282-00 STOPPER, SUB 1
5 KHY-M9284-00 PLATE, STOPPER 1
6 91312-04006 BOLT HEX. SOCKET HEAD 2 M4X6
7
91312-05010 BOLT HEX. SOCKET HEAD
2
M5X10
8 91312-05014 BOLT HEX. SOCKET HEAD 2 M5X14
9 KKT-M9271-00 PLATE, STOPPER 1
10 KKT-M9275-00 BRKT., SENSOR 1
11 KHW-M9272-00 STOPPER, EXIT 1
12 KHY-M9273-00 CYLINDER 1
13 91312-04010 BOLT HEX. SOCKET HEAD 4 M4X10
14 92902-04200 WASHER PLAIN 4
15 KKT-M9275-10 BRKT., SENSOR 1
16 KKT-M653G-00 CYL L2 SUB ST1 ASSY 1
17 KKT-M653H-00 CYL L2 SUB ST2 ASSY 1
18 KKV-M9160-00 MAIN STP. 2-1 ASSY. 1
19 KKV-M9160-10 MAIN STP. 2-1 ASSY. 1
20 KKT-M9270-00 EXIT STOPPER 1 ASSY. 1
21 KKT-M9270-10 EXIT STOPPER 2 ASSY. 1
22 KKV-M9280-00 SUB STP. 2-1 ASSY. 1
23 KKV-M9280-10 SUB STP. 2-1 ASSY. 1
24 KKV-M9280-20 SUB STP. 2-2 ASSY. 1
25 KKV-M9280-30 SUB STP. 2-2 ASSY. 1
26 KKV-M9160-20 MAIN STP. 2-2 ASSY. 1 Option(700mm)
27 KKV-M9160-30 MAIN STP. 2-2 ASSY. 1 Option(700mm)
