1 12 Main Cutter Assy (60-Fix) T ape Cutter KKT -1101 36 52 49 48 9 43 33 34 56 14 24 55 58 54 29 26 47 42 37 53 39 12 45 20 45 18 11 26 47 29 54 27 13 28 19 30 45 45 28 16 51 17 48 23 22 41 6 25 44 57 8 7 7 2 56 56 50 3…
1
11

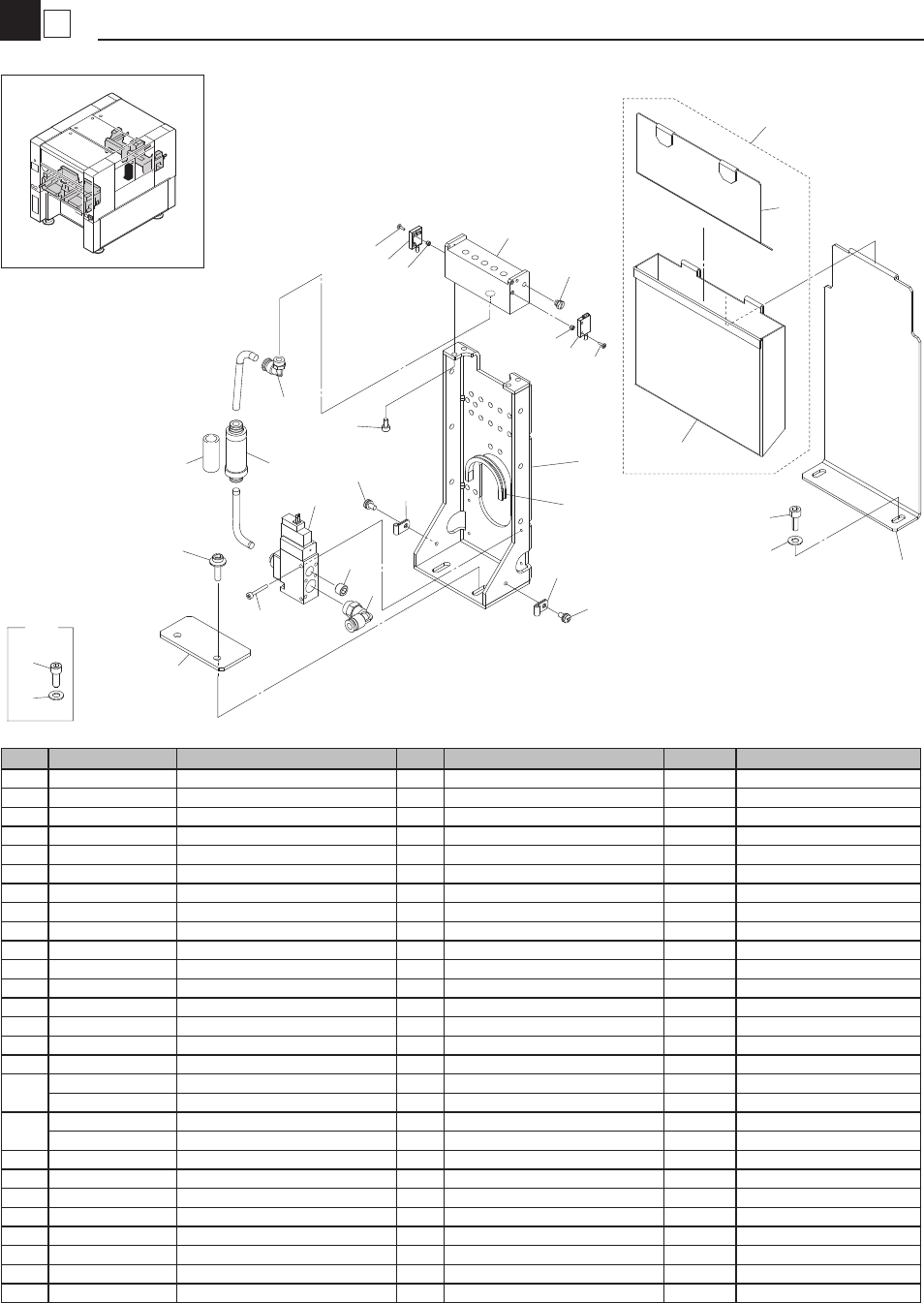

Blow Station / Dump Box
Blow Station
KKT-100514
1
8
3
13
14
5
10
9
9
6
25
19
15
19
2
17
4
7
12
14
5
11
13
16
22
21
26
20
23
24
17
18
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKT-M9901-00 BASE,B.STN. 1
2 KKD-M9902-00 PLATE,BASE 1
3 KKT-M9903-00 BLOCK,BLOW ST. 1
4 KHW-M9906-A0 VALVE ASSY. 1
5 KKE-M652K-00 SENSOR BLOW ST ASSY 1
6 KGR-M9934-01 INLINE FILTER 1
7 K40-M8598-10 PLUG 1 1
8 $NJ-32 UNIVERSAL BUSH 1
9 $NK-2N NYLON CLIP 2
10 $PF PLUG 1
11 $TL6-01M JOINT 1
12 $TL6-02 JOINT 1
13 90169-02J206 SCREW BINDING HEAD 4
14 90990-41J066 COLLAR 4
15 91312-03020 BOLT HEX. SOCKET HEAD 2 M3X20
16 91312-04008 BOLT HEX. SOCKET HEAD 4 M4X8
17
90990-32J008 BOLT,FLANGE 2 M6X16 OK MM10012-2015/3/16
91312-06016 BOLT HEX. SOCKET HEAD 2 M6X16
18
delete MM10012-2015/3/16
92902-06200 WASHER, PLAIN 2
19 97602-04308 SCREW, PAN HEAD W/W 2 M4X8
20 KKE-M36A2-00 STAND, DUMP BOX 1
21 KHY-M99D1-00 DUMP BOX 1
22 KHY-M99D2-00 DIFFUSE PLATE 1
23 91312-06016 BOLT HEX. SOCKET HEAD 2 M6X16
24 92902-06200 WASHER, PLAIN 2
25 KGR-M9934-F0 FILTER 1 spare
26 KGS-M99D0-00 DUMP BOX ASSY. 1
1
12

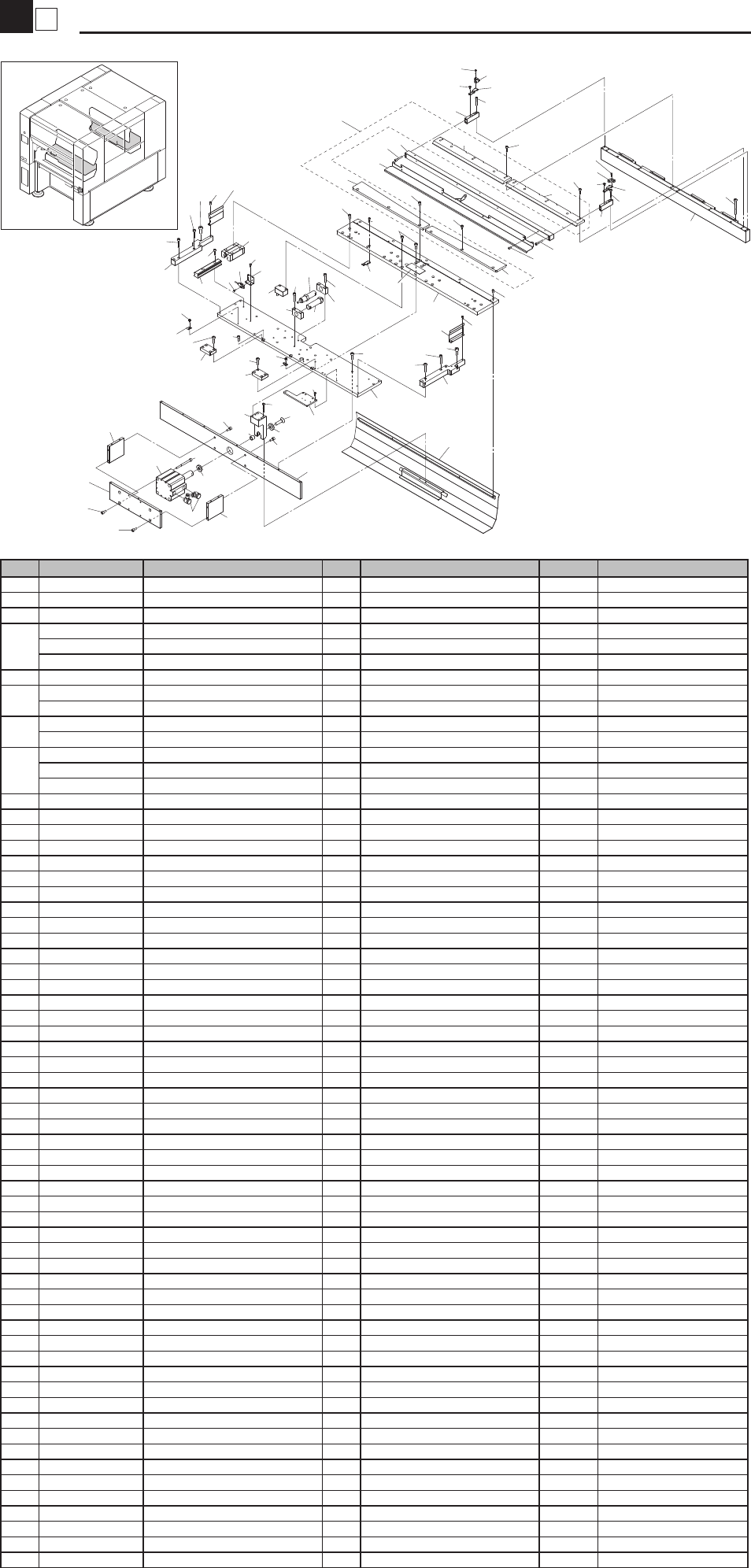

Main Cutter Assy (60-Fix)
Tape Cutter
KKT-1101
36
52
49
48
9
43
33
34
56
14
24
55
58
54
29
26
47
42
37
53
39
12
45
20
45
18
11
26
47
29
54
27
13
28
19
30
45
45
28
16
51
17
48
23
22
41
6
25
44
57
8
7
7
2
56
56
50
35
35
31
3
44
31
3
44
43
43
4
4
38
46
40
40
48
23
22
47
48
49
21
15
32
36
37
52
5
6
36
44
10
1
21
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3T01-20 BASE PLATE 1 1
2 KHY-M3T02-20 BASE PLATE 2 1
3 KHY-M3T03-02 STAY 60, AIR JOINT 2
4
KHY-M3T05-32 CUTTER UPPER, 60 2 OK MGY0034-2010/12/22
KHY-M3T05-31 CUTTER UPPER, 60 2 OK MG70107-2010/7/26
KHY-M3T05-30 CUTTER UPPER, 60 2
5 KHY-M3T06-20 BASE PLATE 3 1
6
KHY-M3T07-C1 CUTTER LOWER, 720 1 OK MGY0034-2010/12/22
KHY-M3T07-C0 CUTTER LOWER, 720 1
7
KHY-M3T08-21 BAR 2 OK MG80029-2010/8/16
KHY-M3T08-20 BAR 2
8
KHY-M3T09-22 PLATE 4, 720 1 OK MG00035-2010/10/19
KHY-M3T09-21 PLATE 4, 720 1 OK MG40081-2010/4/20
KHY-M3T09-20 PLATE 4, 720 1
9 KHY-M3T0A-20 SIDE BLOCK, L 1
10 KHY-M3T0A-30 SIDE BLOCK, R 1
11 KHY-M3T0B-11 FRONT STAY 4 1
12 KHY-M3T0L-01 CYL. COLLAR 3 1
13 KHY-M3T0N-30 COVER M, 60 1
14 KHY-M3T0U-10 SENSOR STAY 1
15 KHY-M3T0V-01 DOG., SENSOR 1
16 KHY-M3T10-10 TAPE CUTTER CYL. 1
17 KHY-M3T11-20 CYL. STAY 1 1
18 KHY-M3T12-10 CLY.BLOCK 1
19 KHY-M3T13-00 CYL. COLLAR 1 1
20 KHY-M3T14-02 CYL. COLLAR 2 1
21 KHY-M3T19-10 SIDE COVER 2
22 KHY-M3T22-00 SHOCK ABSORBERS 1
23 KHY-M3T23-00 DAMPER STAY 2
24 KHY-M3T24-10 DAMPER STOPPER 1
25 KHY-M3T26-40 CUTTER COVER, 720 1
26 KHY-M3T28-10 FRONT STAY 2
27 KHY-M3T30-11 CYL. STAY 2 1
28 KHY-M3T31-10 CYL. STAY 3 2
29 $NK-2N NYLON CLIP 2
30 $SL6-02 JOINT 2
31 $UL6M JOINT 2
32 90K41-000800 LABEL, ALERT 1
33 90K72-5L0120 LM GUIDE 4
34 90K80-020L00 LM BLOCK, HSR20-L 4
35 91312-03012 BOLT HEX. SOCKET HEAD 2
36 91312-04008 BOLT HEX. SOCKET HEAD 10
37 91312-04010 BOLT HEX. SOCKET HEAD 7
38 91312-04014 BOLT HEX. SOCKET HEAD 2
39 91312-04035 BOLT HEX. SOCKET HEAD 2
40 91312-05010 BOLT HEX. SOCKET HEAD 6
41 91312-05014 BOLT HEX. SOCKET HEAD 16
42 91312-05016 BOLT HEX. SOCKET HEAD 3
43 91312-05018 BOLT HEX. SOCKET HEAD 20
44 91312-05030 BOLT HEX. SOCKET HEAD 8
45 91312-06014 BOLT HEX. SOCKET HEAD 8
46 91312-06018 BOLT HEX. SOCKET HEAD 6
47 91312-06022 BOLT HEX. SOCKET HEAD 17
48 91312-06030 BOLT HEX. SOCKET HEAD 10
49 91312-06040 BOLT HEX. SOCKET HEAD 2
50 91312-06060 BOLT HEX. SOCKET HEAD 4
51 91312-06070 BOLT HEX. SOCKET HEAD 4
52 91312-08020 BOLT HEX. SOCKET HEAD 2
53 92B12-10035 SCREW, CROS.COUN. 1
54 97602-04308 SCREW, PAN HEAD W/W 2
55 98902-03008 SCREW, BINDING HEAD 2
56 98902-04008 SCREW, BINDING HEAD 4
57 KHY-M3T00-T0 60-BLADE SPARE ASSY 1 spare
58 KKE-M652H-00 SENSOR CUT CL, ASSY 1
2
12

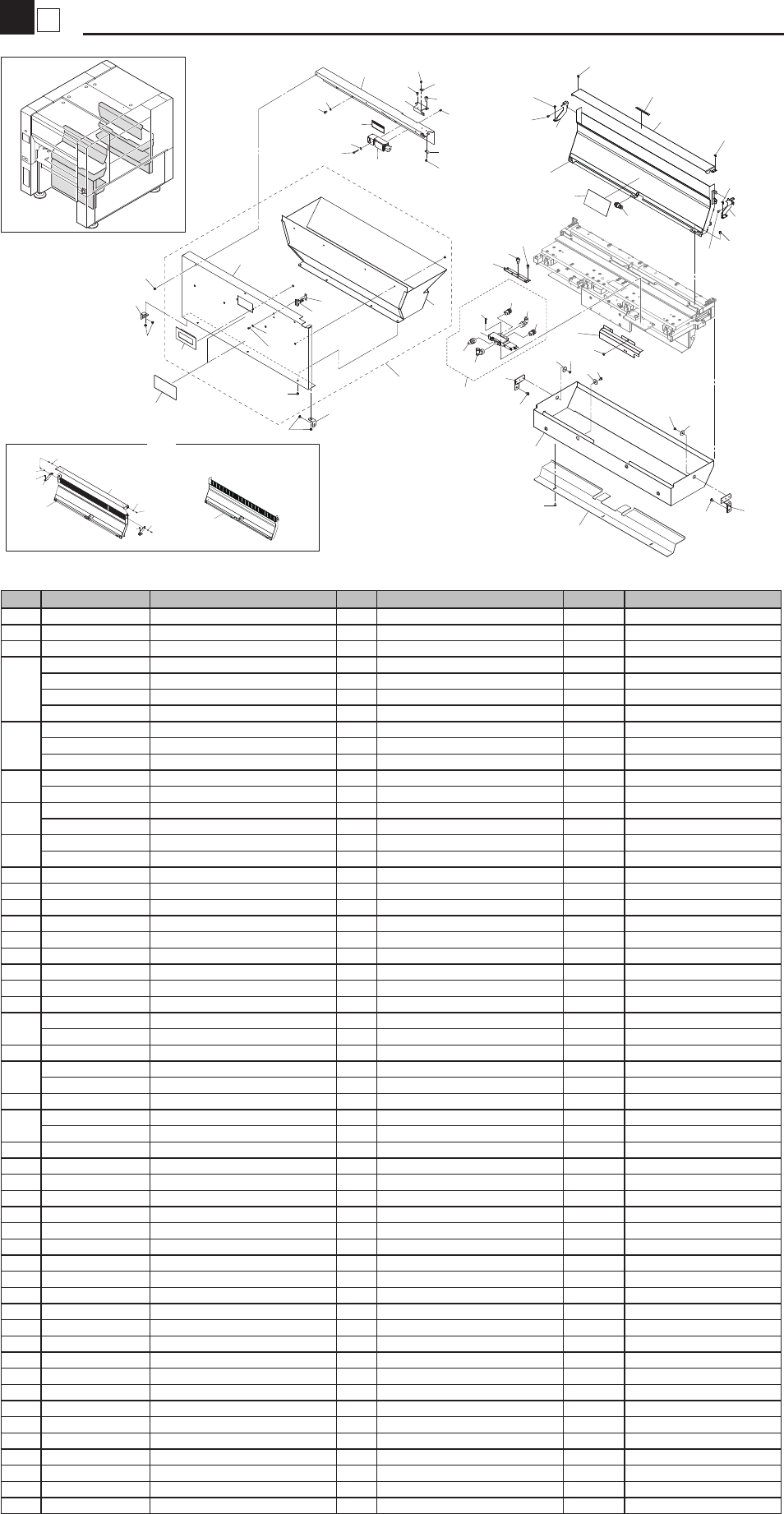

Cutter Valve / Slope / Safty Cover Assy (60-Fix)
Tape Cutter
KKT-1108
OLD
31
22
14
32
15
13
32
31
11
18
8
2
19
1
3
3
3
2
17
19
17
19
14
9
15
17
12
10
24
28
29
26
30
20
14
23
27
23
25
25
25
37
38
39
25
21
33
34
35
36
42
41
42
43
41
41
40
44
45
18
13
16
16
13
18
16
5
16
18
6
4
4
Fig 1
Fig 2
5
6
7
13
13
18
18
17
17
4
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M11C1-20 DUCT 1 1
2 KHY-M11C3-01 BRKT., DUCT 2
3 KHY-M11C5-00 WASHER 6
4
KHY-M3T53-22 UPPER COVER 1,720 1 Resin tape OK ML20100-2014/3/13
KHY-M3T53-21 UPPER COVER 1, 720 1 OK MH4003-2011/4/13
KHY-M3T53-20 UPPER COVER 1,720 1 Fig 2 NG MH20012-2011/2/17
KHY-M3T0E-61 UPPER COVER 1,720 1 Fig 1
5
KHY-M3T51-21 UPPER COVER 2,720 1 Slope step OK MK90021-2013/10/16
KHY-M3T51-20 UPPER COVER 2,720 1 NG MH20012-2011/2/17
KHY-M3T0S-30 UPPER COVER 2,720 1 Fig 1
6
KHY-M3T52-40 FIX STAY,L 1 NG MH20012-2011/2/17
KHY-M3T0X-20 STAY L 1 Fig 1
7
KHY-M3T52-50 FIX STAY,R 1 NG MH20012-2011/2/17
KHY-M3T0X-30 STAY R 1 Fig 1
8
KHY-M3T25-04 VALVE COVER 1 L=259 OK MH60104-2011/8/22
KHY-M3T25-03 VALVE COVER 1 L=212
9 KHY-M3T40-00 STAY, HARNESS 1
10 $UK6 JOINT 1
11 90K41-000240 SEAL DON'T TOUCH 1
12
90K41-000730 LABEL, ALERT 1
13 91312-04006 BOLT HEX. SOCKET HEAD 8 M4X6
14 91312-05008 BOLT HEX. SOCKET HEAD 6 M5X8
15 91312-08012 BOLT HEX. SOCKET HEAD 2 M8X12
16 92902-04600 WASHER, PLAIN 6
17 98902-04006 SCREW, BINDING HEAD 8
18
98902-04008 SCREW, BINDING HEAD 10 MG50009-2010/5/19
98902-04008 SCREW, BINDING HEAD 7
19 98902-05008 SCREW, BINDING HEAD 8
20
KHY-M1325-02 COVER 25 1 OK MG10110-2010/1/27
KHY-M1325-01 COVER 25 1
21 KHY-M11C6-A2 COVER 720, SUB ASSY 1
22
KJJ-M11CA-00 STAY, HNS. 1 OK MF80092-2009/9/1
KHY-M11C8-00 HNS. STAY 1
23 KJJ-M11C8-00 BRKT. , CUTTER COVER 2
24 KJJ-M5126-F0 SAFETY SWITCH UNIT ASSY 1
25 90990-12J001 SCREW, BIN. HEAD W/W 7
26 90K41-000350 LABEL, ALERT 1
27 90K41-000730 LABEL, ALERT 2
28 91312-04025 BOLT HEX. SOCKET HEAD 2 M4X24
29 92902-04200 WASHER, PLAIN 2
30 92902-05600 WASHER, PLAIN 4
31 97602-04308 SCREW, PAN HEAD W/WASHER 4
32 $NK-3N NYLON CLIP 4
33 KHY-M11C2-42 DUCT 2, 720 1
34 KHY-M11C6-02 COVER, TAPE CUTTER 1
35 KJJ-M11C9-00 PLATE, NUT 1
36 KJJ-M5127-00 SAFETY SWITCH KEY 1
37 KHU-M1117-00 PULL 1
38 KGS-M1360-00 BOLT 2
39 92902-04200 WASHER, PLAIN 2
40 KHY-M3T0C-00 CUTTER VALVE 1
41 $TL6-01M JOINT 3
42 $KM-10 MUFFLER 2
43 91312-03020 BOLT,HEX.SOCKET HEAD 2 M3X20
44 KHY-M3T00-M1 CUTTER VALVE ASSY 1
45 KHY-M11C9-00 COVER, UNDER 1 MG50009-2010/5/19
