13 9 1 1 8 10 12 7 7 7 6 5 6 5 37 Front Right Front Left 37 30 37 37 35 31 31 31 33 34 31 33 34 31 33 4 30 39 38 25 23 24 32 38 27 28 33 36 14 29 1 3 2 2 2 3 17 15 22 26 28 22 26 26 21 20 19 18 16 37 34 26 OLD 9 11 10 35…
5
12
Main Cutter Assy (24-Fes)
Tape Cutter
KKT-1101
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3T01-04 BASE PLATE 1, 288 1
2 KHY-M3T02-00 BASE PLATE 2, 288 1
3
KHY-M3T05-02 CUTTER UPPER, 288 1 OK MGY0034-2010/12/22
KHY-M3T05-01 CUTTER UPPER, 288 1
4 KHY-M3T06-03 BASE PLATE 3, 288 1
5
KHY-M3T07-A3 CUTTER LOWER, 288 1 OK MGY0034-2010/12/22
KHY-M3T07-A2 CUTTER LOWER, 288 1
6
KHY-M3T08-02 BAR, L 1 OK MG80028-2010/8/16
KHY-M3T08-01 BAR, L 1
7
KHY-M3T08-12 BAR, R 1 OK MG80028-2010/8/16
KHY-M3T08-11 BAR, R 1
8
KHY-M3T09-03 PLATE 4, 288 1 OK MG00035-2010/10/19
KHY-M3T09-02 PLATE 4, 288 1
9 KHY-M3T10-01 TAPE CUTTER CYL. 1
10 KHY-M3T11-01 CYL. STAY 1
11 KHY-M3T12-01 CYL. BLOCK 1
12 KHY-M3T13-00 CYL. COLLAR 1 1
13 KHY-M3T14-02 CYL. COLLAR 2 1
14 KHY-M3T16-00 BACK STAY 1
15 KHY-M3T18-00 COVER L, 288 1
16 KHY-M3T18-10 COVER R, 288 1
17 KHY-M3T19-00 SIDE COVER 2
18 KHY-M3T22-00 SHOCK ABSORBERS 2
19 KHY-M3T23-00 DAMPER STAY 2
20 KHY-M3T24-00 DAMPER STOPPER 1
21 KHY-M3T26-20 CUTTER COVER, 288 1
22 KHY-M3T0A-01 SIDE BLOCK, L 1
23 KHY-M3T0A-11 SIDE BLOCK, R 1
24 KHY-M3T0B-04 FRONT STAY 1
25 KHY-M3T0L-01 CYL. COLLAR 3 1
26 KHY-M3T0M-00 STAY, COVER M 1
27 KHY-M3T0N-10 COVER M 1
28 KHY-M3T0P-00 CYL. COVER 1 1
29 KHY-M3T0U-00 SENSOR STAY 1
30 KHY-M3T0V-01 DOG., SENSOR 1
31 90K73-7L0130 LM RAIL 2
32 90K80-025L00 LM BLOCK, HSR25-L 2
33 KKE-M652H-00 SENSOR, CUT CL ASSY 4 Front Left
34 91312-06030 BOLT HEX. SOCKET HEAD 4 M3X4
35 91312-04006 BOLT HEX. SOCKET HEAD 7 M4X6
36 91312-04008 BOLT HEX. SOCKET HEAD 20 M4X8
37 91312-04010 BOLT HEX. SOCKET HEAD 2 M4X10
38 91312-04016 BOLT HEX. SOCKET HEAD 2 M4X16
39 91312-04018 BOLT HEX. SOCKET HEAD 12 M4X18
40 91312-05010 BOLT HEX. SOCKET HEAD 6 M5X10
41 99480-04010 PIN PARALLEL: 4X10 4
42 91312-06014 BOLT HEX. SOCKET HEAD 20 M6X14
43 91312-06016 BOLT HEX. SOCKET HEAD 6 M6X16
44 91312-06020 BOLT HEX. SOCKET HEAD 3 M6X20
45 91312-06022 BOLT HEX. SOCKET HEAD 4 M6X22
46 91312-06025 BOLT HEX. SOCKET HEAD 3 M6X25
47 91312-08020 BOLT HEX. SOCKET HEAD 4 M8X20
48 98902-04008 SCREW BINDING HEAD 6
49 92902-04600 WASHER PLAIN 2
50 92B12-10035 SCREW, H.S.COUN. 1
51 98702-03006 SCREW FLAT HEAD 4
52 98902-03008 SCREW BINDING HEAD 2
53 $TL4-02 JOINT 2
54 91312-05018 BOLT HEX. SOCKET HEAD 4
55 KHY-M3T04-00 STAY, AIR JOINT 1
56 KHY-M3T35-00 FRONT STAY L 1
57 KHY-M3T35-10 FRONT STAY R 1
58 91312-06035 BOLT HEX. SOCKET HEAD 4 M6X35
59 $UL6M JOINT 2 MG20076-2010/2/18
60 91312-03012 BOLT HEX. SOCKET HEAD 2 MG20076-2010/2/18
61 $UK6 JOINT 1 MG20076-2010/2/18
61
22
15
48
42
42
58
58
24
56
57
52
29
36
39
31
45
32
39
18
19
18
44
20
30
49
37
42
35
40
5
42
43
41
4
39
39
1
47
36
28
42
10
9
53
48
16
23
31
45
32
12
13
25
50
11
27
48
36
26
36
6
46
46
3
55
7
36
8
21
36
51
17
44
14
2
51
54
17
38
33
34
34
41
22
59
59
60
60
13
9
11
8
10
12
7
7
7
6
5
6
5
37
Front Right
Front Left
37
30
37
37
35
31
31
31
33
34
31
33
34
31
33
4
30
39
38
25
23
24
32
38
27
28
33
36
14
29
1
3
2
2
2
3
17
15
22
26
28
22
26
26
21
20
19
18
16
37
34
26
OLD
9
11
10
35
30
35
31
30
30
30
35
35
31
8
8
30
Fig 1
Fig 2
12
6

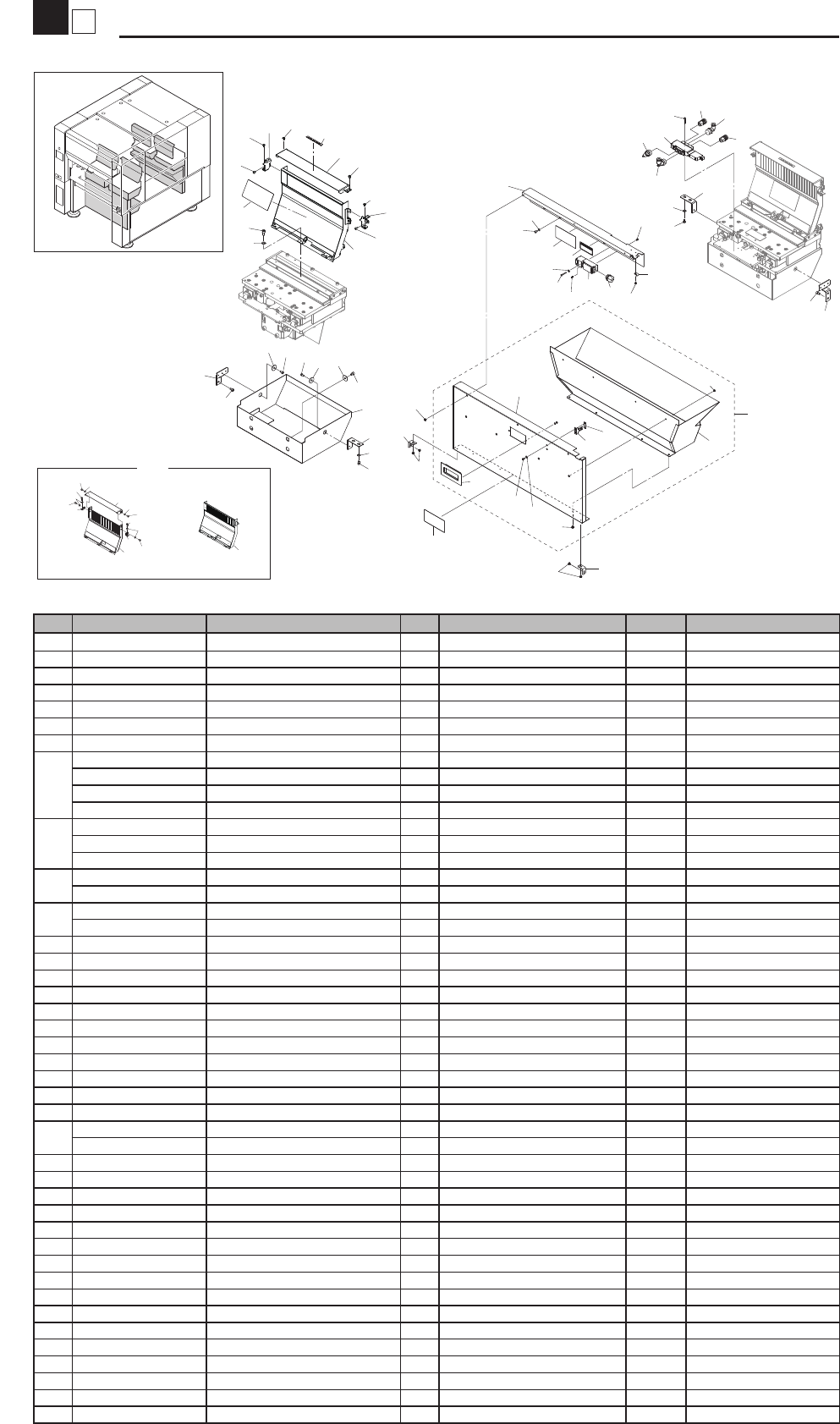

Cutter Valve / Slope / Safty Cover Assy (24-Fes)
Tape Cutter
KKT-100514
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KHY-M3T0C-00 CUTTER VALVE 1
2
$TL6-01M
JOINT 3
3 $KM-10 MUFFLER 2
4 KHY-M11C1-04 DUCT 1 1
5 KHY-M11C3-01 BRKT., DUCT 2
6 KHY-M11C4-00 BRKT., DUCT 2
7 KHY-M11C5-00 WASHER 5
8
KHY-M3T53-32
UPPER COVER 1, 288 1
Resin tape
OK
ML20100-2014/3/13
KHY-M3T53-31
UPPER COVER 1, 288 1
OK
MJ10031-2012-1/18
KHY-M3T53-30
UPPER COVER 1, 288 1
Fig 2
NG
MH20012-2011/2/17
KHY-M3T0E-40 UPPER COVER 1, 288 1
Fig 1
9
KHY-M3T51-01 UPPER COVER 2, 288 1
Slope step
OK
MK90021-2013/10/16
KHY-M3T51-00 UPPER COVER 2, 288 1 NG
MH20012-2011/2/17
KHY-M3T0S-20 UPPER COVER 2, 288 1
Fig 1
10
KHY-M3T52-00 FES STAY,L 1 NG
MH20012-2011/2/17
KHY-M3T0R-00 STAY L 1
Fig 1
11
KHY-M3T52-10 FES STAY,R 1 NG
MH20012-2011/2/17
KHY-M3T0R-10 STAY R 1
Fig 1
12 90K41-000730 LABEL, ALERT 3
13
90K41-000240
SEAL, DON'T TOUCH 1
14
KHY-M1325-02 COVER 25
1
15 KHY-M11C6-B2
COVER 2880, SUB ASSY 1
16
KHY-M11C2-52 DUCT 2, 288 2
17 KHY-M11C6-02 COVER, TAPE CUTTER 1
18 KJJ-M11C9-00 PLATE, NUT 1
19 KJJ-M5127-00 SAFETY SWITCH KEY 1
20 KGS-M1360-00 BOLT 2
21 KHU-M1117-00 PULL 1
22 KJJ-M11C8-00 BRKT., CUTTER COVER 2
23
KJJ-M5126-F0 SAFETY SW UNIT ASSY 1 OK MFX0093-2009/12/1
KJJ-M5126-00 SAFETY SWITCH 1
24 KGS-M5126-02 SCREW (M3X8) 1
25 KW7-M643A-00 SC LOCK 1
26 90990-12J001 SCREW BIN. HEAD W/W 10
27 90K41-000350 LABEL, ALERT 1
28 90K41-000730 LABEL, ALERT 2
29 91312-03020 BOLT HEX. SOCKET HEAD 2 M3X20
30 91312-04006 BOLT HEX. SOCKET HEAD 12 M4X6
31 91312-04008 BOLT HEX. SOCKET HEAD 13 M4X8
32 91312-04025 BOLT HEX. SOCKET HEAD 2 M4X24
33 91312-05008 BOLT HEX. SOCKET HEAD 10 M5X8
34 92902-04200 WASHER PLAIN 4
35 92902-04600 WASHER PLAIN 13
36 92902-05600 WASHER PLAIN 4
37 98902-04006 SCREW BINDING HEAD 4
38 97602-04308 SCREW, PAN HEAD W/W 2
39 $NK-3N NYLON CLIP 2
7
12
Main Cutter Assy (24-Fix)
Tape Cutter
KKT-1101
15
48
42
42
58
58
24
56
57
52
29
36
39
31
45
32
39
18
19
18
44
20
30
49
37
42
35
40
5
42
43
41
4
39
39
1
47
36
28
42
10
9
53
48
16
23
31
45
32
12
13
25
50
11
27
48
36
26
7
36
51
17
44
14
2
51
54
17
38
33
34
34
41
61
36
6
46
46
3
55
21
36
59
59
60
60
22
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3T01-04 BASE PLATE 1, 288 1
2 KHY-M3T02-00 BASE PLATE 2, 288 1
3
KHY-M3T05-02 CUTTER UPPER, 288 1 OK MGY0034-2010/12/22
KHY-M3T05-01 CUTTER UPPER, 288 1
4 KHY-M3T06-03 BASE PLATE 3, 288 1
5
KHY-M3T07-A3 CUTTER LOWER, 288 1 OK MGY0034-2010/12/22
KHY-M3T07-A2 CUTTER LOWER, 288 1
6
KHY-M3T08-02 BAR, L 1 OK MG80028-2010/8/16
KHY-M3T08-01 BAR, L 1
7
KHY-M3T08-12 BAR, R 1 OK MG80028-2010/8/16
KHY-M3T08-11 BAR, R 1
8
KHY-M3T09-03 PLATE 4, 288 1 OK MG00035-2010/10/19
KHY-M3T09-02 PLATE 4, 288 1
9 KHY-M3T10-01 TAPE CUTTER CYL. 1
10 KHY-M3T11-01 CYL. STAY 1
11 KHY-M3T12-01 CYL. BLOCK 1
12 KHY-M3T13-00 CYL. COLLAR 1 1
13 KHY-M3T14-02 CYL. COLLAR 2 1
14 KHY-M3T16-00 BACK STAY 1
15 KHY-M3T18-00 COVER L, 288 1
16 KHY-M3T18-10 COVER R, 288 1
17 KHY-M3T19-00 SIDE COVER 2
18 KHY-M3T22-00 SHOCK ABSORBERS 2
19 KHY-M3T23-00 DAMPER STAY 2
20 KHY-M3T24-00 DAMPER STOPPER 1
21 KHY-M3T26-20 CUTTER COVER, 288 1
22 KHY-M3T0A-01 SIDE BLOCK, L 1
23 KHY-M3T0A-11 SIDE BLOCK, R 1
24 KHY-M3T0B-04 FRONT STAY 1
25 KHY-M3T0L-01 CYL. COLLAR 3 1
26 KHY-M3T0M-00 STAY, COVER M 1
27 KHY-M3T0N-10 COVER M 1
28 KHY-M3T0P-00 CYL. COVER 1 1
29 KHY-M3T0U-00 SENSOR STAY 1
30 KHY-M3T0V-01 DOG., SENSOR 1
31 90K73-7L0130 LM RAIL 2
32 90K80-025L00 LM BLOCK, HSR25-L 2
33 KKE-M652H-00 SENSOR, CUT CL ASSY 4 Front Left
34 91312-06030 BOLT HEX. SOCKET HEAD 4 M3X4
35 91312-04006 BOLT HEX. SOCKET HEAD 7 M4X6
36 91312-04008 BOLT HEX. SOCKET HEAD 20 M4X8
37 91312-04010 BOLT HEX. SOCKET HEAD 2 M4X10
38 91312-04016 BOLT HEX. SOCKET HEAD 2 M4X16
39 91312-04018 BOLT HEX. SOCKET HEAD 12 M4X18
40 91312-05010 BOLT HEX. SOCKET HEAD 6 M5X10
41 99480-04010 PIN PARALLEL: 4X10 4
42 91312-06014 BOLT HEX. SOCKET HEAD 20 M6X14
43 91312-06016 BOLT HEX. SOCKET HEAD 6 M6X16
44 91312-06020 BOLT HEX. SOCKET HEAD 3 M6X20
45 91312-06022 BOLT HEX. SOCKET HEAD 4 M6X22
46 91312-06025 BOLT HEX. SOCKET HEAD 3 M6X25
47 91312-08020 BOLT HEX. SOCKET HEAD 4 M8X20
48 98902-04008 SCREW BINDING HEAD 6
49 92902-04600 WASHER PLAIN 2
50 92B12-10035 SCREW, H.S.COUN. 1
51 98702-03006 SCREW FLAT HEAD 4
52 98902-03008 SCREW BINDING HEAD 2
53 $TL4-02 JOINT 2
54 91312-05018 BOLT HEX. SOCKET HEAD 4
55 KHY-M3T04-00 STAY, AIR JOINT 1
56 KHY-M3T35-00 FRONT STAY L 1
57 KHY-M3T35-10 FRONT STAY R 1
58 91312-06035 BOLT HEX. SOCKET HEAD 4 M6X35
59 $UL6M JOINT 2 MG20076-2010/2/18
60 91312-03012 BOLT HEX. SOCKET HEAD 2 MG20076-2010/2/18
61 $UK6 JOINT 1 MG20076-2010/2/18
