YS24X_pl - 第74页
6 Front Right Front Left 34 31 30 39 38 25 23 24 32 38 27 28 33 36 14 29 1 3 2 2 2 3 40 42 33 30 30 41 17 15 22 26 28 22 26 26 21 20 19 18 16 37 34 26 7 7 7 6 5 31 31 33 34 31 33 4 5 33 OLD 9 11 10 35 30 35 31 30 30 30 3…
7
12

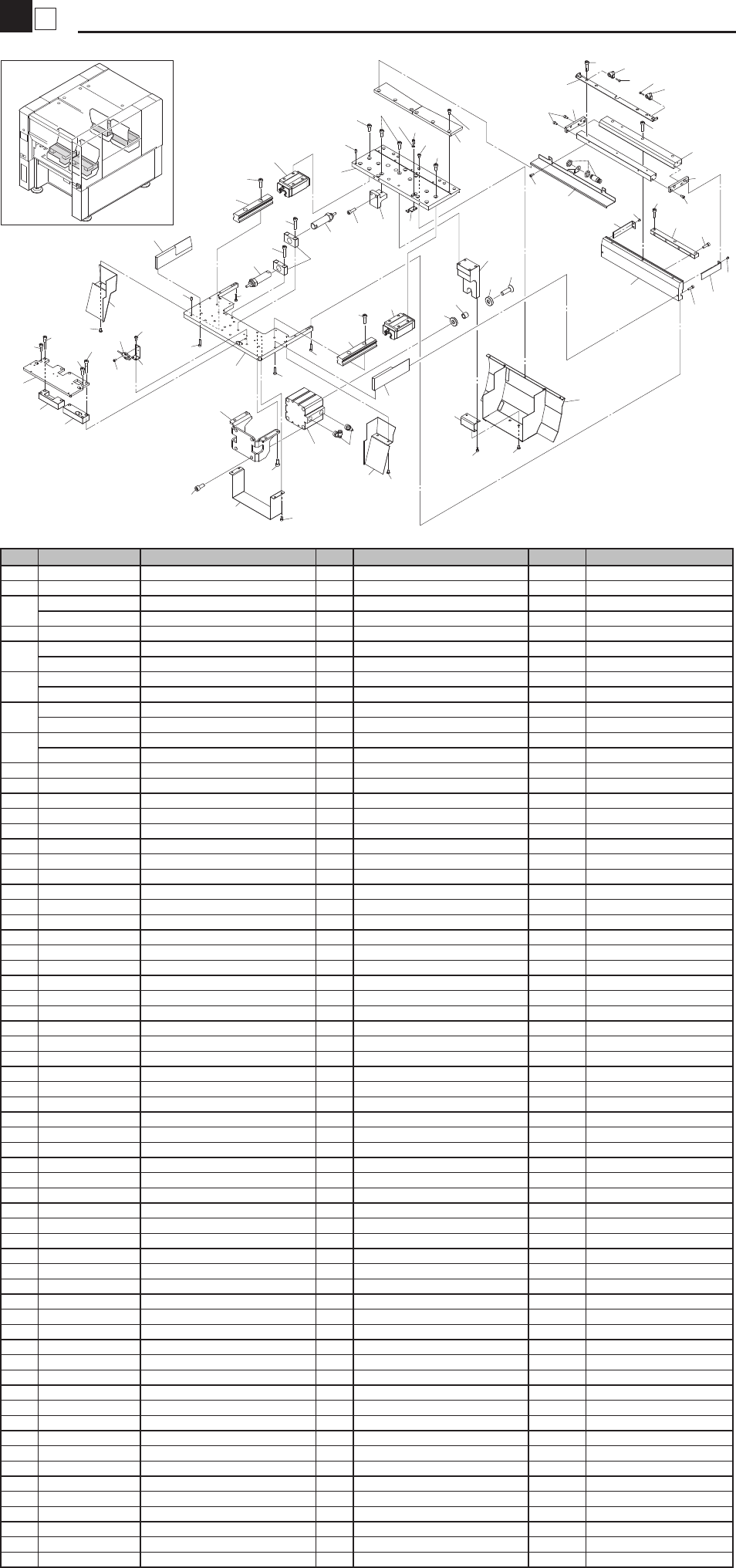

Main Cutter Assy (24-Fix)
Tape Cutter
KKT-1101
15
48
42
42
58
58
24
56
57
52
29
36
39
31
45
32
39
18
19
18
44
20
30
49
37
42
35
40
5
42
43
41
4
39
39
1
47
36
28
42
10
9
53
48
16
23
31
45
32
12
13
25
50
11
27
48
36
26
7
36
51
17
44
14
2
51
54
17
38
33
34
34
41
61
36
6
46
46
3
55
21
36
59
59
60
60
22
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3T01-04 BASE PLATE 1, 288 1
2 KHY-M3T02-00 BASE PLATE 2, 288 1
3
KHY-M3T05-02 CUTTER UPPER, 288 1 OK MGY0034-2010/12/22
KHY-M3T05-01 CUTTER UPPER, 288 1
4 KHY-M3T06-03 BASE PLATE 3, 288 1
5
KHY-M3T07-A3 CUTTER LOWER, 288 1 OK MGY0034-2010/12/22
KHY-M3T07-A2 CUTTER LOWER, 288 1
6
KHY-M3T08-02 BAR, L 1 OK MG80028-2010/8/16
KHY-M3T08-01 BAR, L 1
7
KHY-M3T08-12 BAR, R 1 OK MG80028-2010/8/16
KHY-M3T08-11 BAR, R 1
8
KHY-M3T09-03 PLATE 4, 288 1 OK MG00035-2010/10/19
KHY-M3T09-02 PLATE 4, 288 1
9 KHY-M3T10-01 TAPE CUTTER CYL. 1
10 KHY-M3T11-01 CYL. STAY 1
11 KHY-M3T12-01 CYL. BLOCK 1
12 KHY-M3T13-00 CYL. COLLAR 1 1
13 KHY-M3T14-02 CYL. COLLAR 2 1
14 KHY-M3T16-00 BACK STAY 1
15 KHY-M3T18-00 COVER L, 288 1
16 KHY-M3T18-10 COVER R, 288 1
17 KHY-M3T19-00 SIDE COVER 2
18 KHY-M3T22-00 SHOCK ABSORBERS 2
19 KHY-M3T23-00 DAMPER STAY 2
20 KHY-M3T24-00 DAMPER STOPPER 1
21 KHY-M3T26-20 CUTTER COVER, 288 1
22 KHY-M3T0A-01 SIDE BLOCK, L 1
23 KHY-M3T0A-11 SIDE BLOCK, R 1
24 KHY-M3T0B-04 FRONT STAY 1
25 KHY-M3T0L-01 CYL. COLLAR 3 1
26 KHY-M3T0M-00 STAY, COVER M 1
27 KHY-M3T0N-10 COVER M 1
28 KHY-M3T0P-00 CYL. COVER 1 1
29 KHY-M3T0U-00 SENSOR STAY 1
30 KHY-M3T0V-01 DOG., SENSOR 1
31 90K73-7L0130 LM RAIL 2
32 90K80-025L00 LM BLOCK, HSR25-L 2
33 KKE-M652H-00 SENSOR, CUT CL ASSY 4 Front Left
34 91312-06030 BOLT HEX. SOCKET HEAD 4 M3X4
35 91312-04006 BOLT HEX. SOCKET HEAD 7 M4X6
36 91312-04008 BOLT HEX. SOCKET HEAD 20 M4X8
37 91312-04010 BOLT HEX. SOCKET HEAD 2 M4X10
38 91312-04016 BOLT HEX. SOCKET HEAD 2 M4X16
39 91312-04018 BOLT HEX. SOCKET HEAD 12 M4X18
40 91312-05010 BOLT HEX. SOCKET HEAD 6 M5X10
41 99480-04010 PIN PARALLEL: 4X10 4
42 91312-06014 BOLT HEX. SOCKET HEAD 20 M6X14
43 91312-06016 BOLT HEX. SOCKET HEAD 6 M6X16
44 91312-06020 BOLT HEX. SOCKET HEAD 3 M6X20
45 91312-06022 BOLT HEX. SOCKET HEAD 4 M6X22
46 91312-06025 BOLT HEX. SOCKET HEAD 3 M6X25
47 91312-08020 BOLT HEX. SOCKET HEAD 4 M8X20
48 98902-04008 SCREW BINDING HEAD 6
49 92902-04600 WASHER PLAIN 2
50 92B12-10035 SCREW, H.S.COUN. 1
51 98702-03006 SCREW FLAT HEAD 4
52 98902-03008 SCREW BINDING HEAD 2
53 $TL4-02 JOINT 2
54 91312-05018 BOLT HEX. SOCKET HEAD 4
55 KHY-M3T04-00 STAY, AIR JOINT 1
56 KHY-M3T35-00 FRONT STAY L 1
57 KHY-M3T35-10 FRONT STAY R 1
58 91312-06035 BOLT HEX. SOCKET HEAD 4 M6X35
59 $UL6M JOINT 2 MG20076-2010/2/18
60 91312-03012 BOLT HEX. SOCKET HEAD 2 MG20076-2010/2/18
61 $UK6 JOINT 1 MG20076-2010/2/18
6
Front Right
Front Left
34
31
30
39
38
25
23
24
32
38
27
28
33
36
14
29
1
3
2
2
2
3
40
42
33
30
30
41
17
15
22
26
28
22
26
26
21
20
19
18
16
37
34
26
7
7
7
6
5
31
31
33
34
31
33
4
5
33
OLD
9
11
10
35
30
35
31
30
30
30
35
35
31
8
8
13
9
11
8
10
12
37
37
30
37
37
35
31
30
Fig 1
Fig 2
12
8
Cutter Valve / Slope / Safty Cover Assy (24-Fix)
Tape Cutter
KKT-100514
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KHY-M3T0C-00 CUTTER VALVE 1
2 $TL6-01M JOINT 3
3 $KM-10 MUFFLER 2
4 KHY-M11C1-04 DUCT 1 1
5
KHY-M11C3-01 BRKT., DUCT
2
6 KHY-M11C4-00 BRKT., DUCT 2
7 KHY-M11C5-00 WASHER 5
8
KHY-M3T53-32 UPPER COVER 1, 288
1
Resin tape
OK
ML20100-2014/3/13
KHY-M3T53-31 UPPER COVER 1, 288
1
OK
MJ10031-2012-1/18
KHY-M3T53-30
UPPER COVER 1, 288
1
Fig 2
NG
MH20012-2011/2/17
KHY-M3T0E-40 UPPER COVER 1, 288 1
Fig 1
9
KHY-M3T51-01 UPPER COVER 2, 288 1
Slope step
OK
MK90021-2013/10/16
KHY-M3T51-00 UPPER COVER 2, 288 1 NG
MH20012-2011/2/17
KHY-M3T0S-20 UPPER COVER 2, 288 1
Fig 1
10
KHY-M3T52-20 FIX STAY,L 1 NG
MH20012-2011/2/17
KHY-M3T0R-00 STAY L 1
Fig 1
11
KHY-M3T52-30 FIX STAY,R 1 NG
MH20012-2011/2/17
KHY-M3T0R-10 STAY R 1
Fig 1
12 90K41-000730 LABEL, ALERT 3
13
90K41-000240
SEAL, DON'T TOUCH 1
14
KHY-M1325-02 COVER 25
1
15 KHY-M11C6-A2
COVER 720, SUB ASSY 1
16
KHY-M11C2-42 DUCT 2 1
17 KHY-M11C6-02 COVER, TAPE CUTTER 1
18 KJJ-M11C9-00 PLATE, NUT 1
19 KJJ-M5127-00 SAFETY SWITCH KEY 1
20 KGS-M1360-00 BOLT 2
21 KHU-M1117-00 PULL 1
22 KJJ-M11C8-00 BRKT., CUTTER COVER 2
23
KJJ-M5126-F0 SAFETY SW UNIT ASSY 1 OK MFX0093-2009/12/1
KJJ-M5126-00 SAFETY SWITCH 1
24 KGS-M5126-02 SCREW (M3X8) 1
25 KW7-M643A-00 SC LOCK 1
26 90990-12J001 SCREW BIN. HEAD W/W 10
27 90K41-000350 LABEL, ALERT 1
28 90K41-000730 LABEL, ALERT 2
29 91312-03020 BOLT HEX. SOCKET HEAD 2 M3X20
30 91312-04006 BOLT HEX. SOCKET HEAD 12 M4X6
31 91312-04008 BOLT HEX. SOCKET HEAD 13 M4X8
32 91312-04025 BOLT HEX. SOCKET HEAD 2 M4X24
33 91312-05008 BOLT HEX. SOCKET HEAD 10 M5X8
34 92902-04200 WASHER PLAIN 4
35 92902-04600 WASHER PLAIN 13
36 92902-05600 WASHER PLAIN 4
37 98902-04006 SCREW BINDING HEAD 4
38 97602-04308 SCREW, PAN HEAD W/W 2
39 $NK-3N NYLON CLIP 2
40 KJJ-M3T25-11 VALEVE COVER 2 1
41 KJJ-M11CA-00 STAY, HNS. 1
42 KHY-M3T40-00 STAY, HARNESS 1
9
13
13
13
10
3
12
7
11
5
8
10
8
11
10
8
11
7
6
14
2
13
9
10
13
9
1
9
9
10
13
13
13
17
12
25
12
15
13
10
13
9
9
33
32
13
9
13
9
34
13
18
23
10
23
23
11
21
11
19
14
27
34
35
34
36
34
31
13
13
9
26
29
28
30
34
30
35
30
20
22
24
10
24
10
11
23
22
21
11
13
10
23
60-Fix
24-FES /FIX
Front Left, Rear Right
14-FIX
Front Left, Rear Right
Front Right, Rear Left
24-FES /FIX
4
16
34
12
9

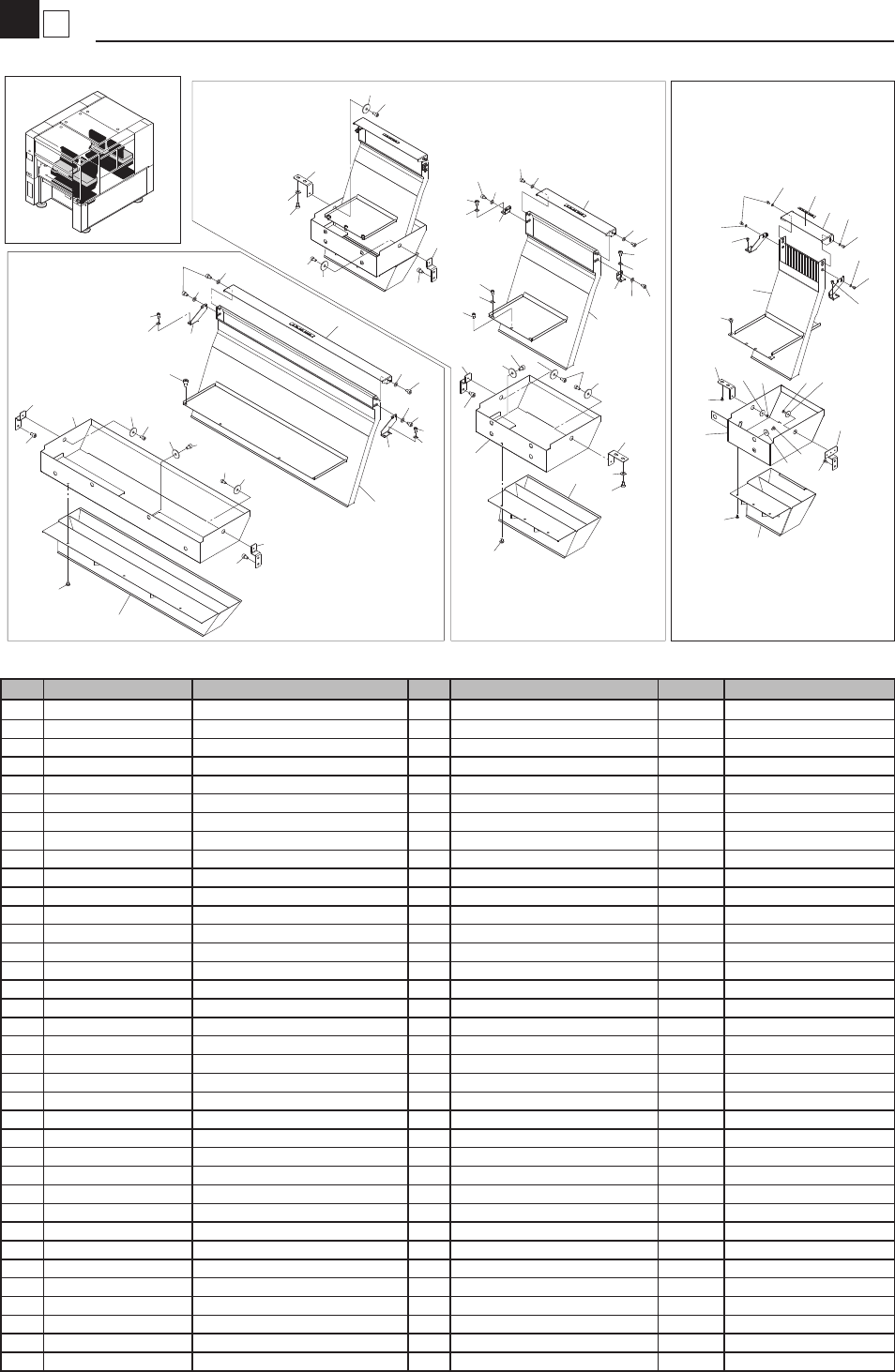

Non Tape Cutter (Old Type)
Tape Cutter
KKT-100514
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KHY-M3T0E-30 UPPER COVER 1, 720 1
2 KHY-M3T0S-11 UPPER COVER 2, 720 1
3 KHY-M3T0X-00 STAY L 1
4 KHY-M3T0X-10 STAY R 1
5 KHY-M11C1-15 DUCT 1 1
6 KHY-M11C2-30 DUCT 2 1
7 KHY-M11C3-00 BRKT., DUCT 2
8 KHY-M11C5-00
WASHER
6
9
91312-04006
BOLT HEX. SOCKET HEAD 22
M4X6
10 91312-04008 BOLT HEX. SOCKET HEAD 12 M4X8
11 91312-05008 BOLT HEX. SOCKET HEAD 13 M5X8
12 91312-06010 BOLT HEX. SOCKET HEAD 7 M6X10
13 92902-04600 WASHER PLAIN 18
14 98902-04006 SCREW BINDING HEAD 6
15 KHY-M3T0E-21 UPPER COVER 1, 284 1
16 KHY-M3T0S-01 UPPER COVER 2, 288 1
17 KHY-M3T0R-00 STAY L 1
18 KHY-M3T0R-10 STAY R 1
19 KHY-M11C1-04 DUCT 1 1
20 KHY-M11C2-20 DUCT 2 1
21 KHY-M11C3-00 BRKT., DUCT 1
22 KHY-M11C4-00 BRKT., DUCT 1
23 KHY-M11C5-00 WASHER 5
24 92902-04200 WASHER PLAIN 2
25 92902-06600 WASHER PLAIN 2
26 KKT-M11C1-00 DUCT 1 1
27 KKT-M11C2-00 DUCT 2 1
28 KHY-M11C3-01 BRKT.,DUCT 1
29 KHY-M11C4-00 BRKT.,DUCT 1
30 KHY-M11C5-00 WASHER 5
31 KKT-M3T0E-10 UPPER COVER 1,168 1
32 KKT-M3T0S-00 UPPER COVER 2,168 1
33 90K41-000240 SEAL,DON'T TOUCH 1
34 98902-04008 SCREW BINDING HEAD 7 M4X8
35 98902-05008 SCREW BINDING HEAD 5 M5X8
36 98902-06008 SCREW BINDING HEAD 4 M6X8
