YS24X_pl - 第9页
3 2 Base / Conveyor / CE Cover Cover KKT -1101 5 15 12 8 25 5 1 16 13 25 13 25 3 2 12 9 25 12 12 12 12 25 12 25 12 5 1 9 8 1 1 18 19 17 47 14 4 12 26 26 23 23 22 22 27 13 13 7 6 48 25 2 12 29 28 27 29 28 30 30 30 30 24 2…
2
2
Acril Door / LCD Stay
Cover
KKT-1101
55
59
19
16
2
17
57
23
10
11
5
18
7
7
7
53
15
22
12
18
11
11
21
9
23
10
4
15
13
55
52
1
7
16
17
17
3
8
58
20
6
9
11
21
56
14
53
52
58
62
43
38
50
49
33
28
34
32
33
51
42
42
42
45
25
31
39
36
44
47
40
49
50
47
44
30
30
30
29
29
29
29
29
27
35
35
35
48
35
29
30
29
42
27
24
48
26
37
46
41
45
49
50
63
60
61
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKE-M1309-00 COVER 9-1 (STD) 1
2 KKE-M130A-00 COVER 9-2 1
3 KKE-M130G-00 COVER 9-3 1
4 KKE-M1340-00 BRKT. 1, COVER 9 1
5 KKE-M1341-00 BRKT. 2, COVER 9 1
6 KHY-M1343-01 BRKT. 4, CVOER 9 1
7 KV2-M1351-00 PLATE 2, NUT 4
8 KH2-M1324-01 GRIP 1
9 KM0-M1331-01 BRACKET, GAS DAMPER 2
10 KGS-M1348-00 GAS, SPRING 2
11 90990-31J006 BOLT, SHOULDER 4
12 KL0-M1373-01 BRACKET 1, SCHMEASAL 1
13 KL0-M1374-00 PLATE 1, SCHMEASAL 1
14 KJJ-M1348-00 STOPPER 65 2
15 KGS-M1360-00 BOLT 4
16 90990-46J001 BOLT, THIN HEAD 12
17 90990-46J003 BOLT, THIN HEAD 10
18 91312-04006 BOLT HEX. SOCKET HEAD 4
19 91312-04008 BOLT HEX. SOCKET HEAD 2
20 91312-05010 BOLT HEX. SOCKET HEAD 2
21 91312-06010 BOLT HEX. SOCKET HEAD 4
22 92902-04200 WASHER, PLAIN 2
23 95302-06600 NUT, HEXAGON 2
24 KHW-M1381-00 BODY, STAND 1
25 KHY-M1382-00 BRACKET 1 1
26 KHY-M1386-00 BRACKET 2 1
27 KHW-M1383-00 BRACKET 2 2
28 KKE-M1384-00 BRACKET, LCD 1
29 KHW-M1385-00 SPACER 8
30 KHW-M1386-00 BUSH 4
31 KHY-M1385-10 STAY, LCD UNIT 1
32 KKE-M138A-00 DAMPER 4
33 90990-28J141 WASHER, PLAIN 8
34 90990-41J132 COLLAR 4
35 90990-37J001 WASHER, BELLEVILLE 8
36 90990-06J001 BOLT, BUTTON HEAD 1
37 91312-04006 BOLT HEX. SOCKET HEAD 1
38 91312-04008 BOLT HEX. SOCKET HEAD 4
39 91312-05010 BOLT HEX. SOCKET HEAD 4
40 91312-05014 BOLT HEX. SOCKET HEAD 4
41 91312-06008 BOLT HEX. SOCKET HEAD 1
42 91312-06020 BOLT HEX. SOCKET HEAD 4
43 92902-04200 WASHER, PLAIN 4
44 92902-05200 WASHER, PLAIN 8
45 92902-06600 WASHER, PLAIN 2
46 90172-00J040 WASHER, EXTL. TOOTHED 4
47 90172-00J050 WASHER, EXTL. TOOTHED 8
48 95602-06100 NUT, U 4
49 $NK-2N NYLON CLIP 5
50 90990-11J001 SCREW, PAN HEAD W/W 5
51 98902-04016 SCREW, BINDING HEAD 4
52 90K41-001040 LABEL, ALERT 2
53 90K41-000420 LABEL, ALERT 2
54
55 90K41-000360 LABEL, ALERT 2
56 KKT-M13D6-00 STICKER 1
57 KW7-M13D7-01 SEAL 2 (YAMAHA) 1
58 KHY-M13D8-10 STICKER 1
59 KKE-M1309-A0 COVER 9 ASSY. 2
60 KHY-M1391-00 PLATE, PROTECTOR 6
61 90990-12J003 SCREW BIN. HEAD W/W 12
62 KKE-M1390-00 LCD STAY ASSY 1
63 KHY-M139D-A0 COVER CAP (10N=0) 1
3
2

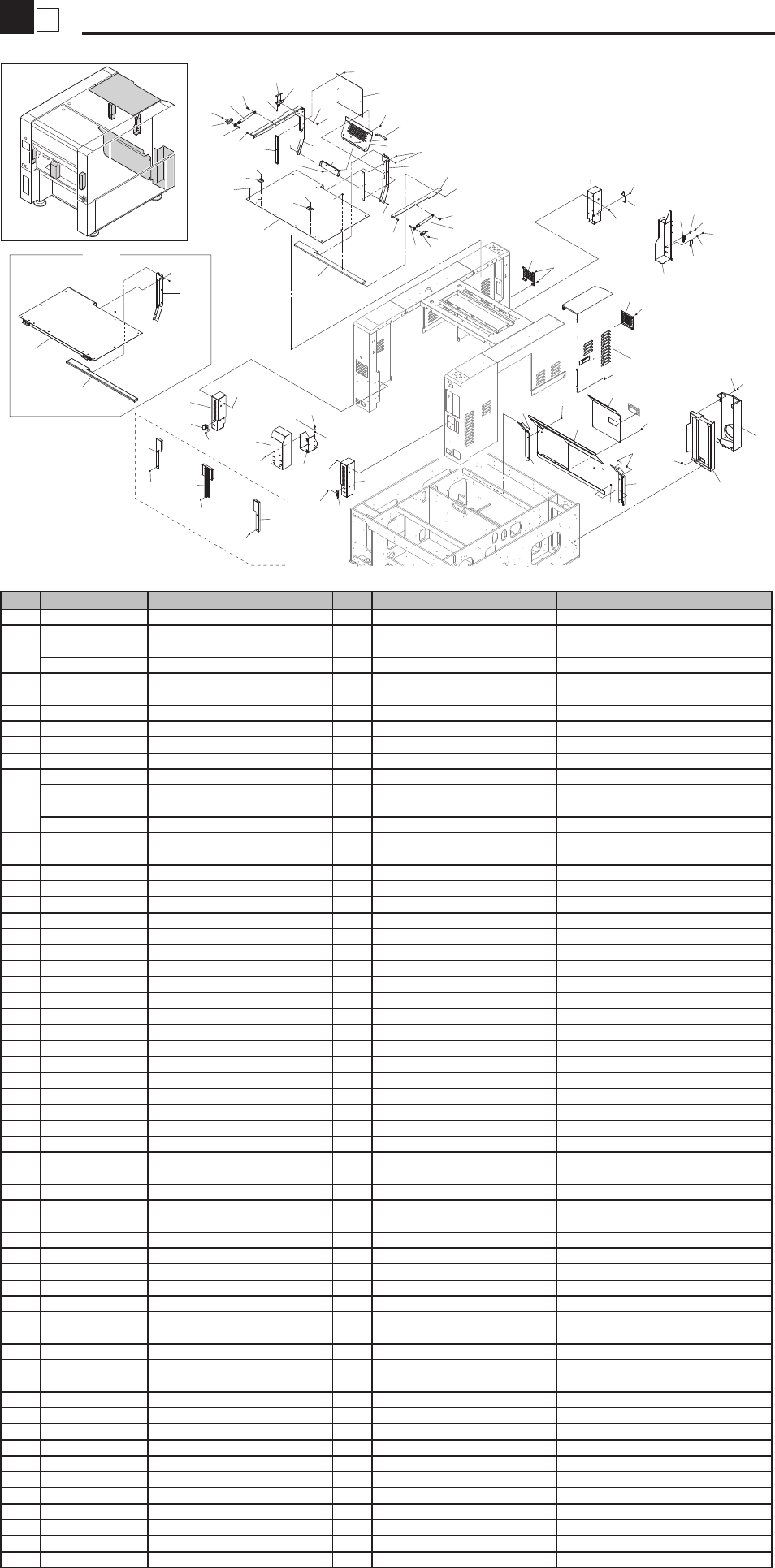

Base / Conveyor / CE Cover
Cover
KKT-1101
5
15
12
8
25
5
1
16
13
25
13
25
3
2
12
9
25
12
12
12
12
25
12
25
12
5
1
9
8
11
18
19
17
47
14
4
12
26
26
23
23
22
22
27
13
13
7
6
48
25
2
12
29
28
27
29
28
30
30
30
30
24
24
24
24
20
20
21
10
10
10
21
25
25
25
25
34
32
33
32
31
44
44
46
46
45
35
35
45
40
46
44
46
44
36
37
36
37
33
34
34
34
34
31
34
STD
STD
FES
FES
O/P
OPT
O/P
O/P
CONVEYOR:1250
CONVEYOR:1250
CONVEYOR:1460
CONVEYOR:1460
25
36
37
36
37
44
44
44
46
46
45
39
42
43
38
44
41
42
43
45
46
44
44
16
18
17
18
19
14
15
12
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHU-M1117-00 PULL 2
2 KKE-M1310-00 COVER 10 2
3 KKE-M132A-00 COVER 10-1 1
4
Delete MG60153-2010/8/16
KKE-M1311-00 COVER 11 1
5 KHY-M1312-00 COVER 12 2
6 KKE-M1313-00 COVER 13 1
7 KKE-M132B-01 COVER 13-1 1
8 KHY-M131A-00 BRKT. 1, COVER 12 2
9 KHY-M131B-00 BRKT. 2, COVER 12 2
10 KKE-M130K-00 DAMPER 5
11 KHY-M1164-00 COVER, FAN 1
12 90990-12J004 SCREW, BIN. HEAD W/W 24
13 KH1-M1396-00 WASHER 16
14
KKE-M1311-01 COVER 11 1 NG MG60153-2010/8/16
KKE-M132D-00 COVER 11-1 1
15
KKE-M130E-00 DOOR, COVER 11 1 NG MG60153-2010/8/16
KHY-M130E-00 DOOR, COVER 11 1
16 KGJ-M1350-00 SPACER, MINI LATCH 1
17 KGJ-M1351-01 PLATE, MINI LATCH 1
18 KW3-M1349-00 MINI LATCH 1
19 90990-12J006 SCREW, BIN. HEAD W/W 10
20 KHY-M13F1-01 CE COVER F1 2
21 KHY-M13F2-01 CE COVER F2 2
22 KJJ-M13A3-10 COVER CE C BRKT 2
23 KJJ-M13A3-01 COVER CE C MAIN 2
24 KJJ-M13AB-A0 HOLDER ASSY 4
25 90990-12J001 SCREW, BIN. HEAD W/W 48
26 90990-12J003 SCREW, BIN. HEAD W/W 8
27 91312-06010 BOLT HEX. SOCKET HEAD 4
28 90172-00J060 WASHER, EXTL. TOOTHED 4
29 92902-06200 WASHER, PLAIN 4
30 98907-04008 SCREW, BINDING HEAD 8
31 KHY-M13F3-00 CE COVER F3 2 FES
32 KHY-M13F4-00 CE COVER F4 2 FES
33 KHY-M13F5-00 CE COVER F5 2 FES
34 90990-12J001 SCREW BIN. HEAD W/W 16 FES
35 KKE-M1372-00 COVER 72, CON. 2
36 98902-04008 SCREW BINDING HEAD 10
37 90172-00J040 WASHER, EXTL. TOOTHED 10
38
KKE-M1376-01 COVER, CON. S 1 Compatibility by Chap.2-1 No.42 NG MH10015-2011/1/14
KKE-M1376-00 COVER, CON. S 1
39 KKE-M1377-00 COVER, CON. UPPER S 1
40
KKE-M1378-01 COVER, CON. L 1 Compatibility by Chap.2-1 No.42 NG MH10015-2011/1/14
KKE-M1378-00 COVER, CON. L 1
41 KKE-M1379-00 COVER, CON. UPPER L 1
42 KKE-M137A-00 PLATE, CON. COVER 2
43 90990-12J006 SCREW BIND HEAD W/W 12
44
90990-12J001 SCREW BIND HEAD W/W 8 STD. 1460, OPT. 1460
90990-12J001 SCREW BIND HEAD W/W 12 O/P 1250
45
KKE-M1371-00 COVER 71, CON. 2 O/P 1250
KKE-M1371-00 COVER 71, CON. 4 O/P 1460
46 KKE-M1373-00 COVER 73, CON. 4 O/P 1250
47 KKE-M132D-A0 COVER 11-1 ASSY 1
48 KKE-M132C-00 COVER 15-1 1
4
2
s-ATS II Type Cover
Cover
KKT-1101
47
40
41
48
51
49
33
36
34
36
53
53
53
44
44
43
50
52
52
43
50
45
38
39
39
37
29
31
32
37
1
30
35
37
42
37
37
37
37
24
25
23
27
22
22
12
4
8
18
23
23
20
28
20
26
16
23
17
11
2
19
5
9
17
28
18
20
15
14
19
16
20
26
13
21
24
13
46
7
6
46
54
46
FES
57
37
57
56
55
21
3
10
10
11
OLD
3
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKT-M1303-00 COVER 3 1
2 KKT-M1309-00 COVER 9-1 (S-ATS) 1
3
KKT-M130A-01 COVER 9-2 (S-ATS) 1 NG MG40110-2010/5/6
KKT-M130A-00 COVER 9-2 (S-ATS) 1
4 KKT-M130G-00 COVER 9-3 (S-ATS) 1
5 KKT-M1340-00 COVER 9-3 (S-ATS) 1
6 KHY-M13F4-00 CE COVER F4 1 FES
7 KHY-M13F5-00 CE COVER F5 1 FES
8 KKT-M1341-00 BRKT.2, COVER 9 1
9 KKT-M1343-00 BRKT.4, COVER 9 1
10
KKT-M1345-01 BRKT.5, COVER 9 1 NG MG40110-2010/5/6
KKT-M1345-00 BRKT.5, COVER 9 1
11
KKT-M1347-01 BRKT.6, COVER 9 1 NG MG40110-2010/5/6
KKT-M1347-00 BRKT.6, COVER 9 1
12 KH2-M1324-01 GRIP 1
13 KJJ-M1348-00 STOPPER 65 2
14 KL0-M1373-01 BRACKET 1 SCHMEASAL 1
15 KL0-M1374-00 PLATE 1 SCHMEASAL 1
16 KM0-M1331-01 BRACKET GAS DAMPER 2
17 KV2-M1351-00 PLATE 2 NUT 2
18 KGS-M1348-00 GAS SPRING 2
19 KGS-M1360-00 BOLT 4
20 90990-31J006 BOLT, SHOULDER 4
21 90990-46J001 BOLT, THIN HEAD 10
22 90990-46J003 BOLT, THIN HEAD 6
23 91312-04006 BOLT HEX. SOCKET HEAD 11
24 91312-04008 BOLT HEX. SOCKET HEAD 2
25 91312-05010 BOLT HEX. SOCKET HEAD 2
26 91312-06010 BOLT HEX. SOCKET HEAD 4
27 92902-04200 WASHER PLAIN 2
28 95302-06600 NUT HEXAGON 2
29 KKT-M1313-00 COVER 13 1
30 KKT-M132B-00 COVER 13-1 1
31 KKT-M1314-00 COVER 14 1
32 KKT-M132E-00 COVER 14-1 1
33 KKT-M13M1-00 PLATE, M1 1
34 KKE-M13M2-00 PLATE, M2 1
35 KH1-M1396-00 WASHER 16
36 98902-04010 SCREW, BINDING HEAD 8
37 90990-12J001 SCREW, BIN. HEAD W/W 17
38 KHY-M13F1-01 CE COVER F1 1
39 KHY-M13F2-01 CE COVER F2 2
40 KJJ-M13A3-01 COVER CE C MAIN 1
41 KJJ-M13A3-10 COVER CE C BRKT. 1
42 KKT-M13A4-00 COVER, CE RR. 1
43 KJJ-M13AA-00 LOCK BLOCK 2
44 KJJ-M13AB-A0 HOLDER ASSY 2
45 KKT-M13AA-A0 GUIDE ASSY. 1
46 90990-12J001 SCREW, BIN. HEAD W/W 12
47 90990-12J003 SCREW, BIN. HEAD W/W 4
48 91312-06010 BOLT HEX. SOCKET HEAD 2
49 90172-00J060 WASHER, EXTL. TOOTHED 2
50 92902-04200 WASHER, PLAIN 4
51 92902-06200 WASHER, PLAIN 2
52 98902-04008 SCREW, BINDING HEAD 4
53 98907-04008 SCREW, BINDING HEAD 6
54 KHY-M13F3-00 CE COVER F3 1 FES
55 KHY-M131A-00 BRKT. 1, COVER 12 1
56 KHY-M131B-00 BRKT. 2, COVER 12 1
57 90990-12J004 SCREW, BIN. HEAD W/W 6
