FX-3-Rev13(-J) - 第5页

65. FIXING BANK COMPONENTS FOR ETF(2) ........ ......................... .............. ......................... .............. .... ....... .............. .. 129 ＥＴＦ 用固定バンク関係（２） 66. FIXING BANK COMPONENTS FOR ETF(3) ..…

100%1 / 170
42. CONNECTOR BRACKET COMPONENTS .....................................................................................................................83
コネクタブラケット関係
43. LIFTER UNIT COMPONENTS (1) ...................................................................................................................................85
リフターユニット関係（１）
44. LIFTER UNIT COMPONENTS (2) ...................................................................................................................................87
リフターユニット関係（２）
45. FLOOR TROLLEY UNIT COMPONENTS(1) ...................................................................................................................89
フロアートロリーユニット関係（１）
46. FLOOR TROLLEY UNIT COMPONENTS(2) ...................................................................................................................91
フロアートロリーユニット関係（２）
47. NOZZLE ASSEMBLY COMPONENTS ............................................................................................................................93
ノズルアッセンブリ関係
48. HOD & REAR MONITOR COMPONENTS ......................................................................................................................95
ＨＯＤ・背面モニタ関係
49. MINI PAT COMPONENTS...............................................................................................................................................97
ミニパト関係
50. SOT CHECK TABLE COMPONENTS .............................................................................................................................99
ＳＯＴ 検査台関係
51. CONVEYOR EXTENTION COMPONENTS ..................................................................................................................101
コンベア延長関係
52. MAIN LINE FILTER COMPONENTS .............................................................................................................................103
メインラインフィルタ関係
53. FCS COMPONENTS .....................................................................................................................................................105
ＦＣＳ 関係
54. SCS COMPONENTS ..................................................................................................................................................... 107
ＳＣＳ 関係
55. RFID COMPONENTS (MPC)......................................................................................................................................... 109
ＲＦＩＤ 関係（ＭＰＣ）
56. RFID COMPONENTS (REPLACING OVERALL CHANGER TRUCK) .......................................................................... 111
ＲＦＩＤ 関係（一括交換台車）
57. CONVEYOR BARCODE READER COMPONENTS .....................................................................................................113
搬送バーコードリーダ関係
58. REPLACING OVERALL CHANGER TRUCK COMPONENTS FOR ETF (1) ................................................................ 115
ＥＴＦ 用一括交換台車関係（１）
59. REPLACING OVERALL CHANGER TRUCK COMPONENTS FOR ETF (2) ................................................................ 117
ＥＴＦ 用一括交換台車関係（２）
60. LIFTER UNIT COMPONENTS FOR ETF (1) ................................................................................................................. 119
ＥＴＦ 用リフターユニット関係（１）
61. LIFTER UNIT COMPONENTS FOR ETF (2) ................................................................................................................. 121
ＥＴＦ 用リフターユニット関係（２）
62. TAPE CUTTER UNIT COMPONENTS FOR ETF(1) .....................................................................................
................ 123
ＥＴＦ 用テープカッターユニット関係（１）
63. TAPE CUTTER UNIT COMPONENTS FOR ETF(2) .....................................................................................................125
ＥＴＦ 用テープカッターユニット関係（２）
64. FIXING BANK COMPONENTS FOR ETF(1) ................................................................................................................. 127
ＥＴＦ 用固定バンク関係（１）
65. FIXING BANK COMPONENTS FOR ETF(2) ................................................................................................................. 129
ＥＴＦ 用固定バンク関係（２）
66. FIXING BANK COMPONENTS FOR ETF(3) ................................................................................................................. 131
ＥＴＦ 用固定バンク関係（３）
67. FIXING BANK COMPONENTS FOR ETF(4) ................................................................................................................. 133
ＥＴＦ 用固定バンク関係（４）
68. SYSTEM DIAGRAM (POWER UNIT) ............................................................................................................................ 135
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＰＯＷＥＲ ＵＮＩＴ）
69. SYSTEM DIAGRAM (SERVO MOTOR) ........................................................................................................................137
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＳＥＲＶＯ ＭＯＴＯＲ）
70. SYSTEM DIAGRAM (XY-RELAY)..................................................................................................................................139
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＸＹ − ＲＥＬＡＹ）
71. SYSTEM DIAGRAM (Z-THETA POWER)...................................................................................................................... 141
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（Ｚθ ＰＯＷＥＲ）
72. SYSTEM DIAGRAM (Z-THETA MOTOR)......................................................................................................................143
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（Ｚθ ＭＯＴＯＲ）
73. SYSTEM DIAGRAM (HEAD LF/LR)...............................................................................................................................145
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＨＥＡＤ ＬＦ ／ ＬＲ）
74. SYSTEM DIAGRAM (HEAD RF/RR) .............................................................................................................................147
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＨＥＡＤ ＲＦ ／ ＲＲ）
75. SYSTEM DIAGRAM (BASE-CARRY) ............................................................................................................................149
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＢＡＳＥ − ＣＡＲＲＹ）
76. SYSTEM DIAGRAM (OPERATION/CPU/MONITOR)....................................................................................................151
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＯＰＥＲＡＴＩＯＮ ／ ＣＰＵ ／ ＭＯＮＩＴＯＲ）
77. SYSTEM DIAGRAM (FRAME FAN).................................................................................................
..............................153
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＦＲＡＭＥ ＦＡＮ）
78. SYSTEM DIAGRAM (FEEDER STATION) ....................................................................................................................155
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＦＥＥＤＥＲ  ＳＴＡＴＩＯＮ）
79. SYSTEM DIAGRAM (MECH TOROLY I/F) ....................................................................................................................157
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＭＥＣＨ ＴＯＲＯＬＹ Ｉ ／ Ｆ）
80. SYSTEM DIAGRAM (CVS/RFID/TRACEABILITY) ........................................................................................................159
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＣＶＳ ／ ＲＦＩＤ ／ ＴＲＡＣＥＡＢＩＬＩＴＹ）
81. SYSTEM DIAGRAM (ELEC TOROLY I/F) ..................................................................................................................... 161
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＥＬＥＣ ＴＯＲＯＬＹＩ ／ Ｆ）
- 1 -
MAIN UNIT
本体

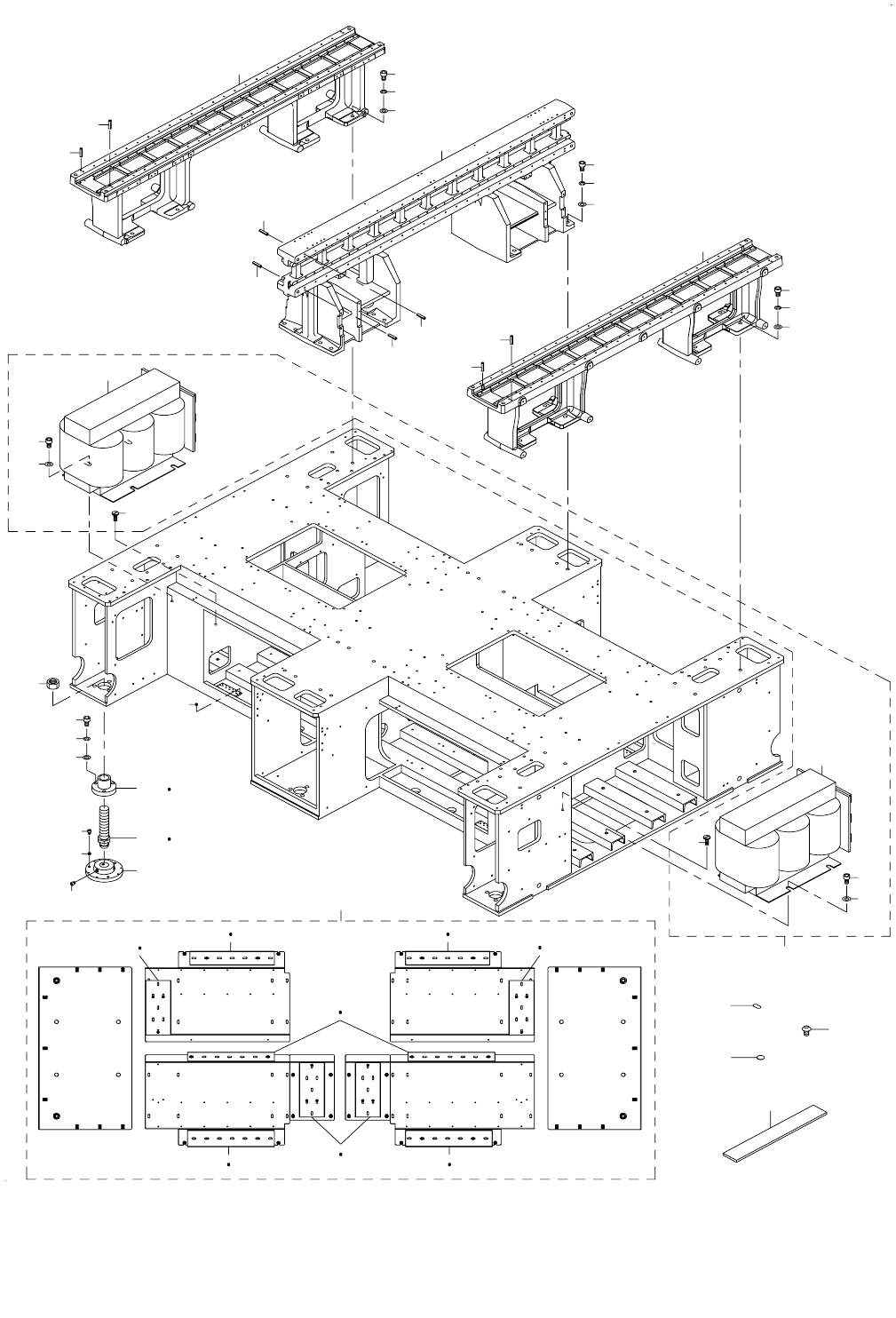

1. BASE FRAME COMPONENTS(1)
ベースフレーム関係（１）
2
7
5
4
3
9
8
10
6
6
6
6
17
18
12
13
15
14
16
20
22
21
19
21
36
35
35
33
34
36
32
25
7
27
28 27 28
27
29
27
30 27 30
27
31
27 31
27
31
8
10
9
34
26
23
1
33
11
11
11
11
24
37
