55.ATC&CALBLOCKCOMPONENTS(2)(RS-1R)

- -

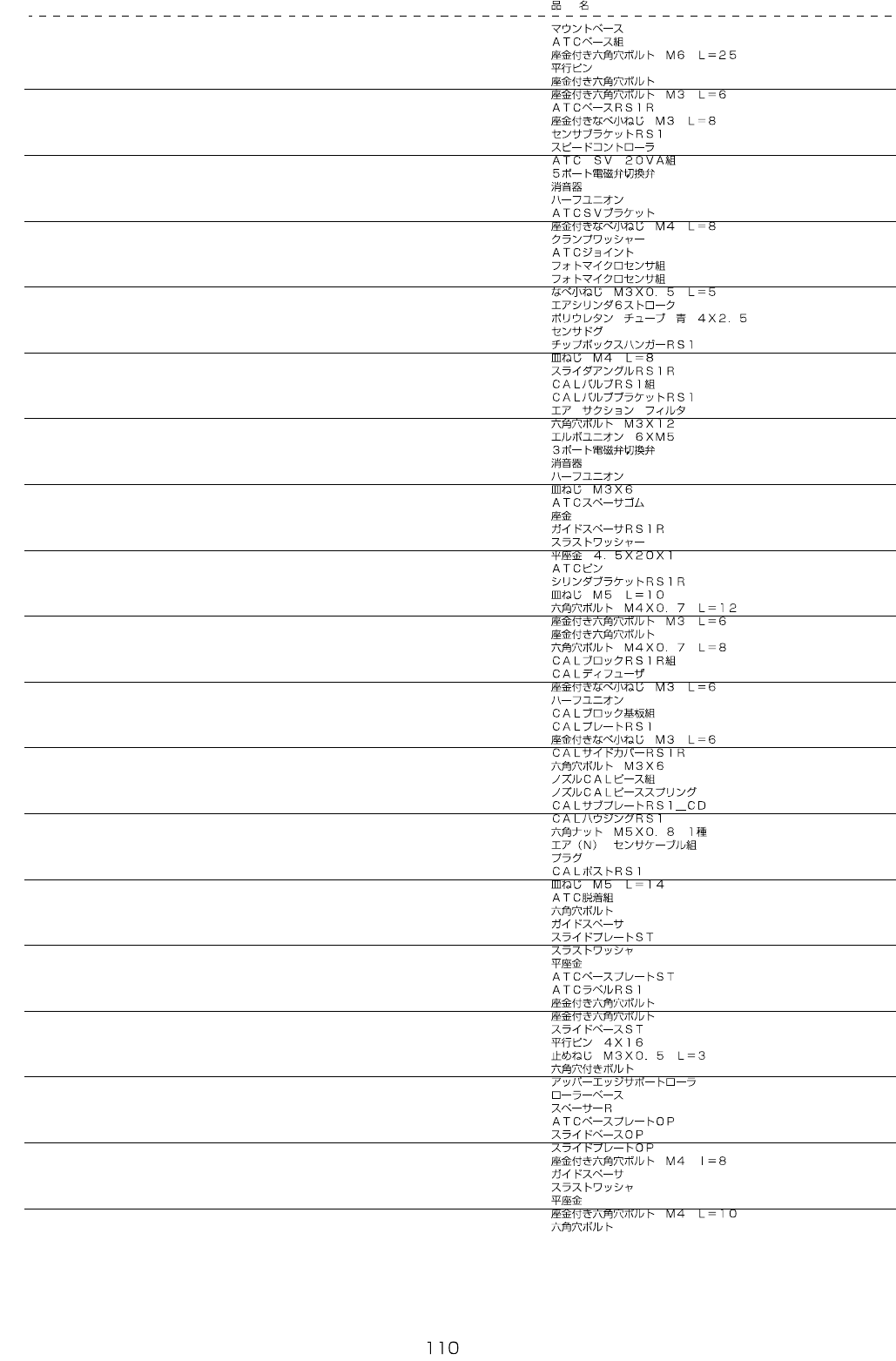

REF.NO NOTE PARTNO DESCRIPTION Qty

1 HX-0070600-0A MOUNTBASE 2

2 402-11729 ATC_BASE_ASM 1

3 SL-6062592-TN SCREWM6L=25 (4)

4 PH-0400122-C0 PIN (2)

5 SL-6040892-TN BOLT (2)

6 SL-6030692-TN SCREWM3L=6 (2)

7 402-17182 ATC_BASE_RS1R (1)

8 SL-4030891-SC SCREWM3L=8 (2)

9 401-82965 SENSOR_BR_RS1 (1)

10 PC-0105080-00 SPEEDCONTROLLER (2)

11 401-46937 ATC_SV_20VA_ASM (1)

12 PV-1505380-00 5-PORTSOLENOIDVALVE (1)

13 PX-0505010-00 SILENCER (2)

14 PJ-2100061-00 HALFUNION (1)

15 401-28203 ATC_SV_BRKT (1)

16 SL-6040892-TN SCREWM4L=8 (2)

17 GLA-02335000 CLAMPWASHER (1)

18 E3528-729-000 ATCJOINT (1)

19 401-29062 PHOTOMICROSENSORASM (1)

20 401-29062 PHOTOMICROSENSORASM (1)

21 SM-4030501-SC SCREWM3X0.5L=5 (4)

22 401-82966 AIR_CYLINDER_6STROKE (1)

23 BT-0400251-EA URETHANETUBEBLUE4X2.5 (1.5)

24 400-45978 SENSORDOG (1)

25 401-82969 CHIP_BOX_HANGER_RS1 (1)

26 SM-1040801-SN SCREWM4X0.7L=8 (2)

27 402-17183 SLIDER_ANGLE_RS1R (1)

28 401-83481 CAL_VALVE_RS1_ASM (1)

29 401-82962 CAL_VALVE_BR_RS1 (1)

30 PF-0100030-A0 AIRSUCTIONFILTER (1)

31 SM-6031202-TN SCREWM3X12 (2)

32 PJ-3040605-02 ELBOWUNION6XM5 (1)

33 PV-1305410-00 3-PORTSOLENOIDVALVE (1)

34 PX-0505010-00 SILENCER (1)

35 PJ-3010405-05 HALFUNION (1)

36 SM-1030601-SC SCREWM3X6 (2)

37 400-01286 ATCSPACERRUBBER (1)

38 B2107-816-000 WASHER (1)

39 402-17185 GUIDE_SPACER_RS1R (1)

40 E3404-700-000 THRUSTWASHER (2)

41 WP-0451016-SP WASHER4.5X20X1 (1)

42 401-28190 ATC_PIN (2)

43 402-17184 CYLINDER_BR_RS1R (1)

44 SM-1051052-TN SCREWM5L=10 (2)

45 SM-6041202-TN SCREWM4X0.7L=12 (1)

46 SL-6030692-TN SCREWM3L=6 (1)

47 SL-6044092-TN SCREW (2)

48 SM-6040802-TN SCREWM4X0.7L=8 (2)

49 402-18664 CAL_BLOCK_RS1R_ASM (1)

50 L202E-621-000 CALDIFFUSER (1)

51 SL-4030691-SC SCREWM3L=6 (2)

52 PJ-3010405-05 HALFUNION (1)

53 400-07376 CALBLOCKPCBASM (1)

54 401-82961 CAL_PLATE_RS1 (1)

55 SL-4030691-SC SCREWM3L=6 (2)

56 402-17186 CAL_SIDE_COVER_RS1R (1)

57 SM-6030602-TN SCREWM3X6 (2)

58 401-83480 NOZZLE_CAL_PIECE_ASM (1)

59 L203E-121-000 NOZZLECALPIECEOUTERSP (1)

60 401-82976 CAL_SUB_PLATE_RS1_CD (1)

61 401-82964 CAL_POST_HOUSING_RS1 (1)

62 NM-6050001-SC NUTM5X0.8TYPE1 (1)

63 401-29080 AIR(N)SENSORCABLEASM (1)

64 PJ-0205000-02 PLUG (1)

65 401-82963 CAL_POST_RS1 (1)

66 SM-1051452-TN PLATESCREWM5L=14 (2)

67 402-17391 ATC_REMOVABLE_ASM 1

68 SM-6041002-TN BOLT (4)

69 401-51721 GUIDE_SPACER (2)

70 402-17178 SLIDE_PLATE_ST (1)

71 E7308-700-000 THRUSTWASHER (4)

72 WP-0431005-SP PLAINWASHER (2)

73 402-17176 ATC_BASE_PLATE_ST (1)

74 401-82970 ATC_LABEL_RS1 (1)

75 SL-6041042-TN BOLT (2)

76 SL-6040892-TN BOLT (4)

77 402-17177 SLIDE_BASE_ST (1)

78 401-93605 PARALLEL_PIN_D4X16 1

79 SM-8030302-TP SCREWM3X0.5L=3 2

80 SM-6043552-TN SCREWM4L=35 2

81 401-86607 UPPER_EDGE_SUPPORT_ROLLER 1

82 401-86608 ROLLER_BASE 1

83 401-86610 SPACER_R 1

84 402-17179 ATC_BASE_PLATE_OP 1

85 402-17180 SLIDE_BASE_OP 1

86 402-17181 SLIDE_PLATE_OP 1

87 SL-6040892-TN SCREWM4L=8 4

88 401-51721 GUIDE_SPACER 2

89 E7308-700-000 THRUSTWASHER 4

90 WP-0431005-SP PLAINWASHER 2

91 SL-6041042-TN SCREWM4L=10 2

92 SM-6041002-TN SCREW 4

- -

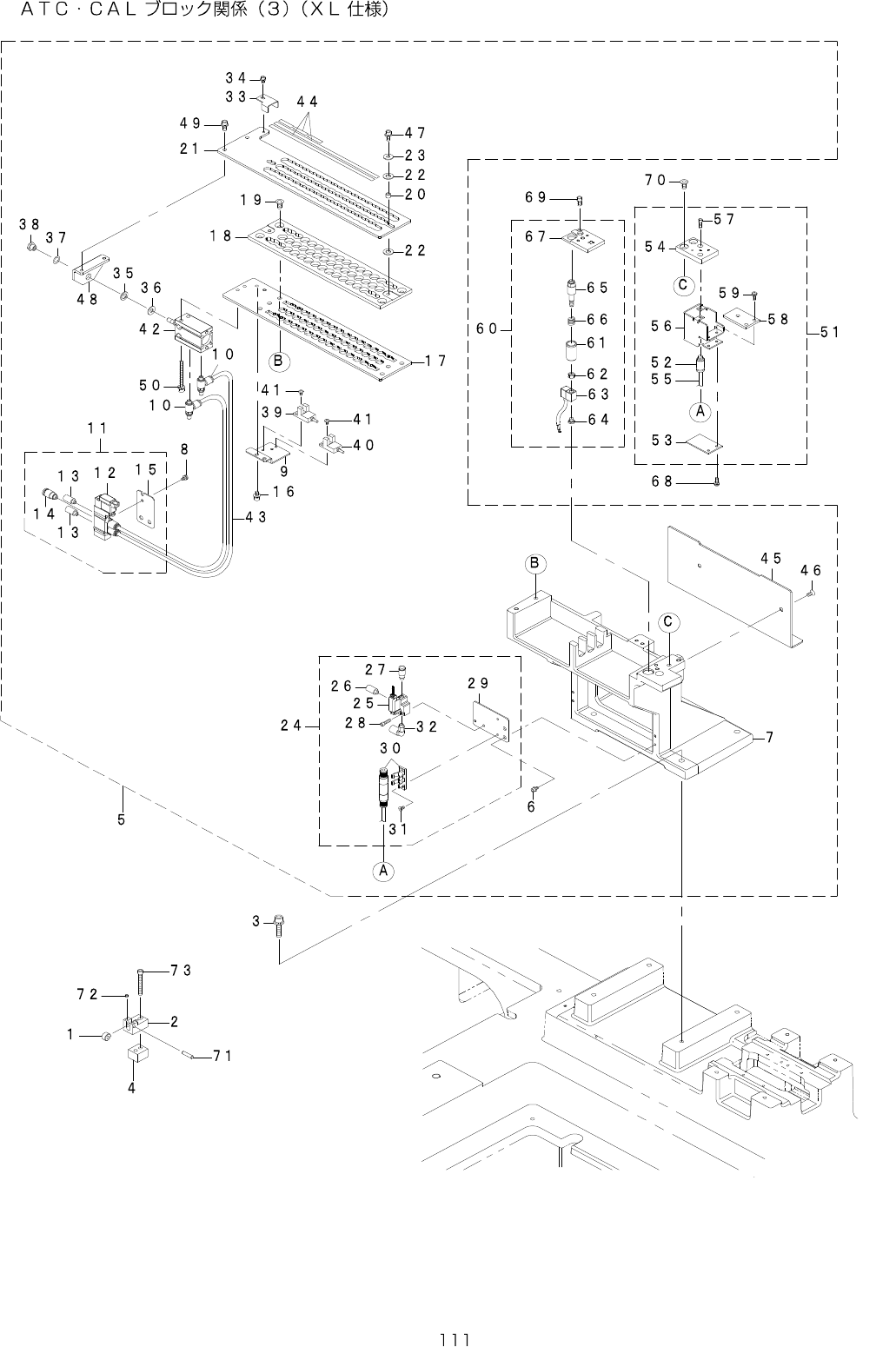

56.ATC&CALBLOCKCOMPONENTS(3)(TYPEXL)
