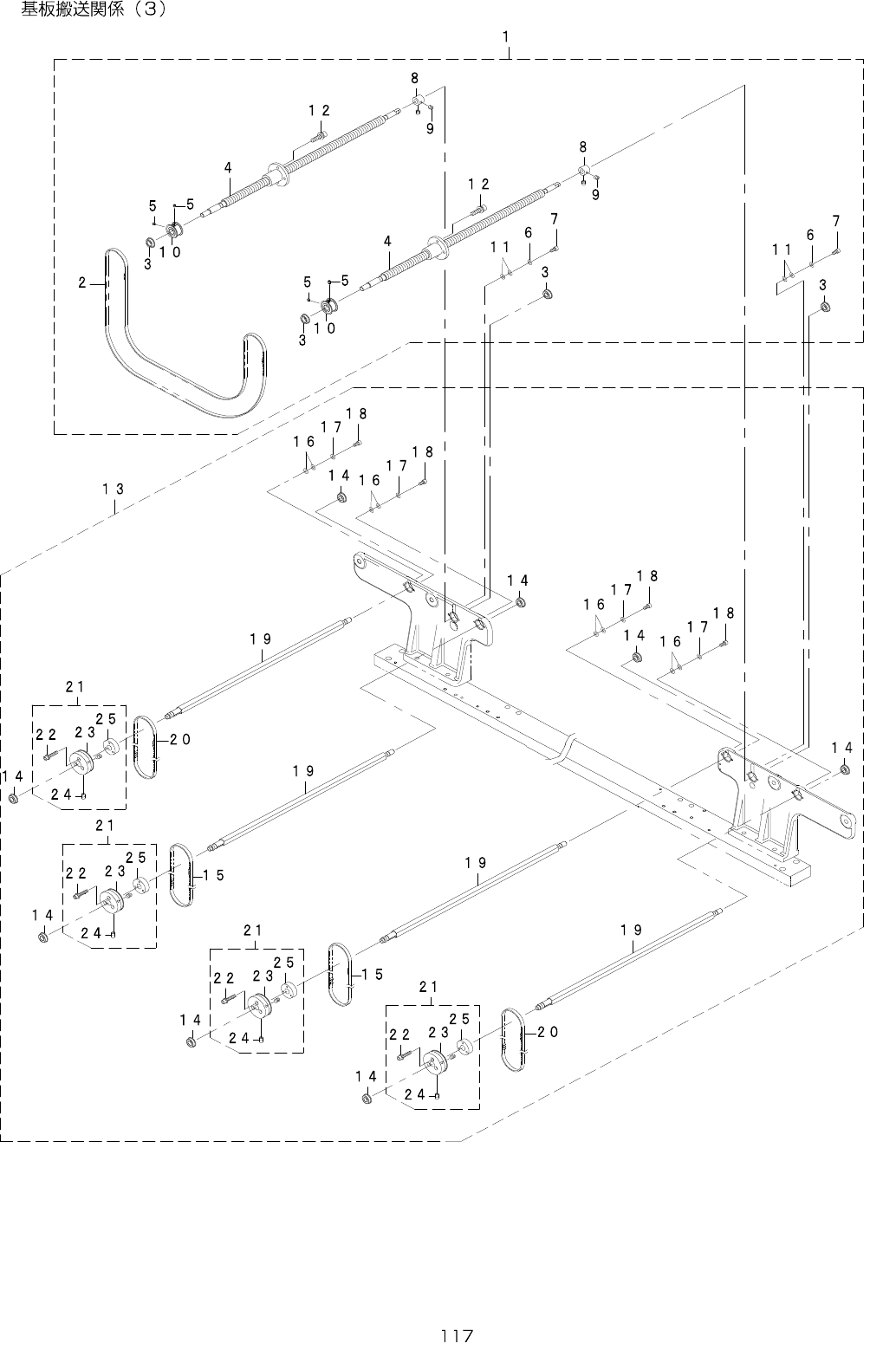

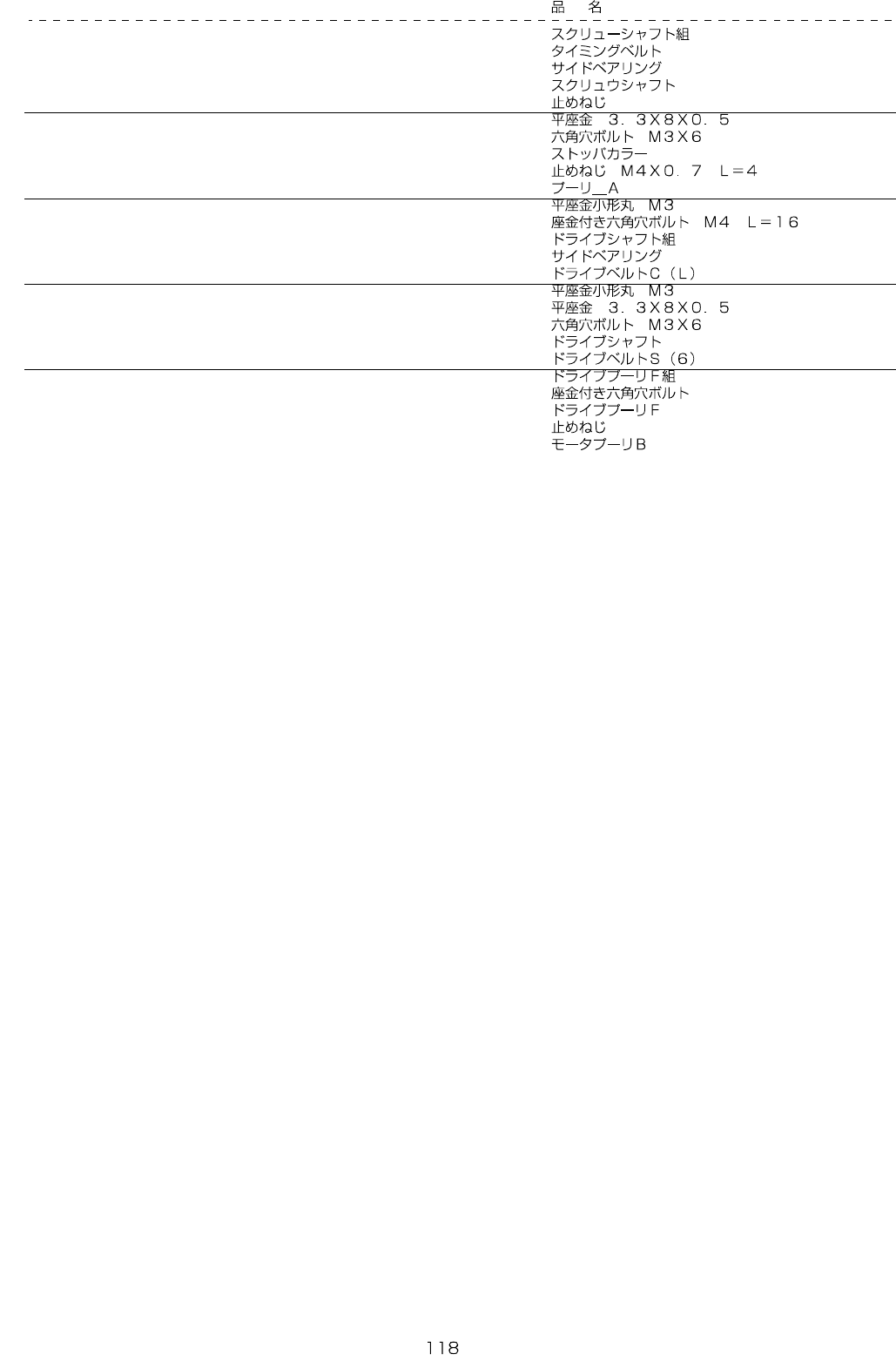

59.PWBCONVEYORCOMPONENTS(3)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-83560 SCREWSHAFTASM 1

2 E2146-721-000 TIMINGBELT (1)

3 SB-1080002-00 SIDEBEARING (4)

4 401-83059 SCREW_SHAFT (2)

5 SM-8040602-TP SCREWM4X0.7L=6 (4)

6 WP-0330516-SC WASHER3.3X8X0.5 (4)

7 SM-6030602-TN SCREWM3X6 (4)

8 E2141-721-000 STOPPERCOLLAR (2)

9 SM-8040402-TP SCREWM4X0.7L=4 (4)

10 401-84270 PULLEY_A (2)

11 WP-0320500-SF WASHER3.2X7X0.5 (8)

12 SL-6041692-TN SCREWM4L=16 (8)

13 401-83563 DRIVESHAFTASM 1

14 SB-1080002-00 SIDEBEARING (8)

15 400-01005 DRIVEBELTC(L) (2)

16 WP-0320500-SF WASHER3.2X7X0.5 (16)

17 WP-0330516-SC WASHER3.3X8X0.5 (8)

18 SM-6030602-TN SCREWM3X6 (8)

19 401-83058 DRIVE_SHAFT (4)

20 400-46033 DRIVEBELTS(6) (2)

21 400-00849 DRIVEPULLEYFASM (4)

22 SL-6031642-TN SCREW (3)

23 400-00850 DRIVEPULLEYF (1)

24 SM-8040602-TP SCREWM4X0.7L=6 (2)

25 400-00851 MOTORPULLEYB (1)

- -

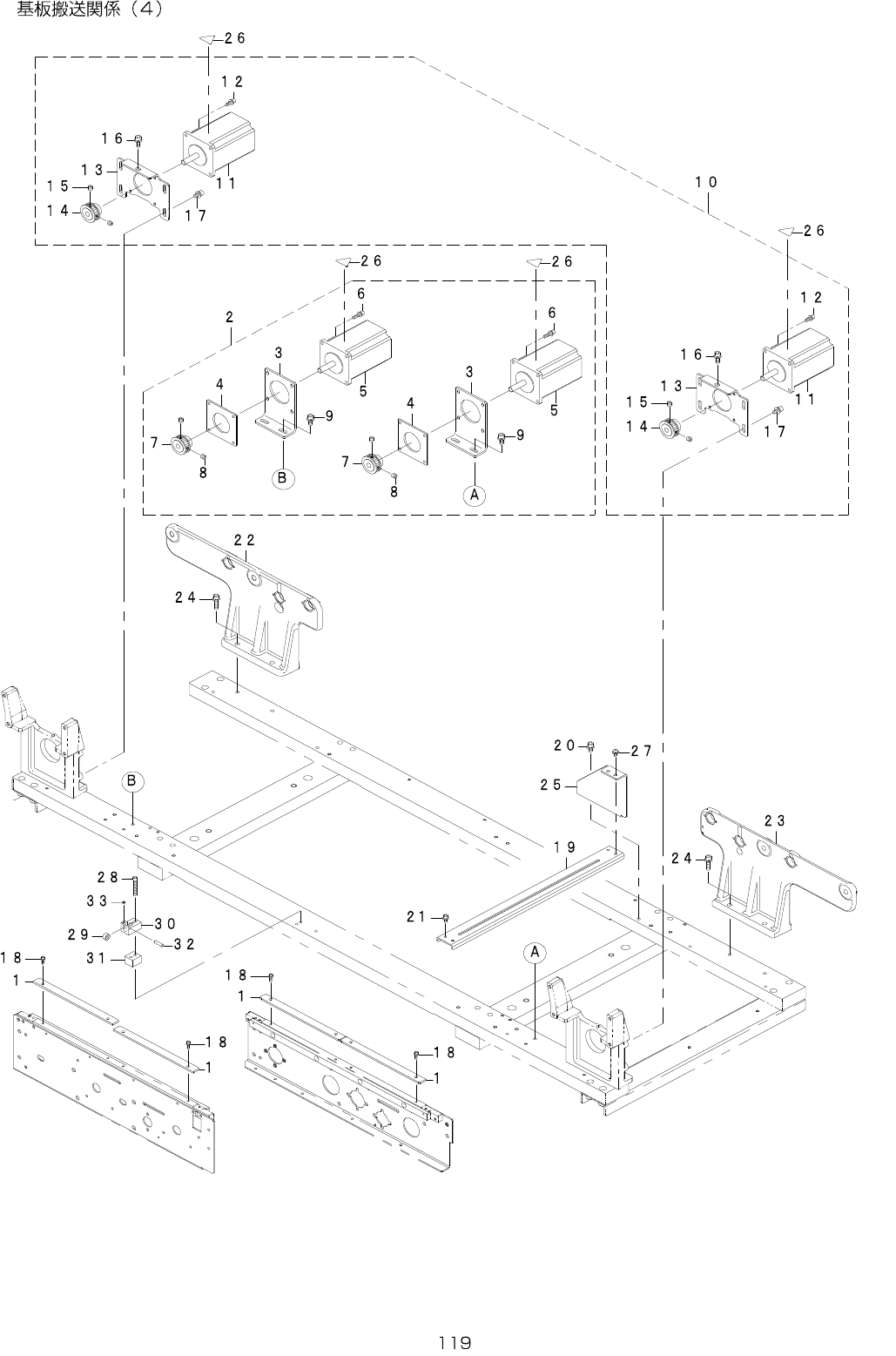

60.PWBCONVEYORCOMPONENTS(4)
