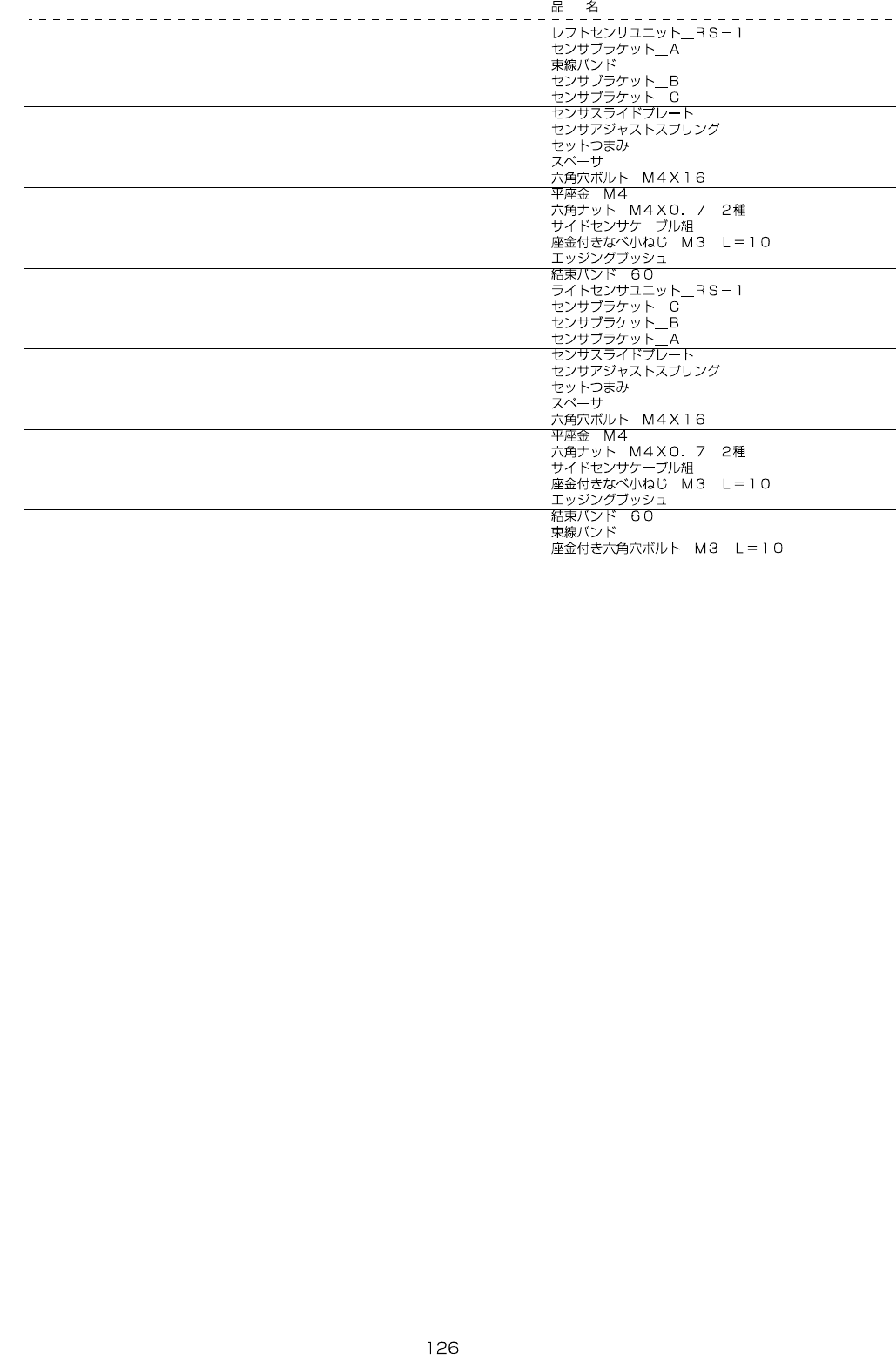

- - 64. PWBCONVEY ORCOMPONEN TS(8)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-88588 LEFTSENSORUNIT_RS-1 1

2 401-46990 SENSOR_BR_A (1)

3 HX-0044000-00 CABLEBAND (1)

4 401-46991 SENSOR_BR_B (1)

5 400-01079 SENSORBRAKETC (1)

6 400-01076 SENSORSLIDEPLATE (1)

7 400-00912 SENSORADJUSTSPRING (3)

8 G6518-880-000 SETPICK-UP (1)

9 400-58815 SPACER (1)

10 SM-6041602-TN SCREWM4X16 (3)

11 WP-0430801-SC WASHERM4 (6)

12 NM-6040002-SE NUTM4X0.7 (3)

13 401-29046 SIDESENSORCABLEASM (1)

14 SL-4031091-SC SCREWM3L=10 (2)

15 HX-0036700-0A GROMMET (0.16)

16 EA-9500B00-00 CABLEBAND (5)

17 401-88589 RIGHTSENSORUNIT_RS-1 1

18 400-01079 SENSORBRAKETC (1)

19 401-46991 SENSOR_BR_B (1)

20 401-46990 SENSOR_BR_A (1)

21 400-01076 SENSORSLIDEPLATE (1)

22 400-00912 SENSORADJUSTSPRING (3)

23 G6518-880-000 SETPICK-UP (1)

24 400-58815 SPACER (1)

25 SM-6041602-TN SCREWM4X16 (3)

26 WP-0430801-SC WASHERM4 (6)

27 NM-6040002-SE NUTM4X0.7 (3)

28 401-29046 SIDESENSORCABLEASM (1)

29 SL-4031091-SC SCREWM3L=10 (1)

30 HX-0036700-0A GROMMET (0.16)

31 EA-9500B00-00 CABLEBAND (5)

32 HX-0044000-00 CABLEBAND (1)

33 SL-6031092-TN SCREWM3L=10 4

- -

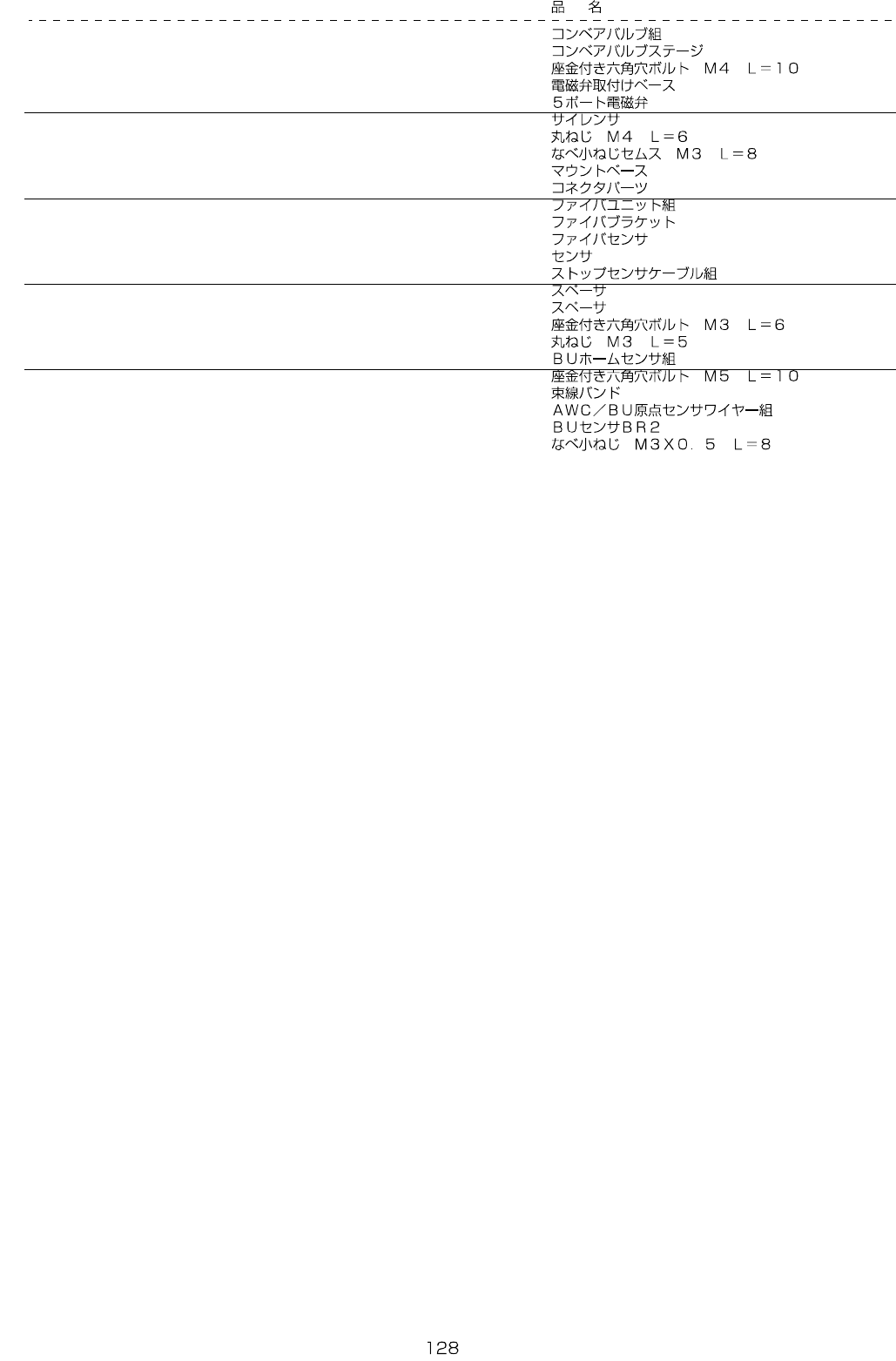

64.PWBCONVEYORCOMPONENTS(8)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-83551 CONVEYOR_VALVE_UNIT 1

2 401-47000 CONVEYOR_VALVE_STAGE (1)

3 SL-6041092-TN SCREWM4L=10 (2)

4 401-91339 SOLENOID_VALVE_INSTALLING_BASE (1)

5 PV-1502093-00 5PORTSOLENOIDVALVE (3)

6 PX-0500030-00 SILENCER (1)

7 SM-3040652-TN SCREWM4L=6 (2)

8 SL-4030891-SC SCREWM3X8 (4)

9 HX-0070600-0A MOUNTBASE (3)

10 HK-0498900-0G BLOCKTERMINAL (1)

11 401-83556 FIBER_UNIT_ASM 1

12 401-83047 FIBER_BRACKET (8)

13 401-82350 FIBERSENSOR (2)

14 HD-0010700-30 SENSOR (2)

15 401-81868 STOPSENSORCABLEASM (3)

16 HX-0035400-0S SPACER (8)

17 HX-0035400-0A SPACER (8)

18 SL-6030692-TN SCREWM3L=6 (8)

19 SM-3030552-TN SCREWM3L=5 (8)

20 401-83549 BU_HOME_SENSOR_ASM 1

21 SL-6051092-TN SCREWM5L=10 (2)

22 EA-9500B01-00 CABLEBAND (1)

23 401-29042 AWC/BUORGSENSORCABLEASM (1)

24 401-89350 BU_SENSOR_BR2 (1)

25 SM-4030801-SC SCREWM3X0.5L=8 (1)
