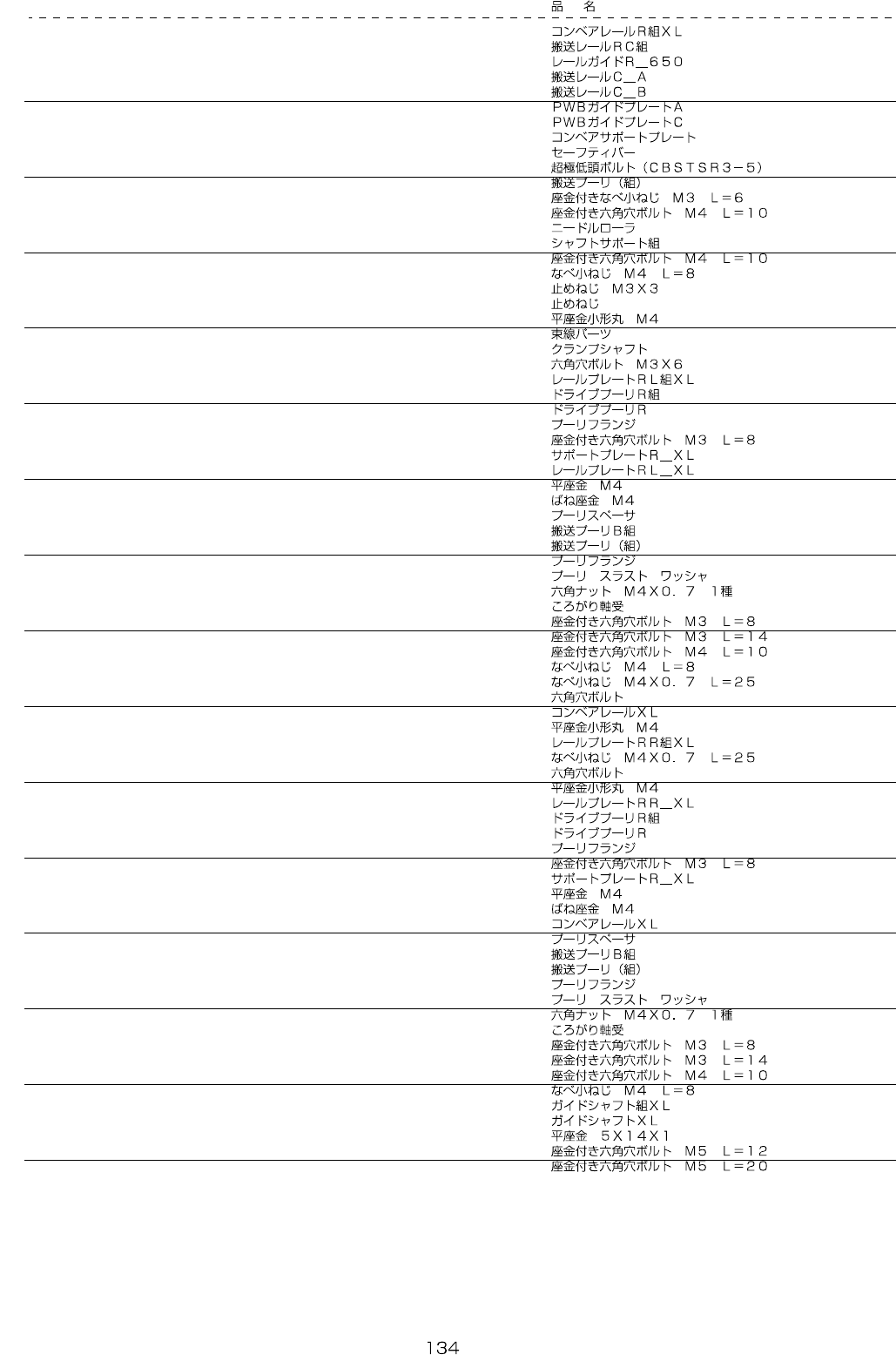

67.PWBCONVEYORCOMPONENTS(11)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-15470 CONVEYOR_RAIL_R_ASM_XL 1

2 401-83831 CONVEYOR_RAIL_RC_ASM (1)

3 401-83048 RAIL_GUIDE_R_650 (1)

4 401-83041 CONVEYOR_RAIL_C_A (1)

5 401-83029 CONVEYOR_RAIL_C_B (1)

6 401-83027 PWB_GUIDE_PLATE_A (4)

7 401-83056 PWB_GUIDE_PLATE_C (1)

8 402-01088 CONVEYOR_SUPPORT_PLATE_L (1)

9 401-83050 SAFETY_BAR (1)

10 EZ-4453818-01 BOLT(CBSTSR3-5) (15)

11 E2111-715-0A0 CONVEYORPULLEYASM. (8)

12 SL-4030691-SC SCREWM3L=6 (7)

13 SL-6041092-TN SCREWM4L=10 (16)

14 401-28520 NEEDLE_ROLLER (4)

15 401-28609 SHAFT_SUPPORT_ASM (4)

16 SL-6041092-TN SCREWM4L=10 (8)

17 SM-4040855-SC SCREW (4)

18 SM-8030302-TP SCREWM3X3 (4)

19 SM-8040602-TP SCREWM4X0.7L=6 (4)

20 WP-0430800-SC WASHERM4 (8)

21 HX-0034400-00 FIXEDBASE (7)

22 401-83077 CLAMP_SHAFT (4)

23 SM-6030602-TN SCREWM3X6 (3)

24 402-15471 RAIL_PLATE_RL_ASM_XL (1)

25 400-00839 DRIVE_PULLEY_R_ASM (2)

26 400-00840 DRIVE_PULLEY_R (1)

27 E2160-721-000 PULLEYFLANGE (1)

28 SL-6030892-TN SCREWM3L=8 (3)

29 402-15078 SUPPORT_PLATE_R_XL (1)

30 402-15075 RAIL_PLATE_RL_XL (1)

31 WP-0430801-SC WASHERM4 (8)

32 WS-0410002-KN SPRINGWASHERM4 (8)

33 E2055-721-000 PULLEYSPACER (8)

34 E2089-721-0A0 CONVEYORPULLEYBASM. (8)

35 E2111-715-0A0 CONVEYORPULLEYASM. (2)

36 E2160-721-000 PULLEYFLANGE (2)

37 E3931-750-000 PULLEYWASHER (4)

38 NM-6040001-SC NUTM4X0.7TYPE1 (8)

39 SB-8200001-00 BEARING (2)

40 SL-6030892-TN SCREWM3L=8 (6)

41 SL-6031492-TN SCREWM3L=14 (4)

42 SL-6041092-TN SCREWM4L=10 (7)

43 SM-4040855-SC SCREW (2)

44 SM-4042501-SC SCREWM4X0.7L=25 (8)

45 SM-6051002-TN BOLT (8)

46 402-15077 CONVEYOR_RAIL_XL (1)

47 WP-0430800-SC WASHERM4 (2)

48 402-15472 RAIL_PLATE_RR_ASM_XL (1)

49 SM-4042501-SC SCREWM4X0.7L=25 (8)

50 SM-6051002-TN BOLT (8)

51 WP-0430800-SC WASHERM4 (2)

52 402-15076 RAIL_PLATE_RR_XL (1)

53 400-00839 DRIVE_PULLEY_R_ASM (2)

54 400-00840 DRIVE_PULLEY_R (1)

55 E2160-721-000 PULLEYFLANGE (1)

56 SL-6030892-TN SCREWM3L=8 (3)

57 402-15078 SUPPORT_PLATE_R_XL (1)

58 WP-0430801-SC WASHERM4 (8)

59 WS-0410002-KN SPRINGWASHERM4 (8)

60 402-15077 CONVEYOR_RAIL_XL (1)

61 E2055-721-000 PULLEYSPACER (8)

62 E2089-721-0A0 CONVEYORPULLEYBASM. (8)

63 E2111-715-0A0 CONVEYORPULLEYASM. (2)

64 E2160-721-000 PULLEYFLANGE (2)

65 E3931-750-000 PULLEYWASHER (4)

66 NM-6040001-SC NUTM4X0.7TYPE1 (8)

67 SB-8200001-00 BEARING (2)

68 SL-6030892-TN SCREWM3L=8 (6)

69 SL-6031492-TN SCREWM3L=14 (4)

70 SL-6041092-TN SCREWM4L=10 (7)

71 SM-4040855-SC SCREW (2)

72 400-98156 GUIDE_SHAFT_ASM_XL 4

73 400-97729 GUIDE_SHAFT_XL (1)

74 WP-0501046-SC WASHER5X14X1 (2)

75 SL-6051292-TN SCREWM5L=12 (1)

76 SL-6052042-TN SCREWM5L=20 (1)

- -

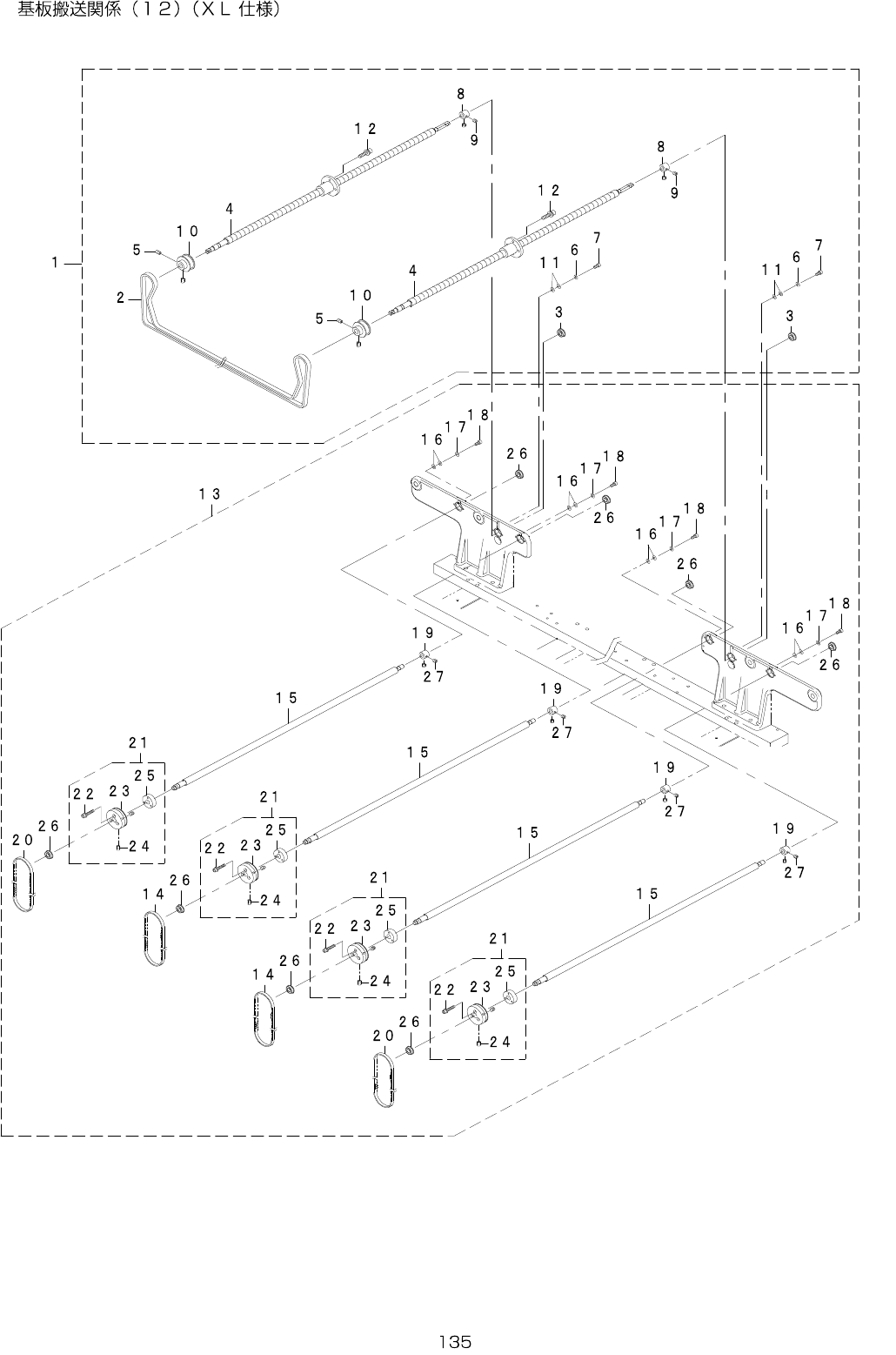

68.PWBCONVEYORCOMPONENTS(12)(TYPEXL)
